- Cytron 30A motor driver for brushed DC motors
- Supports wide operating voltage: 5V to 30V DC
- Delivers continuous 30A current, up to 80A peak
- Efficient fully NMOS design—no heatsink or fan needed
- Built-in reverse polarity protection for safety
- Includes onboard PWM generator—can operate without external controller
- Cytron single channel motor driver with user-friendly interface
- Control via onboard or external switches and potentiometer
Cytron 30Amp 5V-30V DC Motor Driver

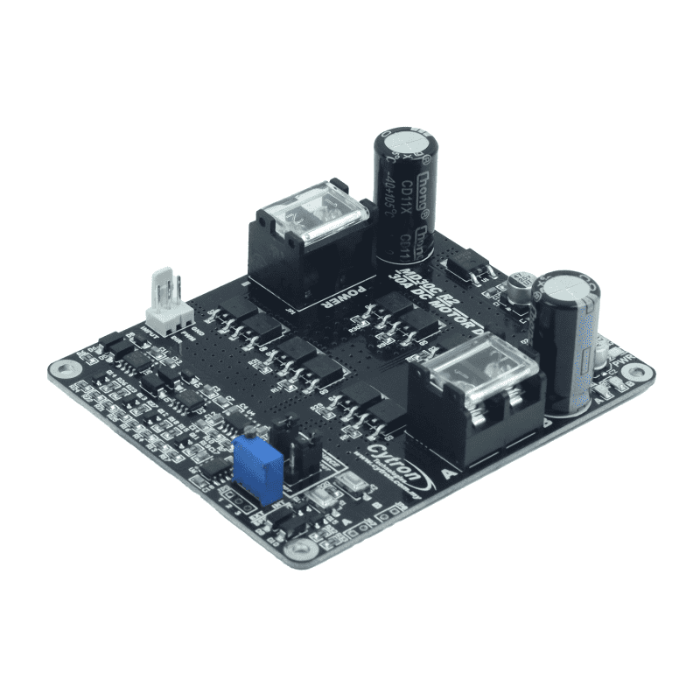

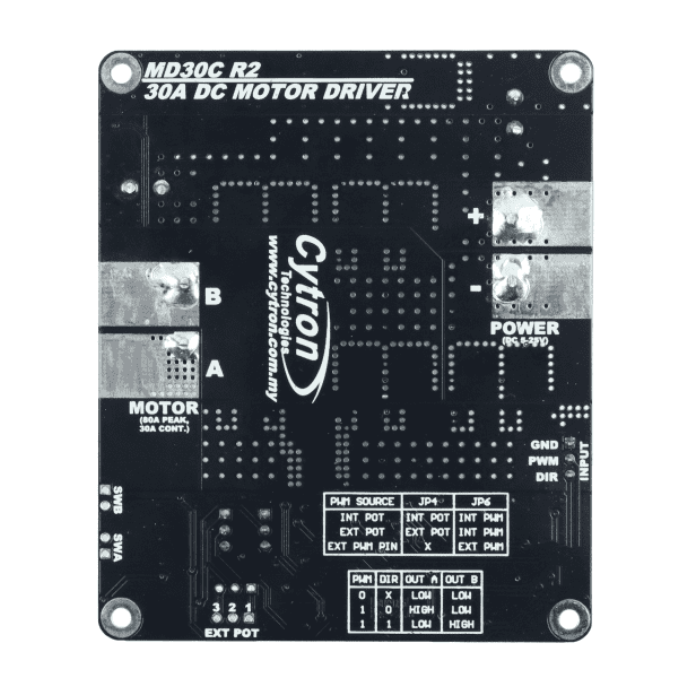

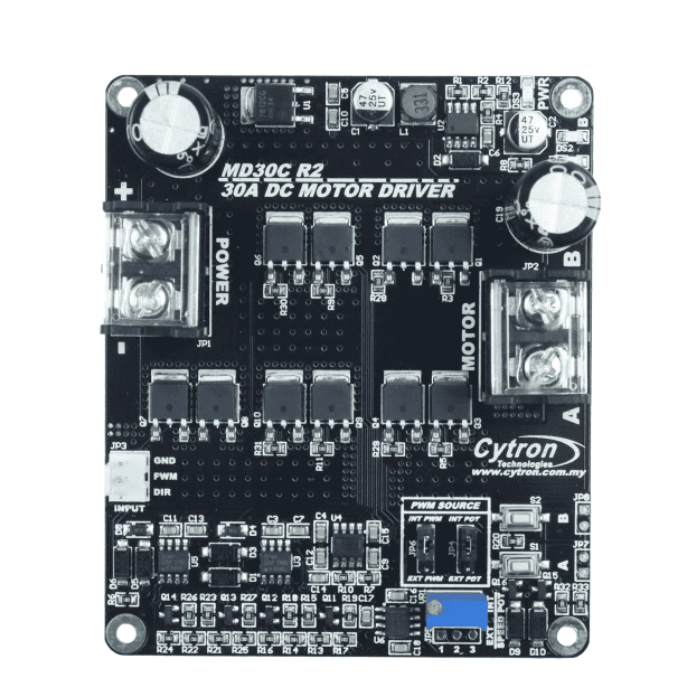

The Cytron 30Amp DC Motor Driver (MD30C) is a high-performance upgrade to the MD30B, engineered for powering medium to high power brushed DC motors. This Cytron DC motor driver 30A handles a continuous current of 30A and can peak up to 80A, making it ideal for demanding applications.
Operating across a voltage range of 5V to 30V, it qualifies as a versatile 30A motor driver 5V to 30V solution. The fully NMOS-based architecture ensures higher efficiency and faster switching speeds without requiring additional cooling systems like fans or heatsinks.
As a Cytron single channel motor driver, it offers built-in features such as reverse polarity protection and an onboard PWM generator, enabling operation even without a microcontroller.
Users can control motor direction and speed via onboard or external switches and potentiometers, making it a flexible and user-friendly choice for your next robotics or automation project.
Features:
- Reverse polarity protection.
- Logic level inputs are 3.3V and 5V.
- For increased efficiency, a fully NMOS H-Bridge is used, with no heat sink required.
- Speed control PWM frequency up to 20KHz.
- Standalone operation is enabled by an onboard PWM generator with switches and a potentiometer.
- External PWM operation now supports both locked-antiphase and sign-magnitude modes.
- For more information, see the User Manual in Attachments and Links.

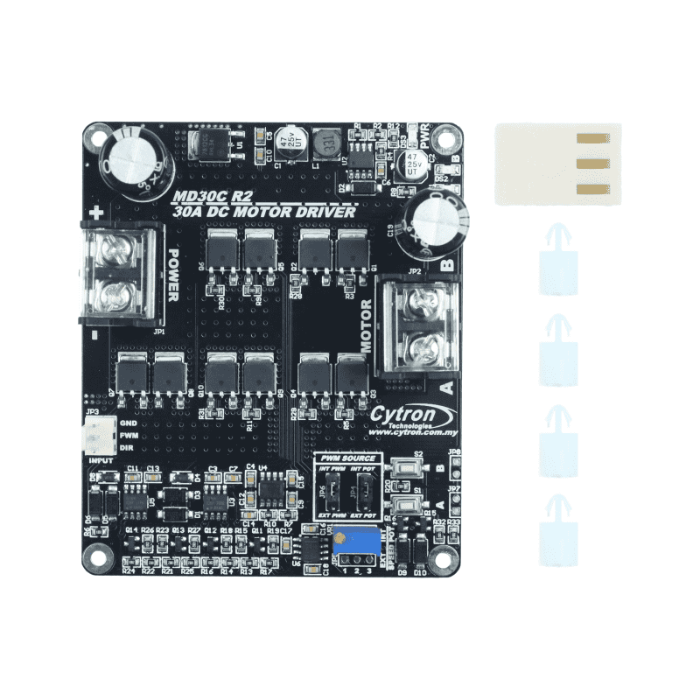

Package Includes:
- 1 x Cytron 30Amp DC Motor Driver
- 1 x Fitting Accessories set
Specifications:
| Specification | Details |
|---|---|
| Item Type | Motor Driver |
| Model Series | MD Series |
| Voltage Rating (V) | 5 to 30 |
| Operating Voltage (VDC) | 5 ~ 30 |
| Current Rating (A) | 30 to 80 |
| Continuous Current (A) | 30 |
| Peak Current (A) | 80 |
| Operating Mode | PWM (Lock-Antiphase & Sign-Magnitude): Yes UART: No Analog: No RC Servo Signal: No |
| No. of Channels | 1 |
| Cooling Fan | No |
| LED Indicator | Yes |
| Arduino Shield Compatible | Can be used via wire connection (not a shield) |
| Polarity Protection | Yes |
