- High voltage 25A DC Motor Driver with 7V to 58V operating range
- Continuous 25A current output without additional heatsink
- Compatible with PWM & DIR control signals (1.8V–30V logic level)
- Onboard switch and potentiometer for manual control
- Integrated 5V buck regulator for powering host controllers
- Ideal for use with Arduino, Raspberry Pi, and PLCs
- Quick motor testing with onboard buttons and LED indicators
Cytron 25Amp 7V-58V High Voltage DC Motor Driver

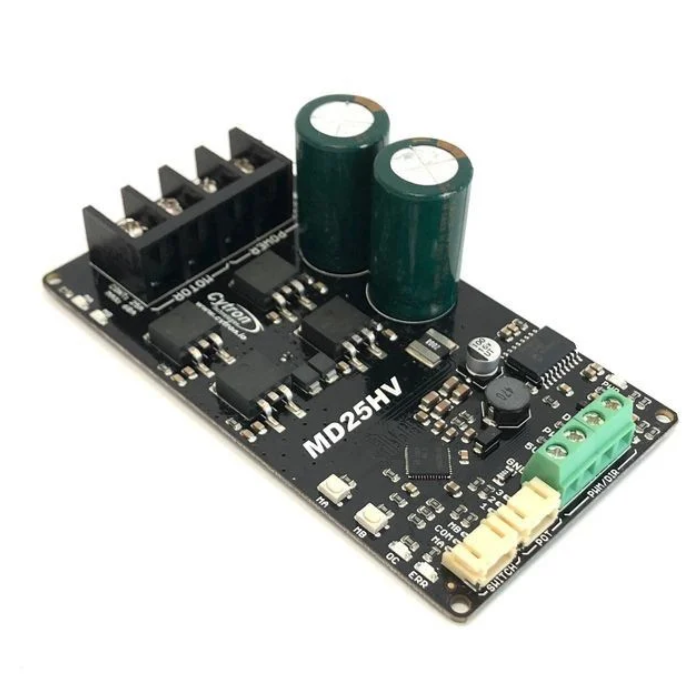

The Cytron 25Amp 7V-58V High Voltage DC Motor Driver (MD25HV POT) is a powerful 25A Motor Controller designed for high-performance applications. Supporting a wide voltage range from 7V to 58V, this 7V-58V Motor Driver delivers up to 25A of continuous current using a robust NMOS H-Bridge design—no heatsink required.
Engineered for versatility, it offers both manual and programmable control options, including PWM and DIR signals compatible with logic levels from 1.8V to 30V, making it perfect for integration with Arduino, Raspberry Pi, or PLCs.
The motor driver also features onboard test buttons, status LEDs for quick diagnostics, and a built-in 5V buck regulator to conveniently power external host controllers. For users seeking straightforward motor control without coding, the MD25HV can also operate using a potentiometer for speed adjustment and a switch for direction.
This High Voltage DC Motor Driver is ideal for hobbyists and industrial users alike who need reliable and flexible motor control in demanding environments.
Note: Power input does not have reverse-voltage protection. Connecting the battery in reverse polarity will damage the motor driver instantaneously.

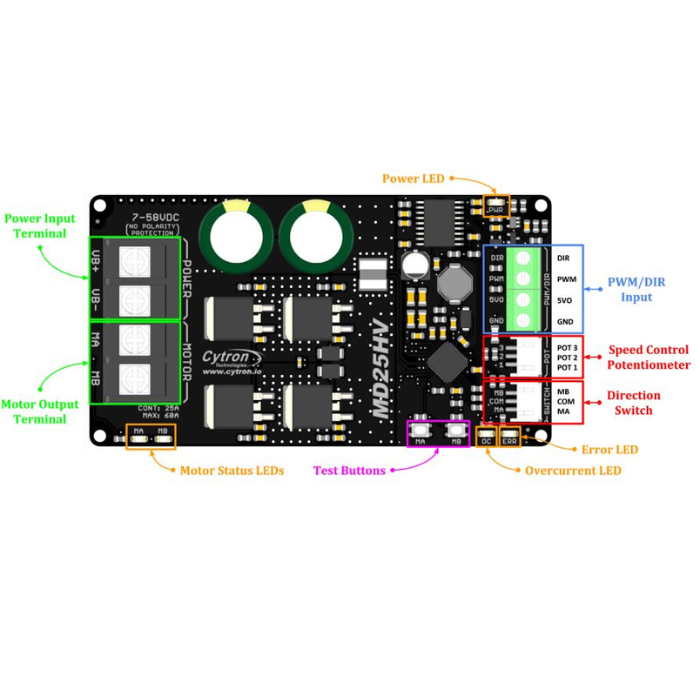

Pinout Diagram:
Applications:
- Automated Guided Vehicle (AGV).
- Mobile Robot.
- Automation Machine.
- Electric Vehicle.
Features:
- Bidirectional control for a single brushed DC motor.
- Maximum motor current is 25A continuous and 60A peak, with a 5V output for the host controller (up to 250mA).
- Buttons allow for quick testing.
- LEDs indicate the motor output state.
- Dual input modes include PWM/DIR and Potentiometer/Switch Input.
- The PWM/DIR inputs are compatible with 1.8V, 3.3V, 5V, 12V, and 24V logic (Arduino, Raspberry Pi, PLC, etc.).
- PWM frequency up to 40kHz (the output frequency is fixed at 16kHz).
- Overcurrent protection includes active current limiting.
- Temperature protection.
- Undervoltage shutdown.

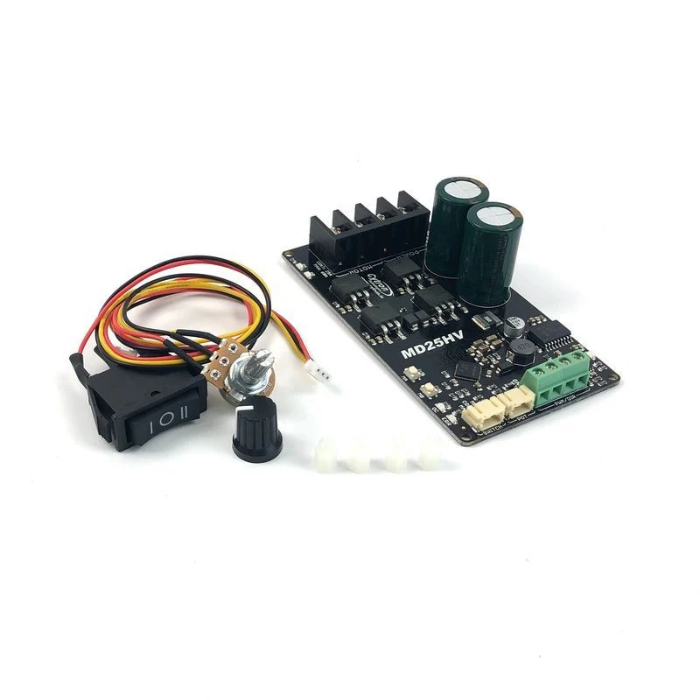

Package Includes:
- 1 x Cytron 25A 7V-58V DC motor driver.
- 1 x Rocker switch with connector.
- 1x 10K Potentiometer with connector.
- 1 x set of Nylon standoff/Spacers.
Specifications:
| Specification | Details |
|---|---|
| Item Type | Motor Driver |
| Model Series | MD Series |
| Voltage Rating | 7V to 58V |
| Current Rating | 25A |
| Input Supply Voltage | 7 – 58 V |
| Continuous Current | 25 A |
| Peak Current | 60 A |
| Potentiometer Input Voltage | 0 ~ 5 V (Analog) |
| Logic Input Voltage | Low: 0 ~ 0.8V, High: 3 ~ 30V |
| PWM Input Frequency | 40 KHz |
| PWM Output Frequency | 16 KHz |
