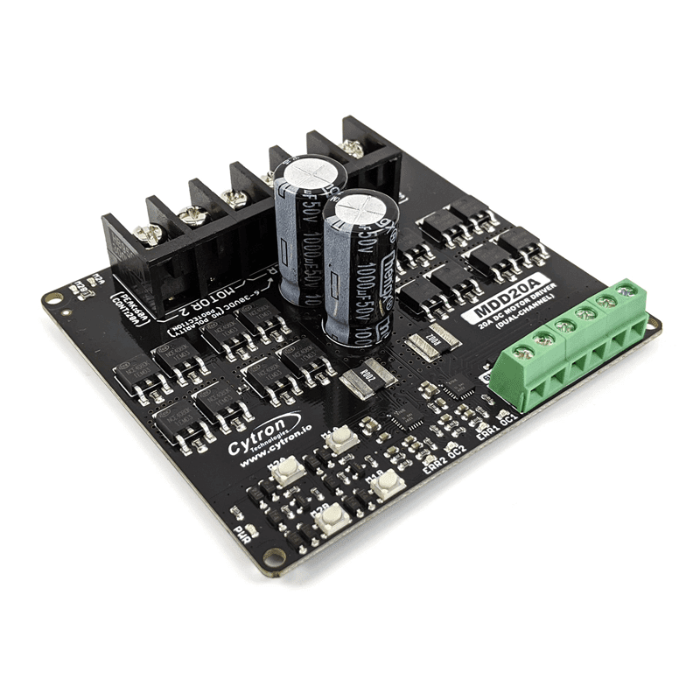

The Cytron 20A 6V-30V DC Motor Driver (2 Channels) is a high-performance solution for controlling two brushed DC motors with impressive efficiency and safety. Designed with a full discrete NMOS H-Bridge architecture, this Cytron DC Motor Driver 20A delivers up to 20A continuous current per motor channel without needing a heatsink.

Unlike other drivers that exaggerate current ratings based solely on MOSFET specs, the MDD20A is engineered for real-world reliability, taking into account factors like switching frequency and PCB design.

Compatible with logic levels from 1.8V to 12V, this Cytron 6V-30V Motor Driver works seamlessly with various host controllers. It supports both PWM and DIR inputs for versatile motor control and includes overcurrent protection to safeguard against stalls and overloads.

Whether you're building a robot or a high-torque application, this DC Motor Driver offers robust, consistent performance.

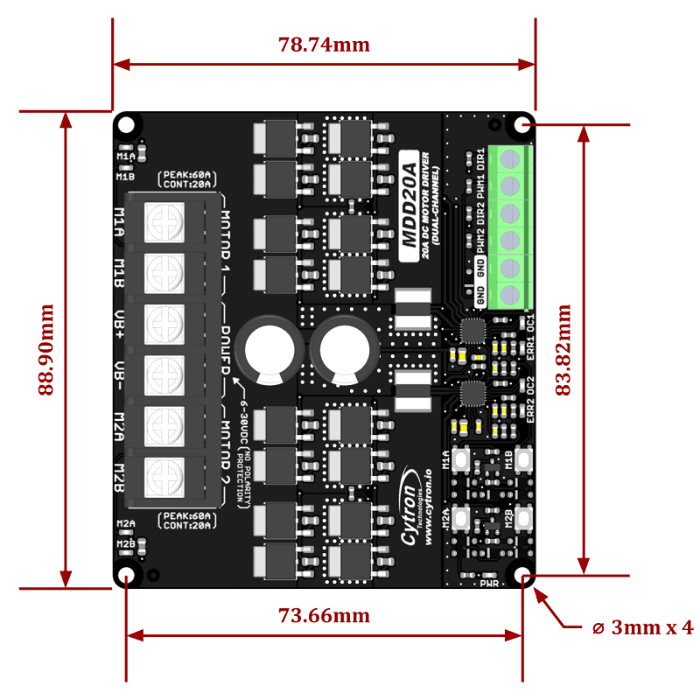

20Amp 6V-30V DC Motor Driver Pinout Diagram:

Features:

• Bidirectional control for two brushed DC motors.
• Operating Voltage: DC 6V to 30V.
• Maximum motor current (per channel): 20A continuous, 60A peak.
• Buttons allow for quick testing.
• LEDs indicate the motor's output state.
• PWM and DIR inputs.
• Inputs support 1.8V, 3.3V, 5V, and 12V logic (Arduino, Raspberry Pi, PLC, etc.).
• PWM frequency up to 20 kHz (output frequency equals input frequency).
• Compatible with sign-magnitude and locked-antiphase PWM operation.
• Overcurrent protection includes active current limiting.
• Temperature protection.
• Undervoltage shutdown.

Package Includes:

• 1 x Cytron 20A 6V-30V DC Motor Driver (2 Channels)
