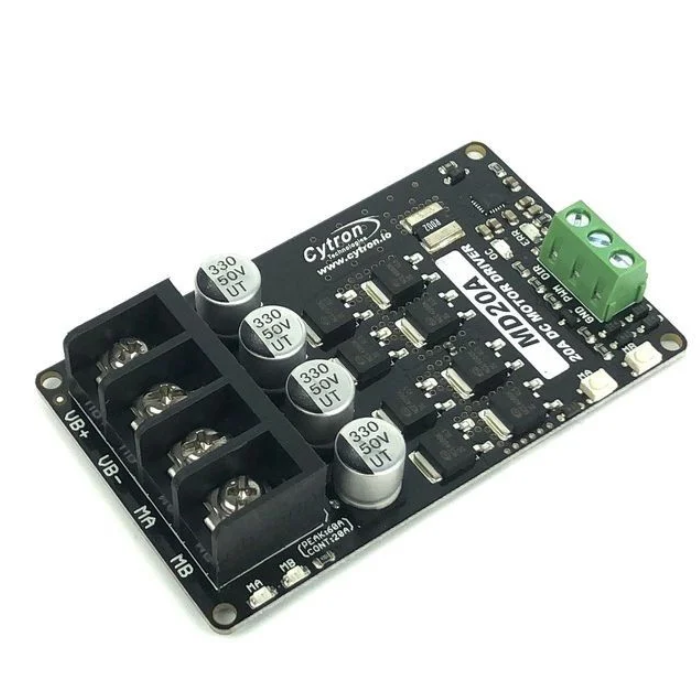

The Cytron 20A 6V-30V DC Motor Driver (MD20A) is a robust and efficient DC motor driver designed for high-power applications. Built around a discrete NMOS H-Bridge architecture, this 20A motor driver can continuously handle 20A current without requiring an external heatsink, making it a compact and reliable choice for your motor control needs.

This high current motor driver 20A model features onboard test buttons and motor output LEDs, enabling quick functional testing without a controller. With an input logic voltage range of 1.8V to 12V, the MD20A is fully compatible with various host systems including Arduino, Raspberry Pi, and PLCs.

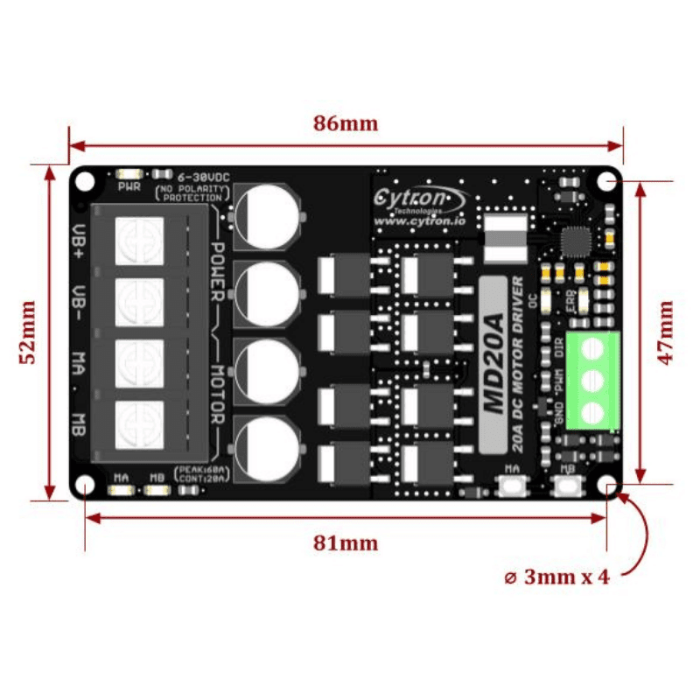

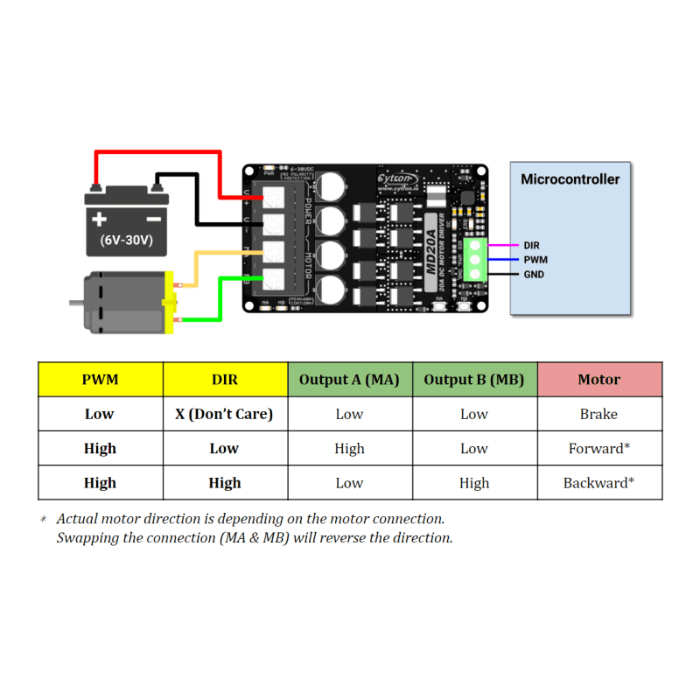

It supports simple control via PWM and DIR inputs. Integrated protection features such as overcurrent and temperature-based current limiting safeguard the driver and connected motor, ensuring dependable operation even under demanding conditions.

Whether you are working on robotics, automation, or other motor control projects, the Cytron MD20A is a powerful and reliable solution.

Note: Power input does not have reverse-voltage protection. Connecting the battery in reverse polarity will damage the motor driver instantaneously.

Features:

• Bidirectional control for a single brushed DC motor.
• Operating Voltage: DC 6V to 30V.
• Maximum Motor current: 20A continuous; 60A peak.
• Buttons allow for quick testing.
• LEDs indicate the motor output state.
• PWM and DIR inputs.
• Inputs support 1.8V, 3.3V, 5V, and 12V logic (Arduino, Raspberry Pi, PLC, etc.).
• PWM frequency up to 20kHz (output frequency equals input frequency).
• Compatible with sign-magnitude and locked-antiphase PWM operation.

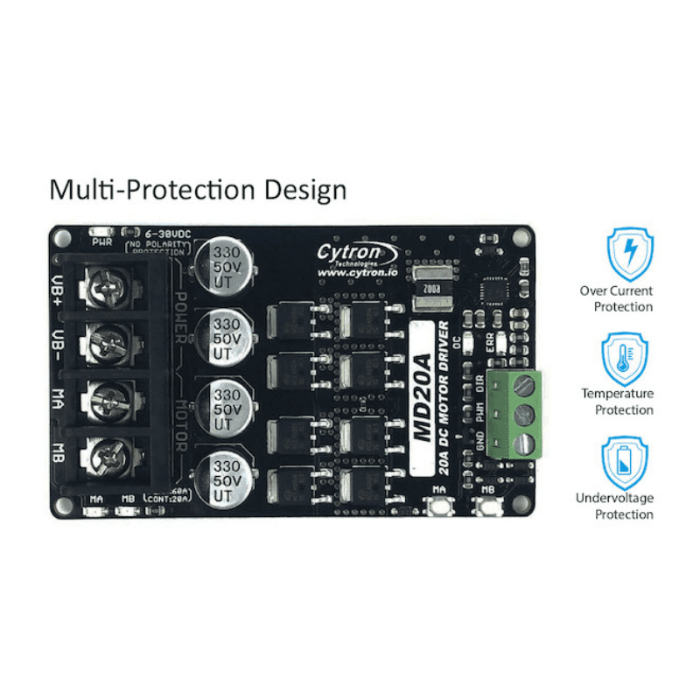

• Overcurrent protection includes active current limiting.
• Temperature protection.
• Undervoltage shutdown.

Package Includes:

• 1 x Cytron 20Amp 6V-30V DC Motor Driver.

• 1 x A Quick Start Guide

• 4 x PCB Spacer.
