- 13A DC motor driver with peak current up to 30A
- Wide operating voltage: 6V-30V motor driver
- Ideal DC motor controller 13A for brush motors
- Improved current protection compared to MD10C
- Suitable for direction and speed control via microcontroller
- Compact and reliable 13A motor driver module
Cytron 13Amp 6V-30V DC Motor Driver (MD13S)

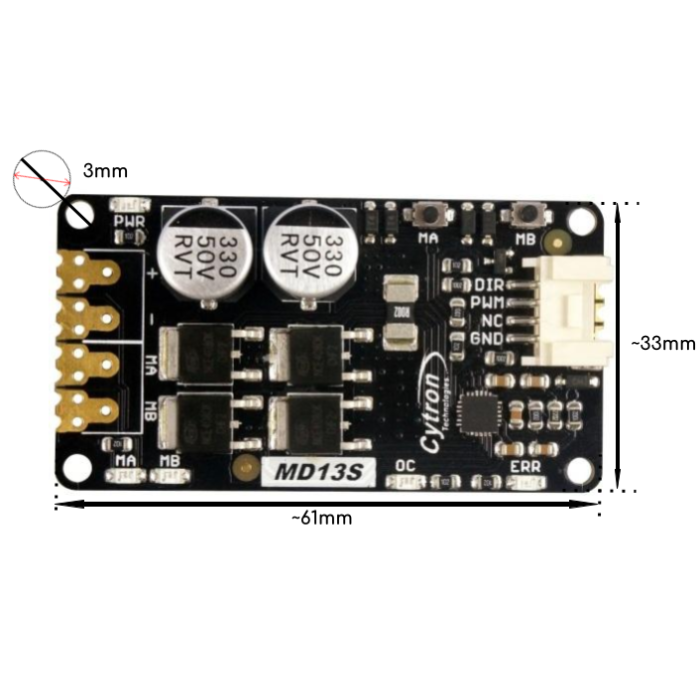

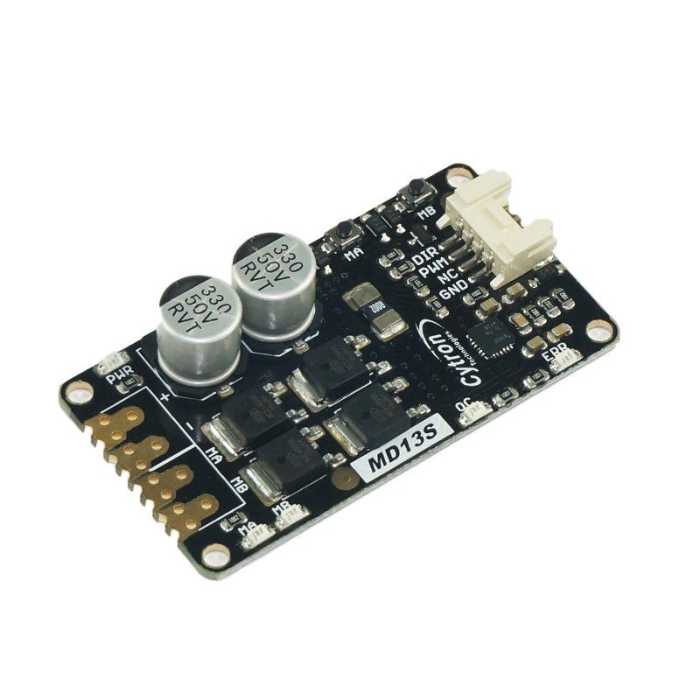

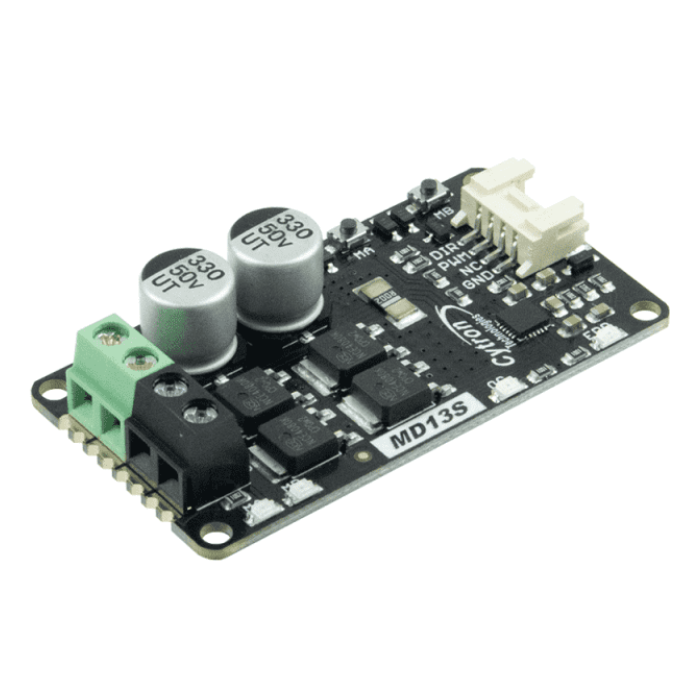

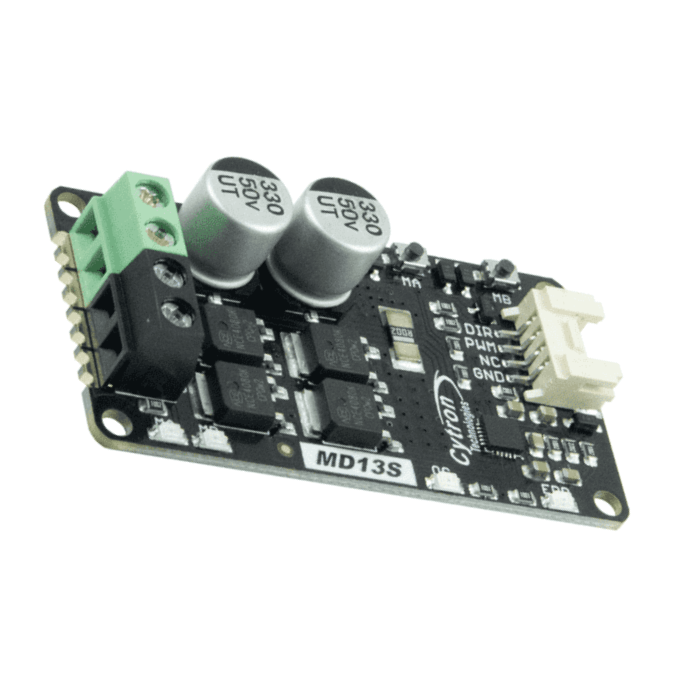

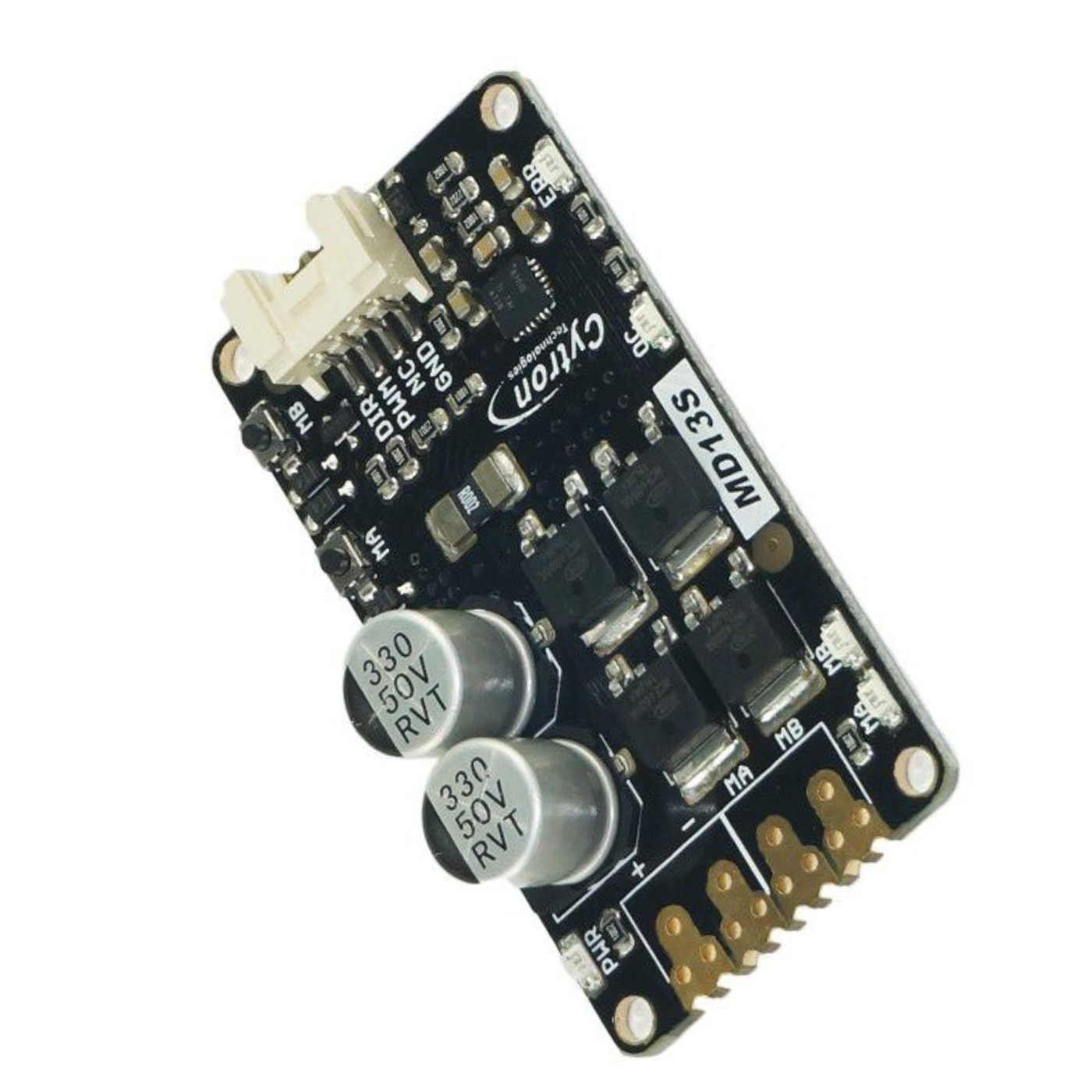

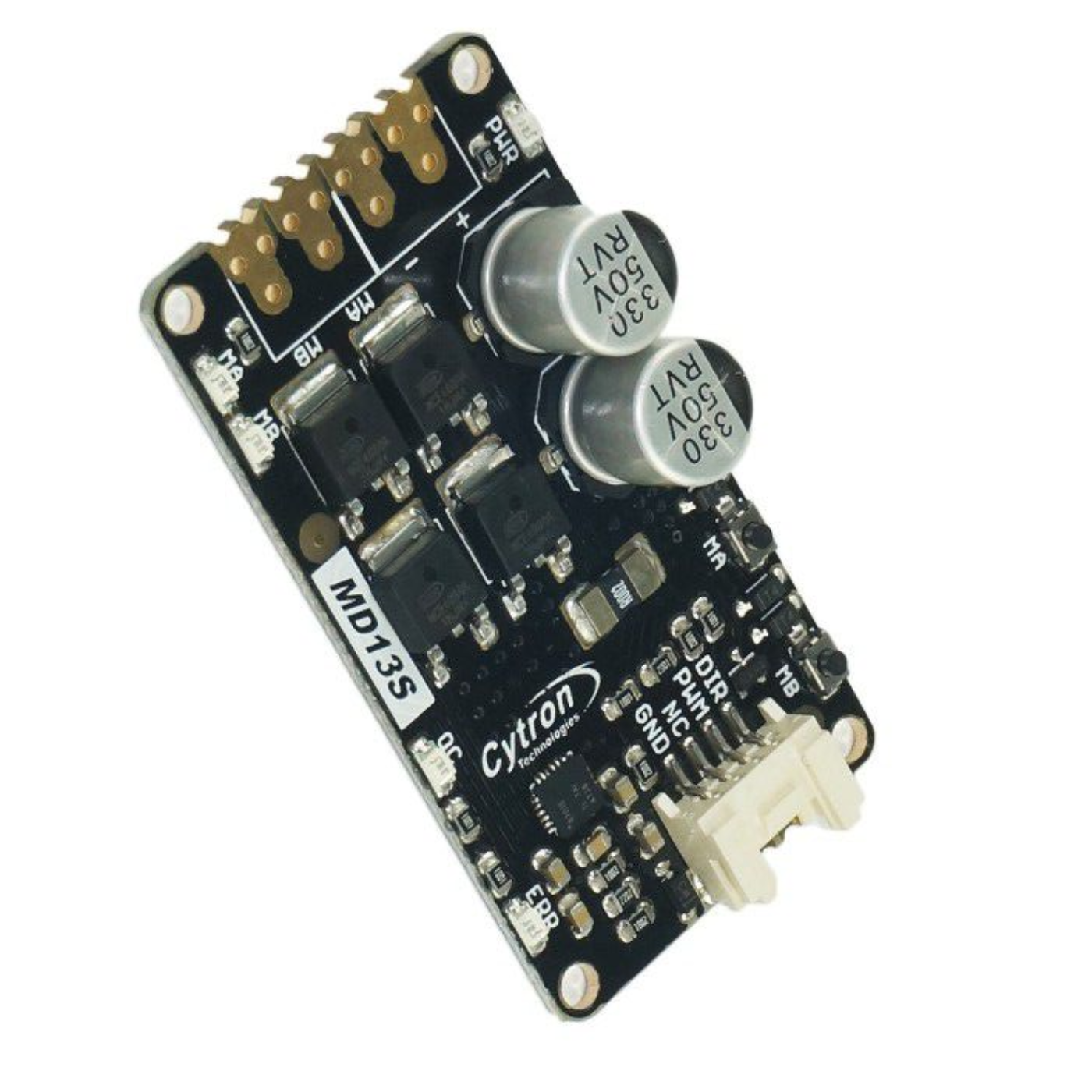

The Cytron 13A 6V-30V DC Motor Driver (MD13S) is a robust and enhanced motor driver module designed to deliver continuous current of up to 13A, with peak current handling up to 30A.
An upgraded version over the MD10C, the MD13S offers improved current protection and efficiency. This 13A DC motor driver supports a wide voltage range of 6V-30V, making it versatile for various DC brush motor applications.
Ideal as a DC motor controller 13A, it enables precise control of speed and direction when interfaced with a microcontroller. The 13A motor driver module is perfect for DIY robotics, automation projects, and industrial applications where reliable motor control is crucial.
Features:
- Bidirectional control for a single brushed DC motor.
- Motor voltage ranges from 6V to 30V. Maximum current is 13A continuous and 30A peak (10 seconds).
- GROVE compatible.
- Logic level inputs are 3.3V and 5V.
- Solid-state components have a faster response time and eliminate the wear and tear of mechanical relays.
- For increased efficiency, a fully NMOS H-Bridge is used, with no heat sink required.
- Speed control PWM frequency up to 20KHz (actual output frequency equals input frequency).
- Supports both locked-antiphase and sign-magnitude PWM operation, but not RC (Radio Control) PWM.
- SMD compatible.
Package Includes:
- 1 x MD13S motor driver board
- 1 x Grove connector
Specifications:
| Specification | Details |
|---|---|
| Item Type | Motor Driver |
| Model Series | MD Series |
| Driver Model | Cytron MD13S |
| Operating Voltage (VDC) | 6 ~ 30 |
| Voltage Rating (V) | 6 to 30 |
| Continuous Current (A) | 13 |
| Peak Current (A) | 30 |
| Current Rating (A) | 13 to 30 |
| Operating Mode | PWM (Lock-Antiphase and Sign-Magnitude): Yes UART: No, Analog: No, RC Servo Signal: No |
| No. of Channels | 1 |
| LED Indicator | Yes |
| Test/Manual Button | Yes |
| Cooling Fan | No |
| Arduino Shield Compatible | Can be used with wire connection, No direct shield |
| Speed Control | Yes |
