Cytron 10Amp 7V-30V Dual Channel DC Motor Driver for R/C

Cytron 10Amp 7V-30V Dual Channel DC Motor Driver for R/C

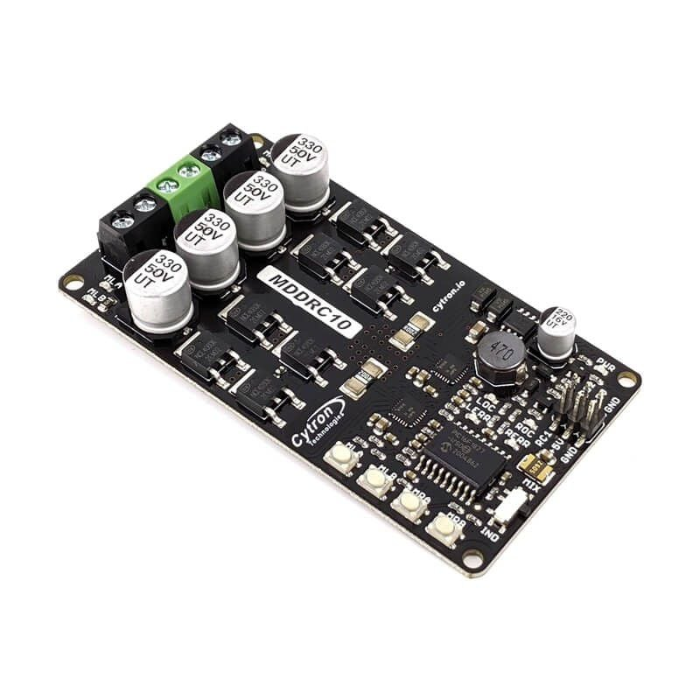

The Cytron 10Amp 7V-30V Dual Channel DC Motor Driver for R/C (MDDRC10) is a high-performance RC motor driver dual channel solution ideal for R/C vehicles or mobile robots, especially where no microcontroller is used.

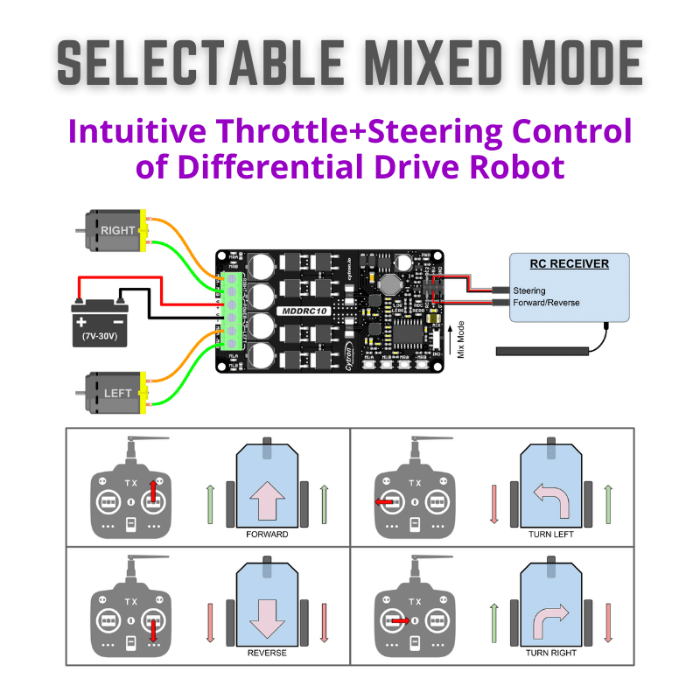

Fully plug-and-play, the Cytron motor driver 10A 7V-30V can connect directly to an RC receiver, eliminating the need for coding or setup. It features a selectable mixed mode that allows differential control of two motors via throttle and steering inputs, making it perfect for remote-controlled driving.

With a built-in 5V switching regulator, it also powers the RC receiver without needing an external BEC. Designed using discrete NMOS H-Bridge circuitry, the Cytron 10A motor driver delivers up to 10 Amps per channel continuously without additional cooling.

It includes onboard test buttons and LEDs for fast diagnostics and supports overcurrent and thermal protection to ensure safe operation under load. Whether you're developing an advanced robot or a custom RC car, this dual channel DC motor driver offers a robust, reliable solution.

Features:

• Plug-and-play, with direct control via RC.
• Upon power-up, the system automatically calibrates.
• You can choose between mixed and independent input modes.
• Bidirectional control for two brushed DC motors.
• Onboard To power the RC receiver, use a 5V switching regulator (maximum current 500mA).
• Buttons allow for quick testing.
• LEDs indicate the motor output state.
• The motor output PWM frequency is 20kHz.
• Overcurrent protection includes active current limiting.
• Temperature protection.
• Undervoltage shutdown.


Package Includes:

• 1 x 10Amp 7V-30V DC Motor Driver for R/C
• 2 x 2561 3-way connector extension wire
• 4 x PCB Spacer

Specifications:
