Cytron 10Amp 5V-30V Dual Channel DC Motor Driver

Cytron 10Amp 5V-30V Dual Channel DC Motor Driver

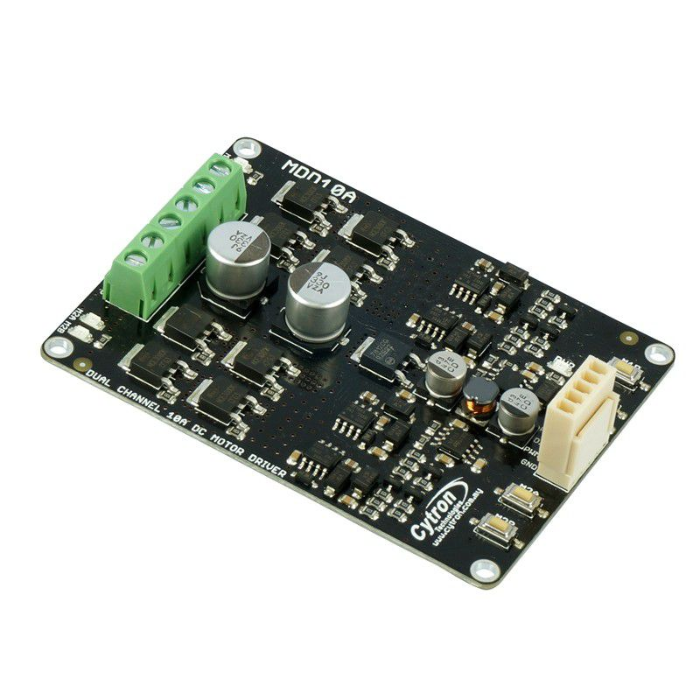

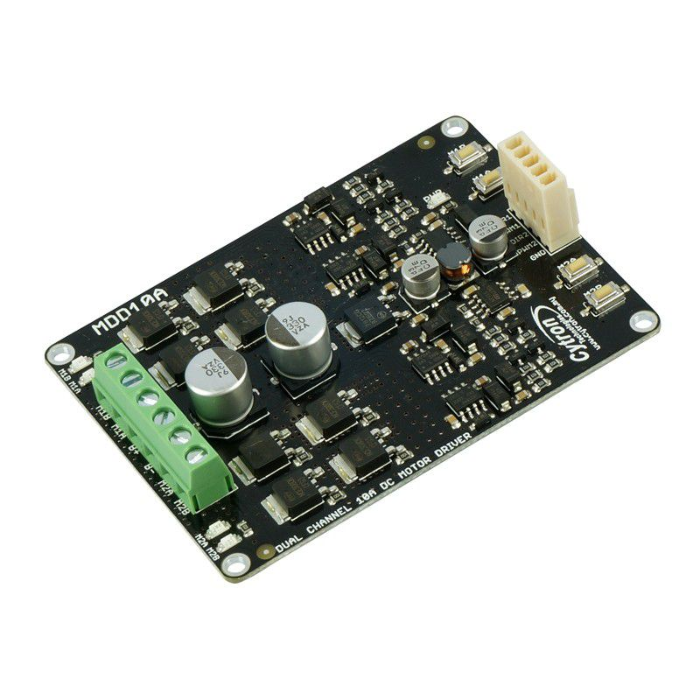

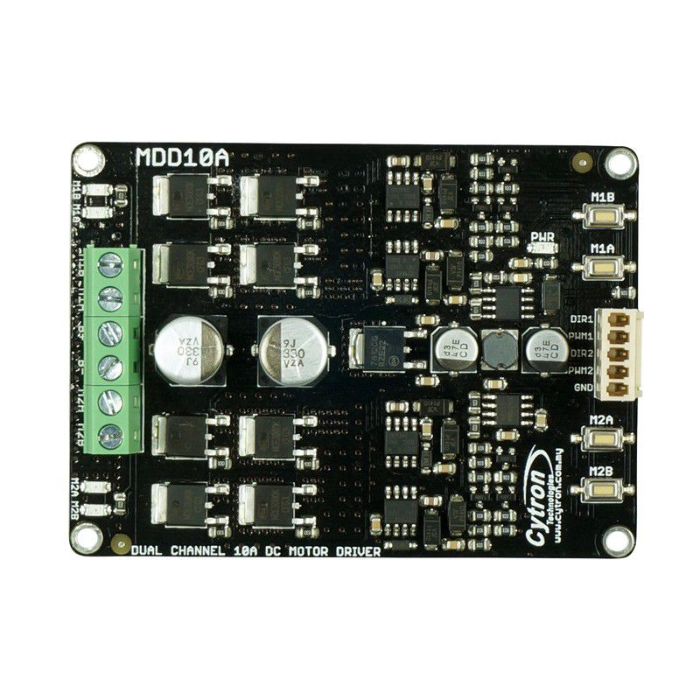

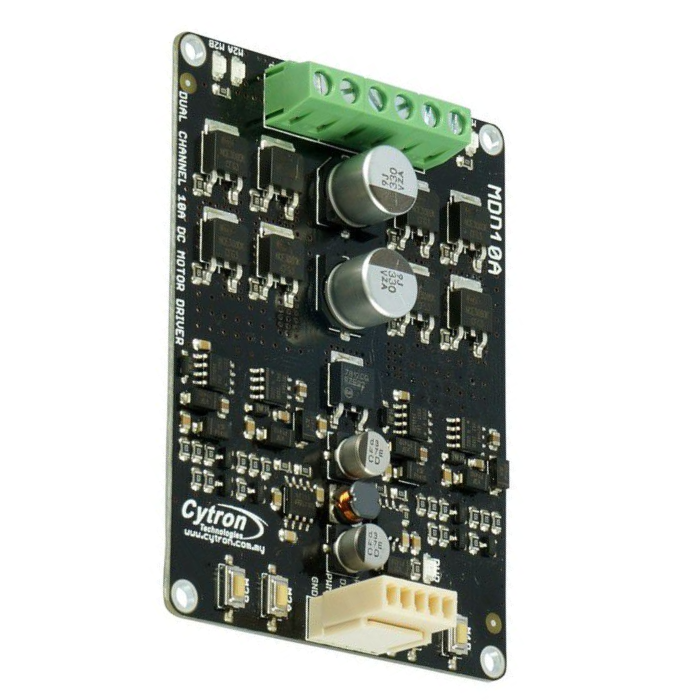

The Cytron 10A motor driver (MDD10A) is a robust and user-friendly dual channel motor driver designed to control two brushed DC motors independently. Supporting a wide operating voltage range of 5V-30V, this 10A DC motor driver delivers a continuous current of up to 10A per channel, making it suitable for high-power applications.

As a part of Cytron's reliable motor driver lineup, the Cytron motor driver 2 channels model MDD10A features solid-state components that ensure fast response and long-term reliability by eliminating the wear associated with mechanical relays.

It supports both locked-antiphase and sign-magnitude PWM signals, offering flexible control for various motor operations. With presoldered terminals and built-in test buttons, it can even be operated without a microcontroller, making it an ideal choice for beginners and advanced users alike looking for a dependable 5V-30V DC motor driver.

Features:

• Bidirectional control for two brushed DC motors.
• Support motor voltages ranging from 5V to 30VDC (Rev2.0).
• There is no reverse polarity protection at Vmotor, so please double-check the polarity before powering up.
• Each channel can handle a maximum current of 10A continuous and 30A peak (10 seconds).
• Supports 3.3V and 5V logic level inputs (for PWM and DIR), and is compatible with Arduino and the Raspberry Pi.
• Solid-state components have a faster response time and eliminate the wear and tear of mechanical relays.
• For increased efficiency, a fully NMOS H-Bridge is used, with no heat sink required.
  Regenerative braking.
• Speed control PWM frequency up to 20KHz (output frequency equals input frequency).
• PWM operations can be Locked-Antiphase or Sign-Magnitude.
• On each channel, there are two activation buttons for manual or quick testing.


Package Includes:

• 1 x Cytron 10A 5V-30V DC Motor Driver (2 Channels)

Specifications:
