- Cytron 10A Motor Driver for high current brushed DC motors
- Supports 5V to 30V operating voltage with 10A continuous current output
- Improved version of MD10B with enhanced performance
- Supports both locked-antiphase and sign-magnitude PWM signals
- Fully solid-state design ensures faster response and higher durability
- On-board manual/test buttons for quick and easy motor control
- Ideal for robotics, automation, and DIY electronics projects

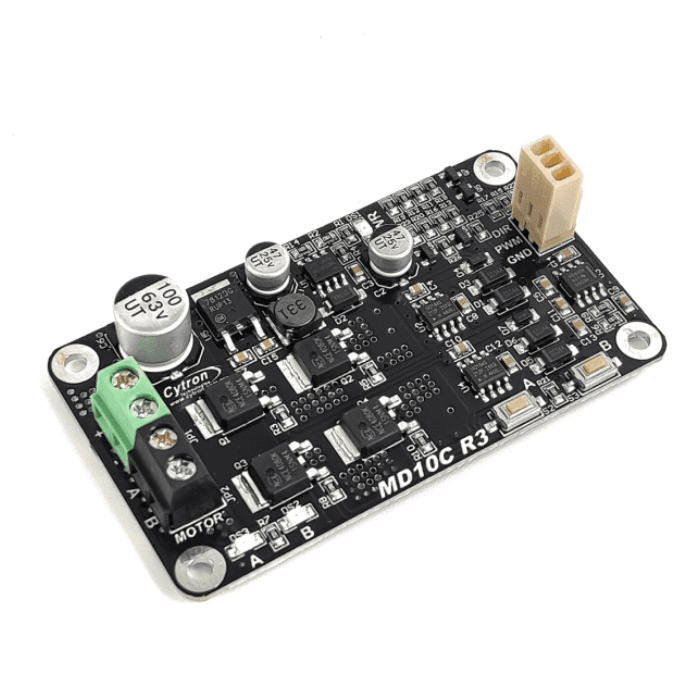

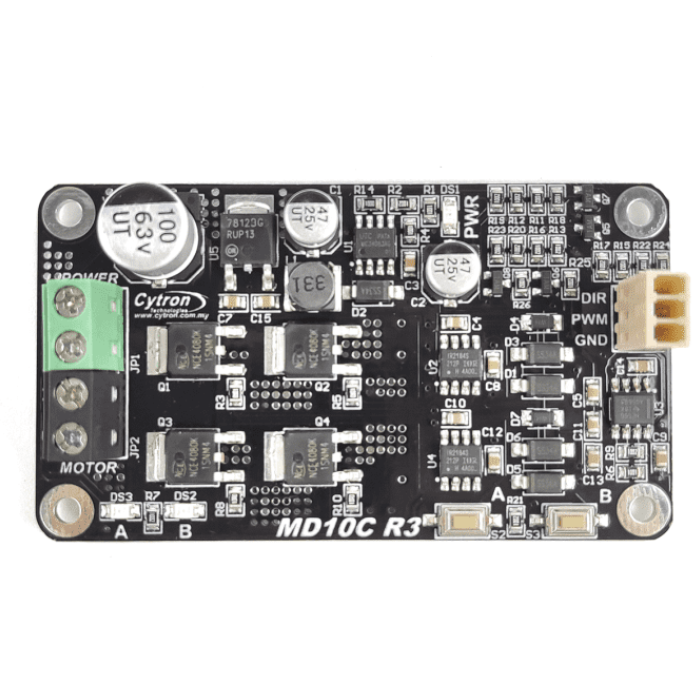

Cytron 10Amp 5V-30V DC Motor Driver
The Cytron 10A 5V-30V DC Motor Driver (MD10C) is a robust and versatile solution designed to control brushed DC motors with ease and precision. As an upgraded version of the MD10B, this Cytron 10A Motor Driver can deliver up to 10A continuously (and up to 13A peak), making it ideal for high-current applications.
It supports a wide operating voltage range of 5V to 30V, accommodating various power supply configurations. The Cytron DC Motor Driver incorporates a full solid-state design, eliminating mechanical relays to provide faster response times and improved longevity.
Supporting both locked-antiphase and sign-magnitude PWM signals, it offers flexibility in motor control logic. Moreover, the on-board manual/test buttons make setup and testing effortless, even without a microcontroller.
Whether you're building robots or automating systems, this 10A DC Motor Driver delivers reliable and efficient performance for your project.
Features:
- Bidirectional control for a brushed DC motor (single channel).
- Support motor voltage ranges from 5V to 30VDC.
- There is no reverse polarity protection at Vmotor, so please double-check the polarity before powering up.
- Regenerative braking
- Maximum current: up to 13A continuous and 30A peak (10 seconds).
- 3.3V and 5V logic level input; compatible with Arduino and Raspberry Pi.
- Solid-state components offer faster response times and eliminate the wear and tear of mechanical relays.
- Fully NMOS H-Bridge for improved efficiency, no heat sink required.
- Speed control PWM frequency up to 20KHz (output frequency equals input frequency).
- PWM operations can be Locked-Antiphase or Sign-Magnitude. **Note that it is not"RC PWM".
- The new MD10C may be powered from a single power source, and no additional Vin is required.
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
Found a better price?
Let us know!
We'll try to match the price for you
Package Includes:
- 1 x Cytron 10A 5V-30V DC Motor Driver
Specifications:
| Parameter | Details |
|---|---|
| Motor Channel | 1 |
| Compatible Input Voltage | 3.3V to 5V |
| Operating Voltage | 5V to 25V (Rev 1.0), 5V to 30V (Rev 2.0) |
| Peak Current | 30A (for 10 seconds) |
| Continuous Current | 13A |
| Operating Modes | Arduino, PWM |
| Indicator LEDs | Yes |
| Manual/Test Buttons | Yes |
