- Cytron 10A DC motor driver for brushed DC motors
- Supports voltage range from 7V to 30V
- No microcontroller or programming required

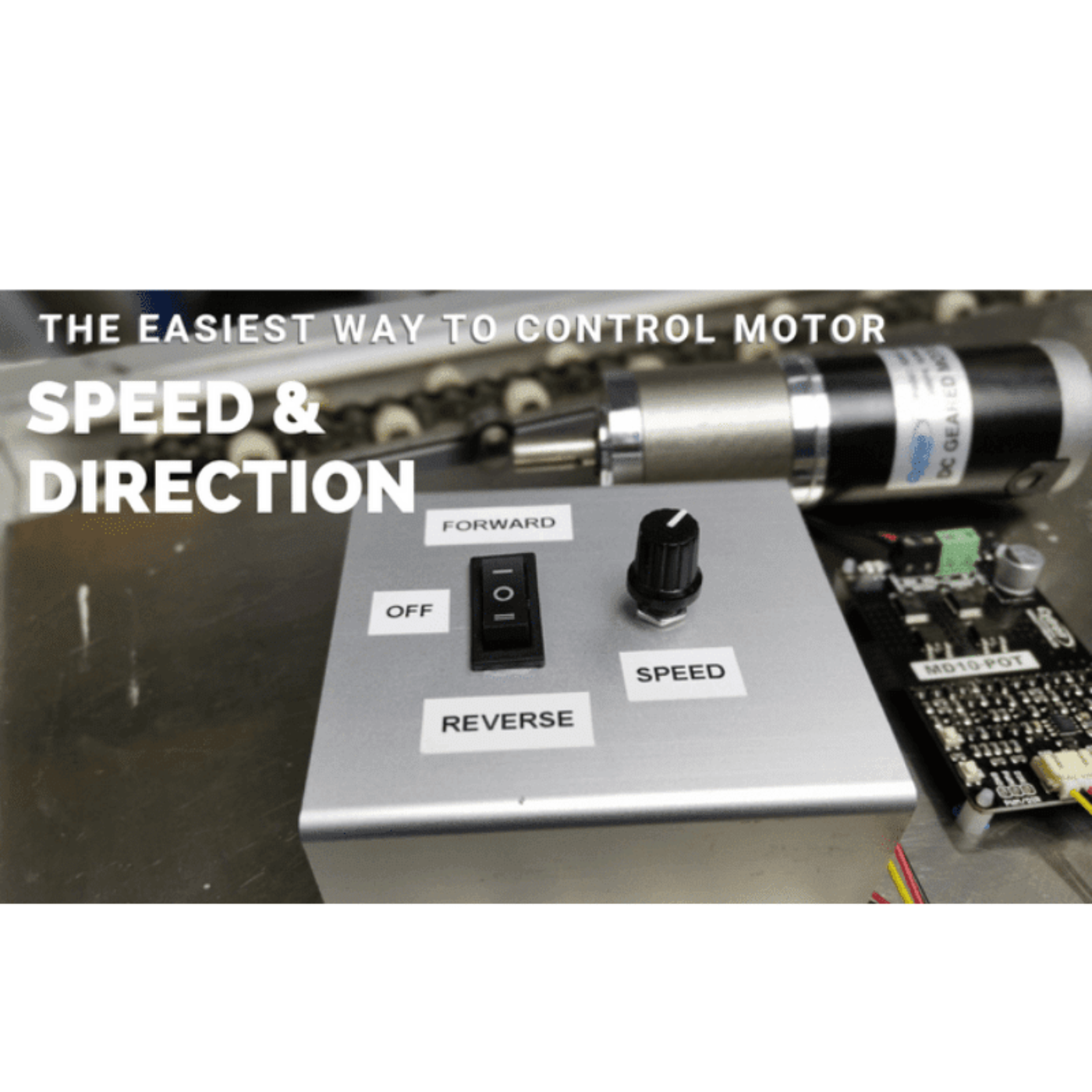

- Switch control for activation and motor direction
- Built-in potentiometer for variable speed control
- Ideal for quick prototyping and simple automation projects
Cytron 10Amp 7V-30V Switch Control Potentiometer with DC Motor Driver

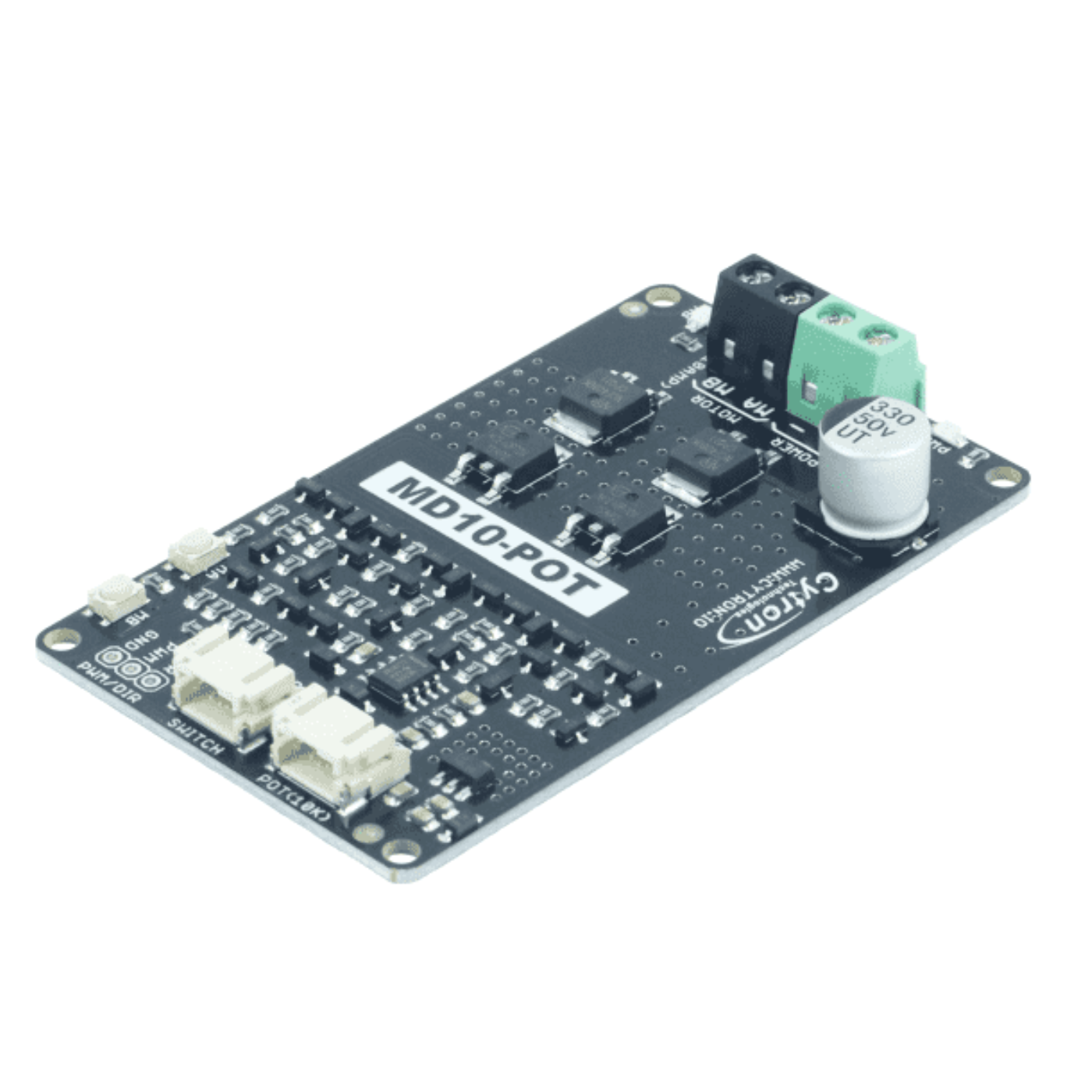

The Cytron MD10-POT 10A DC motor driver is a user-friendly motor speed controller designed for hassle-free operation without any microcontroller or programming.

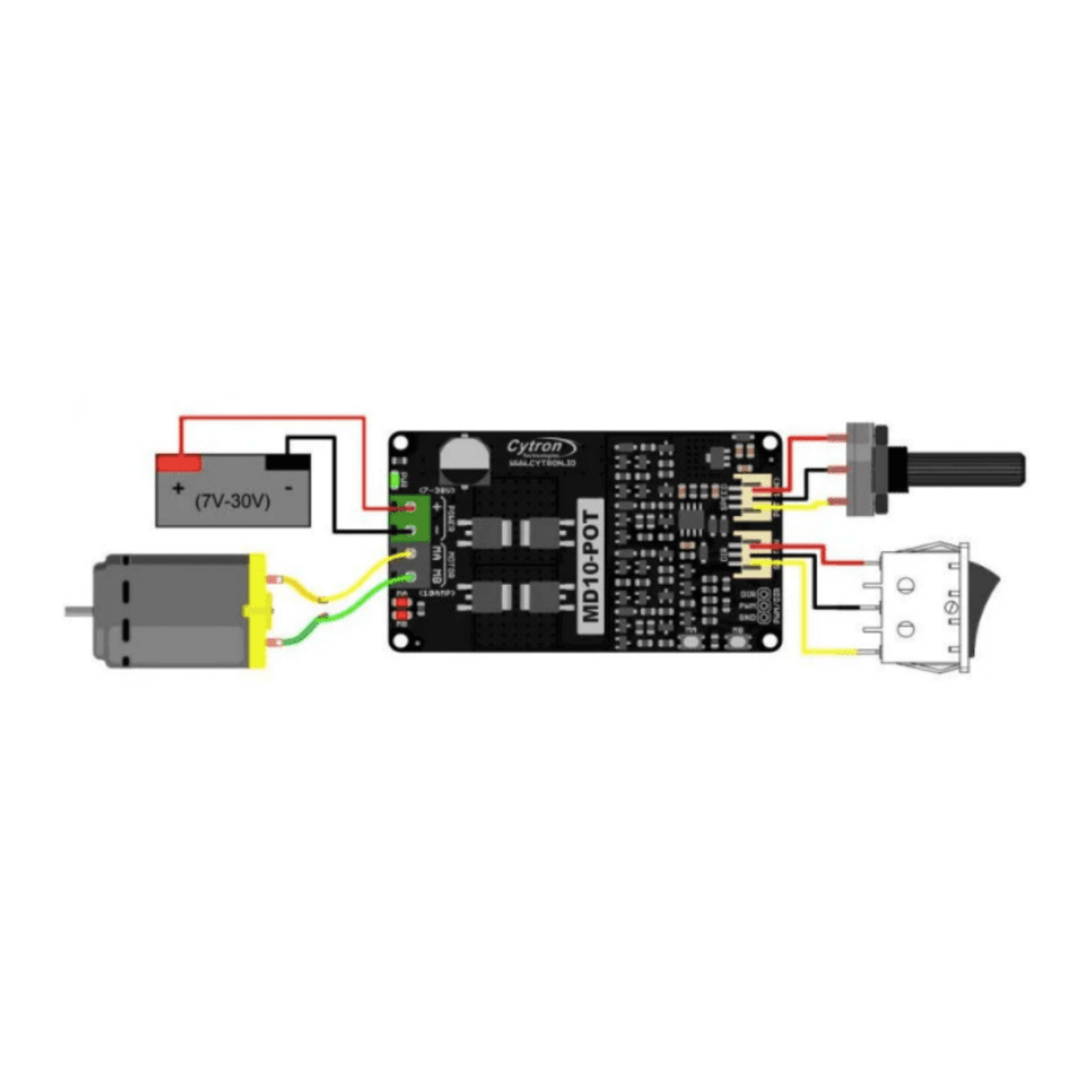

Operating within a voltage range of 7V to 30V, this 10A motor driver allows direct control of a brushed DC motor using the onboard switches for activation and direction, along with a potentiometer to adjust speed.
Whether you're building a basic automation setup or experimenting with DIY robotics, the Cytron 10A DC motor controller simplifies the process with its plug-and-play functionality. It's an excellent choice for applications that demand reliable switch control motor driver performance without the complexity of coding.

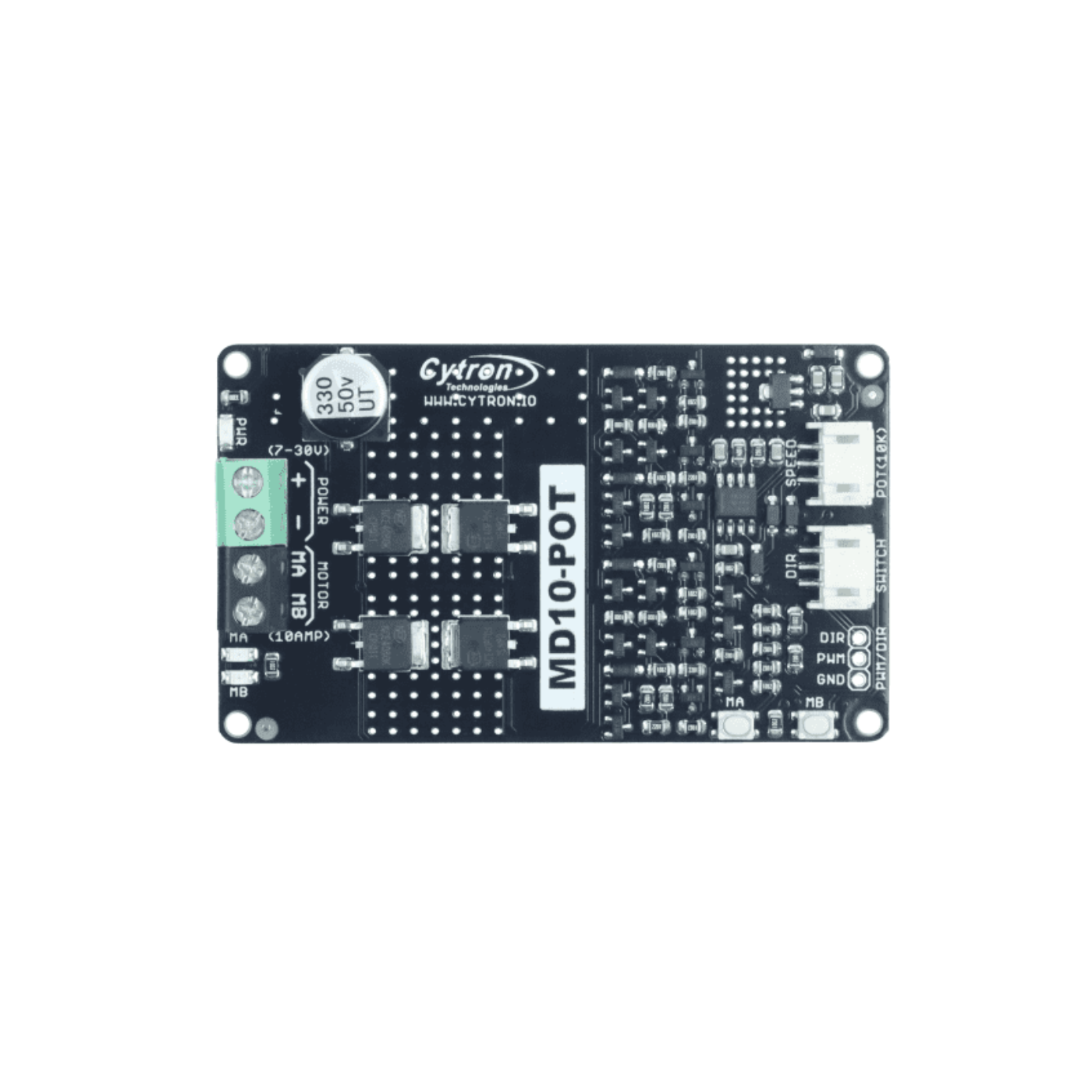

Pinout Diagram:
Features:
- Bidirectional control for a single brushed DC motor.
- A three-way rocker switch (included in the package) controls the motor's run/brake and direction.
- A potentiometer (included in the package) controls the speed of the motor's spinning.
- Operating voltage: DC. 7V to 30V
- Maximum motor current: 10A continuous; 30A peak.
- Buttons allow for quick testing.
- LEDs indicate the motor output state.

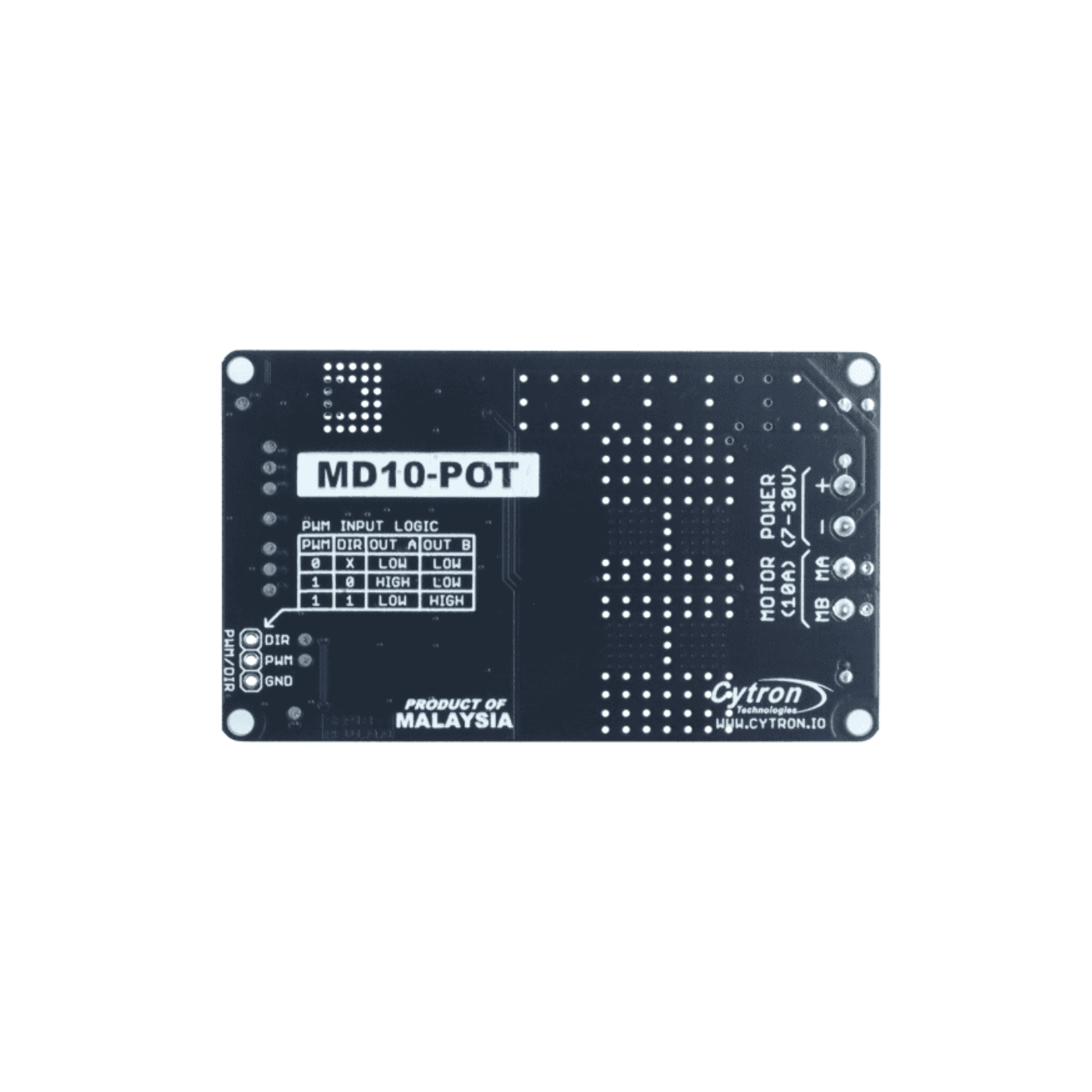

- PWM and DIR inputs.
- Compatible with sign-magnitude and locked-antiphase PWM operation.
- Regenerative braking.
- No reverse polarity protection.

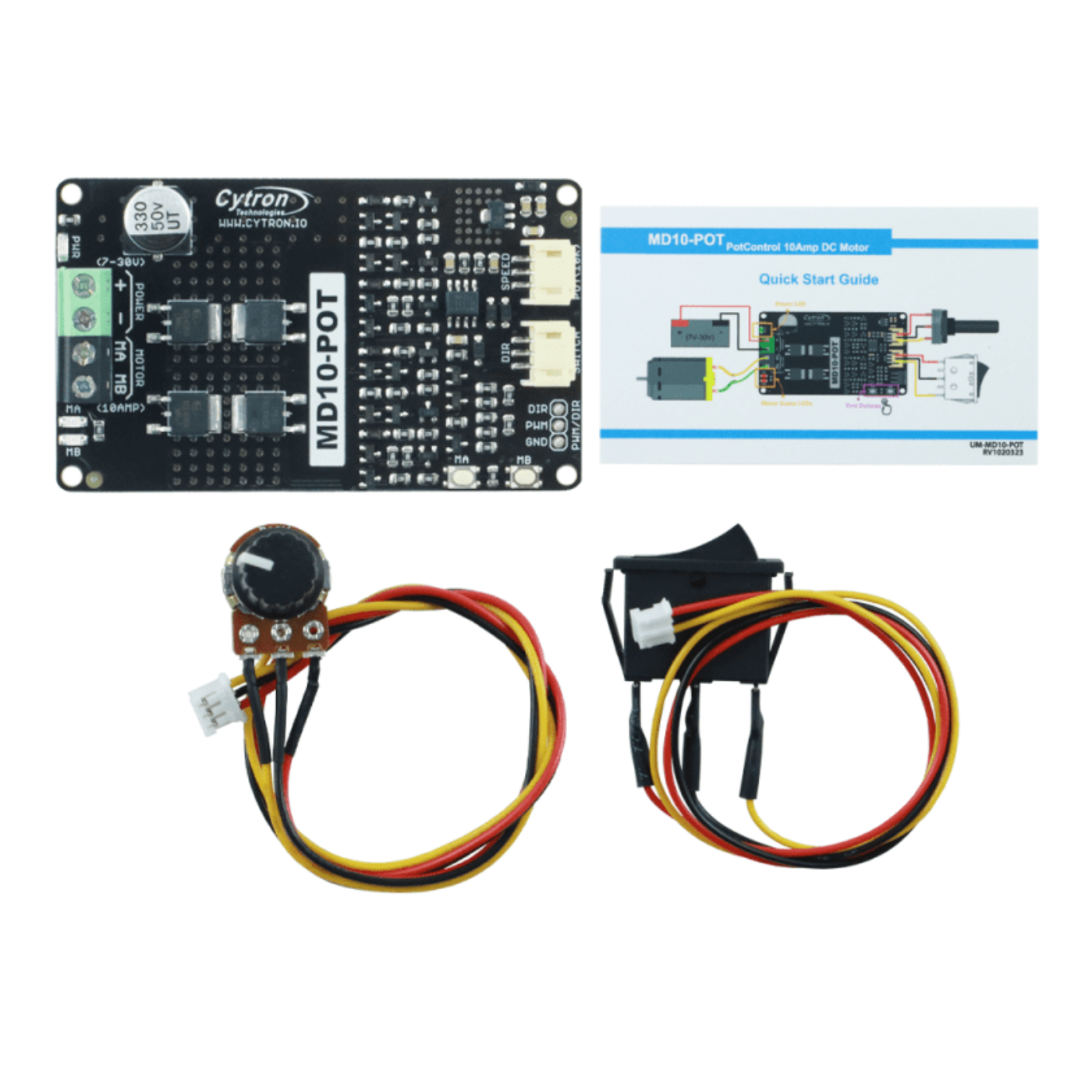

Package Includes:
- 1 x MD10-POT DC Motor Driver.
- 1 x Potentiometer with connector.
- 1 x Rocker Switch with connector.
- 1 x Quick Start Guide Card.
Specifications:
| Parameter | Specification |
|---|---|
| Item Type | Motor Driver |
| Model Series | MD Series |
| Input Supply Voltage (V) | 7 ~ 30 |
| Voltage Rating (V) | 7 to 30 |
| Motor Current (A) | 10 (Continuous) |
| Max. Motor Current (A) | 30 (Peak, less than 10 seconds) |
| Current Rating (A) | 10 to 30 |
| PWM Generator Frequency | 9 ~ 11 kHz |
