CrowPanel 2.4-ESP32 HMI 320x240 SPI TFT LCD Touch Screen without Acrylic Case
CrowPanel 2.4-ESP32 HMI 320x240 SPI TFT LCD Touch Screen without Acrylic Case
Couldn't load pickup availability
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Powerful CrowPanel 2.4 ESP32 HMI with 320x240 SPI TFT LCD Touch Screen
- Uses ESP32-WROOM-32 with dual-core 32-bit LX6 processor, up to 240MHz
- Integrated WiFi & Bluetooth, ideal for IoT, automation, smart home, and industrial applications
- 2.4-inch resistive touch display with touch pen for flexible operation
- Supports Arduino IDE, Espressif IDF, Lua RTOS, MicroPython
- Compatible with LVGL graphics library and openHASP UI framework for fast UI development
- Rich interfaces: TF card slot, USB (TTL & standard), speaker, battery, and multiple IO ports
- Suitable for ESP32 TFT LCD Touch Screen projects like automotive HMI, medical equipment, smart energy, and GPS systems
- Compact design without acrylic case, easy to integrate into custom enclosures
CrowPanel 2.4-ESP32 HMI 320x240 SPI TFT LCD Touch Screen without Acrylic Case
The CrowPanel 2.4 ESP32 HMI is a versatile 2.4-inch SPI TFT LCD Touch Screen ESP32 module, designed for seamless human-machine interaction (HMI) in various applications. Featuring a vibrant 320x240 resolution display, this ESP32 TFT LCD Touch Screen leverages the powerful ESP32-WROOM-32 module, equipped with a dual-core 32-bit LX6 microprocessor running at up to 240MHz, integrated WiFi, and Bluetooth.
The module adopts resistive touch technology and includes a touch pen for accurate and flexible touch control. With its onboard driver board, the ESP32 HMI Touch Panel offers rich connectivity options, including a TF card slot, USB (TTL and standard), speaker and battery interfaces, along with multiple IO ports, making it highly adaptable for IoT devices, industrial control systems, smart homes, automotive HMI, medical devices, and more.
Supporting popular development platforms like Arduino IDE, Espressif IDF, Lua RTOS, and MicroPython, and compatible with the LVGL graphics library and openHASP UI framework, the ELECrowPanel 2.4 ESP32 HMI enables developers to create custom user interfaces and prototypes efficiently, greatly shortening the product development cycle.
Features:
- Integrated ESP32-WROOM-32 module, built-in wireless communication 2.4 GHz Wi-Fi (802.11 b/g/n), Bluetooth-compatible 5.0.
- Development environments supported include Arduino IDE, Espressif IDF, Lua RTOS, Esphome-homeassistant/PlatformIO/Micro Python, and compatibility with the LVGL graphics library.
- Built-in LVGL demo interface and Arduino example, plug and play.
- LCD 320*240 2.4" TFT-LCD with driver IC ILI9341V.
- Its rich peripheral ports and expansion functions allow it to satisfy the needs of a variety of fields.

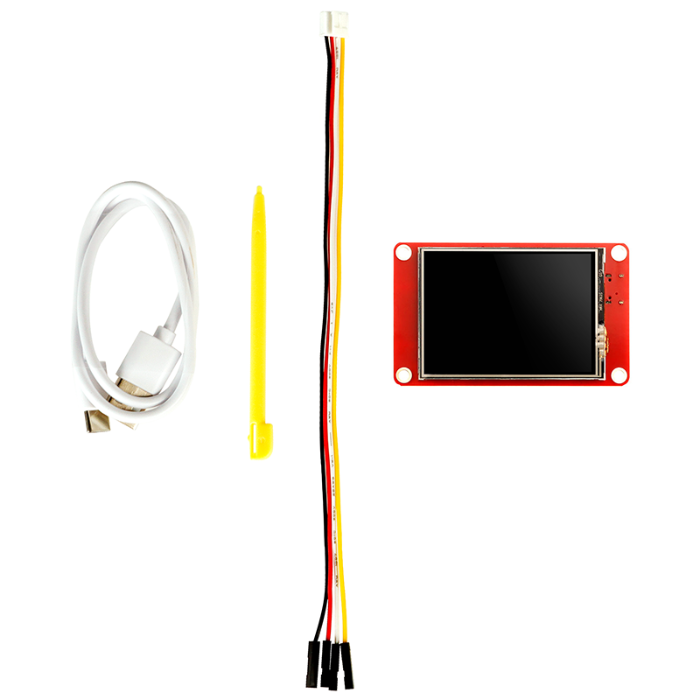

Package Includes:
- 1x CrowPanel ESP32 Display-2.4 Inch Display
- 1x USB-A to Type-C Cable
- 1x Crowtail/Grove to 4pin DuPont cable
- 1x Resistive touch pen
Specifications:
| Specification | Details |
|---|---|
| Model | 2.4 inches-CrowPanel ESP32 Display |
| Main Processor | ESP32-WROOM-32-N4 (Dual-core 32-bit LX6) |
| Resolution | 240 x 320 pixels |
| Touch Type | Resistive Touch Screen |
| Display Type | TN Panel |
| Screen | TFT-LCD Screen |
| Display Driver | ILI9341V |
| External Power Supply | DC 5V 2A |

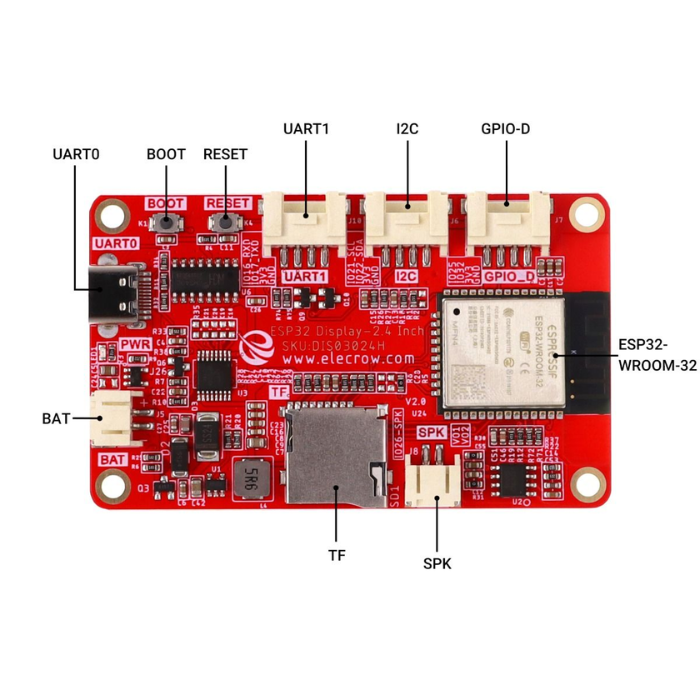

| Interfaces | 1x TF Card Slot, 1x I2C, 1x GPIO, 1x Speaker, 1x UART1, 1x UART0 |
| Buttons | BOOT Button, Reset Button |
| Active Area (W x H) | 36.72 x 48.96 mm |
| Working Temperature | -20℃ to 70℃ |
| Storage Temperature | -30℃ to 80℃ |
