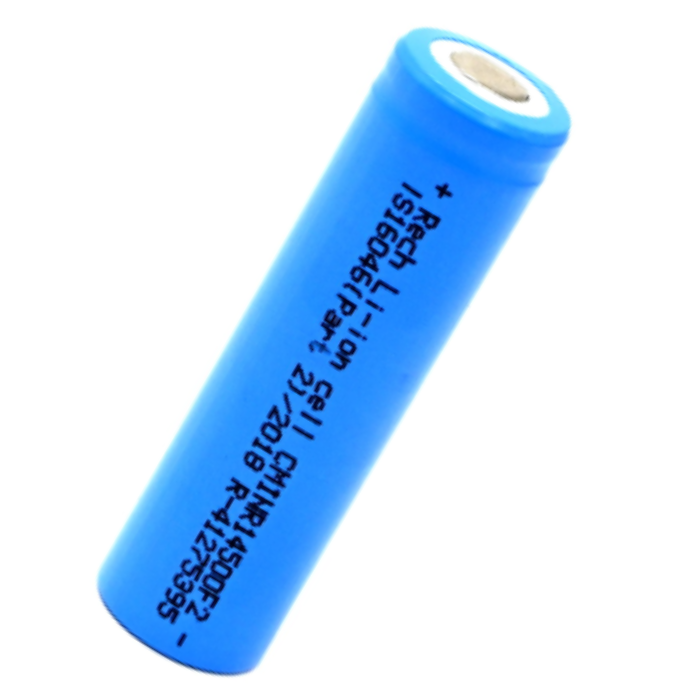

CHAM CMINR14500F2 850mAh 2C 3.6V AA Rechargeable Li-ion Battery
CHAM CMINR14500F2 850mAh 2C 3.6V AA Rechargeable Li-ion Battery
0
Couldn't load pickup availability
Free shipping on Orders Above Rs 499/-
Fast Delivery
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Compact cylindrical shape ideal for space-saving designs.
- Reliable lithium-ion technology that delivers high performance.
- High capacity ensures extended power for various devices.
- Flat top design offers universal compatibility with many devices.
- Engineered for consistent efficiency in portable electronics.
CHAM CMINR14500F2 850mAh 2C 3.6V AA Rechargeable Li-ion Battery
Introducing the CHAM CMINR14500F2 rechargeable Li-ion battery – a compact, single-cell AA-sized power source delivering 3.6 volts at 850mAh. Designed for projects that require a reliable 3.76V high-capacity supply, this battery is perfect for powering portable devices such as flashlights, hobby transmitters, and receivers.
This Li-ion battery also serves as an excellent replacement for standard non-rechargeable AA batteries, making it a cost-effective and efficient option for applications like RC transmitter/receiver remotes. The versatile lithium ion battery terminals are compatible with many adapters or holders, or they can be permanently soldered to your device’s wiring for seamless integration.
Important Guidelines:
- Avoid Deep Discharge: Do not let the Li-ion battery drop below 2.5V under load.
- Initial Charge: Fully charge to 4.2V before the first use.
- Metal and Magnets: Keep any metal moving parts or magnets away from both the positive (top) and negative (bottom) contacts.
- Proper Installation: Never force the battery into its compartment.
- Battery Pairing: Do not mix old and new battery cells.
- Charger Quality: Always use a reliable, high-quality battery charger.
- Heat Exposure: Keep the battery away from high temperatures.
- Prevent Short-Circuiting: Avoid connecting the positive (top) and negative (bottom) terminals directly.
- Safe Storage: When not in use, store the battery in its plastic holder or another insulating container.
- Charging Voltage: Do not exceed 4.22V during charging—this is another reason to choose a quality charger.
- Supervised Charging: Never leave the battery charging unattended.
- Long-Term Storage: Do not store the battery fully charged for extended periods.
- Optimal Storage Conditions: Store in a cool, dry place at about 3.7V (the recommended storage charge).
- Post-Discharge Care: Recharge the battery as soon as possible after it has been discharged.
- User Knowledge: Ensure you are well-informed about proper Li-ion battery discharging, charging, assembly, handling, and storage before use.
Features
- Form Factor: Cylindrical
- Battery Type: Lithium-Ion
- Performance: High efficiency with substantial capacity
- Design Feature: Flat top for compatibility with a wide range of devices
Specifications
| Specification | Value |
|---|---|
| Model Type | 14500 |
| Nominal Capacity (mAh) | 850 |
| Nominal Voltage (V) | 3.6 |
| Dimensions (L x W x H) mm | 14 x 49 mm (Diameter x length) |
| Weight (g) | 20 |
| Rechargeble | Yes |
| Max. Discharge Current (A) | 1.6 |
| Maximun Charge Voltage (V) | 4.2 |
| Life Cycle | 800 |
| Battery Size | AA |
