C945 NPN Through Hole TO92 Transistor - Pack of 5 - Buy Online in India

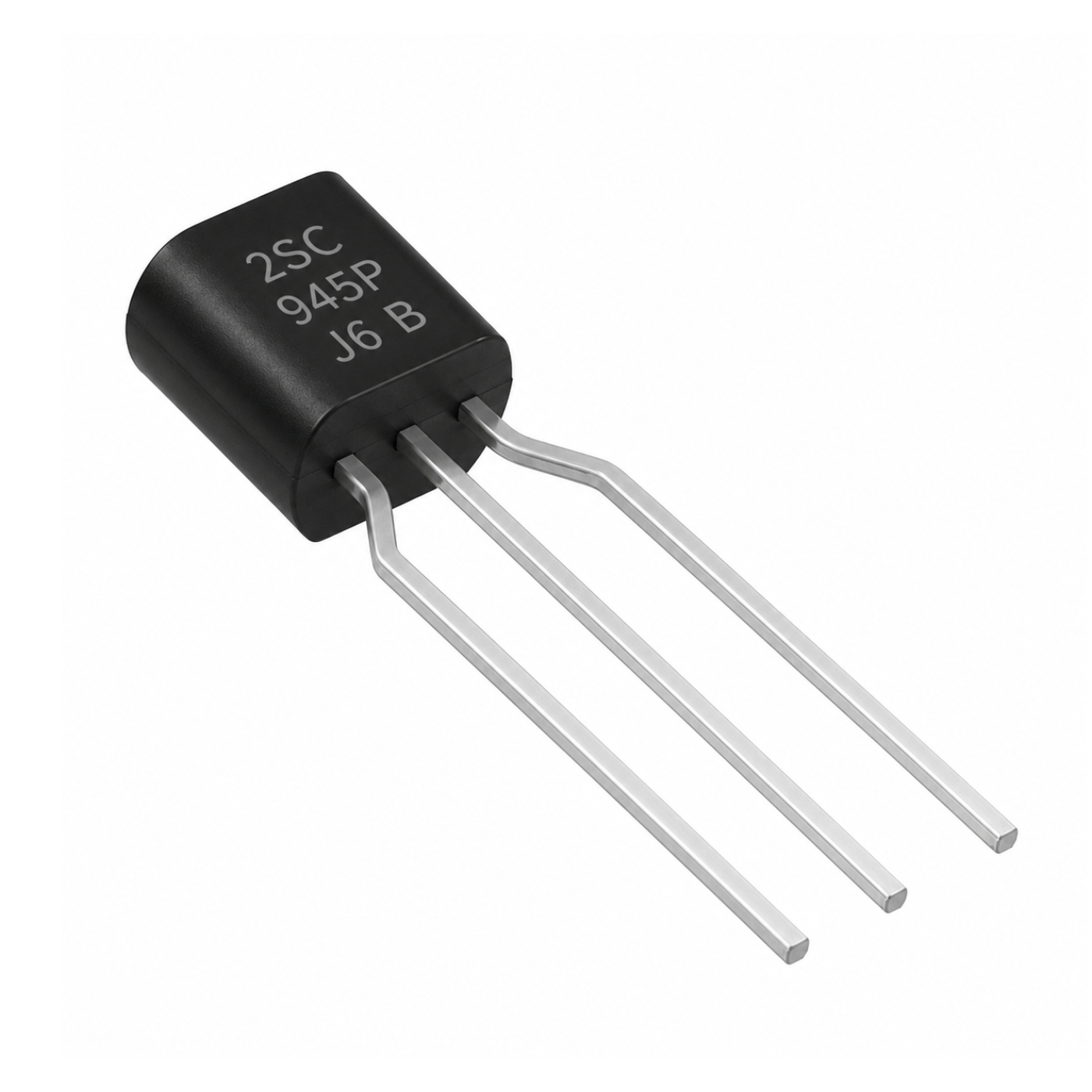

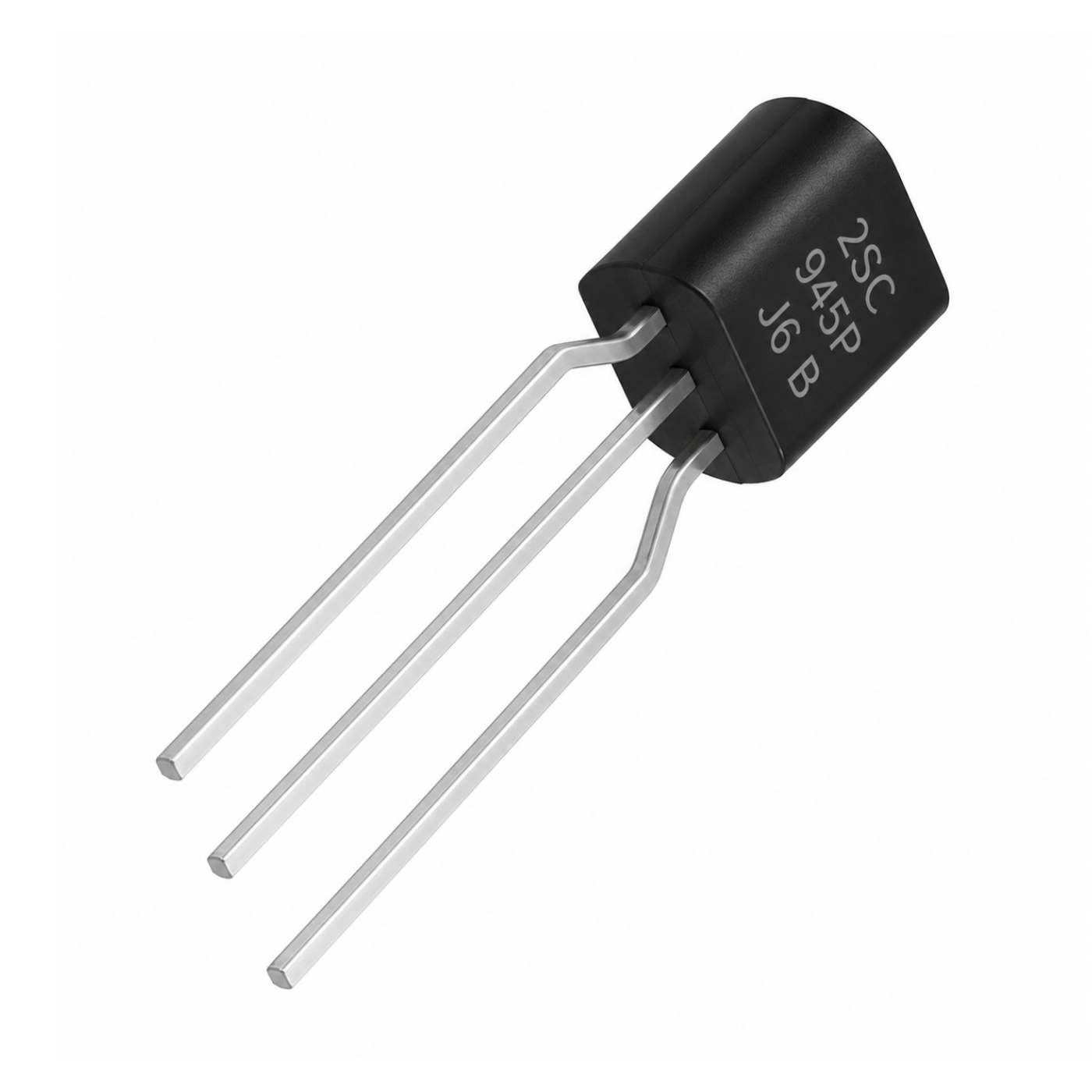

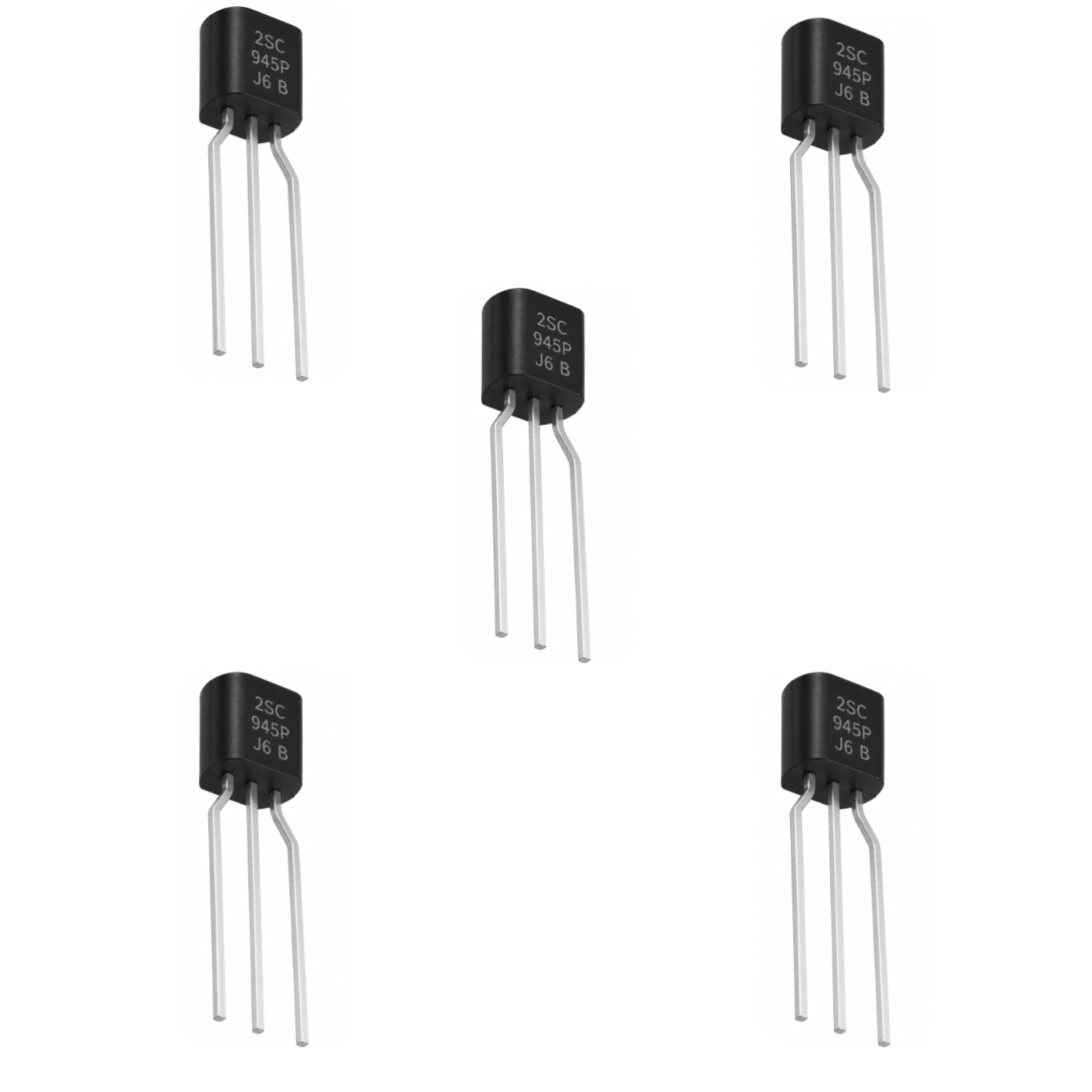

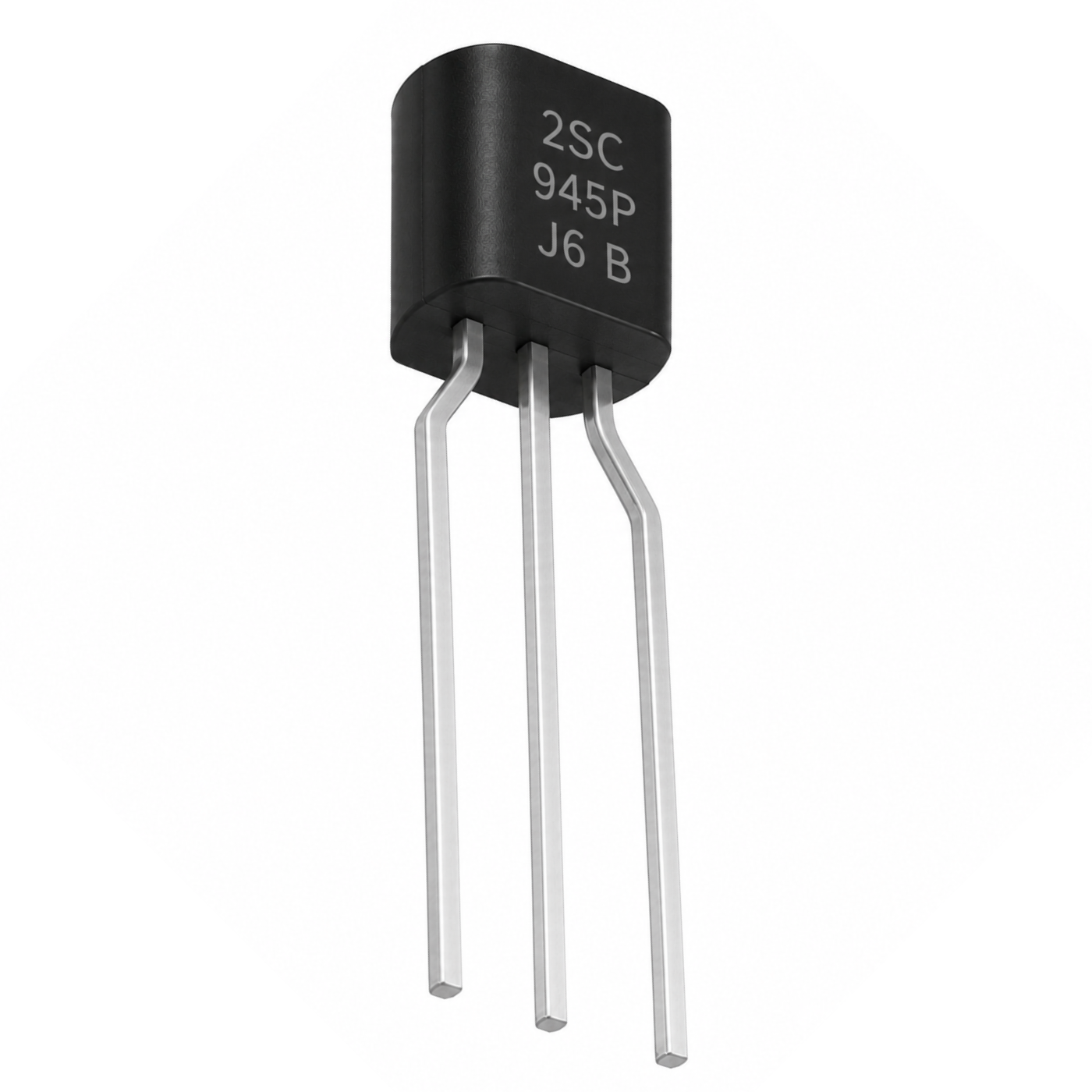

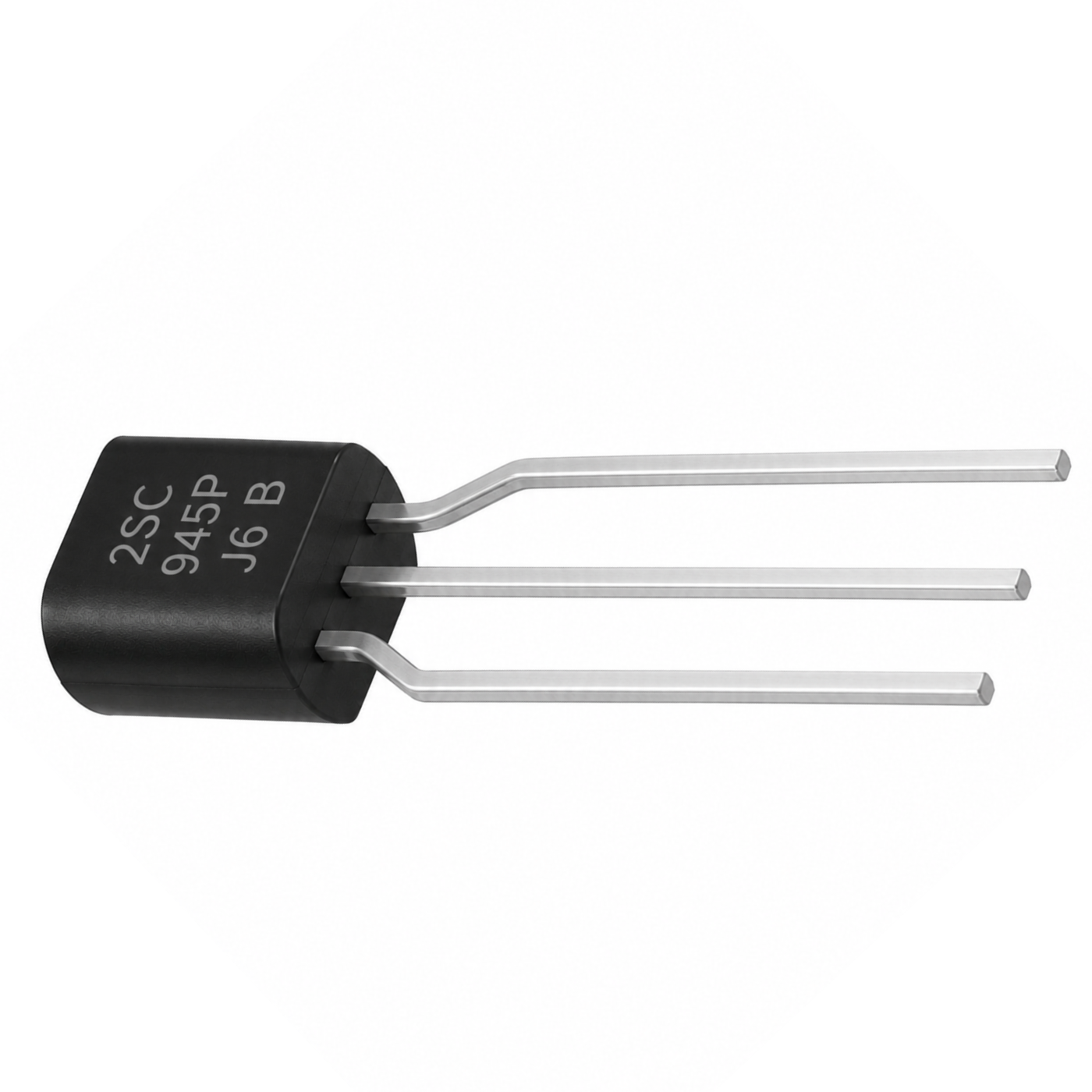

C945 NPN Through Hole TO92 Transistor - Pack of 5

The C945 is a general-purpose NPN Bipolar Junction Transistor (BJT) designed for switching and audio frequency amplification applications. Housed in a compact TO-92 plastic package, it is suitable for through-hole PCB assembly and is widely used in consumer electronics, audio equipment, educational projects, and general-purpose electronic circuits. Its compact package makes it easy to integrate into both prototype and production designs.

Designed with low-noise characteristics and excellent DC current gain linearity, the C945 is suitable for signal amplification and switching applications. It is commonly used in audio frequency amplifiers, oscillators, and low-power electronic circuits where reliable transistor performance is required. The C945 is complementary to the A733 transistor, making it suitable for complementary amplifier designs.

The transistor features a collector-emitter voltage (VCEO) of 50V, collector-base voltage (VCBO) of 60V, emitter-base voltage (VEBO) of 5V, and supports a maximum collector current of 150mA. With a maximum power dissipation of 400mW and a transition frequency of 200MHz, it is suitable for a variety of analog and digital electronic applications. The TO-92 package enables convenient installation, soldering, and replacement during circuit development and assembly.

Features:

• General-purpose NPN Bipolar Junction Transistor (BJT).
• Compact TO-92 plastic package for through-hole mounting.
• Designed for switching and audio frequency amplifier applications.
• Low-noise performance with excellent DC current gain linearity.
• Collector-emitter voltage (VCEO) rated at 50V.
• Collector-base voltage (VCBO) rated at 60V.
• Supports collector current up to 150mA.
• Power dissipation of 400mW.
• Transition frequency of 200MHz.
• Complementary transistor to the A733.
