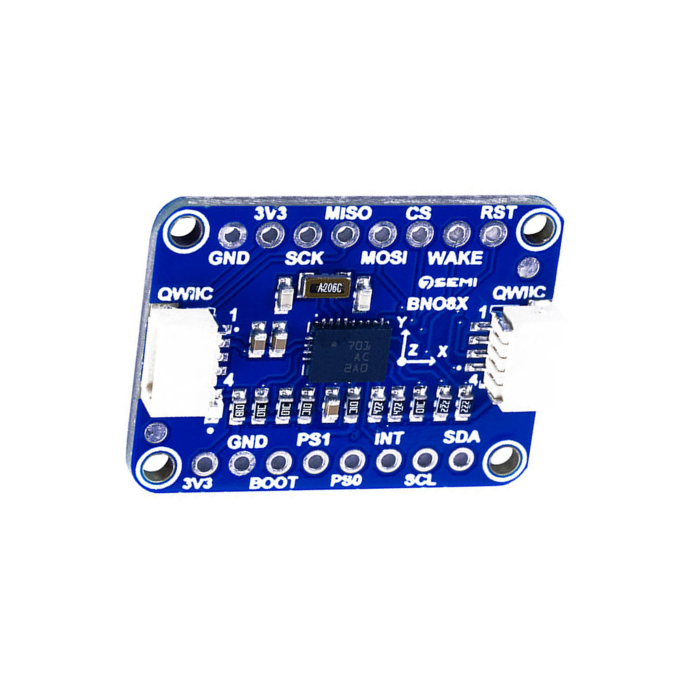

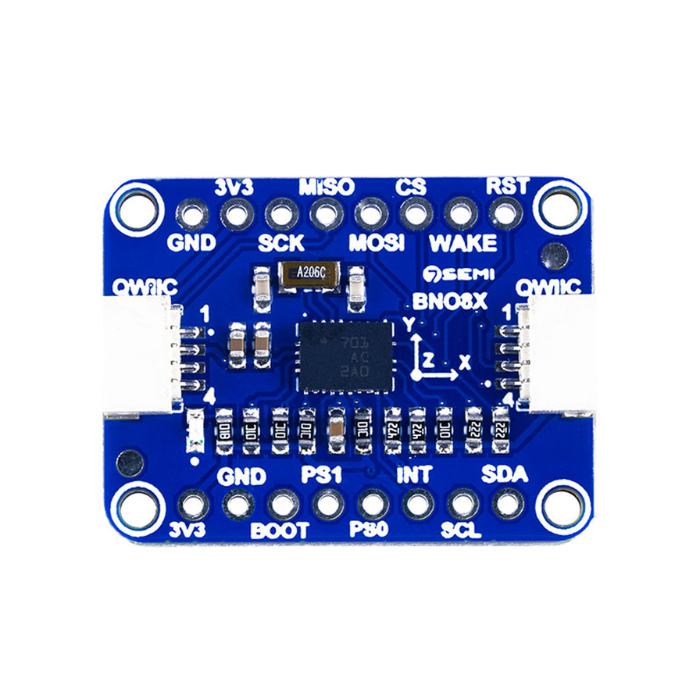

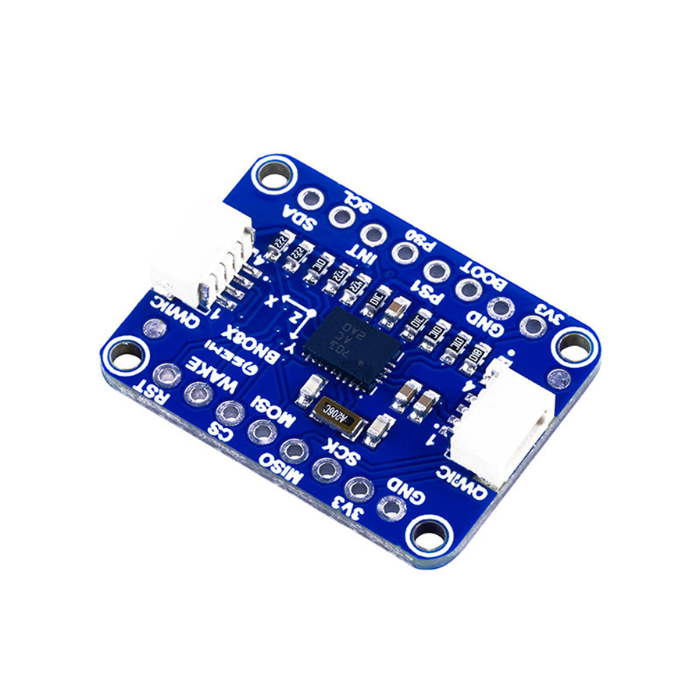

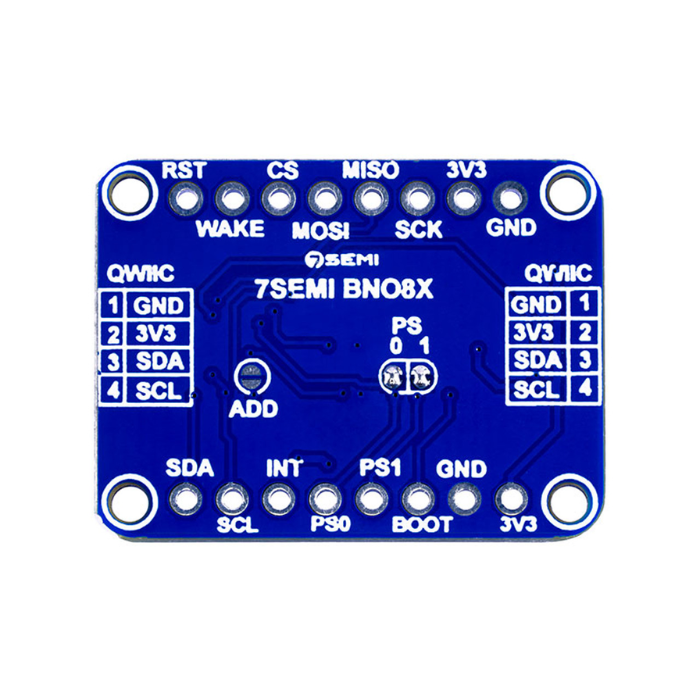

BNO086 9-DOF VR IMU Orientation Breakout – Robocraze

Package Includes:

• 1 x BNO086 9-DOF VR IMU Orientation Qwiic Fusion Breakout -7Semi

Specifications:

Specification	Details
IMU Sensor	BNO086 (9-DOF)
Sensor Components	3-axis Accelerometer, Gyroscope, Magnetometer
Processor	32-bit ARM Cortex M0+
Sensor Fusion	Onboard fusion algorithm for orientation tracking
Rotation Accuracy	< 2° static rotation error
Interfaces	I2C, SPI, UART
Connector Type	Qwiic (Plug-and-play)
Operating Voltage	3.3V
Form Factor	Breakout board

1. How to connect the BNO086 IMU to a microcontroller?

Use the Qwiic Connector IMU to plug the BNO086 IMU directly into a Qwiic-compatible microcontroller like Arduino or Raspberry Pi—no soldering required. Connect it to the I2C bus and power it with 3.3V to enable communication. This plug-and-play setup simplifies integration for rapid prototyping and development.

2. How to read orientation data from the sensor?

The Qwiic IMU Module delivers fused 9-DOF data using onboard sensor fusion, combining inputs from the accelerometer, gyroscope, and magnetometer. Use compatible libraries to access Euler angles, quaternions, or rotation vectors over I2C for accurate 3D orientation tracking. This eliminates the need for manual calibration or complex filtering on your host microcontroller.

3. How to use the VR IMU Breakout for motion tracking?

Mount the VR IMU Breakout securely on your device—such as a VR controller, robotic arm, or wearable—and read real-time orientation data via I2C. The high-precision sensor fusion enables smooth, low-latency motion capture ideal for immersive VR experiences or gesture-based control systems.

4. How to calibrate the BNO086 for accurate measurements?

Initiate calibration through the sensor’s built-in routines using a compatible library. Move the BNO086 IMU in a figure-eight pattern for magnetometer calibration and tilt it along all axes to calibrate the accelerometer and gyroscope. Monitor the calibration status byte to confirm when all sensors are fully calibrated for optimal accuracy.

5. How to integrate the Qwiic IMU Module with Arduino?

Connect the Qwiic IMU Module to a Qwiic-enabled Arduino board using a JST SH cable. Install the official Arduino library via the Library Manager and upload an example sketch to begin reading orientation data. The Qwiic Connector IMU ensures fast, reliable I2C communication without wiring errors or level-shifting issues.

6. How to use the Sensor Fusion Breakout in robotics projects?

Attach the Sensor Fusion Breakout to your robot or drone to provide stable, drift-free orientation data for balance, navigation, or autonomous movement. The fused output reduces computational load on the main processor and improves response accuracy in dynamic environments. Ideal for self-balancing bots, robotic arms, or UAV stabilization.

7. How to troubleshoot connection issues?

If the sensor isn’t detected, verify that the Qwiic Connector IMU is securely connected and that the I2C bus is powered with 3.3V. Use an I2C scanner sketch to check if the BNO086 IMU appears at its default address (0x4B or 0x4A). Ensure no bus conflicts exist and that cables are undamaged for reliable communication.

• BN0086 Datasheet
• User Guide and Sample Code

1. Is the BNO086 breakout compatible with Arduino and Raspberry Pi?

Yes. The 7Semi BNO086 breakout can be used with Arduino and Raspberry Pi projects through its I2C interface. It operates at 3.3V and supports Qwiic connectivity for compatible boards, making it suitable for robotics, orientation sensing, motion tracking, and other sensor-based applications. The board also supports SPI and UART communication for projects requiring other interfaces.
