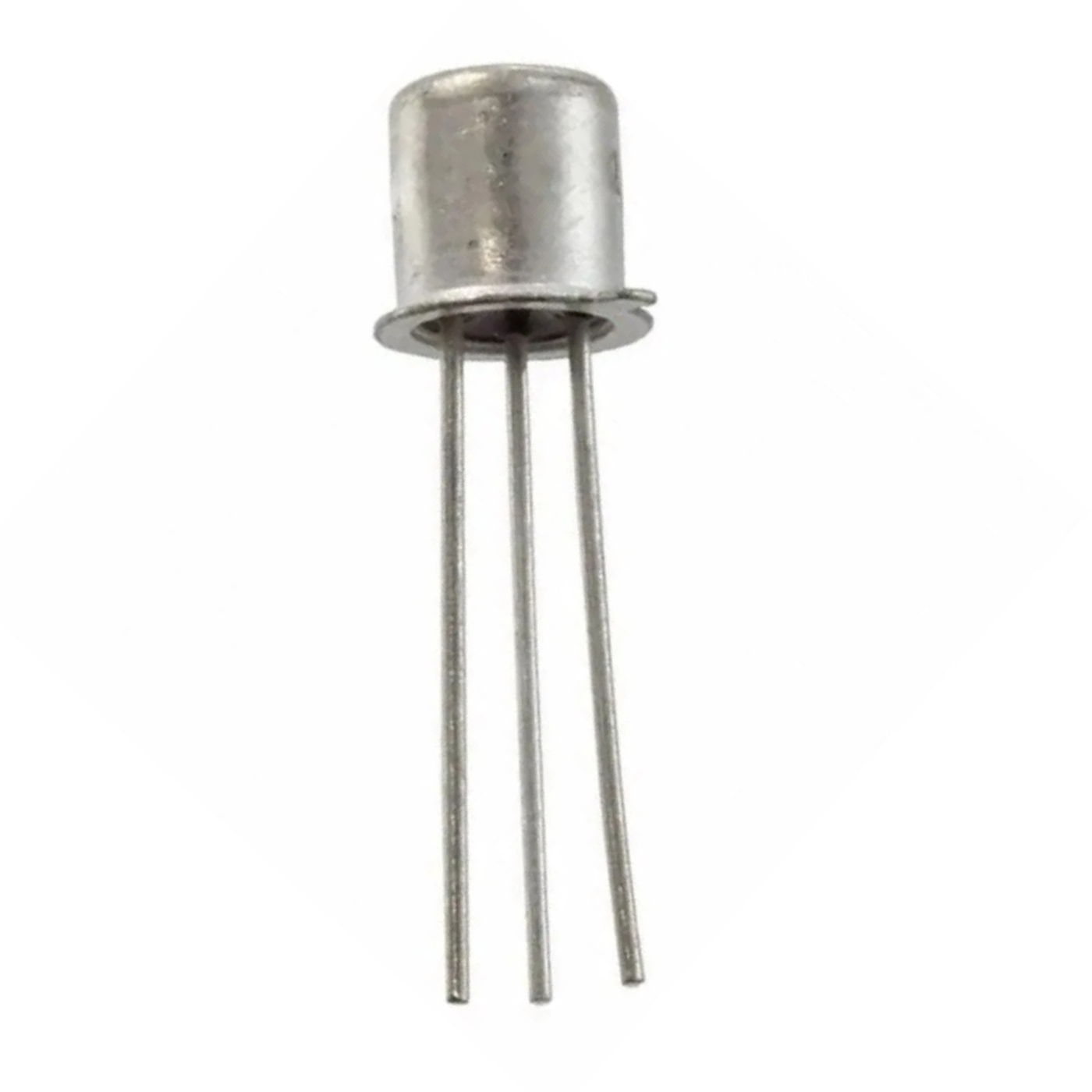

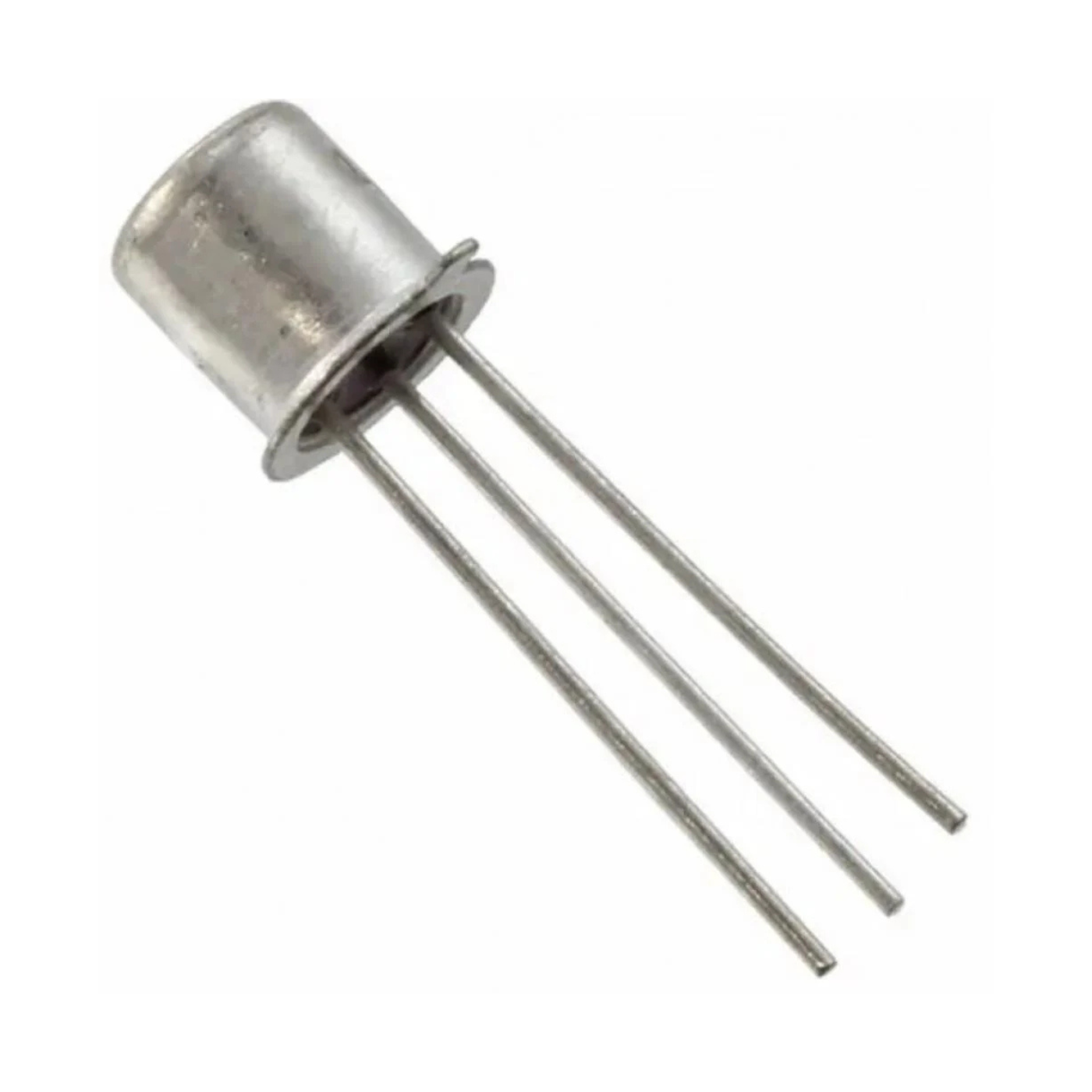

BC108 NPN General Purpose Transistor Metal Package
Couldn't load pickup availability
The BC108 transistor is a reliable NPN general-purpose semiconductor device designed for amplifying or switching electronic signals and electrical power.

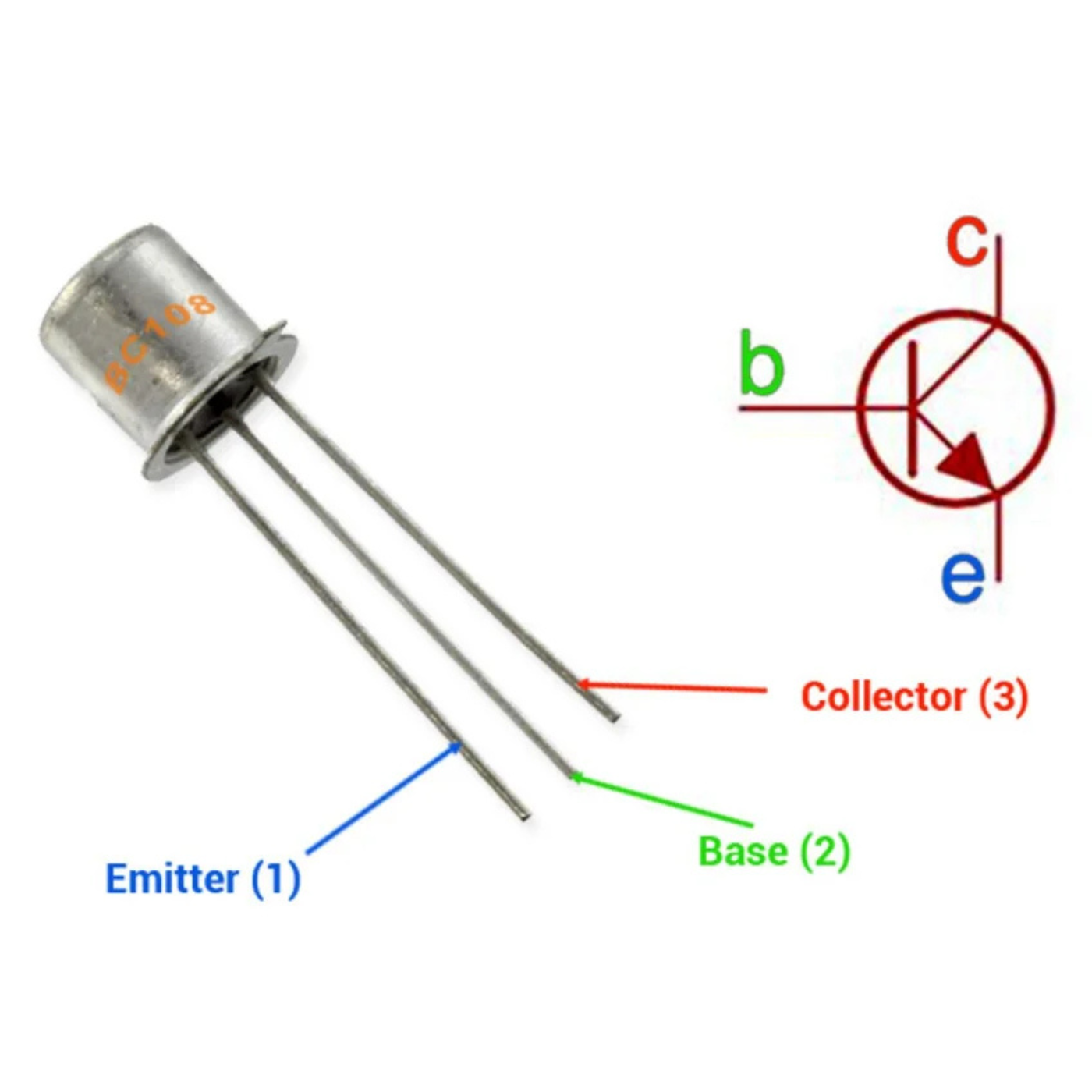

Encased in a durable metal package, it features three terminals that allow easy integration into various electronic circuits.
By applying a small voltage or current to one pair of terminals, the BC108 transistor effectively controls a larger current through another pair, enabling efficient signal amplification and switching functions.
Widely used in hobby electronics, educational projects, and low-power applications, the BC108 transistor remains a versatile and dependable choice for engineers and DIY enthusiasts alike.
| Parameter | Value |
|---|---|
| Transistor Polarity | NPN |
| Collector-Base Voltage (VCBO) | 30V |
| Collector-Emitter Voltage (VCEO) | 25V |
| Emitter-Base Voltage (VEBO) | 5V |
| Continuous Collector Current (IC) | 0.2A |
| Output Capacitance (Cobo) | 4.5pF |
| Transition Frequency (fT) | 150MHz |
| DC Current Gain (hFE) | 110–800 |
| Operating Temperature Range | -65°C to 200°C |
| Power Dissipation (PD) | 1W |
