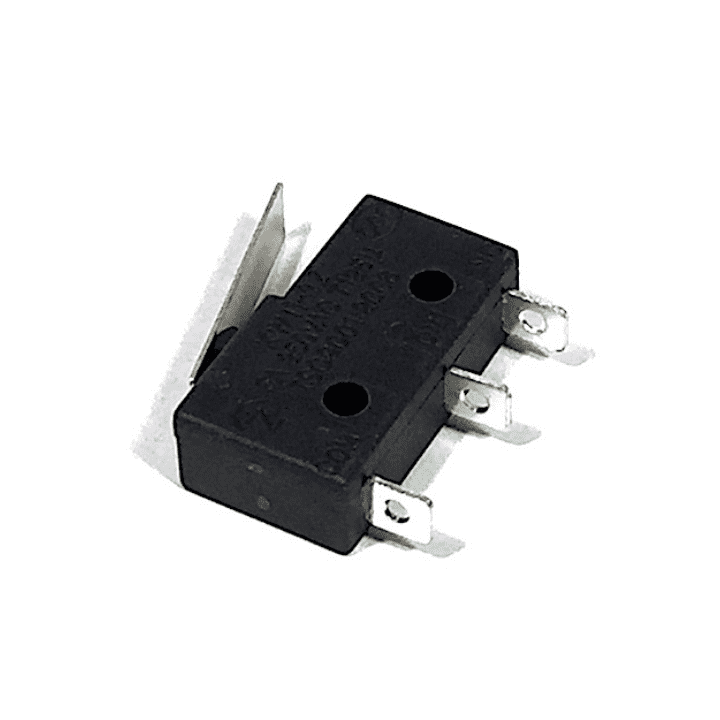

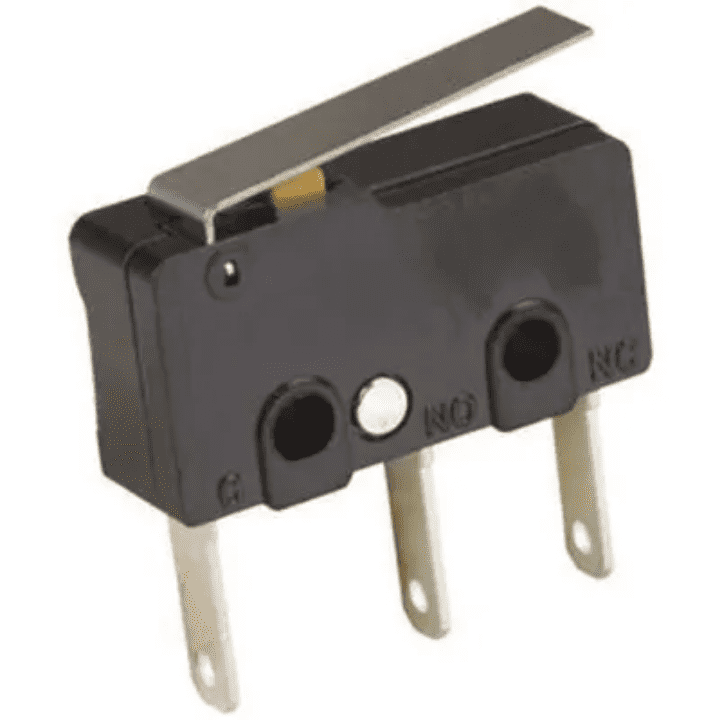

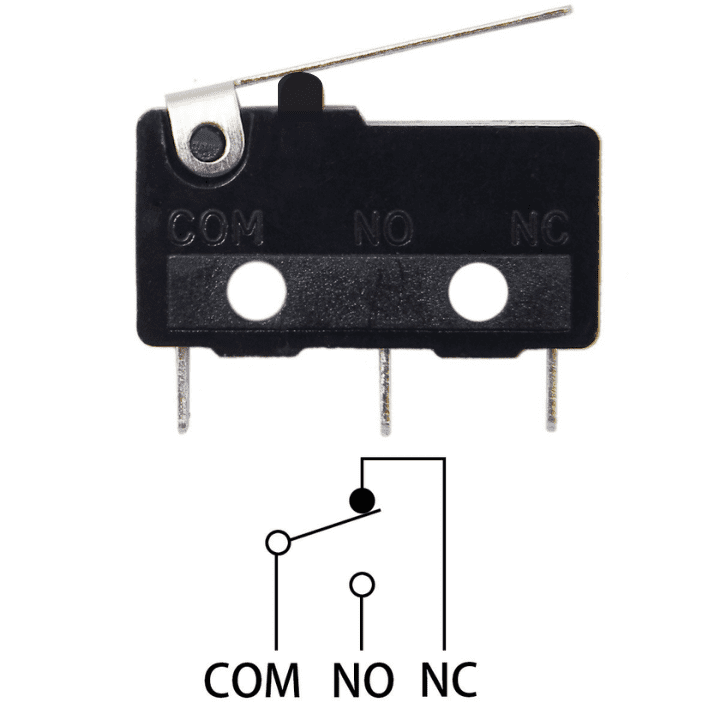

Arm Lever 15mm, 250V 6A SPDT 3-Pin Momentary Plastic Micro Limit Switch
Arm Lever 15mm, 250V 6A SPDT 3-Pin Momentary Plastic Micro Limit Switch
Out of stock
Couldn't load pickup availability

Free shipping on Orders Above Rs 499/-
Fast Delivery

Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards

Cash on Delivery Available
Cash Delivery
COUPON
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Single pole double throw (SPDT) type. Momentary action.
- Incorporating a snapping mechanism made with two highly precise split springs that ensures long durability.
- Using insertion molded terminals that prevents flux penetration.
- In addition to self-clinching PCB, left-angled, right-angled terminals,
- 2 types of soldering terminals are available.
- Lineup of 5A type for high load applications.
Arm Lever 15mm, 250V 6A SPDT 3-Pin Momentary Plastic Micro Limit Switch
This is an Arm Lever 15mm, 250V 6A SPDT 3-Pin Momentary Plastic Micro Limit Switch Incorporating a snapping mechanism made with two highly precise split springs that ensure long durability. Using insertion of molded terminals that prevent flux penetration. In addition to self-clinching PCB, left-angled, and right-angled terminals, 2 types of soldering terminals are available. It has a Lineup of 5A types for high-load applications.
Package Includes:
- 1 x Arm Lever 15mm, 250V 6A SPDT 3-Pin Momentary Plastic Micro Limit Switch
Specification:
Actuator Style | Hinge Lever |
Pole Throw Configuration | SPDT |
Maximum Current Rating (A) | 0.1@30VDC |
Maximum Movement Differential (mm) | 0.5 |
Mounting | Screw Mount |
Operating Temperature (°C) | -40 to 80 degree Celsius |
Length (mm) | 12.8 |
Width(mm) | 5.8 |
Height (mm) | 6.5 |
Operating Force (N) | 0.25 |
