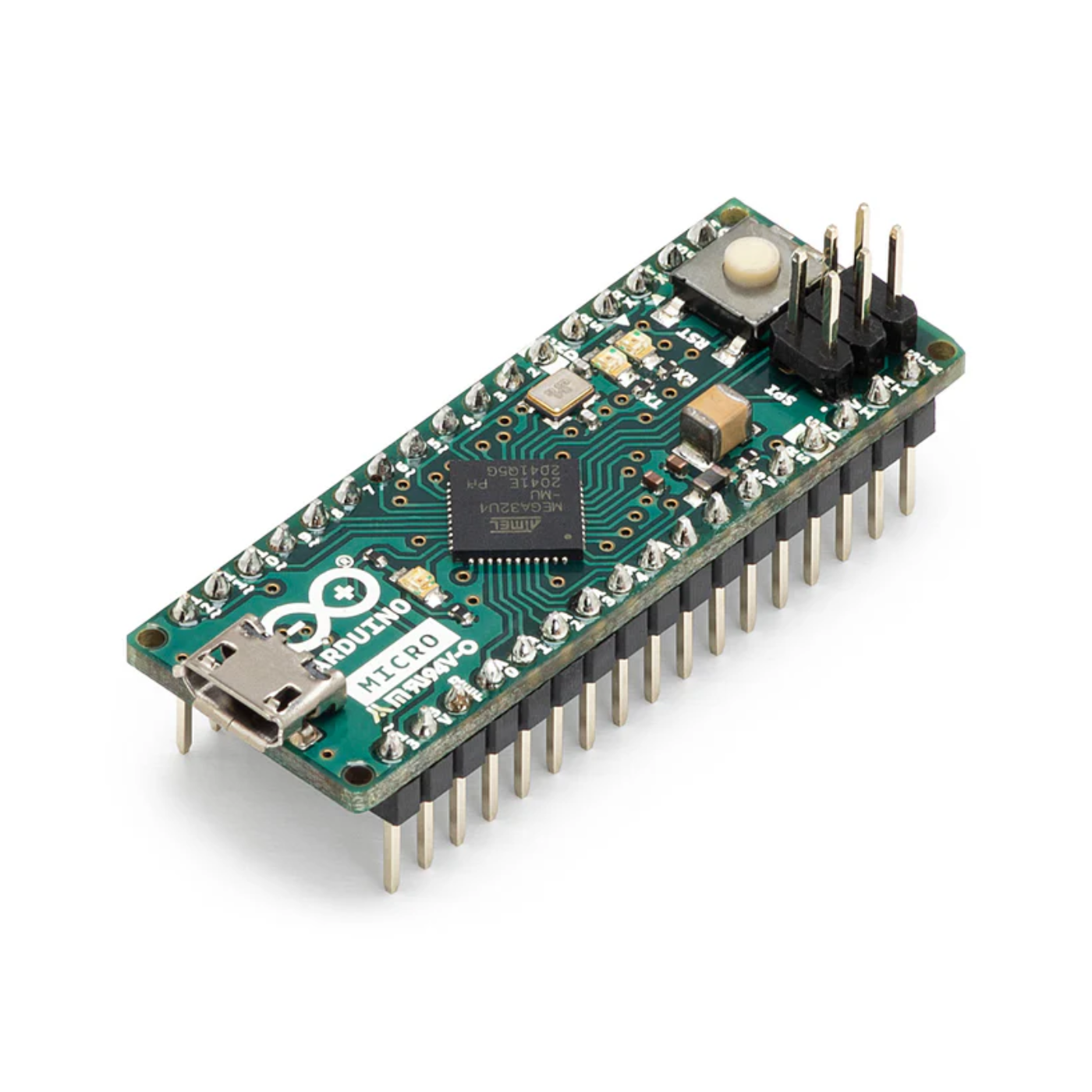

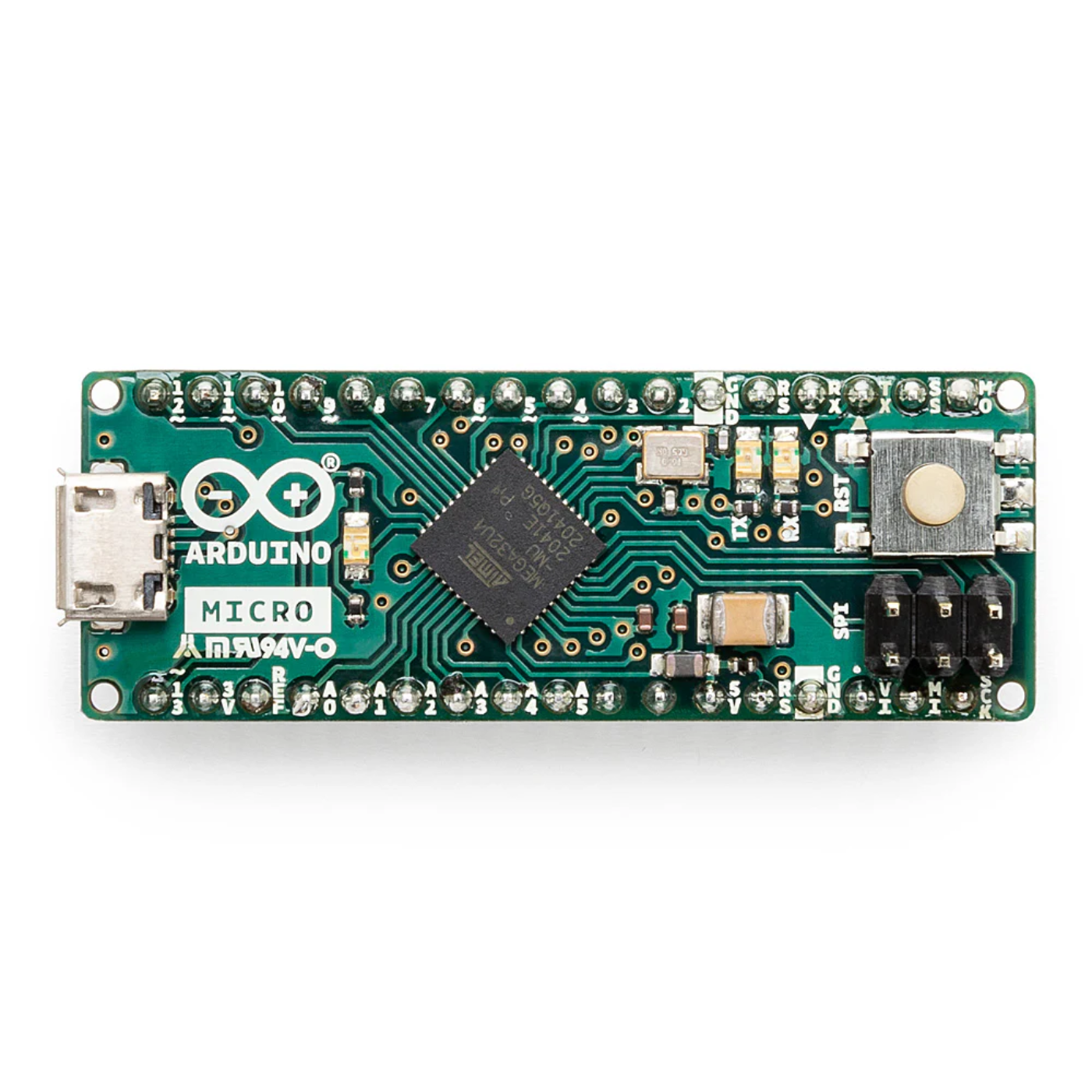

The Arduino Micro was developed by Arduino in collaboration with Adafruit. The Arduino micro is a powerful development board integrated with the ATmega32U4 microcontroller. This arduino board features 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a micro USB connection, an ICSP header, and a reset button.
The Arduino Micro contains everything needed to support the microcontroller; simply connect it to a computer with a micro USB cable to get started. It has a form factor that enables it to be easily placed on a breadboard.
This Original Arduino Micro is similar to the Arduino Leonardo in that the ATmega32U4 has built-in USB communication, eliminating the need for a secondary processor. This allows the Micro to appear to a connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial / COM port. It also has other implications for the behaviour of the board.

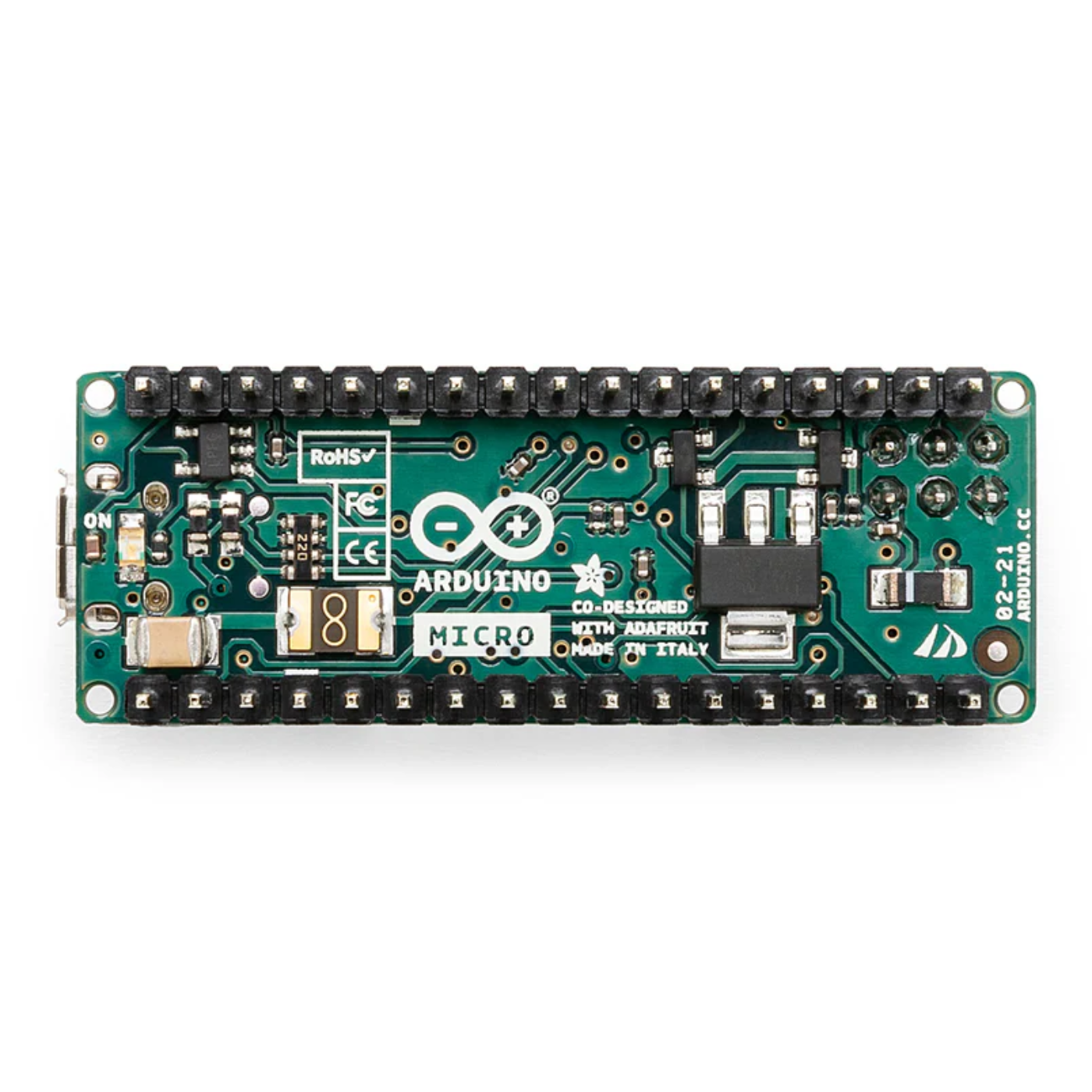

Onboard is the processor, crystal, micro USB connection with fuse, Reset button, ISP low-level reprogramming header, ON LED, TX and RX LEDs, an extra user pin #13 LED, and a 3.3V regulator. You’ll probably also want to pick up a micro-B USB cable to connect this board to your computer
You can use it for basic Arduino sketches as well as USB client projects like making it appear as a mouse or keyboard to your computer! Although it is not shield compatible – it does have all the same pins as a Leonardo. Its best for when you want to shrink your project down or use it on a breadboard.
Pinout of Arduino Micro
Note: Robocraze is the authorized seller of Arduino in India. Therefore, even if you are Bangalore, Hyderabad, Mumbai, or Pune, you can order and buy Arduino Micro online from the comfort of your home.
Look out our various collections of Original Arduino Boards.
| Brand | Arduino |
| Microcontroller | ATmega32U4 |
| Operating Voltage | 5V |
| Input Voltage (recommended) | 7-9V |
| Digital I/O Pins | 20 |
| PWM Channels | 7 |
| Analog Input Channels | 12 |
| Flash Memory | 32 KB (ATmega32U4) of which 4 KB used by the bootloader |
| SRAM | 2.5 KB (ATmega32U4) |
| EEPROM | 1 KB (ATmega32U4) |
| Clock Speed | 16 MHz |
| Dimensions | 4.8 x 1.8cms |
| Weight | 13 grams |
This product comes with a 1-year manufacturer warranty from the date of purchase, covering manufacturing defects only.
