RASPBERRY PI ZERO 2W WITH ALUMINIUM HEATSINK AND 20X2 HEADER
RASPBERRY PI ZERO 2W WITH ALUMINIUM HEATSINK AND 20X2 HEADER
Couldn't load pickup availability
Free shipping on Orders Above Rs 499/-
Fast Delivery
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Made of high quantity aluminium, good thermal conductivity.
- There is glue on the back of heat sinks that can be easily stuck to hardware.
- Designed to maximize its surface area in contact with the cool air.
- Lightweight and used in applications where weight is a big concern.
- Compatible with Raspberry Pi Zero and 2W
If you are a manufacturer and want to purchase Raspberry Pi in BULK, please fill this form.
| Due to limited quantity, we have restricted orders for this product at 1 qty per customer. Multiple orders/units will be cancelled after 2% deduction as per our policies. |
Raspberry Pi Zero 2W with Aluminum Heatsink and 20x2 Header

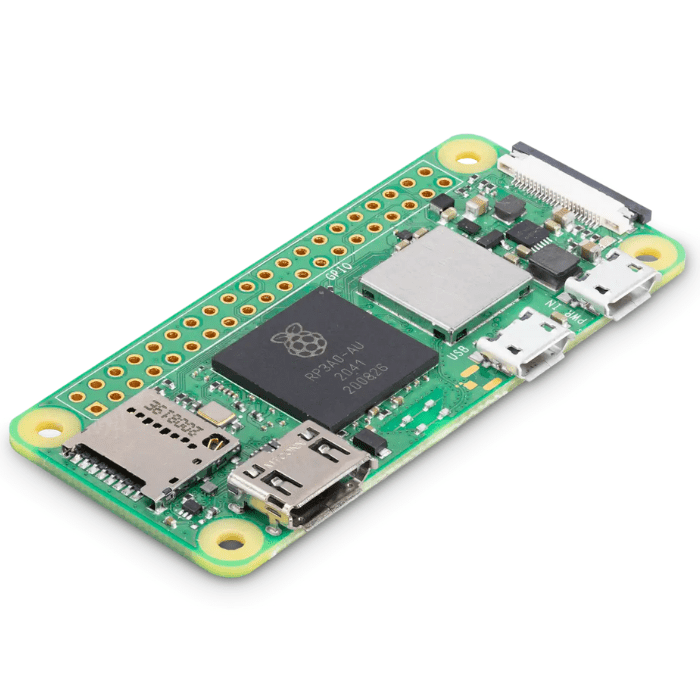

Raspberry Pi Zero 2 W
Raspberry Pi Zero 2 W is perfect for a range of smart home applications and other IoT projects. From security cameras to Bluetooth speakers, zero 2 W has the tiny form factor and impressive power that make it an ideal computer for your projects. With a Raspberry Pi Zero, you have a compact computer with enough processing power to manage many different project types. With a Raspberry Pi Zero 2 W, however, you get a better level of performance thanks to its quad-core processor, plus the flexibility of wireless networking. While this will have an impact on battery life for remote-controlled projects, it's a fair trade-off to improve your Pi Zero-based projects.

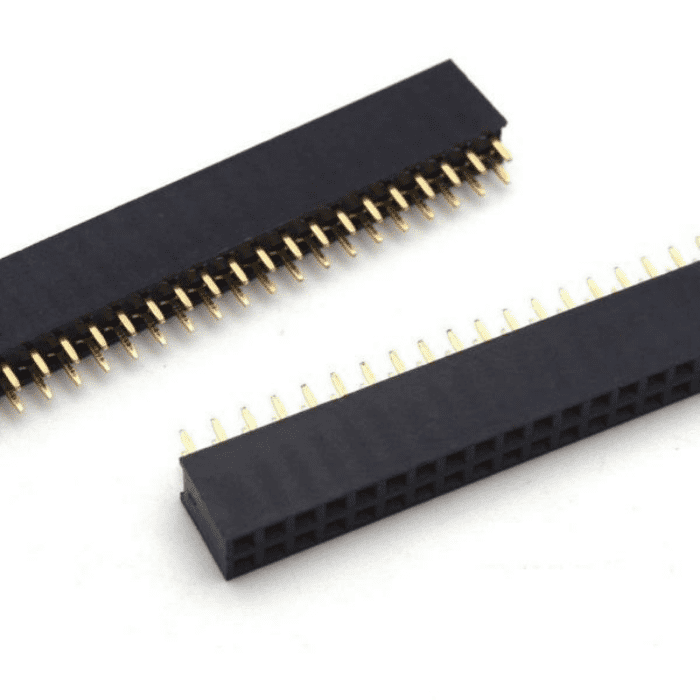

20X2 HEADER

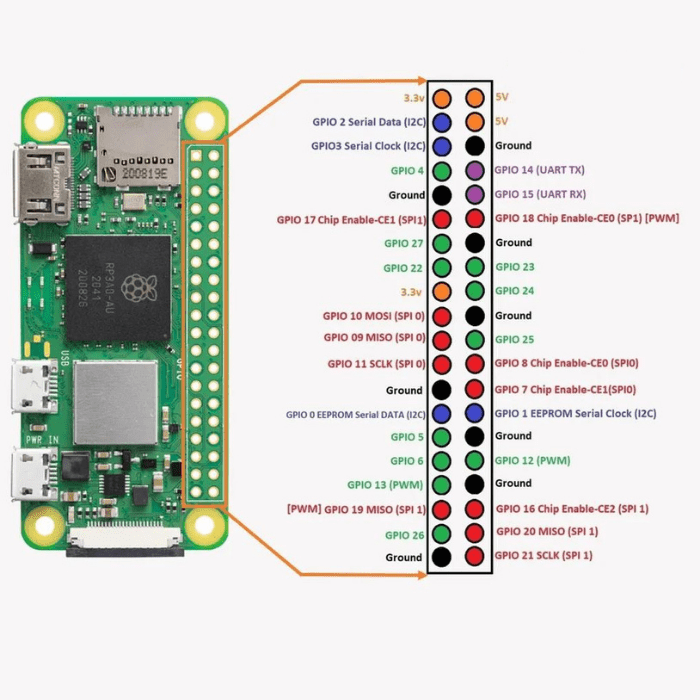

This GPIO 20x2 header has the same number and spacing of pins as a Raspberry Pi and provides your board with the ability to extend the heights of your GPIO to accommodate for enclosures or other parts that can encapsulate your Pi. This through-hole header has 20 0.1″-spaced pins and can just be snapped into place with minimal soldering to an applicable “shield.”

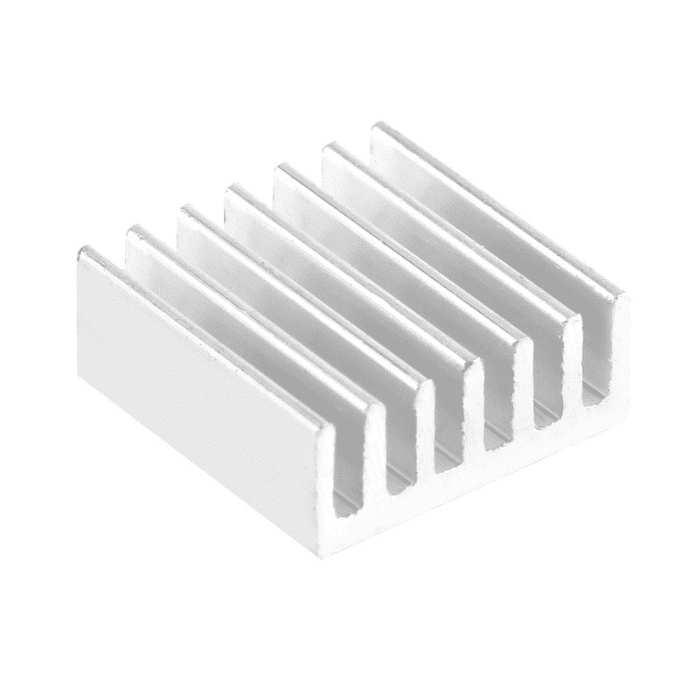

Aluminium Heat Sink
The Aluminium Heat Sink for Raspberry Pi is a heat sink kit made of aluminium that is used to cool the chip's microprocessor. The heat sink is attached with thermally conductive adhesive tape, which helps in cooling the Raspberry Pi efficiently.
Applications:
- Remote Controlled Smart Drone
- Raspberry Pi Zero Wi-Fi Security Camera
- Home Automation and IoT devices
- Portable Pocket-Sized Computer
- Compact Raspberry Pi Zero Server
- Music Player

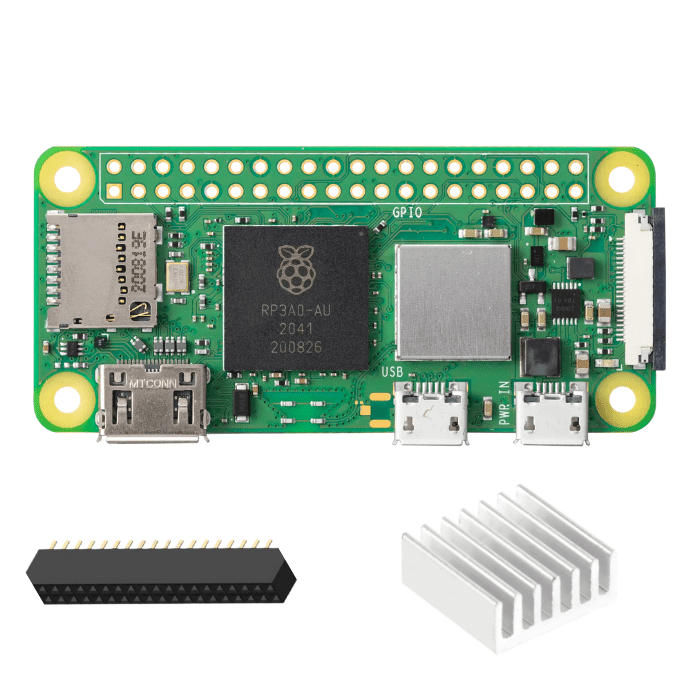

PACKAGE INCLUDES:
- 1 x Raspberry Pi Zero 2 W
- 1 x GPIO Header – 20X2
- 1 x Heatsinks
Specifications:
|
Brand |
Raspberry Pi |
|
Model |
Raspberry Pi Zero 2 W |
|
Processor |
1GHz quad-core, 64-bit ARM Cortex-A53 CPU |
|
RAM |
512MB LPDDR2 DRAM |
|
Dimensions of Raspberry Pi Zero 2 W |
65 x 30 x 5.2mm |
|
Weight of Raspberry Pi Zero 2 W |
50 grams |
|
Material Used for Heatsink |
Aluminum |
|
Dimension of the Heatsink |
14*14*6mm / 0.55*0.55*0.23" |
