- Ultra-precise 32-bit ADC for high-resolution measurements
- Programmable gain (1x–32x) for flexible sensor support
- Dual ADCs for simultaneous main and background data capture
- Low offset and gain drift ensures stable performance
- Built-in fault monitoring and self-test signal
- Supports multiple sensors with 11 inputs and 8 GPIOs

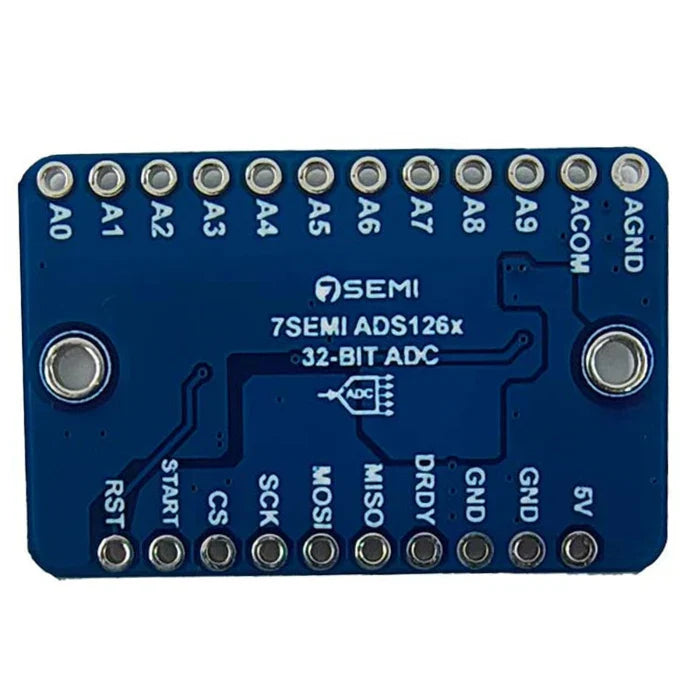

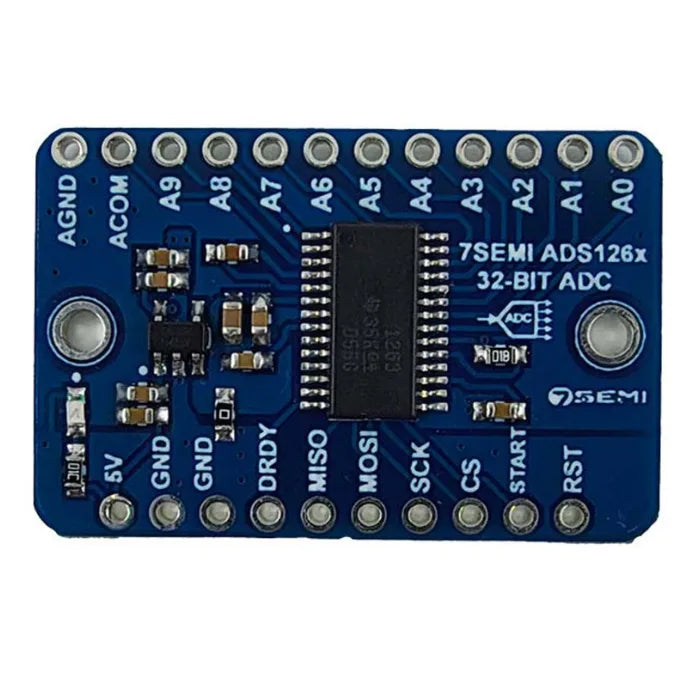

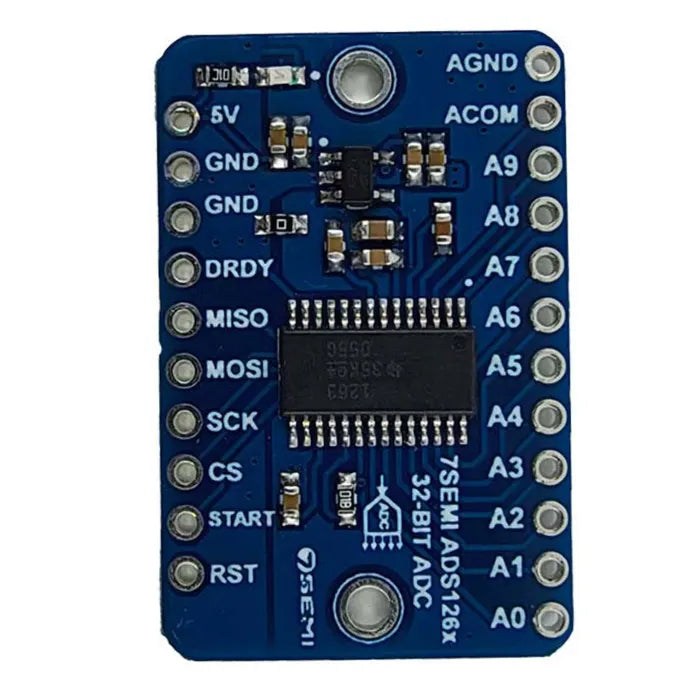

ADS1263 32-bit ADC Module with PGA Breakout - 7Semi
The 7Semi ADS1263 32-bit ADC Module with PGA Breakout is a high-accuracy data acquisition solution built around the Texas Instruments ADS1262 chip.
Designed for demanding applications like weigh scales, RTDs, thermocouples, and strain-gauge sensors, this module delivers ultra-low noise and minimal drift for reliable performance.
It features a built-in Programmable Gain Amplifier (PGA), onboard voltage reference, and dual sensor excitation currents for precision in direct RTD measurements. With a wide range of data rates (2.5 to 38,400 SPS), a 24-bit auxiliary ADC for background tasks, and a single-cycle settling digital filter, it’s ready to handle both fast and highly sensitive measurements.
Fault monitoring and flexible interface options make this breakout ideal for industrial and lab-grade applications where accuracy matters most.
Package Includes

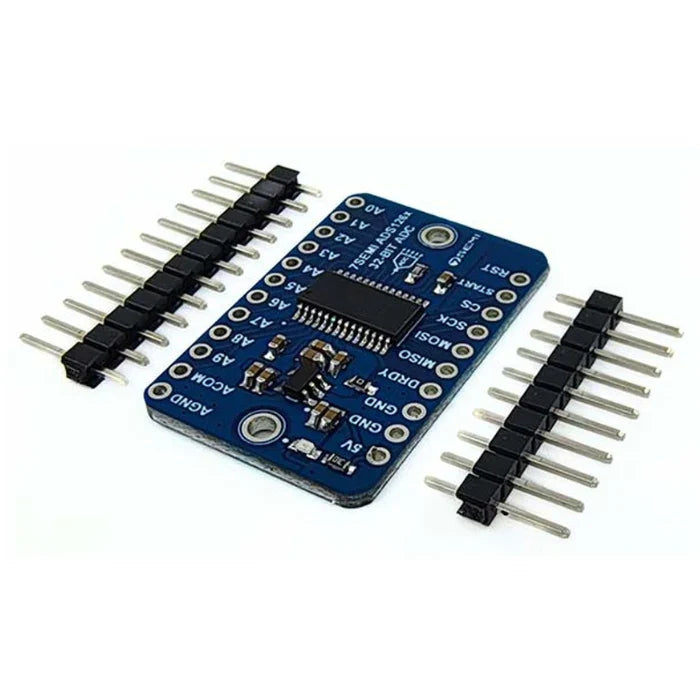

1 x 7Semi ADS1263 32-bit ADC Module with PGA Breakout
Specifications
| Specification | Details |
|---|---|
| ADC Type | 32-bit Delta-Sigma (ΔΣ) ADC |
| Auxiliary ADC | 24-bit Delta-Sigma ADC (ADS1263) |
| Programmable Gain | 1x to 32x (CMOS PGA) |
| Analog Inputs | 11 Multifunction Analog Inputs |
| Data Rate | 2.5 SPS to 38,400 SPS |
| Offset Drift | 1 nV/°C |
| Gain Drift | 0.5 ppm/°C |
| Noise | 7 nVRMS (at 2.5 SPS, Gain = 32) |
| Linearity | 3 ppm |
| Voltage Reference | 2.5V Internal (2 ppm/°C Drift) |
| Line Frequency Rejection | 50-Hz and 60-Hz |
| Dimensions (LxWxH) | 3.1 x 2.1 x 2 cm |
| Weight | 4 gm |
| Sensor Excitation | Dual Current Sources (for RTD) |
| Internal Monitoring | Fault Monitors & Test Signal |
| GPIO Pins | 8 General-Purpose IO |
| Communication Interface | SPI |
