- This is A6 GSM Module
- Professional-grade development board for creating IoT projects with the GPRS A6 module.
- Supports dual-band GSM/GPRS networks for SMS, phone calls, and GPRS internet connectivity.
- Compact and portable design, suitable for portable projects.
- Low power consumption for extended usage without worrying about power.
- Communicates with a microcontroller via UART port and supports various commands.
- Features quad-band GSM/GPRS network support (850/900/1800/1900MHz).
- Capable of making and answering phone calls using a headset and electret microphone.
- Supports sending and receiving SMS messages.

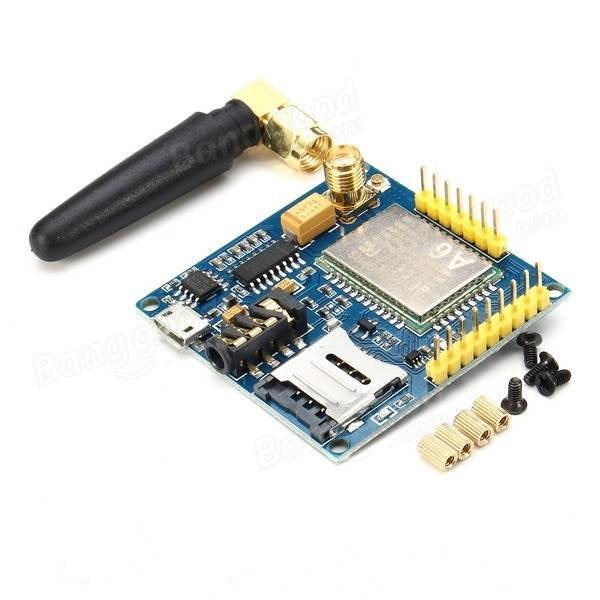

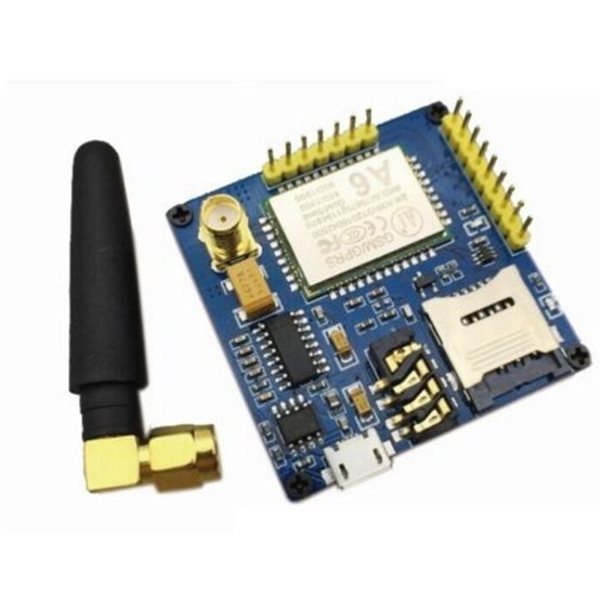

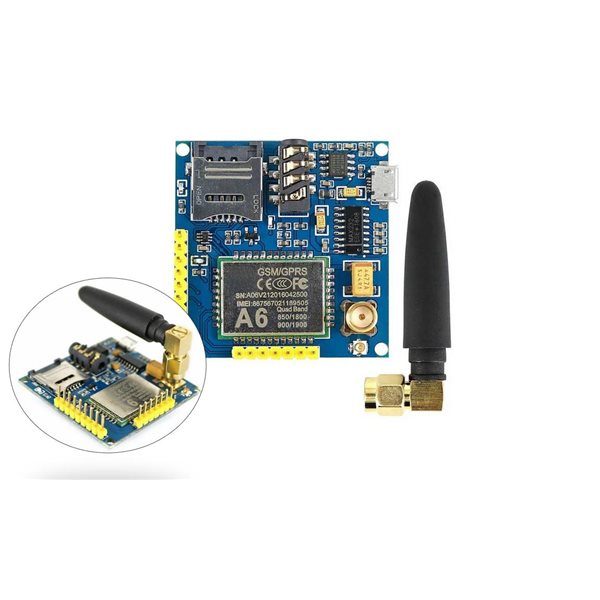

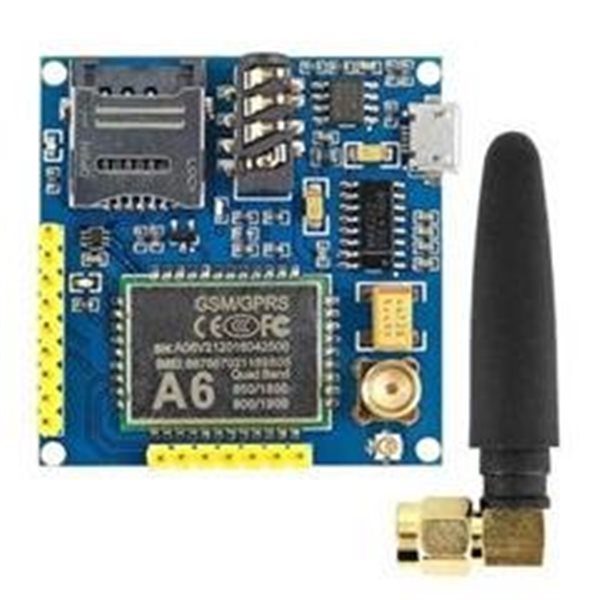

A6 GSM Module
The GPRS Pro Serial A6 GPRS GSM Module Core DIY Development Board is a professional-grade development board that allows you to create your own IoT projects using the GPRS A6 module. The board supports dual-band GSM/GPRS networks and can be used to send and receive SMS messages, make and receive phone calls, and connect to the internet using GPRS. The board is small and compact, making it ideal for portable projects, and it has a low power consumption, so you can use it for extended periods of time without having to worry about running out of power. The board communicates with a microcontroller via UART port and supports a variety of commands, including GSM 07.07, GSM 07.05, and Ai-Thinker enhanced AT Commands.
Features:
- Supports quad-band GSM/GPRS networks (850/900/1800/1900MHz)
- Working voltage: 4.8-9VDC
- Working current: maximum of 2A
- Sleep current: 5mA
- Onboard Micro SIM card holder
- Onboard Micro USB interface for external power supply
- Communication interface: TTL serial port / RS232 serial port
- Baud rate: 115200bps and it can also be set by AT command
- Interface logic voltage: 3.3V
- Can make and answer phone calls using a headset and electret microphone
- Can send and receive SMS messages
- Can send and receive GPRS data (TCP/IP, HTTP, etc.)
- Can be used to test the Ai-Thinker GPRS A6 module
- Pin pitch: 2.54mm
- Onboard antenna interface: SMA and IPX
The GPRS Pro Serial A6 GPRS GSM Module Core DIY Development Board is a powerful and versatile tool that can be used to create a wide variety of IoT projects. If you're looking for a way to add cellular connectivity to your project, the GPRS Pro Serial A6 GPRS GSM Module Core DIY Development Board is a great option.

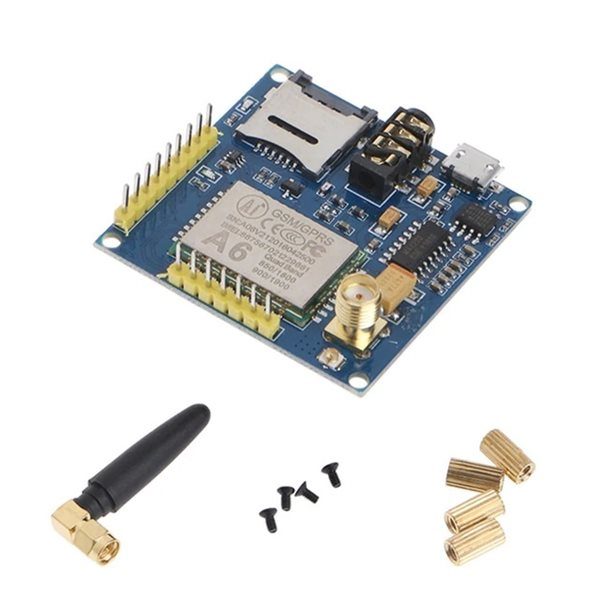

Package Includes:
- 1 x A6 Module
- 1 x Antenna
Specifications:
| Working frequency | quad-band network, 850 / 900 / 1800 / 1900MHz |
| Working voltage | 4.8-9VDC |
| Working current | maximum of 2A |
| Sleep current | 5mA |
| Baud rate | 115200bps and it can also be set by AT command |
| Interface logic voltage | 3.3V |
| Pin pitch | 2.54mm |
| Onboard antenna interface | SMA and IPX |
