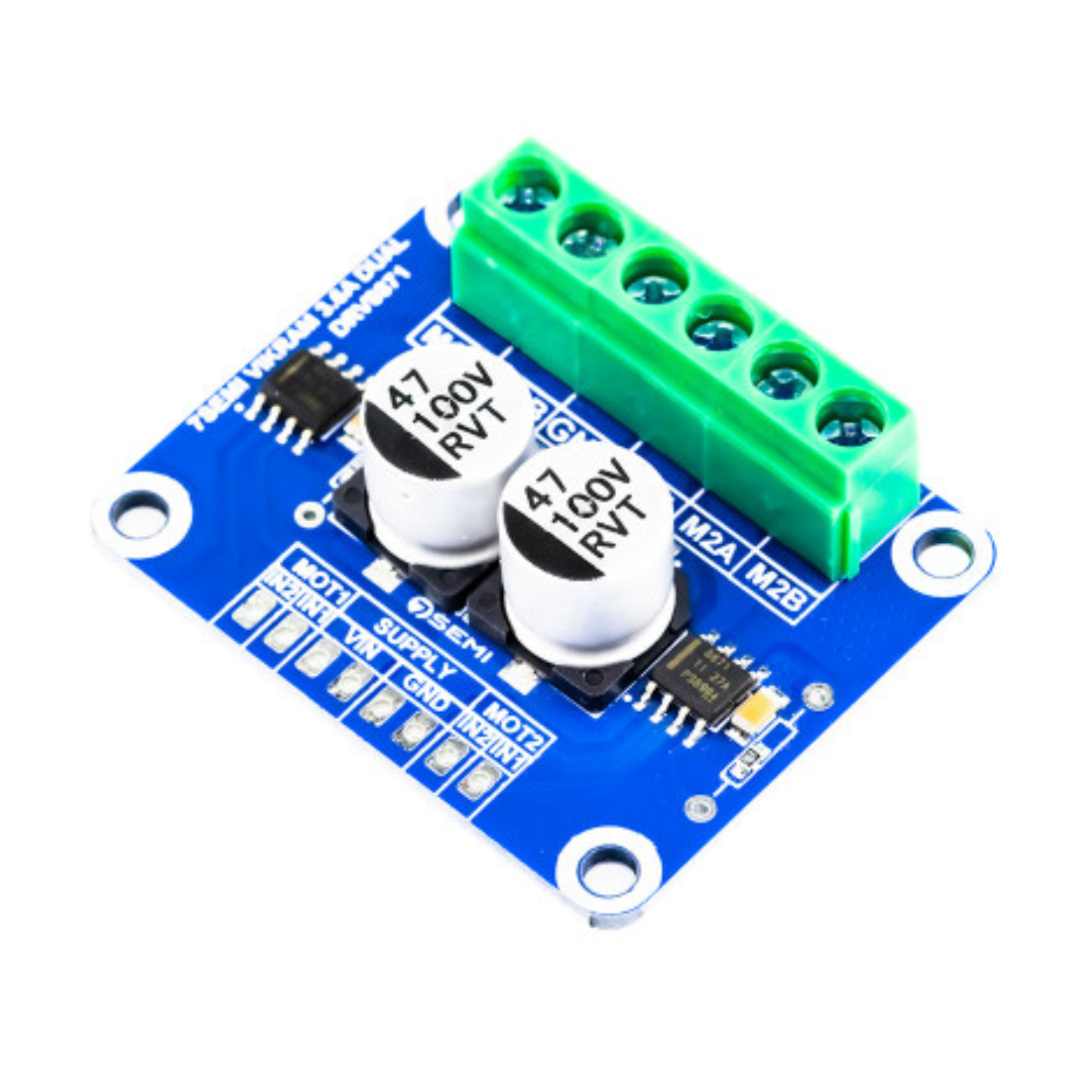

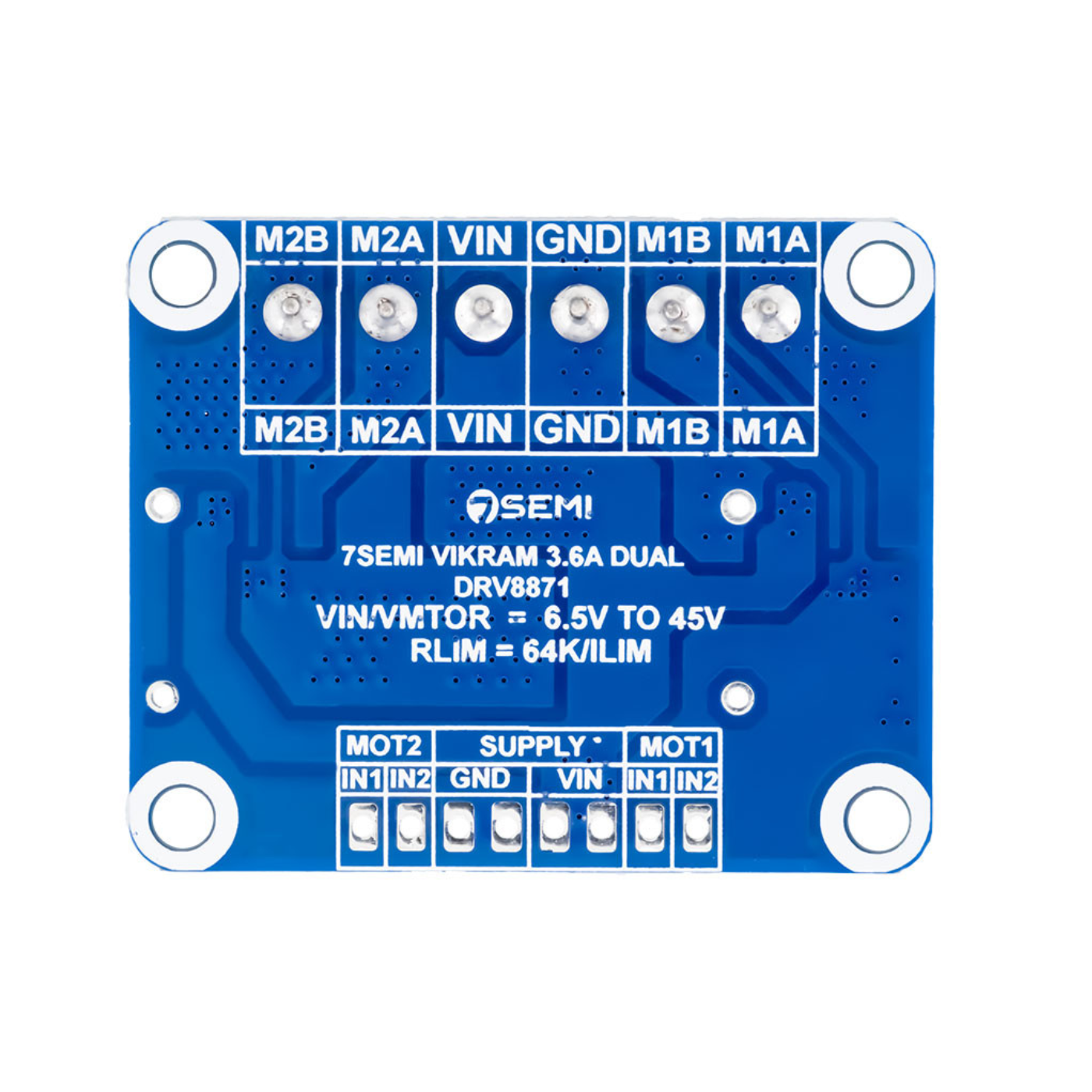

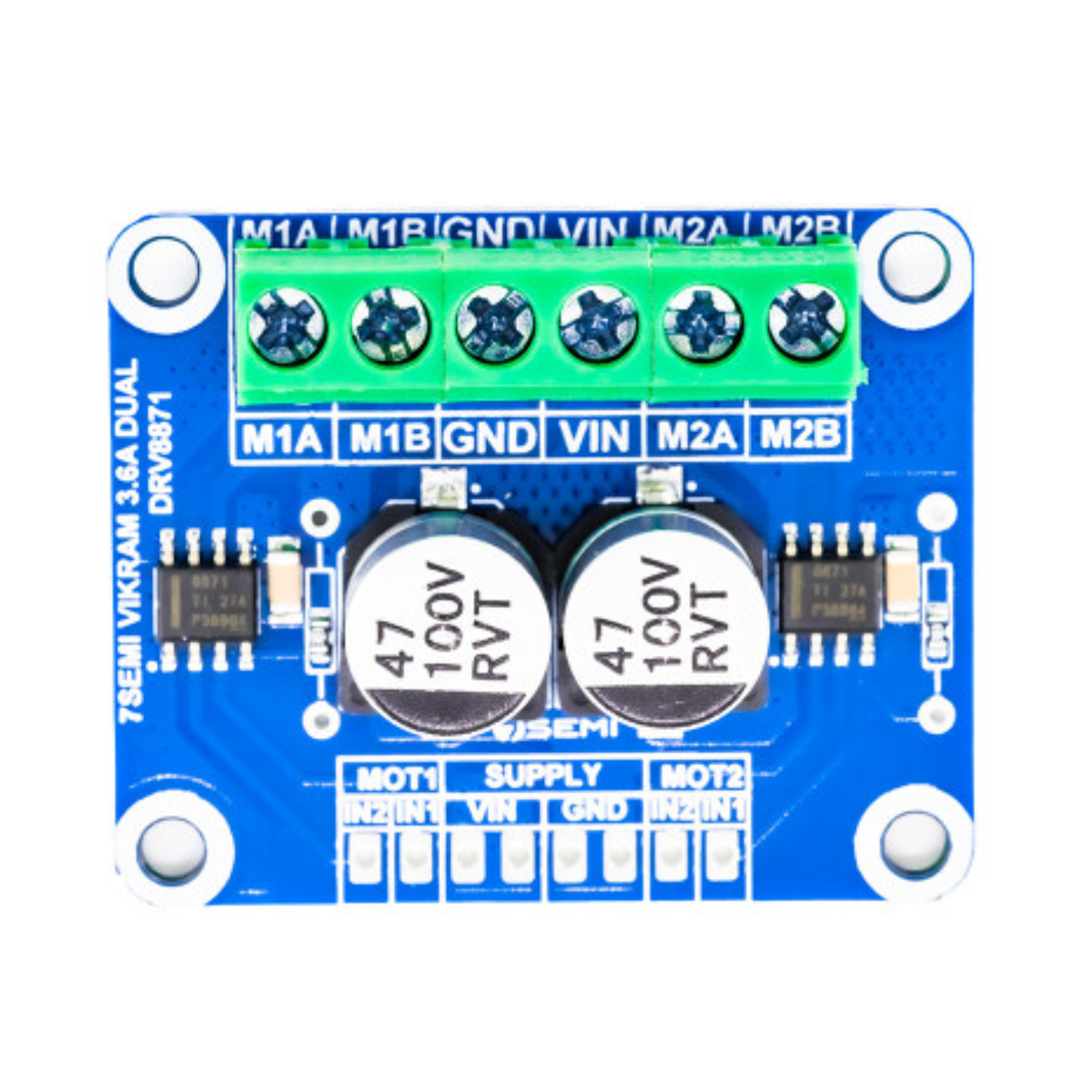

7Semi Vikram-453R6D 45V 3.6A DRV8871 Dual Channel Motor Driver (2 Channel)
Couldn't load pickup availability
The 7Semi Vikram-453R6D 45V 3.6A DRV8871 Dual Channel Motor Driver (2 Channel) is a compact and powerful motor driver designed to control two DC motors independently. It supports motor supply voltages up to 45 V and delivers up to 3.6 A of continuous current per channel, making it suitable for robotics, automation, and motion control projects.
Built around the reliable DRV8871 H-bridge driver IC, this motor driver provides smooth speed and direction control while helping protect the system from common electrical issues. It can be easily interfaced with microcontrollers such as Arduino, ESP32, and Raspberry Pi, allowing quick setup and dependable performance for both learning and professional applications.
| Product Name | 7Semi Vikram-453R6D Dual Channel Motor Driver (MD-10116) |
|---|---|
| Motor Channels | 2 (Dual Channel) |
| Supported Motor Type | Brushed DC Motors |
| Driver IC | DRV8871 (Fully NMOS H-Bridge) |
| Input Voltage (Vmotor) | 6.5V – 45V DC |
| Continuous Output Current | 3.6A per channel |
| Logic / Signal Voltage | 3.3V / 5V compatible |
| Control Method | PWM (Locked-Antiphase & Sign-Magnitude) |
| Braking Feature | Regenerative Braking |
| Protection Features | Over-voltage, Under-voltage, Overheat Protection |
| Indicator | Onboard STATE LED |
| Component Type | Solid-state design (No mechanical relays) |
| Controller Compatibility | Arduino, Raspberry Pi, and other 3.3V / 5V microcontrollers |
| Applications | Robotics, Mechatronics, Automation, Scientific Equipment, Electronics Competitions |
