7Semi MCP23017 I2C to 16 IO Expander Breakout Board - Buy Online in India

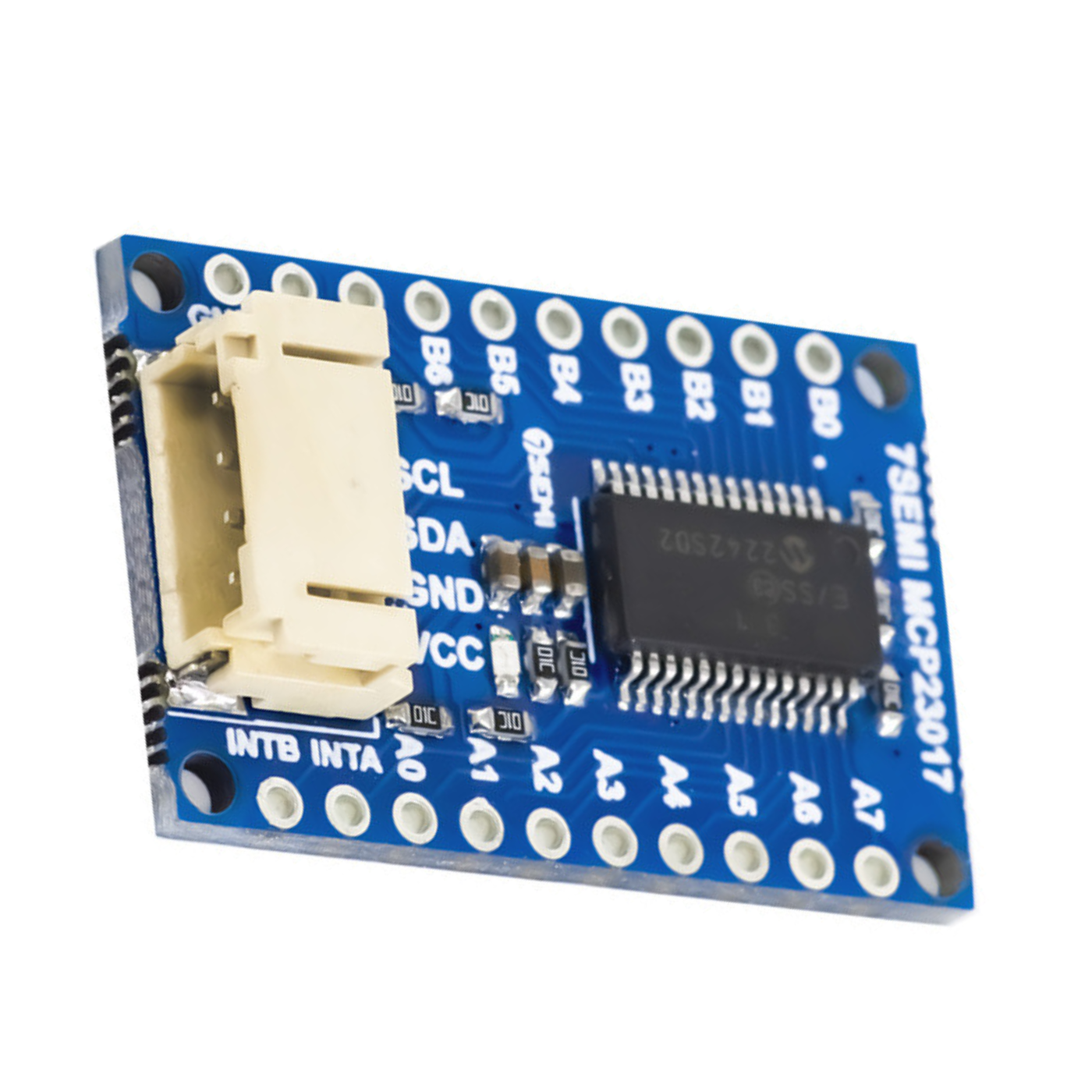

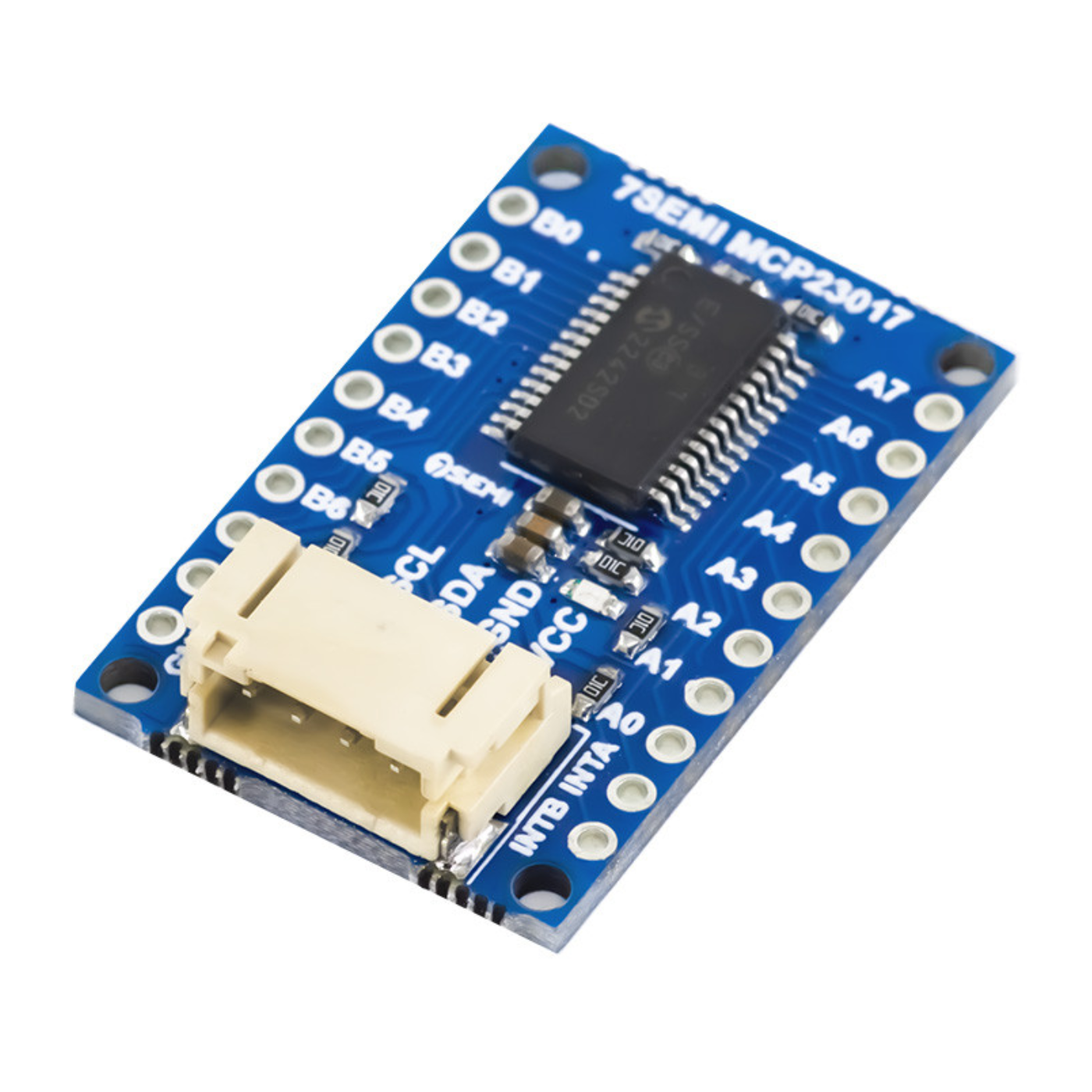

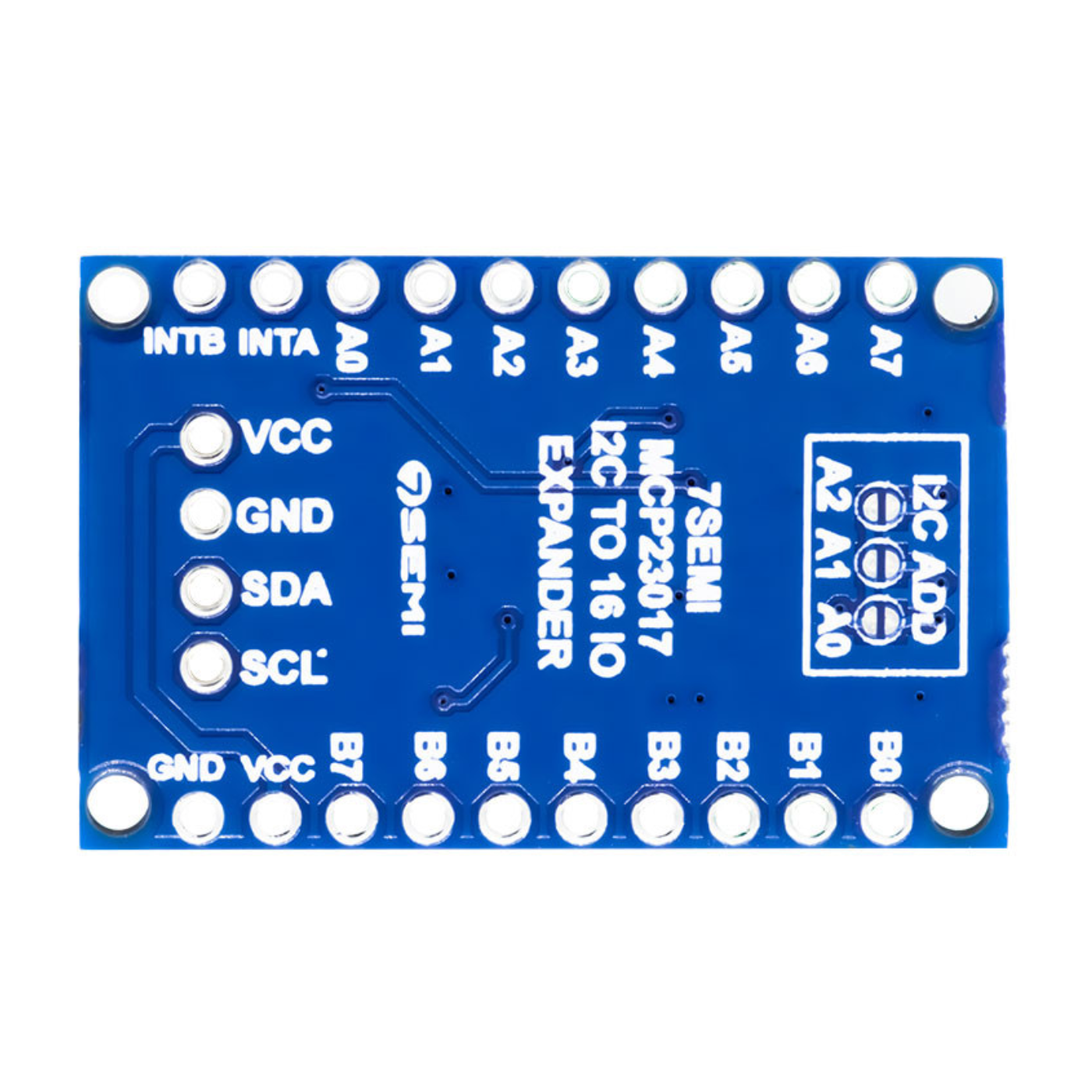

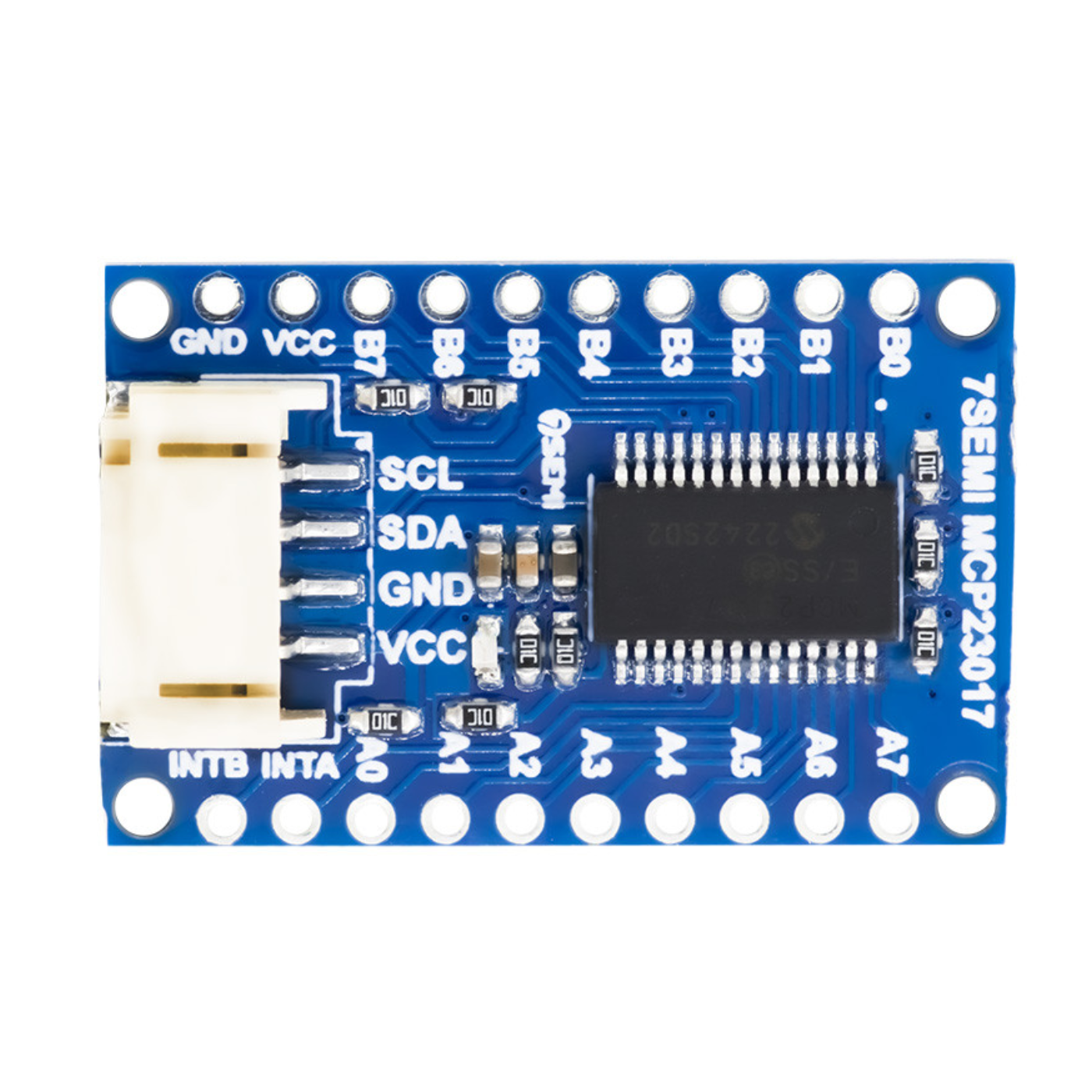

7Semi MCP23017 I2C to 16 IO Expander Breakout Board

Rs. 442
Rs. 749
Rs. 442
Save Rs. 307
Incl. GST (No Hidden Charges) Found a better price?
Please hurry! Only 0 left in stock
SKU: TIFEC0319
  • Based on MCP23017 I2C IO Expander IC for reliable GPIO expansion
  • Adds 16 digital I/O pins using a simple I2C interface
  • Each pin can be individually configured as input or output
  • Built-in interrupt support for efficient event detection
  • Compact MCP23017 Breakout Board design for easy breadboard and PCB integration
BEST COUPON
RC100
COPY CODE
When you shop for ₹ 2,500 required. Applicable at Checkout.
*Coupons are not applicable on Original Boards and Kits

Free shipping on Orders Above Rs 499/-

Technical Support & Easy Returns

Same Day Shipping

Earn RC Coins on Every Purchase

Cash on Delivery Available

Robocraze Academy Limited Time Offer

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here
Enter the Captcha
Reload
Robocraze Academy Limited Time Offer
7Semi MCP23017 I2C to 16 IO Expander Breakout Board -Electronic Modules -Breakout Boards -Robocraze
7Semi MCP23017 I2C to 16 IO Expander Breakout Board
Rs. 749 Rs. 442
7Semi MCP23017 I2C to 16 IO Expander Breakout Board -Electronic Modules -Breakout Boards -Robocraze
7Semi MCP23017 I2C to 16 IO Expander Breakout Board -Electronic Modules -Breakout Boards -Robocraze
7Semi MCP23017 I2C to 16 IO Expander Breakout Board -Electronic Modules -Breakout Boards -Robocraze
7Semi MCP23017 I2C to 16 IO Expander Breakout Board -Electronic Modules -Breakout Boards -Robocraze

7Semi MCP23017 I2C to 16 IO Expander Breakout Board

Rs. 749 Rs. 442
Description

7Semi MCP23017 I2C to 16 IO Expander Breakout Board

The 7Semi MCP23017 I2C to 16 IO Expander Breakout Board is designed to expand the digital I/O capability of microcontrollers using the trusted MCP23017 I2C IO Expander IC.

It provides exactly 16 configurable GPIO pins over a single I2C bus, reducing wiring complexity while maintaining stable performance.

Each pin can be independently set as input or output, and the onboard interrupt feature allows the controller to respond instantly to pin state changes.

This MCP23017 Breakout Board is compact, easy to integrate, and ideal for applications such as home automation, robotics, industrial control panels, and any project that requires multiple digital inputs and outputs without consuming extra microcontroller pins.

Features:

  • 16 I/O Pins: Converts two signal pins into sixteen completely customizable I/O pins.
  • Multi-board Expansion: For larger applications, stack up to 8 boards to provide up to 128 I/O pins.
  • Configure I2C addresses by setting the A0, A1, and A2 jumpers.
  • Dual Connectivity: Includes PH2.0 terminal and solder pad choices for simple connection.
  • Wide Compatibility: Compatible with both 3.3V and 5V systems, ensuring platform versatility.
  • Interrupt Support: The INTA and INTB interrupt pins are used for real-time signal handling.
  • Development Resources: Includes detailed instructions and sample projects for Raspberry Pi, Arduino, STM32, and micro.
  • Easy Integration: The I2C interface, combined with a 4Pin 2.0 mm JST connector, provides for an easy and flexible connection to any MCU.
Specifications

Package Includes:

  • 1 x 7Semi MCP23017 I2C to 16 IO Expander Breakout Board

Specifications:

Specification Details
Operating Voltage 5V / 3.3V
Interface I2C
Interrupt Pins INTA, INTB
Expansion I/Os 16
