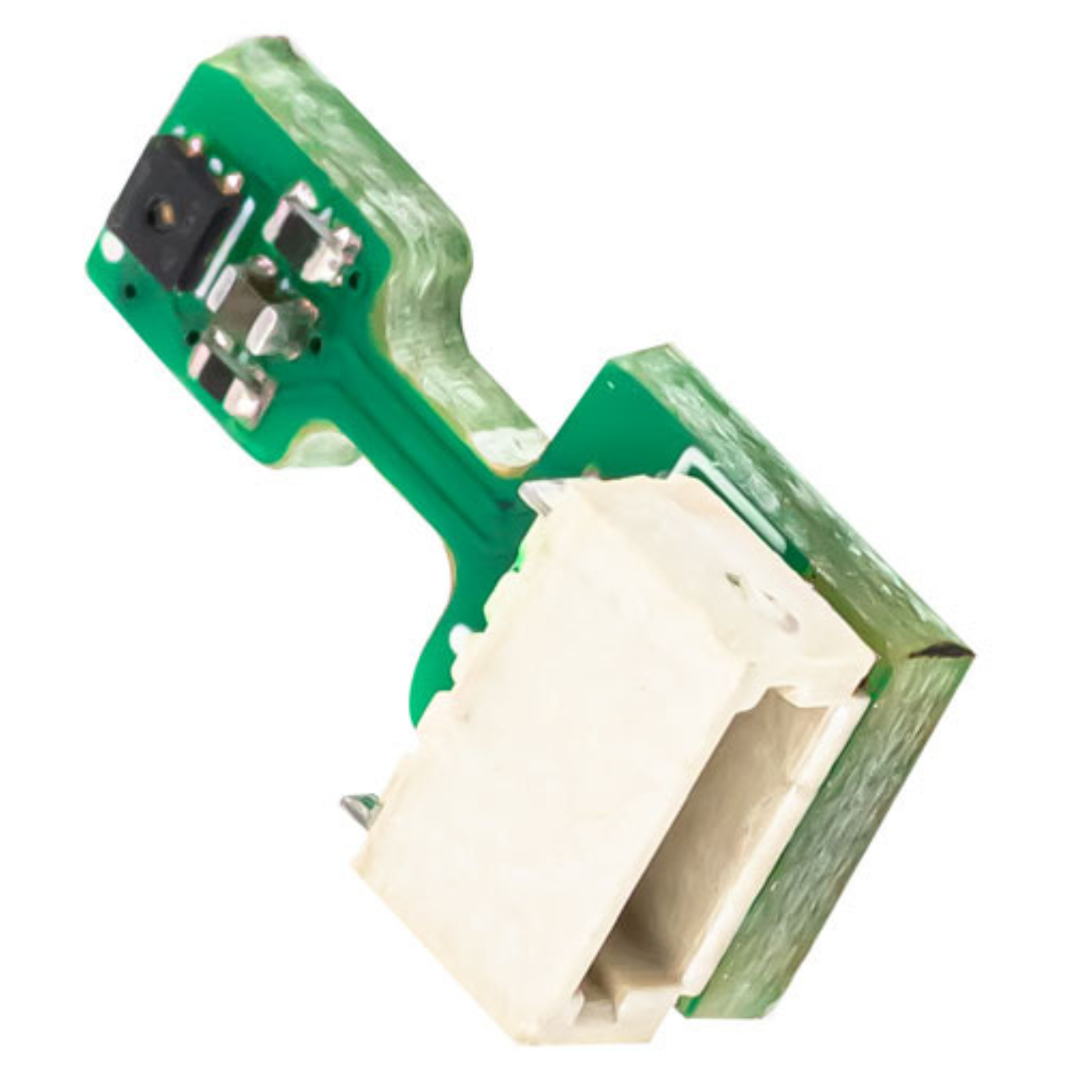

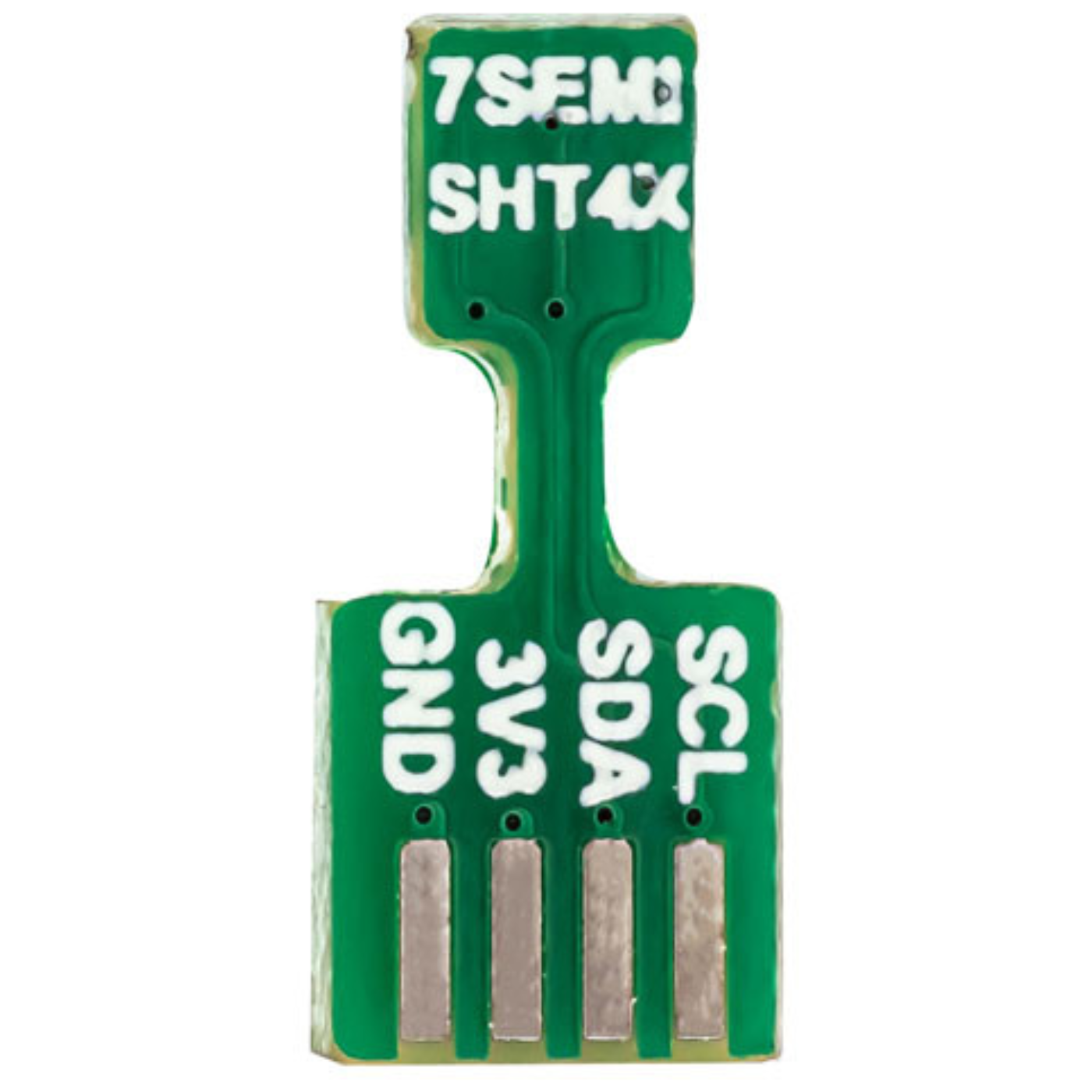

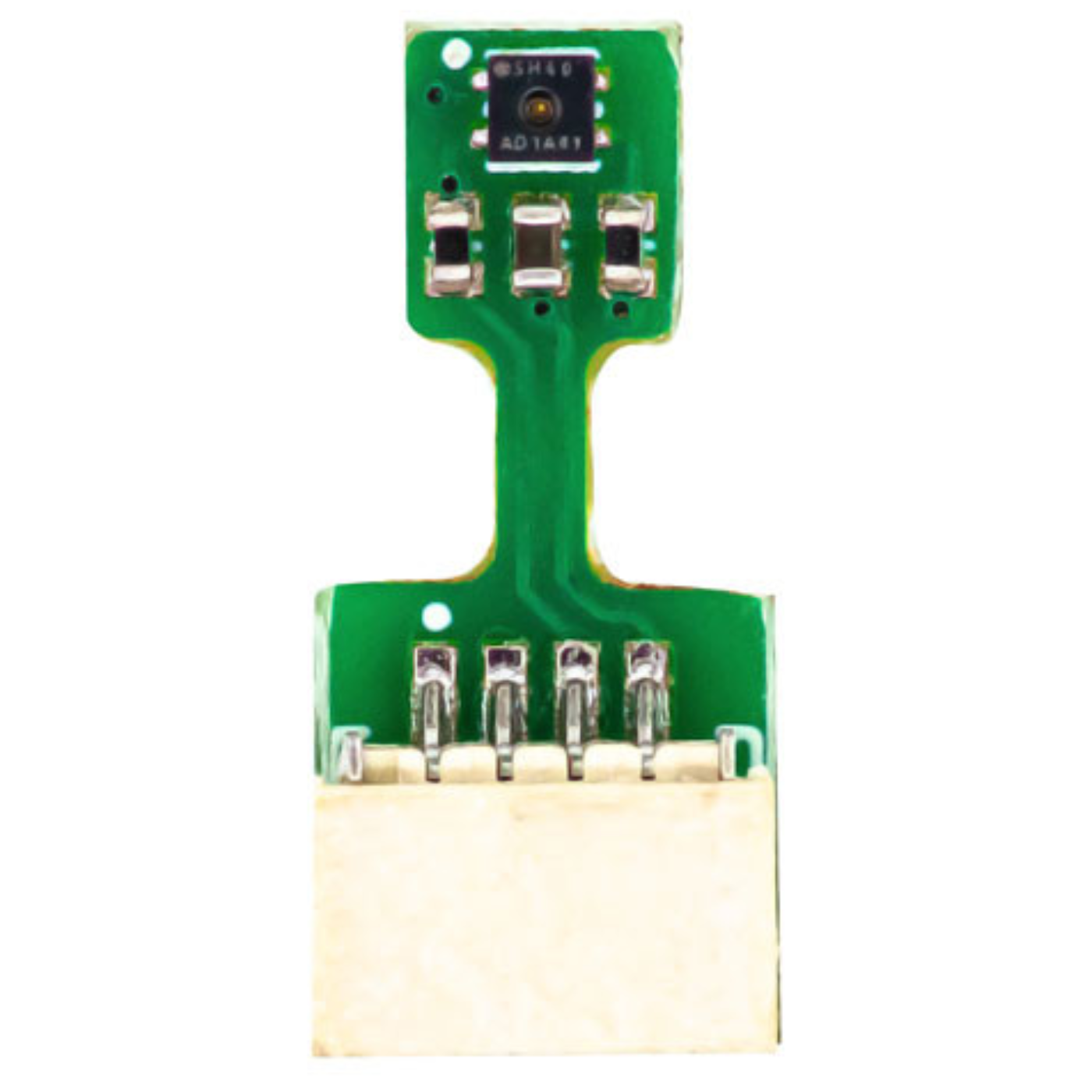

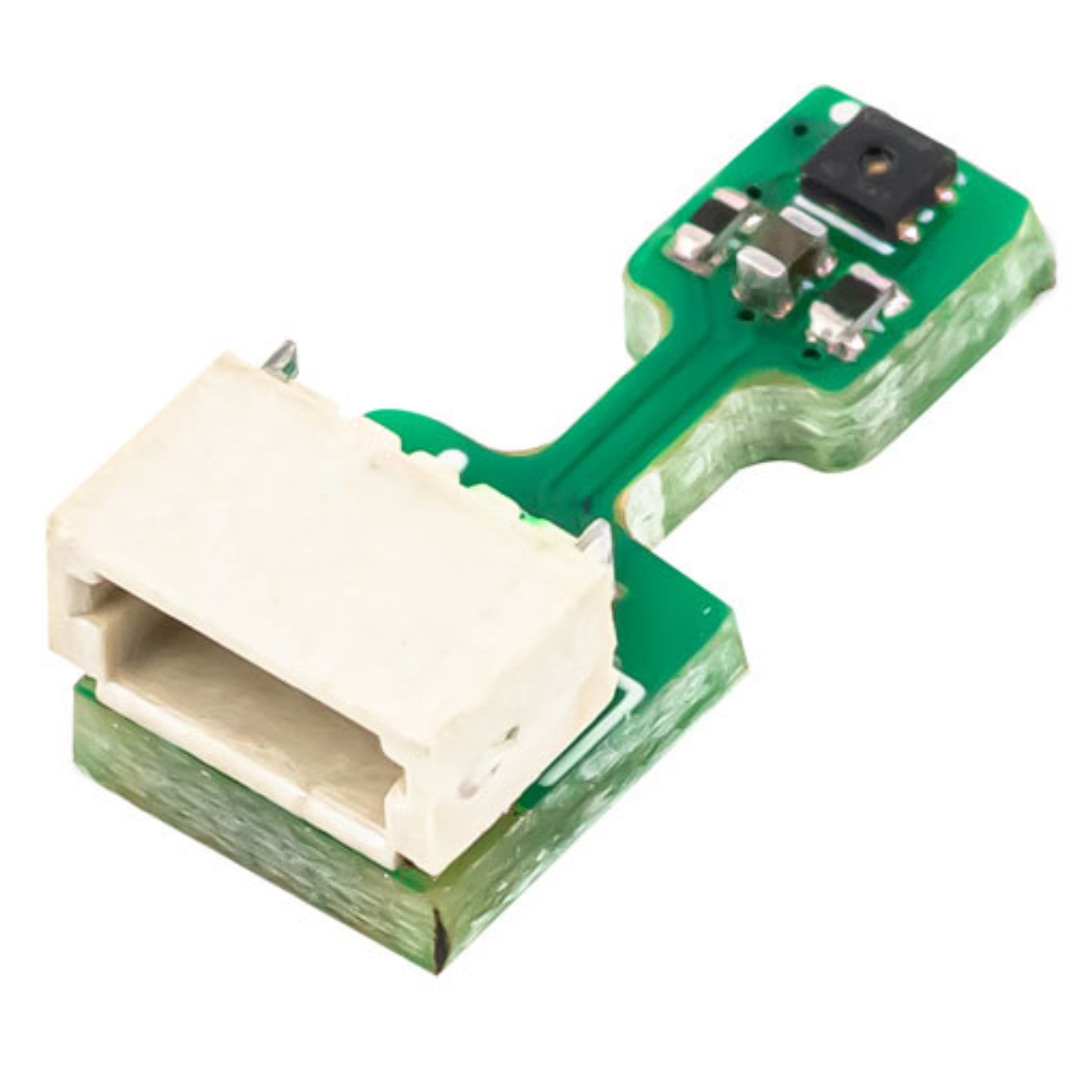

7Semi I2C Qwiic SHT40 Temperature & Humidity Sensor mini–Breakout Board Compatible
Couldn't load pickup availability
The 7Semi I2C Qwiic SHT40 Temperature & Humidity Sensor mini–Breakout Board Compatible is a compact and efficient sensing solution designed for accurate environmental monitoring.
Built around the fourth-generation SHT40 Temperature & Humidity Sensor (humidity sensor model-sht40), it delivers 16-bit high-resolution measurements with excellent precision, offering ±1.8% relative humidity accuracy and ±0.2°C temperature accuracy within standard operating ranges.
Using an I2C interface with Qwiic support, this board enables seamless, plug-and-play connectivity without soldering. Its 3.3V operation and ultra-low power consumption below 0.15mA make it perfectly suited for battery-powered IoT devices, smart infrastructure, and embedded applications where space, power efficiency, and data reliability are critical.
| Parameter | Specification |
|---|---|
| Operating Voltage | 3.3V |
| Operating Current | 0.45mA |
| Interface | I2C |
| Connector | 4-Pin 1mm Pitch Connector, Qwiic Compatible |
| Response Time | 8s (τ63%) |
| Humidity Measurement Range | 0 ~ 100% RH |
| Humidity Measurement Accuracy | ±1.8% RH |
| Temperature Measurement Range | -40°C ~ 125°C |
| Temperature Measurement Accuracy | ±0.2°C |
