7Semi I2C BME680 Sensor Probe Powered by Bosch Sensortec BME680 Sensor
Couldn't load pickup availability

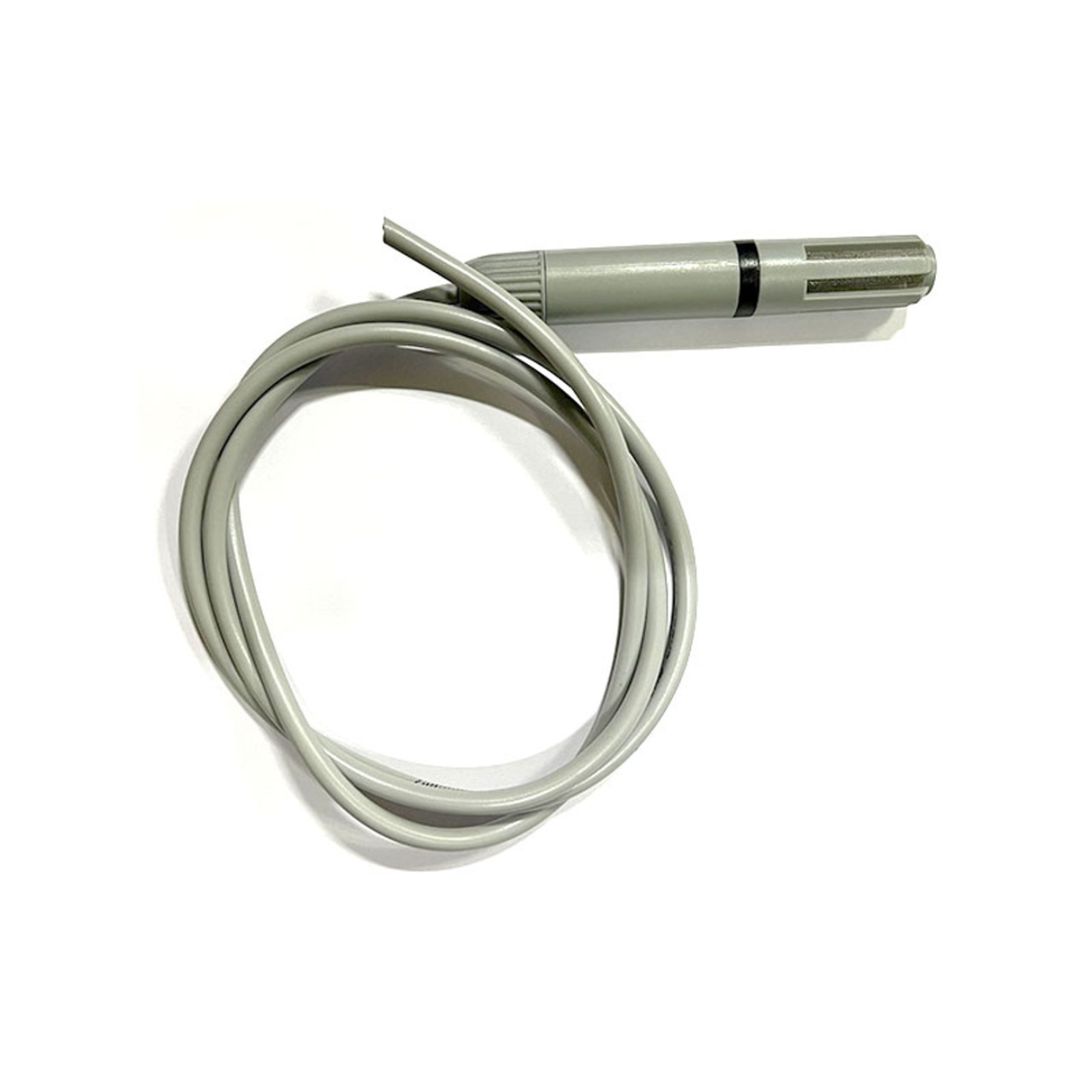

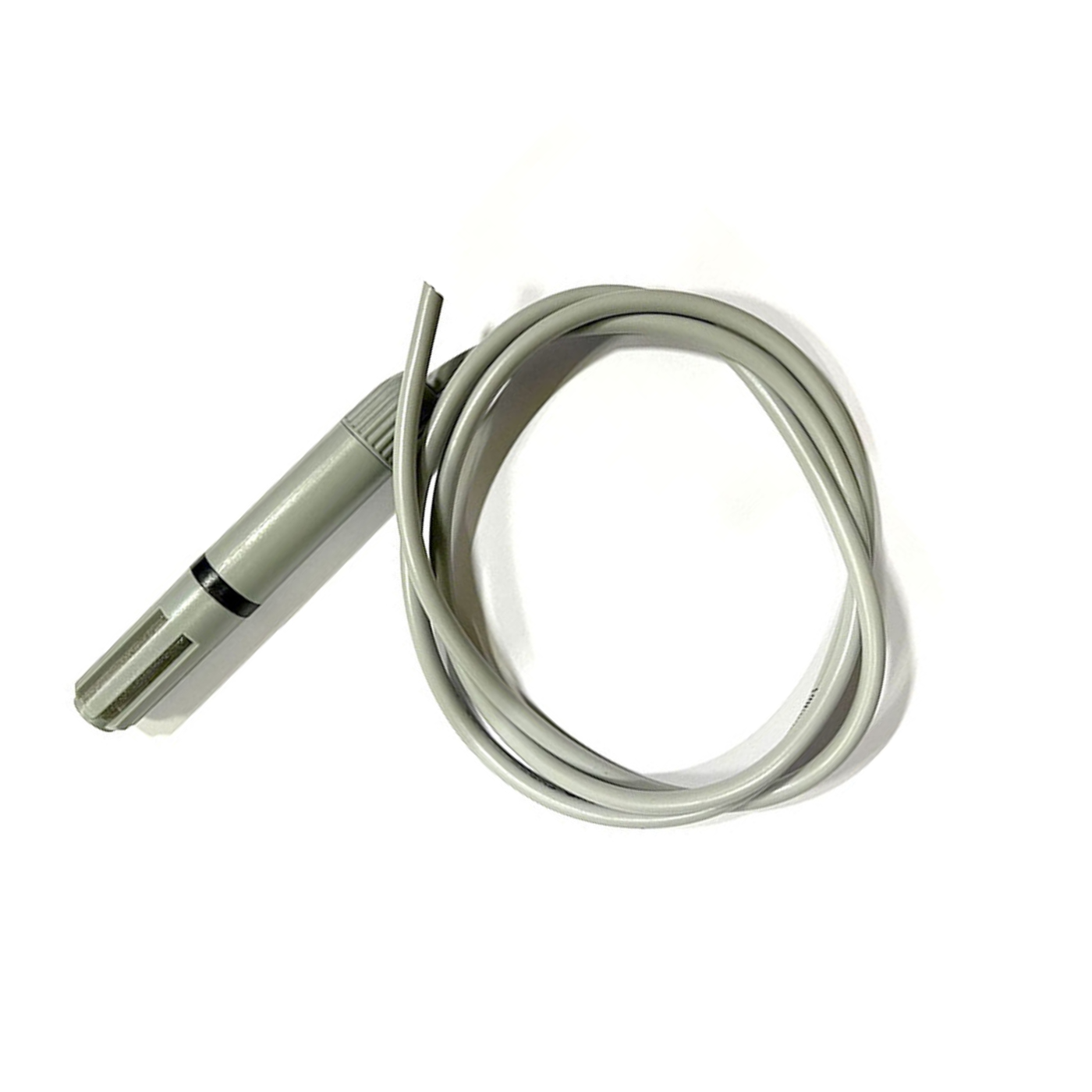

The 7Semi BME680 Environmental Sensor Probe is a compact and rugged sensing module designed for high-accuracy air quality monitoring in demanding indoor and industrial environments. Built around the Bosch BME680 multisensor chip, it delivers precise temperature, humidity, barometric pressure, and VOC gas readings over a reliable I2C interface.
With its fully calibrated output and fast response time, this probe is ideal for engineers and system designers building smart HVAC controls, home automation setups, or environmental monitoring equipment.

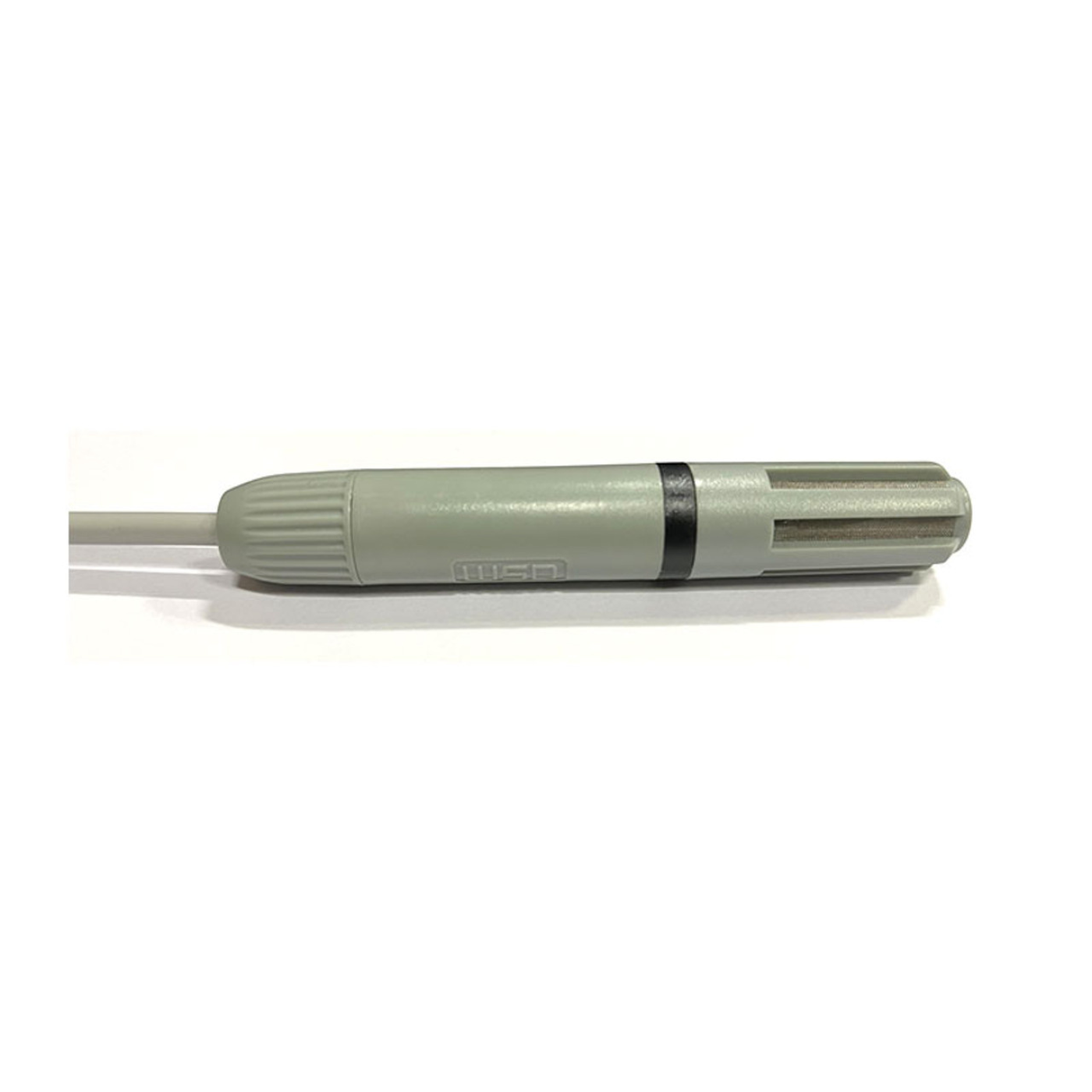

Encased in a breathable, chemically resistant plastic shell, the BME680 probe ensures long-term stability even when exposed to dust, high humidity, or harsh atmospheric conditions. The integrated 1-meter cable with a Mini Round Shell connector makes installation easy across ducts, walls, chambers, and compact enclosures.
Its low power consumption and wide operating range make it a dependable choice for air quality monitoring projects, IoT systems, and precision sensor applications.
| Specification | Details |
|---|---|
| Sensor Type | Bosch BME680 Environmental Sensor |
| Measured Parameters | Temperature, Humidity, Pressure, VOC (Gas) |
| Temperature Range | -40°C to +85°C |
| Humidity Range | 0% to 100% RH |
| Pressure Range | 300 to 1100 hPa |
| Gas Sensing | VOCs and indoor air quality measurement |
| Interface | I2C Digital Interface |
| Operating Voltage | 1.71V – 3.6V |
| Housing Material | Breathable Plastic Enclosure |
| Cable Length | 1 Meter, 4-Wire |
| Connector Type | Mini Round Shell Plastic Connector |
| Application Environment | Ducts, pipes, walls, HVAC, humid or high-risk zones |
This product comes with a 6 months manufacturer warranty from the date of purchase, covering manufacturing defects only.
The product shows signs of physical damage, mishandling, exposure to water/moisture, fire, natural calamities, unauthorized repairs, improper storage near heat or direct sunlight, or alteration in any way.
