7Semi 10DOF IMU & Pressure Sensor Module – ISM330DHCX, MMC5983MA, BMP585
Let us know!
We'll try to match the price for you
We’ll notify you once the product is back in stock.
For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below
Couldn't load pickup availability

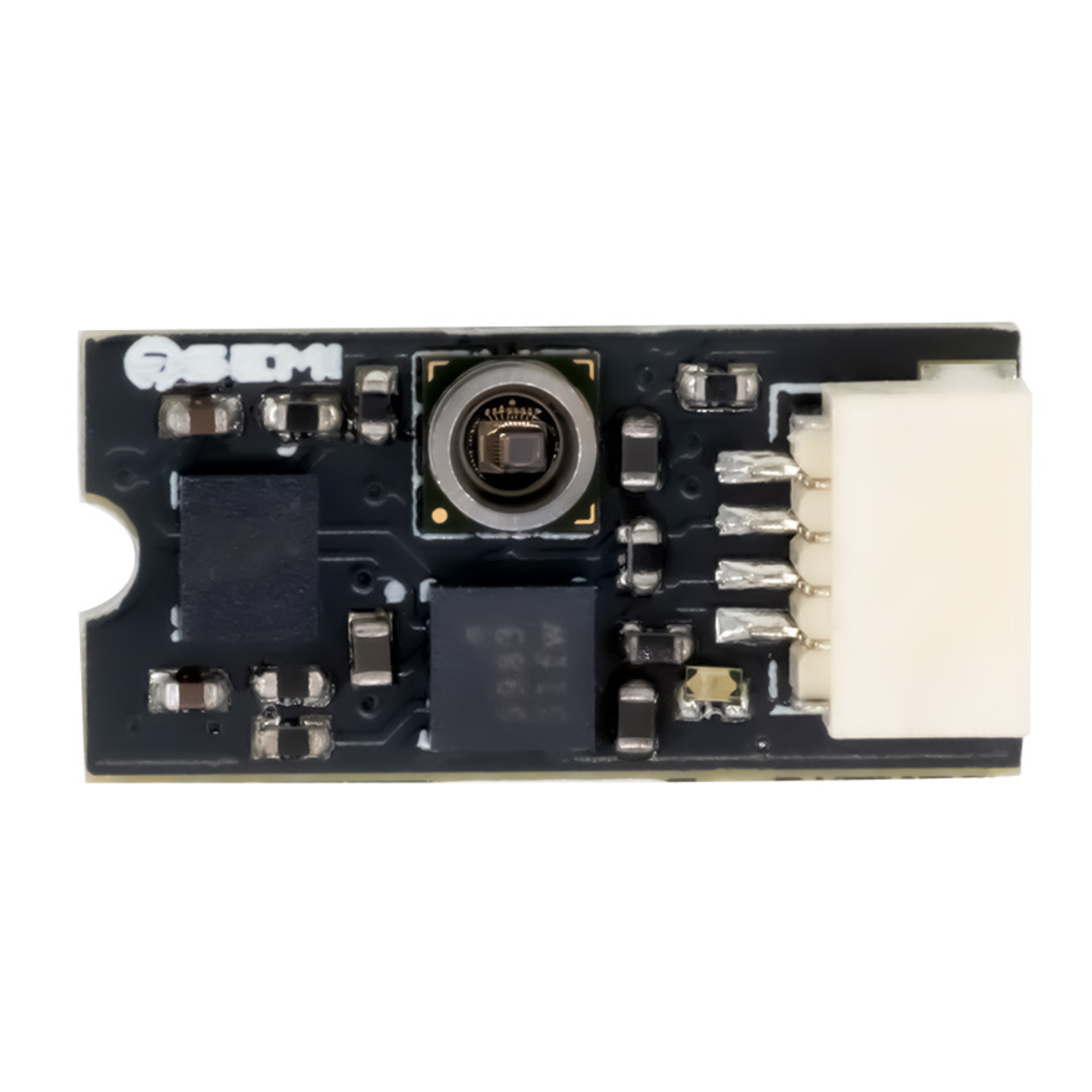

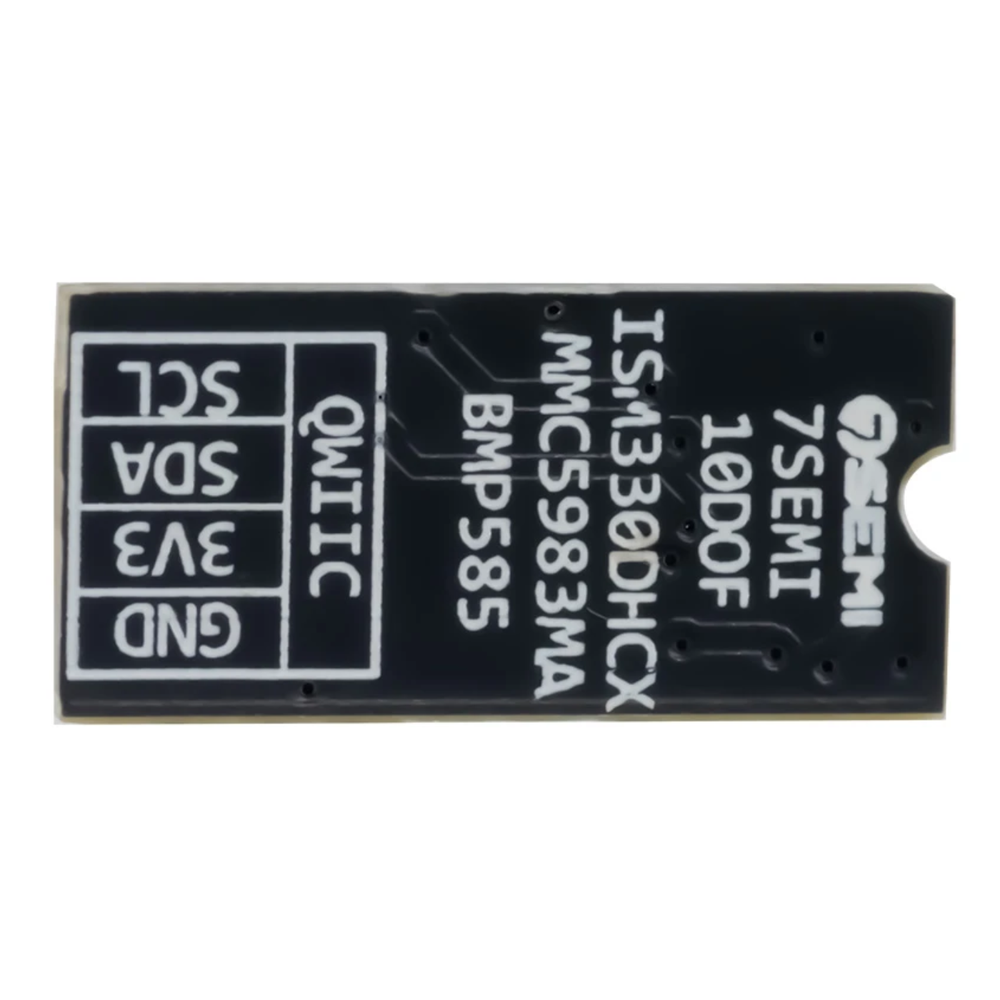

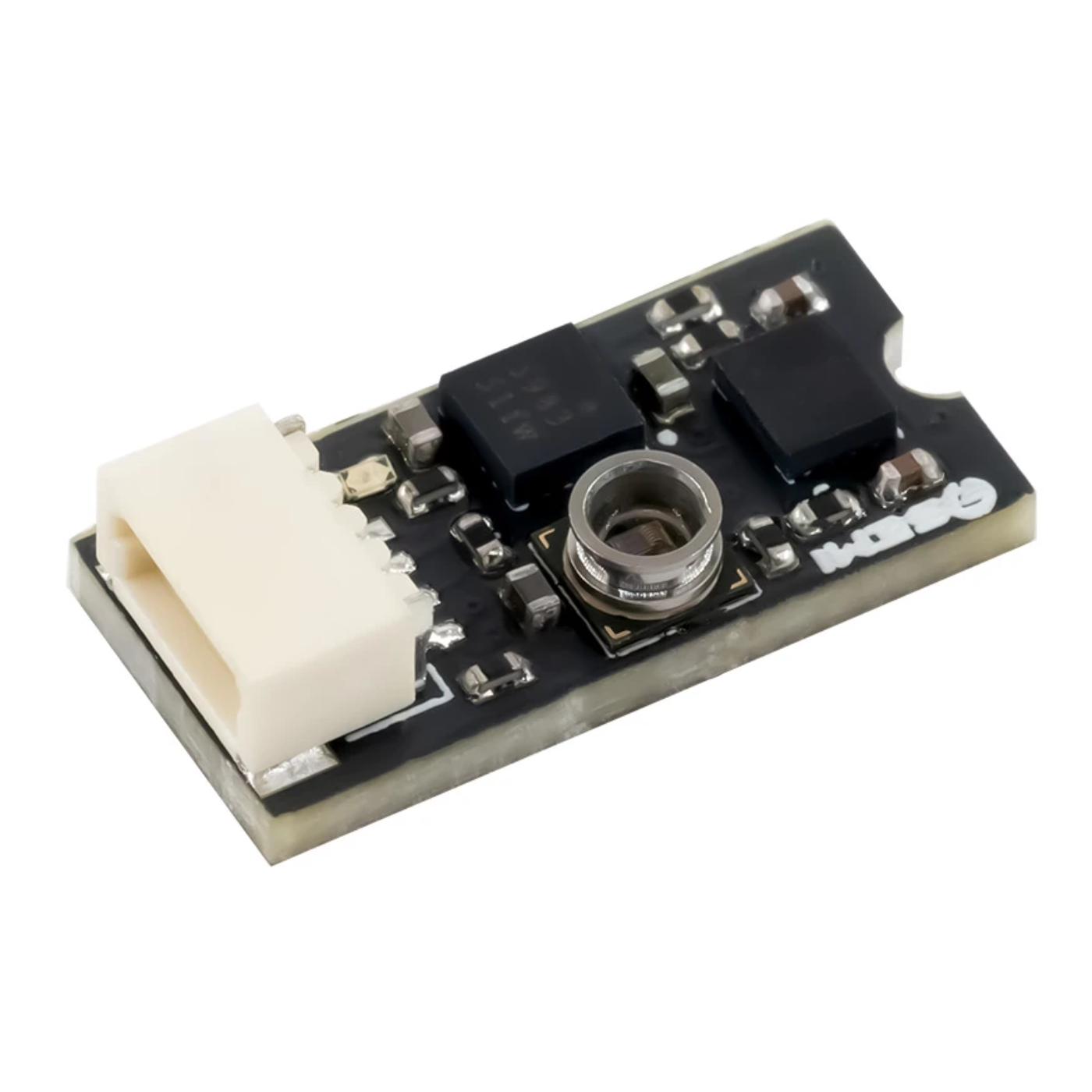

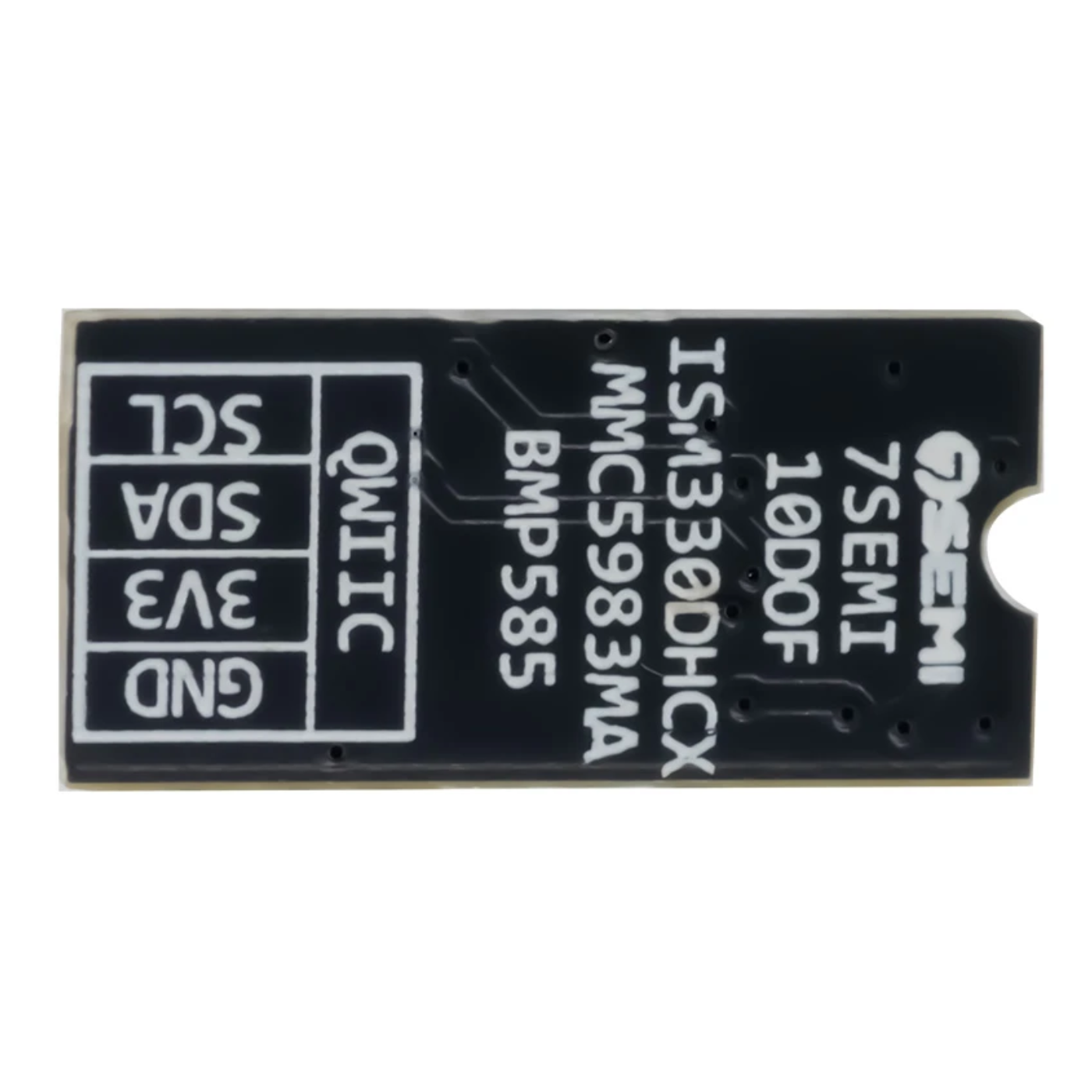

The 7Semi 10DOF IMU & Pressure Sensor Module is a compact multi-sensor board designed for projects that need accurate motion, orientation, magnetic heading, and environmental measurements in one module. It combines the ISM330DHCX 6-axis accelerometer and gyroscope, MMC5983MA 3-axis magnetometer, and BMP585 barometric pressure and temperature sensor to provide comprehensive sensing capabilities.
With support for both I²C and SPI communication, the module can be easily connected to microcontrollers, development boards, and embedded systems. It is well suited for robotics, UAV navigation, drone projects, motion tracking, altitude sensing, industrial positioning, sensor fusion, and IoT applications. Its compact form factor makes it a practical choice for developers building advanced motion sensing and navigation systems where multiple sensor inputs need to work together.
| Specification | Details |
|---|---|
| Operating Voltage | 3.3V |
| Operating Temperature | -40°C to 70°C |
| Accelerometer | 3-axis, ±2g / ±4g / ±8g / ±16g |
| Gyroscope | 3-axis, ±125 to ±2000 dps |
| Magnetometer | ±8 Gauss |
| Pressure Range | 300 hPa to 1250 hPa |

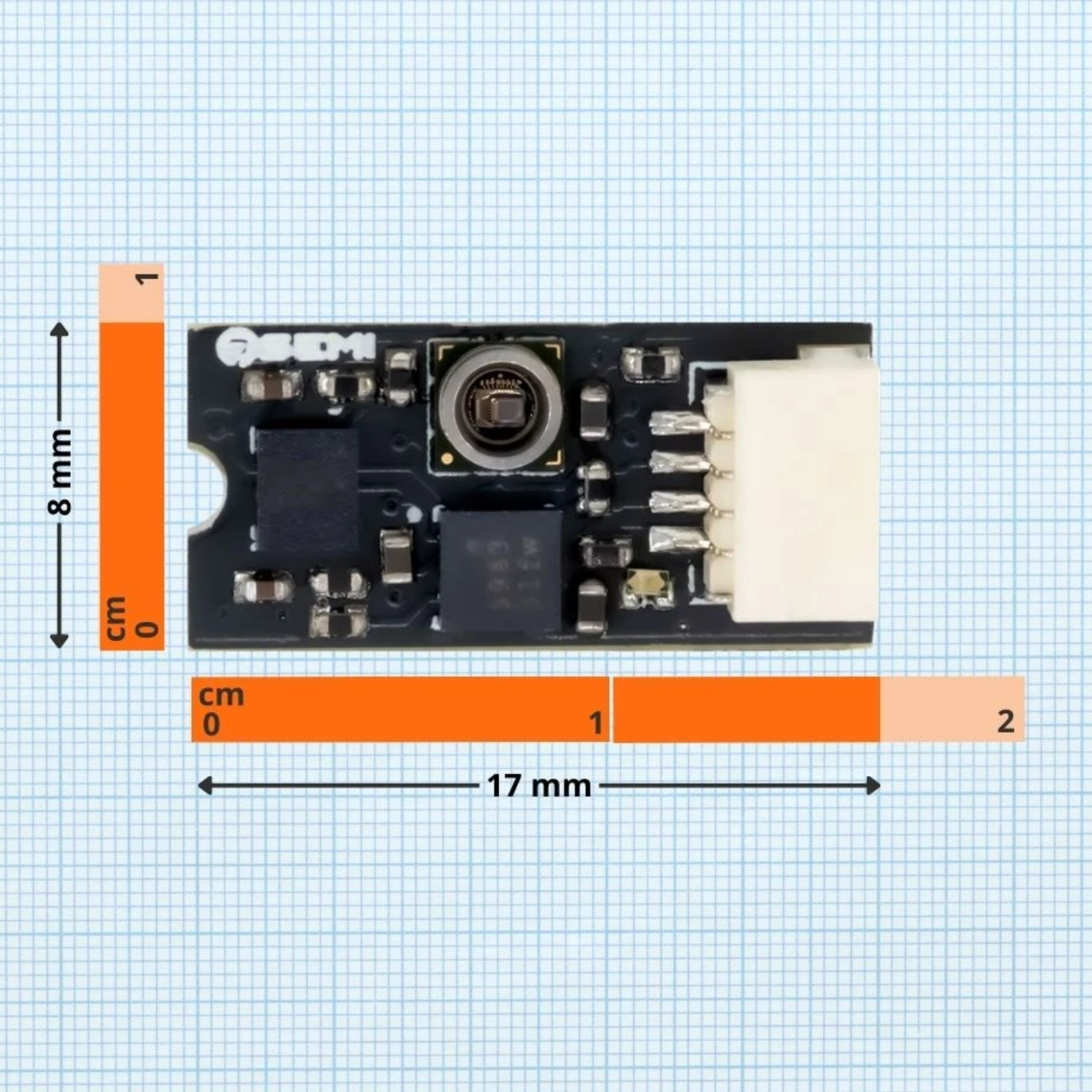

| Dimensions | 17 × 8 × 4.7 mm |
This product comes with a 6-month manufacturer warranty from the date of purchase, covering manufacturing defects only.
The product shows signs of physical damage, mishandling, exposure to water/moisture, fire, natural calamities, unauthorized repairs, improper storage near heat or direct sunlight, or alteration in any way.
