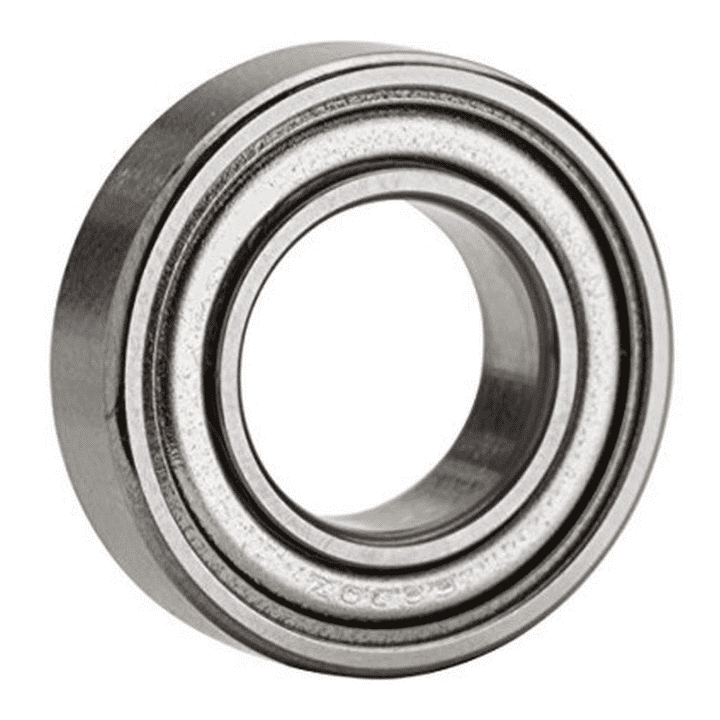

694ZZ Bearing 4x11x4 Stainless Steel Shielded Miniature Bearings

694ZZ Bearing 4x11x4 Stainless Steel Shielded Miniature Bearings

Regular price Rs. 21
Regular price Rs. 24 Sale price Rs. 21
Sale Sold out 13% off Best Price Guaranteed
You save Rs. 3
Incl. GST (No Hidden Charges)
  • Deep groove geometry for high speeds
  • Single row for supporting radial loads
  • Steel cage evenly spaces balls for reduced friction, vibration and noise
  • Shields on both sides to keep lubricant in and contaminants out
  • CN (normal) radial internal clearance for applications that do not involve thermal expansion or a typical precision

694ZZ Bearing 4x11x4 Stainless Steel Shielded Miniature Bearings

Single row radial ball bearings are the most widely used bearings and utilize an uninterrupted raceway, which makes these bearings suitable for radial loads, or a combination of thrust and radial loads.

This deep-groove shielded ball bearing is for use in applications that involve combined radial and axial loads and a need for high running accuracy at high rotational speeds. Such applications include clutches, drives, gearboxes, compressors, pumps, turbines, and printing and textile machines, among others.

Rolling bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. All rolling bearings are open, shielded, or sealed.

The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, dental equipment, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.

check out : F604ZZ Flanged Shielded Ball Bearing

Package Includes:

  • 1 x 694ZZ Bearing 4x11x4 Stainless Steel Shielded Miniature Bearings

Specifications:

Model

694ZZ

Inner Diameter (ID) (mm)

4

Outer Diameter (OD)(mm)

11

Width (mm)

4

Weight (gm)

3 (each)
