Single Shaft L-Shaped 60 RPM BO Motor (1Pc)
Single Shaft L-Shaped 60 RPM BO Motor (1Pc)
Regular price
Rs. 63
Regular price
Rs. 91
Sale price
Rs. 63
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively checking out this product.
Couldn't load pickup availability
Contact form

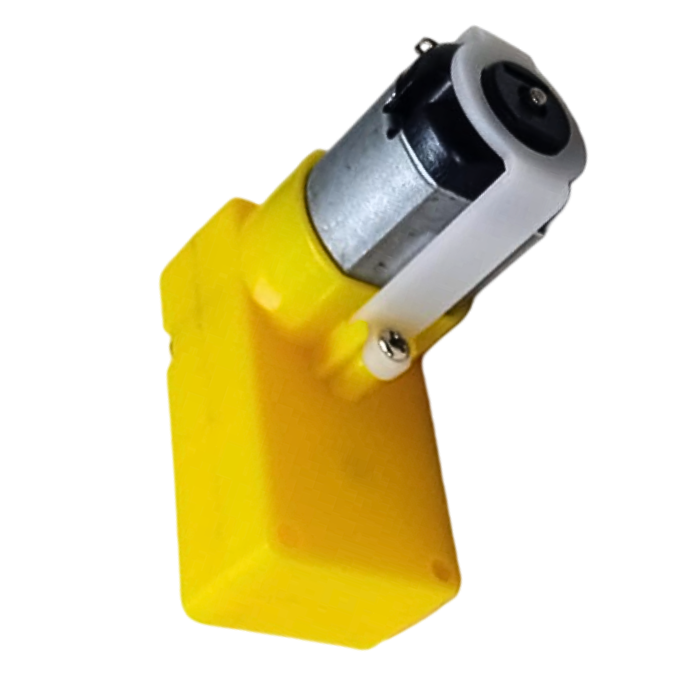

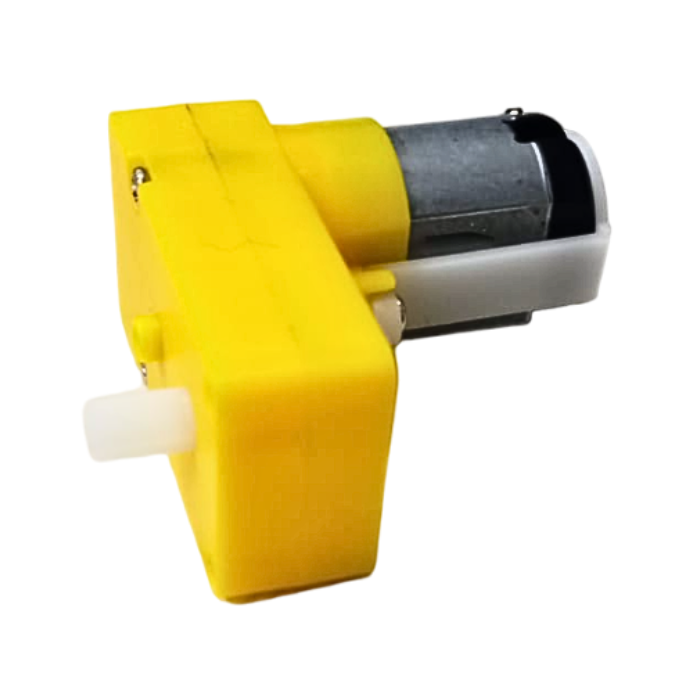

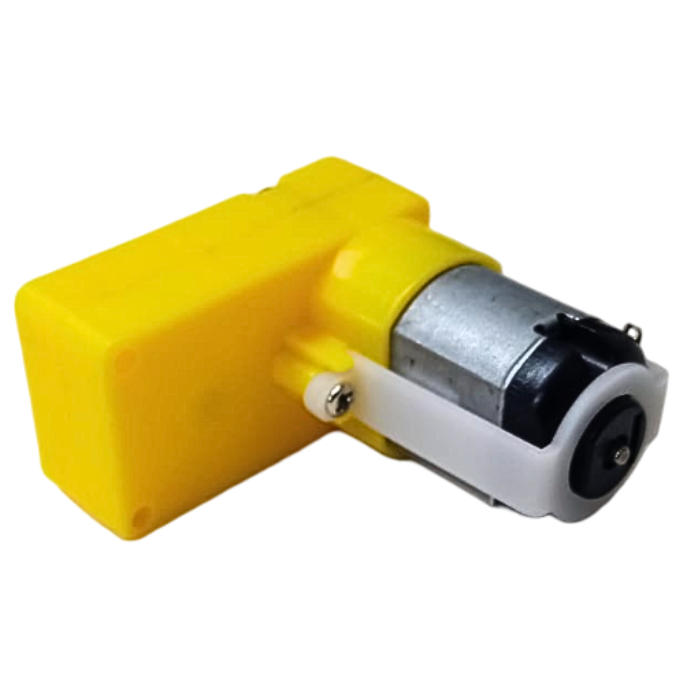

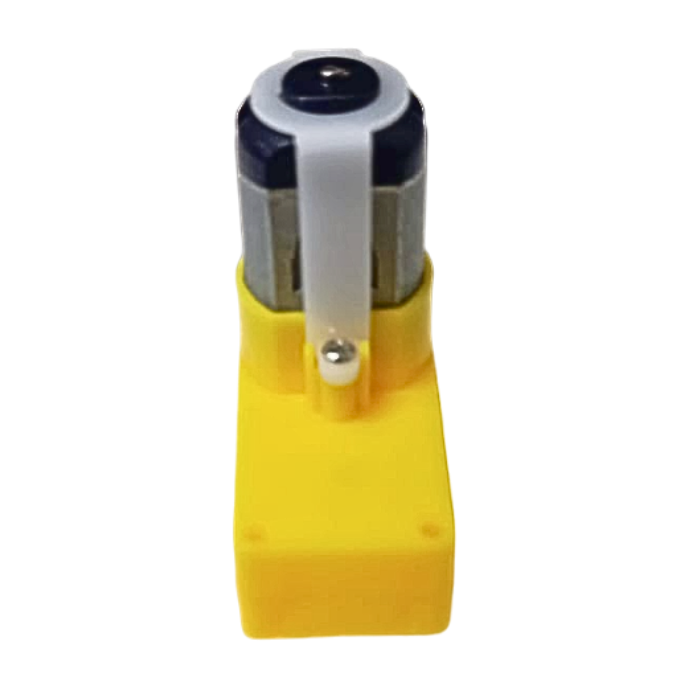

- This is the Single Shaft L-Shaped 60 RPM BO Motor
- This single shaft L shaped BO motor relatively low coefficient of friction.
- This BO motor has a low density and low inertia
- The Operating Voltage is 3V to 12V
- Rated Speed(After Reduction): 60 RPM
- This single-shaft L- shaped BO motor is lightweight
Single Shaft L-Shaped 60 RPM BO Motor (1Pc)
This Single Shaft L-Shaped 60 RPM BO Motor gives good torque and rpm at lower operating voltages, which is the biggest advantage of these motors. This BO motor is a Low-cost geared DC Motor. It is an alternative to our metal gear DC motors. It comes with an operating voltage of 3-12V and is perfect for building small and medium robots.
Small shaft with matching wheels gives an optimized design for your application or robot. Mounting holes on the body & light weight makes it suitable for in-circuit placement. The motor is ideal for DIY enthusiasts. This BO motor is less cost, small, easy to install, and can be used in mobile robot car. If you want to use this single shaft L shaped BO motor in your DIY projects, for that you will need few essential components like batteries , switches , wires , soldering tools and wheels.
Applications:
- Smart Robot Cars
- DIY Train
- Obstacle Avoider robot
- 2wd Robot
Package Includes:
- 1 x Single Shaft L-Shaped 60 RPM BO Motor (1Pc)
Specifications:
| Operating Voltage (VDC) | 3V - 12V |
| Shaft Length (mm) | 8.5 |
| Shaft Diameter (mm) | 5.5 |
| Rated Torque (Kg-Cm) | 0.8 |
| Weight (gm) | 30 |
| Dimensions in mm (LxWxH) | 42 x 55 x 22 |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
DIY 2WD Smart Chassis Car Kit
Regular price
Rs. 412
Regular price
Rs. 599
Sale price
Rs. 412
Unit price
per
Incl. GST (No Hidden Charges)
Sale
Single Shaft L-Shaped 60 RPM BO Motor with 65X25mm Wheel - 2 Sets
Regular price
Rs. 122
Regular price
Rs. 193
Sale price
Rs. 122
Unit price
per
Incl. GST (No Hidden Charges)
Sale
Single Shaft L-Shaped 60 RPM BO Motor with 65X25mm Wheel - 4 Sets
Regular price
Rs. 261
Regular price
Rs. 418
Sale price
Rs. 261
Unit price
per
Incl. GST (No Hidden Charges)
Sale
Found a better price?
Let us know!
We'll try to match the price for you
1. What is a BO Motor?
- Bo motor (Battery Operated) is a lightweight DC geared motor that produces high torque and rpm at low voltages. When powered by a single Li-Ion cell, this motor can reach speeds of up to 60rpm. Excellent for battery-powered lightweight robots.
2. What are the features of the 60RPM BO Motor?
- The 60RPM BO motor provides good torque and rpm at low operating voltages. The small shaft with matching wheels provides an optimized design for your application or robot. The mounting holes on the body and their light weight make it suitable for in-circuit placement. The motor runs smoothly from 3V to 12V and has a wide range of RPM and torque.
3. Where can I use this BO Motor?
- The 60RPM BO Motors are (Battery Operated) motors used in smart robot cars, DIY trains, obstacle avoider robots, 2wd robots, and other applications. BO motors are used in hobby-grade projects where a small DC motor is needed as a simple actuator.
