4-CH IR Line sensor Module

Rs. 150
Rs. 150
Rs. 185
19% off
You save Rs. 35
  • ⚡ Dispatched within 24 hours
  • 🚚 Free shipping on orders above Rs 500/-
  • 💰 Earn RC Coins on every purchase
  • 🛠️ Dedicated Technical Support Team
  • Working voltage: DC 3.3V-5V
  • The output signal: TTL level
  • Output interface: 6 wire interface

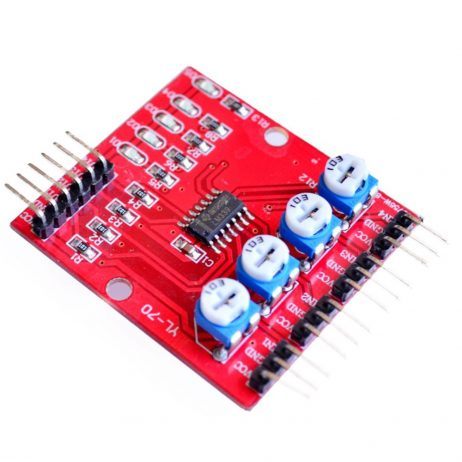

4-CH IR Line Sensor Module

  • Working voltage: DC 3.3V-5V Working current: try to choose more than 1A power supply
  • Output interface: 6 wire interface (1234 to 4 signal output ends, + positive power, - for the negative power is ground)
  • output low level; no infrared light, the indicator light does not shine, the output high.)
  • The output signal: TTL level

Applications:

  • Smart car
  • Line and edge following
  • Omnidirectional detecting
  • On-board indicator

    Package Contains

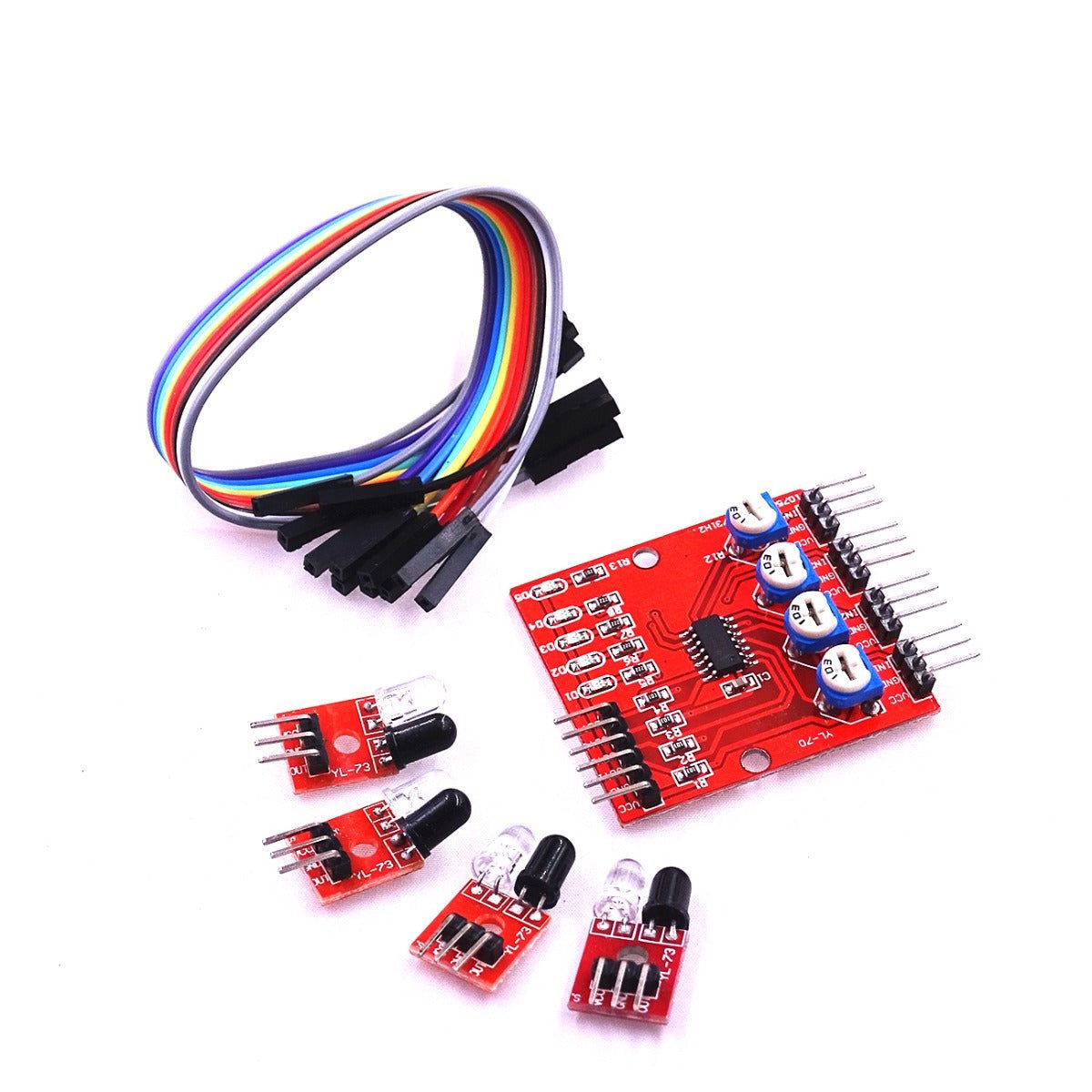

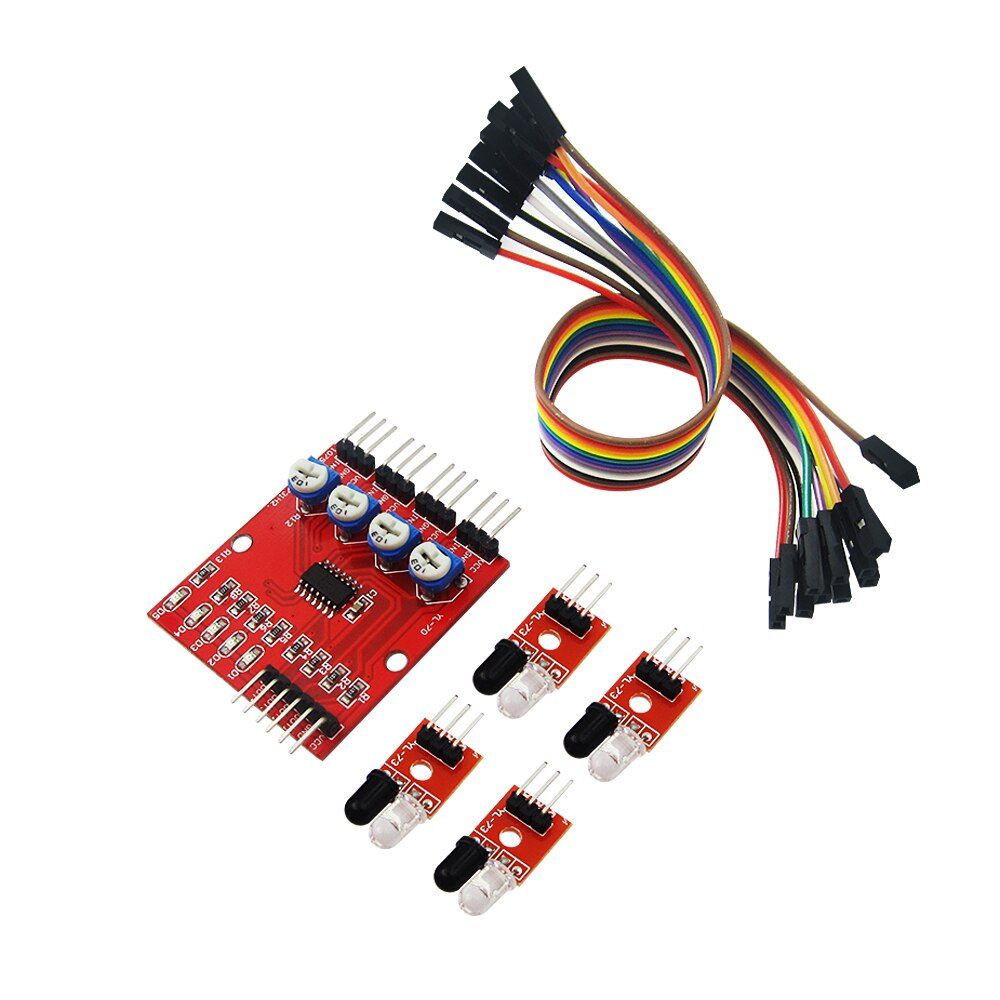

    • 1 x Tracking Module (Hollow Board + Small Plate Forward)

    • 1 x Female to Female Dupont Line

    4-CH IR Line sensor Module Specifications

    Working voltage DC 3.3V-5V
    Output interface 6 wire interface
    Operating Temperature (℃) -10 ~ +50
    Mounting hole M3
    Detection range 1mm ~ 60 cm adjustable.
    Dimensions  10 × 8 × 2 cm
    Weight  15 grams

    Related Blogs

    IR Sensor Working


    Jun 20, 2022
    IR Proximity/Motion
    IR sensor
    proximity sensor

    Proximity Sensor Types


    Jun 14, 2022
    IR sensor
    proximity sensor
    ultrasonic

    Types of Sensors in IoT


    May 16, 2022
    fingerprint sensor
    flame sensor
    gas sensor
    heart beat sensor
    heart sensor
    IR sensor
    proximity sensor
    sensor
    ultrasonic

    IR Sensor Interfacing with Arduino


    Mar 17, 2022
    IR Proximity/Motion
    IR sensor
    sensor

    DIY Automatic Hand Sanitizer Dispenser


    May 13, 2020
    IR Proximity/Motion
    IR sensor
    Pumps & SOVs

    Obstacle Avoider Robot Using Arduino and IR Sensor


    Nov 21, 2019
    arduino
    arduino projects
    BO Wheel
    IR sensor
    obstacle avoider
    proximity sensor
    sensor

    ROBOCRAZE DIY LINE FOLLOWER KIT


    Oct 21, 2018
    arduino
    arduino projects
    BO Wheel
    IR sensor
    L293D
    line follower
    Proximity sensor
    sensor

    Frequently Asked Questions

    1. What is an IR Sensor and why is it not visible?

    • An infrared (IR) sensor is an electronic device that measures and detects infrared radiation in its surrounding environment. Infrared radiation was accidentally discovered by an astronomer named William Herchel in 1800. While measuring the temperature of each color of light (separated by a prism), he noticed that the temperature just beyond the red light was highest. IR is invisible to the human eye, as its wavelength is longer than that of visible light. Anything that emits heat gives off infrared radiation

    2. What are the types of IR sensor and their difference?

    • There are two types of infrared sensors: active and passive.
      Active infrared sensors both emit and detect infrared radiation.
      Passive infrared (PIR) sensors only detect infrared radiation and do not emit.
