- This is the 300 RPM L shaped Single Shaft BO Motor
- This single shaft L shaped BO motor relatively low coefficient of friction.
- This BO motor has a low density and low inertia
- The Operating Voltage is 3V to 12V
- Rated Speed(After Reduction): 300 RPM
- This single-shaft L- shaped BO motor is lightweight

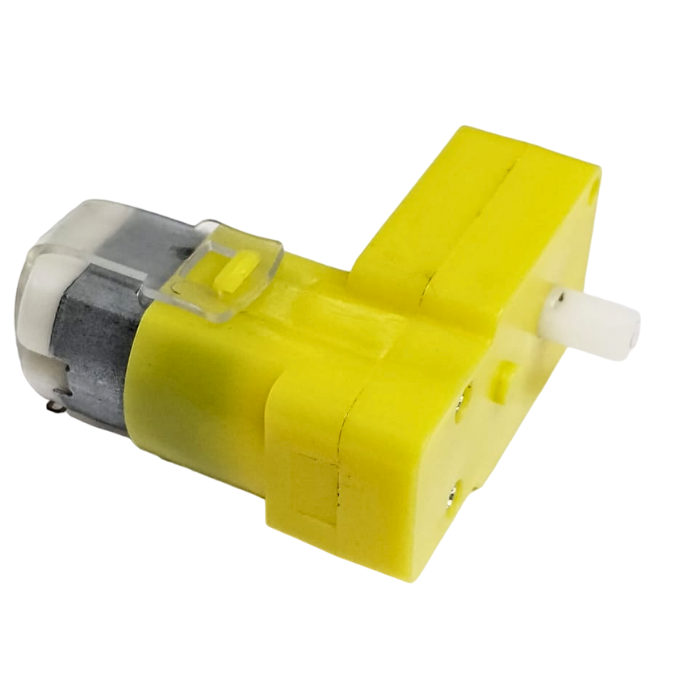

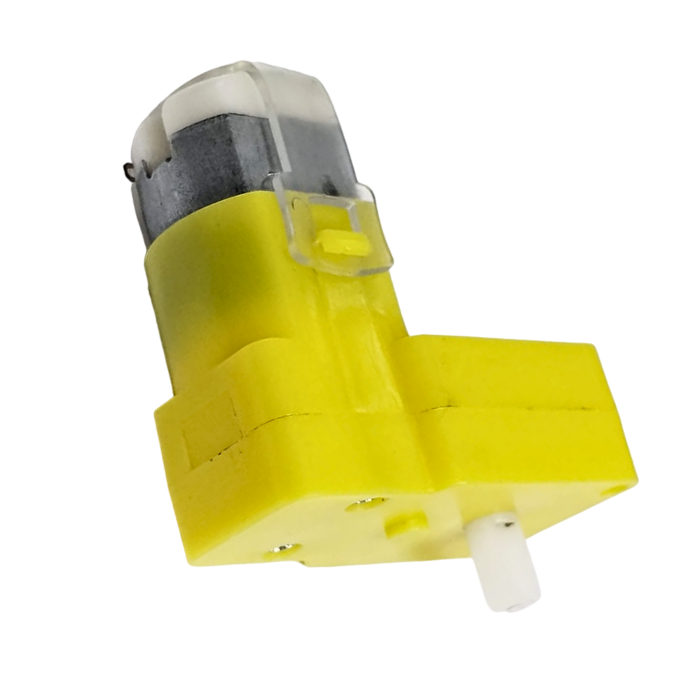

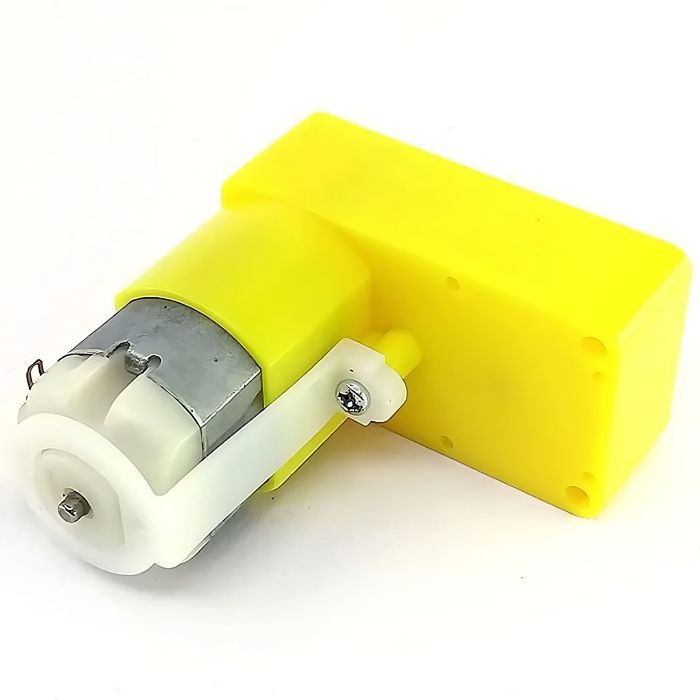

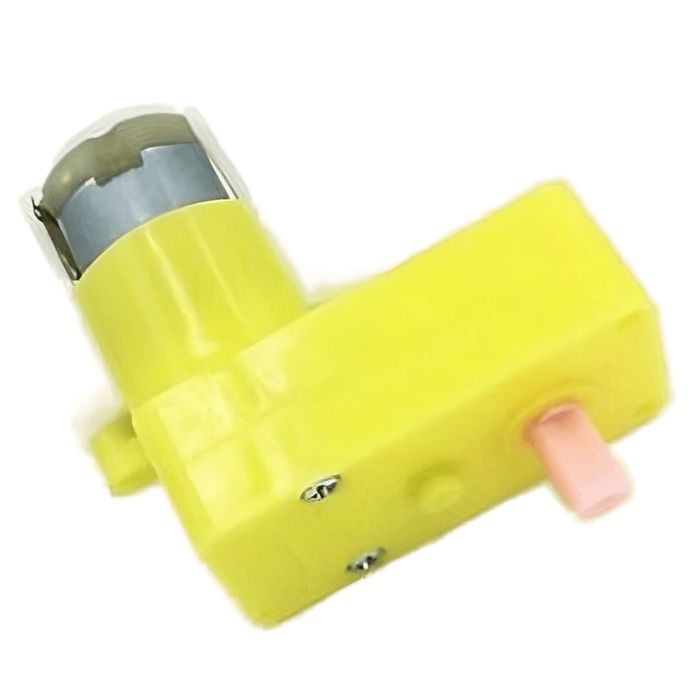

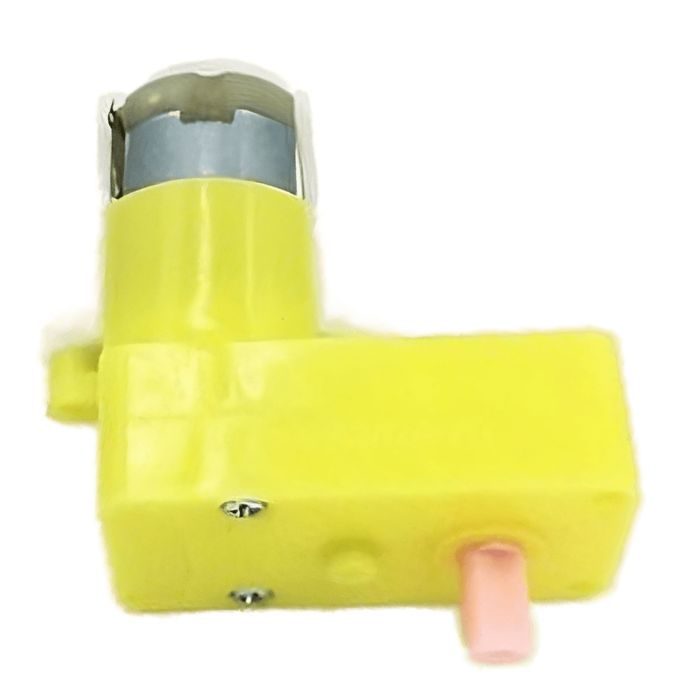

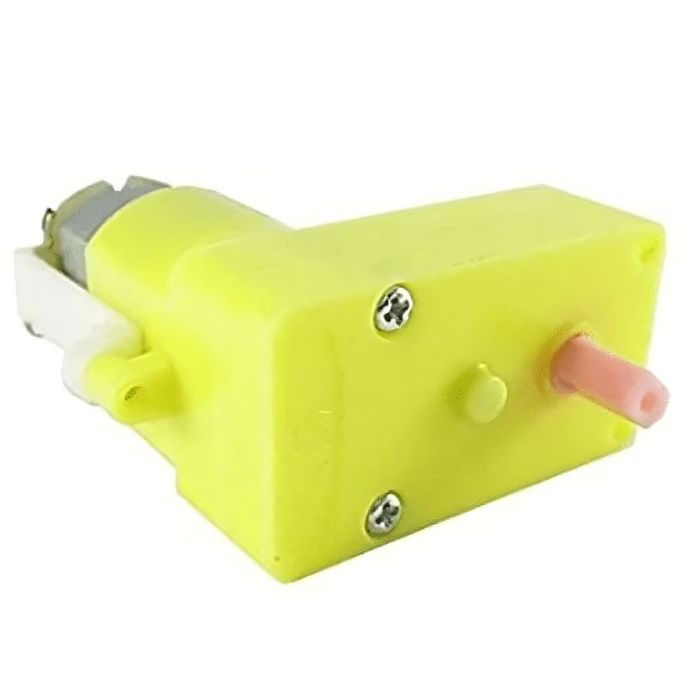

300 RPM L Shape Single Shaft BO Motor
This 300 RPM L shaped single shaft BO Motor gives good torque and rpm at lower operating voltages, which is the biggest advantage of these motors. This BO motor is a Low-cost geared DC Motor. It is an alternative to our metal gear DC motors. It comes with an operating voltage of 3-12V and is perfect for building small and medium robots.
Small shaft with matching wheels gives an optimized design for your application or robot. Mounting holes on the body & light weight makes it suitable for in-circuit placement. The motor is ideal for DIY enthusiasts. This BO motor is less cost, small, easy to install, and can be used in mobile robot car. If you want to use this 300 RPM single shaft L shaped BO motor in your DIY projects, for that you will need few essential components like batteries , switches , wires , soldering tools and wheels.
Features:
- Operating Voltage: 3-12V DC.
- Rated Speed: 300 RPM (after reduction).
- Rated Torque: 0.35 Kgcm.
- Shaft Length: 8.5 mm.
- Shaft Diameter: 5.5 mm (Double D-type).
- No Load Current: 40-180mA.
- Lightweight and Low Inertia: Designed for low density, making it lightweight and easy to handle.
- Shock and Vibration Absorption: Capable of absorbing shock and vibration due to its elastic compliance.
- Minimal Lubrication Required: Operates with minimal or no lubrication, thanks to its inherent lubricity.
- Low Friction: Features a relatively low coefficient of friction.
- Corrosion Resistance: Resistant to corrosion, eliminating the need for protective coatings.
- Quiet Operation: Designed for quiet operation.
Applications:
- Smart Robot Cars
- DIY Train
- Obstacle Avoider robot
- 2wd Robot
Package Includes:
- 1 x 300 RPM L- Shaped Single Shaft BO Motor
Specifications:
| Motor type | BO motor |
| Motor design | L shaped |
| Operating Voltage | 3 to 12V |
| RPM | 300 |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
Single Shaft L-Shaped 60 RPM BO Motor with 65X25mm Wheel - 4 Sets
DIY 2WD Smart Chassis Car Kit
300 RPM Single Shaft BO Motor with Wheel (4 sets)
Found a better price?
Let us know!
We'll try to match the price for you
1. What is a BO Motor?
- Bo motor (Battery Operated) is a lightweight DC geared motor that produces high torque and rpm at low voltages.
2. Where can I use this BO Motor?
- The 300RPM BO Motors are (Battery Operated) used in smart robot cars, DIY trains, obstacle avoider robots, 2wd robots, and other applications. BO motors are used in hobby-grade projects where a small DC motor is needed as a simple actuator.
3. What is the operating voltage range for the 300 RPM Single Shaft BO Motor?
- The motor operates within a voltage range of 3V to 12V.
4. What are some common applications for this motor?
- This motor is commonly used in robotics, DIY projects, and various automated systems requiring rotational motion.
5. What is the no-load current consumption of the motor?
- The no-load current ranges from 40mA to 180mA.
