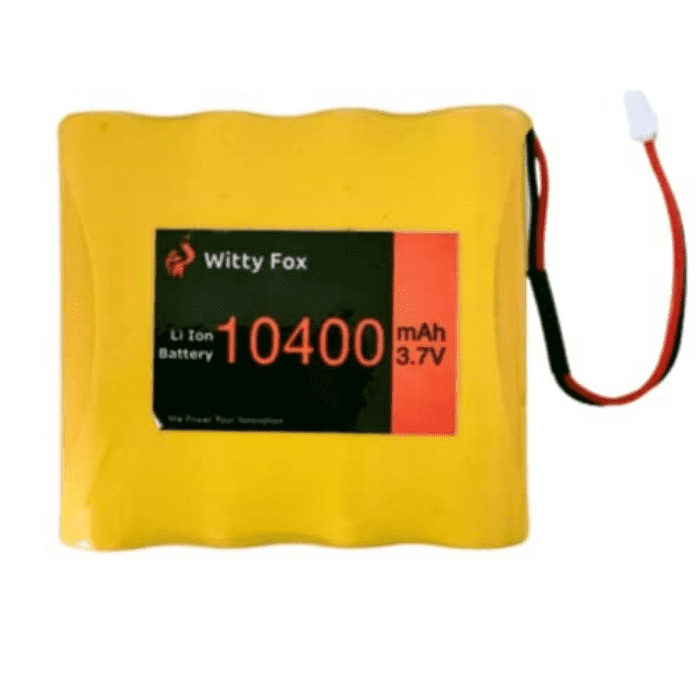

Witty Fox 3.7V 10400mAh Li-Ion Battery
Couldn't load pickup availability
This 3.7v Lithium-Ion battery is a very slim, extremely lightweight Li ion battery based on the new polymer lithium-ion chemistry. This is the highest energy density battery currently in production. Each cell outputs a nominal 3.7v. These batteries require special charging. Do not attempt to charge these with anything but a specialized Lithium-Ion battery charger.
This Li ion Battery includes built-in protection against over-voltage, over-current, and minimum voltage. Please use caution when using this battery in wearable projects. A short in the thread can create sparks and heat when using conductive thread.
| Brand | Witty Fox |
| Voltage | 3.7V |
| Self–Discharge | < 2% per month |
| Storage | -20 to +55°C |
| Charging | Regulated DC, CCCV 4.2V |
| Battery Capacity | 10400 mAh |
| Battery Type | Lithium-Ion |
| Battery Dimension (L x W x H) |
74 x 67 x 19 mm |
| Connector Dimension (L x W x H) |
9 x 7 x 5 mm |
| Weight | 193 grams |
| Lithium Polymer (LiPo) Battery | Lithium Ion (Li-ion) Battery |
|---|---|
| Lower energy density | Higher energy density |
| High Price | Low Price |
| Lightweight | Heavy |
| Approx. 75% to 90% efficiency | Approx. 85% to 95% efficiency |
| Used in power banks, mobile, laptops, Surveillance devices etc. | Uses in Drones/quadcopters, Vehicles, etc. |
