20Kg Load Cell

20Kg Load Cell

Out of stock

Regular price Rs. 89
Regular price Rs. 132 Sale price Rs. 89
Sale Sold out 33% off Best Price Guaranteed
You save Rs. 43 | Free Shipping on Orders Above ₹ 499/-
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here
  1. Rated Load: 20Kg
  2. Rated Output: 1.0 ±0.15mV/V
  3. Zero Output: ±0.1mV/V
  4. Cree: 0.03%F.S./30min
  5. Input End: Red+, Black-
  6. Output End: Green+, White-
  7. Input Impedance: 1115±10% Ω
Trust Badge 1 Trust Badge 2 Trust Badge 3

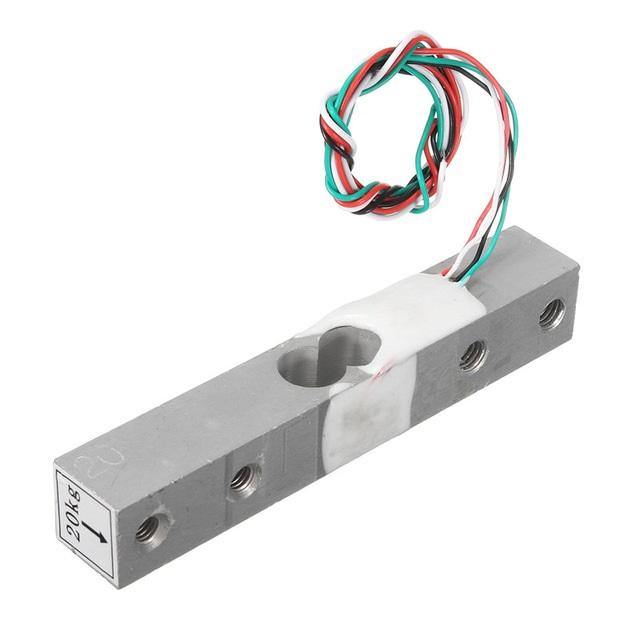

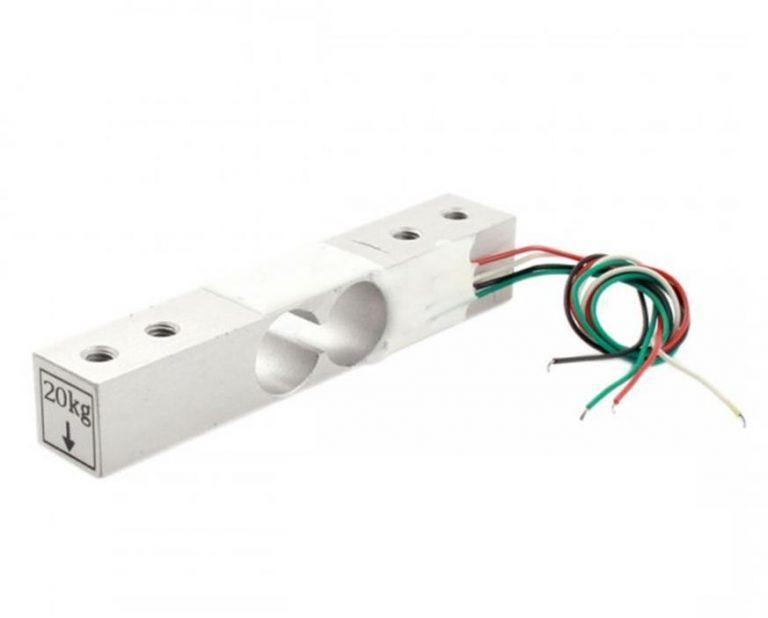

20Kg Load Cell

This straight bar load cell (sometimes called a strain gauge) can translate up to 20 kg of pressure (force) into an electrical signal. Each load cell is able to measure the electrical resistance that changes in response to, and proportional of, the strain (e.g. pressure or force) applied to the bar.

With this gauge, you will be able to tell just how heavy an object is, if an object’s weight changes over time, or if you simply need to sense the presence of an object by measuring strain or load applied to a surface. This straight bar load cell is made from an aluminum alloy and is capable of reading a capacity of 1KG of weight

It has Four lead wires which can be connected to  HX711 A/D Pressure Sensor.  It is easy to use with driving voltage 5-10V and produce the output voltage as per the force changes over it.

Installation of the Sensor is also the simple task, it needs to fix one end through the screw hole and the other end left floating state, according to the label indicates the direction of the gravitational force exerted particular attention must not directly push the white plastic cover part of the sensor in order to avoid damage.

An electronic weighing machine uses a load cell to measure the load or pressure produced by the load, here most load cells follow the method of the strain gauge, Which converts the pressure (force) into an electrical signal, these load cells have four strain gauges that are hooked up in a Wheatstone bridge formation.

When we apply to load the strain gauge resistance will change and hence the output voltage from the load cell get changes by the way we can measure the load value.

read more : Load cell : The Ultimate Guide

Package Includes:

  • 1 x 20Kg Load Cell

Specifications

Sensor Type  Load Cell
Mounting hole diameter (mm) 2 holes – M3.3 x 13(depth)
Mounting hole diameter (mm) 2 holes – M4 x  13mm(depth).
Weight  32 grams



YZC-133 Weighing Load Cell
