- It has a diameter of 9.0mm conductor through hole.
- It has an output voltage proportional to AC & DC current
- It has a wide sensing current range of 0-200A at 5V volt.
- It has a wide operating voltage range of 3.0-12 V.
- Two bronze sticks for easy soldering on PCB.

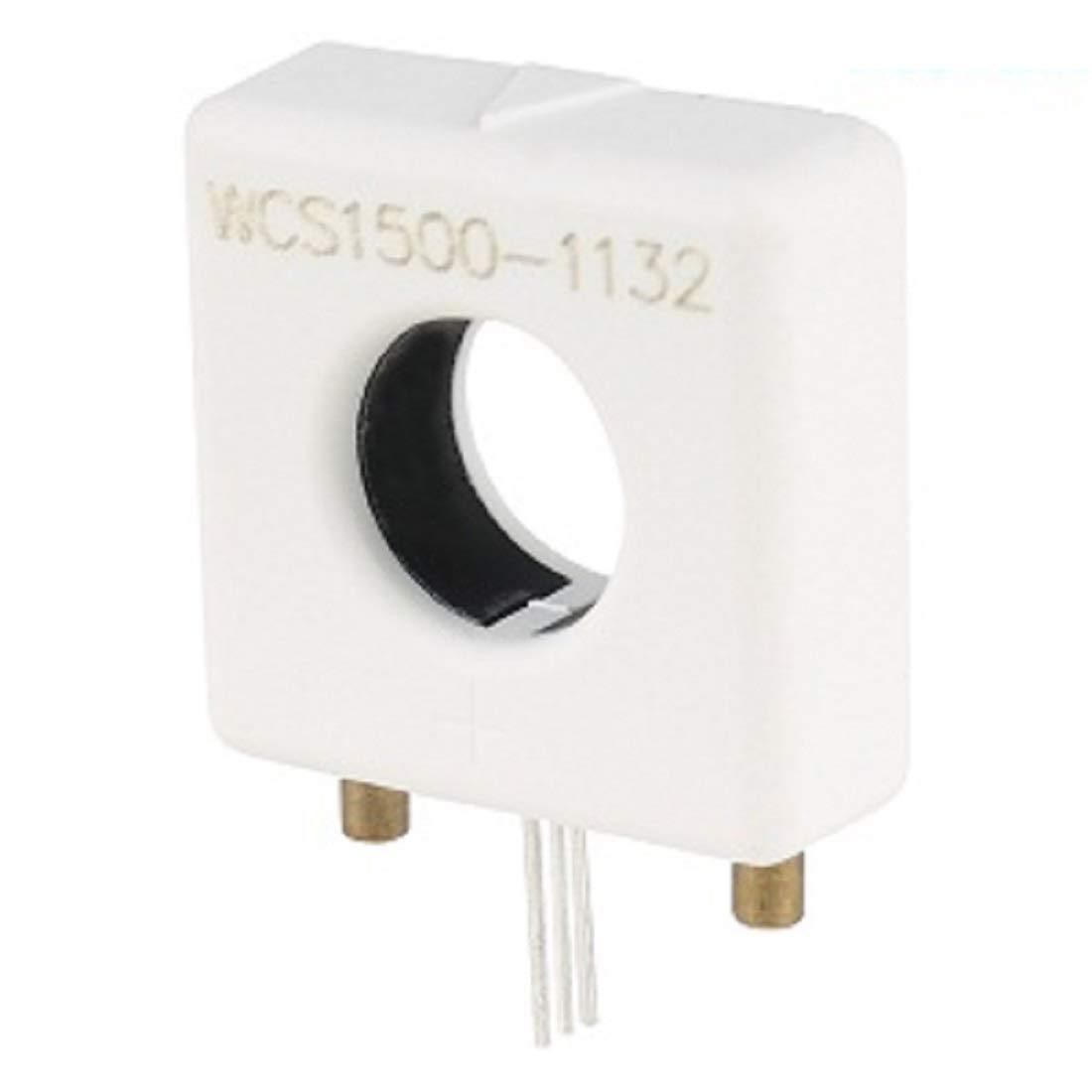

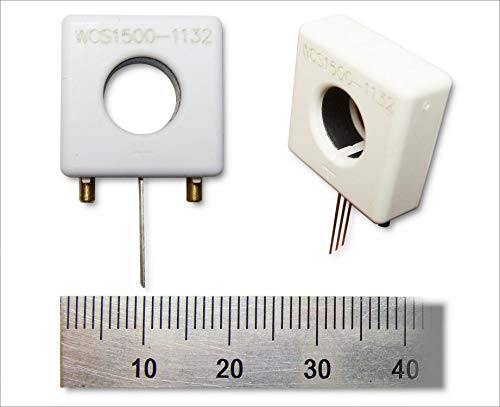

WCS1500 Hall Effect based Current Sensor (0-200A)
WCS1500 current sensor provides economical and precise solution for both DC and AC current sensing in industrial, commercial and communications systems. The unique package provides easy implementation without breaking original system and makes current sensing possible. Typical applications include motor control, load detection and management, over-current fault detection and any intelligent power management system etc.

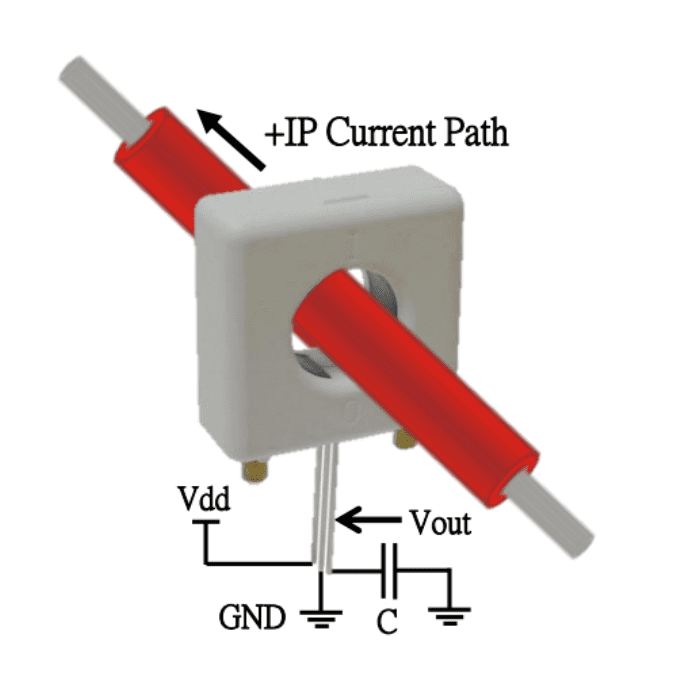

The WCS1500 sensor consists of a precise, low-temperature drift linear hall sensor IC with temperature compensation circuit and a diameter 9.0mm through hole. Users can use system’s own electric wire by pass it through this hole to measure passing current. This design allows system designers to monitor any current path without breaking or changing original system layout at all. Any current flowing through this hole will generate a magnetic field which is sensed by the integrated Hall IC and converted into a proportional voltage.

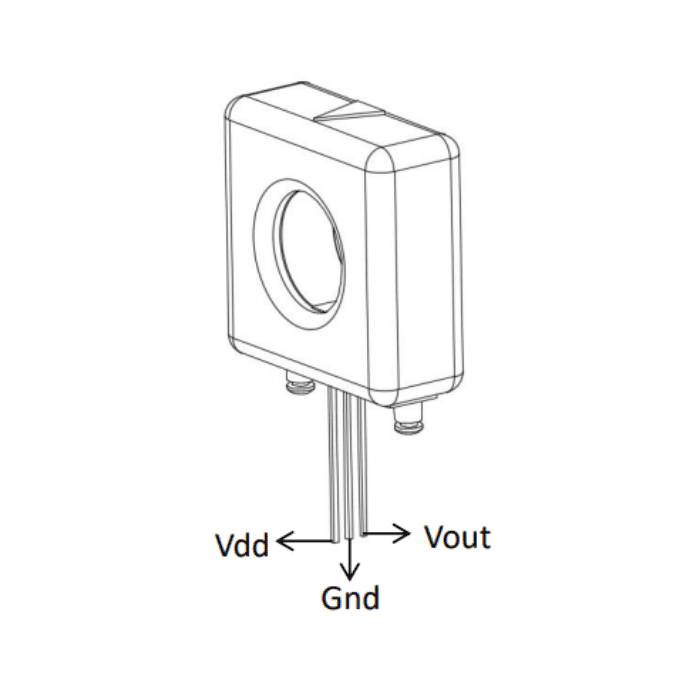

Pinout:
Pinout of WCS1500 Hall Effect based Current Sensor
Package Includes:
- 1 x Original WCS1500 Hall Effect based Current Sensor (0-200A)
Specifications:
| Zero Current | 2.5V |
| Supply Current | 3.5-6.0 mA |
| Supply Voltage | 3.0-12V |
| Bandwidth | 23kHz |
| Conductor Through Hole | 9.0mm |
| Sensitivity | 11mV/A |
| Temperature Drift | ±0.2mV/C |
| Operating Temperature | -20ºC to +125ºC |
