200 RPM GEAR MOTOR + 7X4cm WHEEL + 6-7 INCH BLACK METAL CHASSIS

200 RPM GEAR MOTOR + 7X4cm WHEEL + 6-7 INCH BLACK METAL CHASSIS

Out of stock

Regular price Rs. 804
Regular price Rs. 1,250 Sale price Rs. 804
Sale Sold out 36% off Best Price Guaranteed
You save Rs. 446 | Eligible for Free Shipping
Incl. GST (No Hidden Charges)
Currently, people are actively checking out this product.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here

Contact form

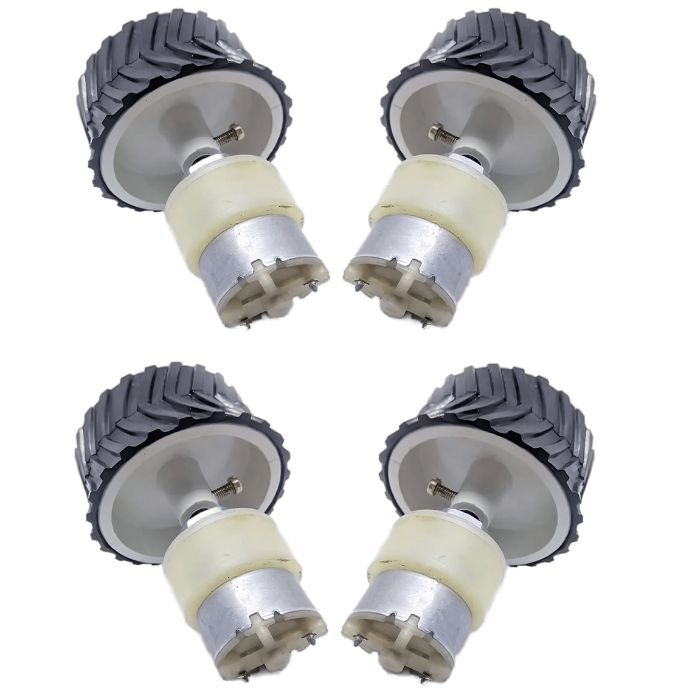

  • This kit comes with a 200 RPM geared motor, Metallic chassis and wheels.
  • The geared are simple DC motors featuring gears
  • The metal gears have better wear and tear properties.
  • The gearbox is sealed and lubricated with lithium grease and requires no maintenance.
  • The chassis is of high quality
  • The wheels are 7 x 4cm wheels with durability and easy to mount
  • The motor runs smoothly from 4V to 12V and gives a wide range of RPM, and torque.
  • The shaft has a hole for better coupling.
  • This gives out efficient performance
  • This DC motor is durably manufactured

200 RPM GEAR MOTOR + 7X4cm WHEEL + 6-7 INCH BLACK METAL CHASSIS

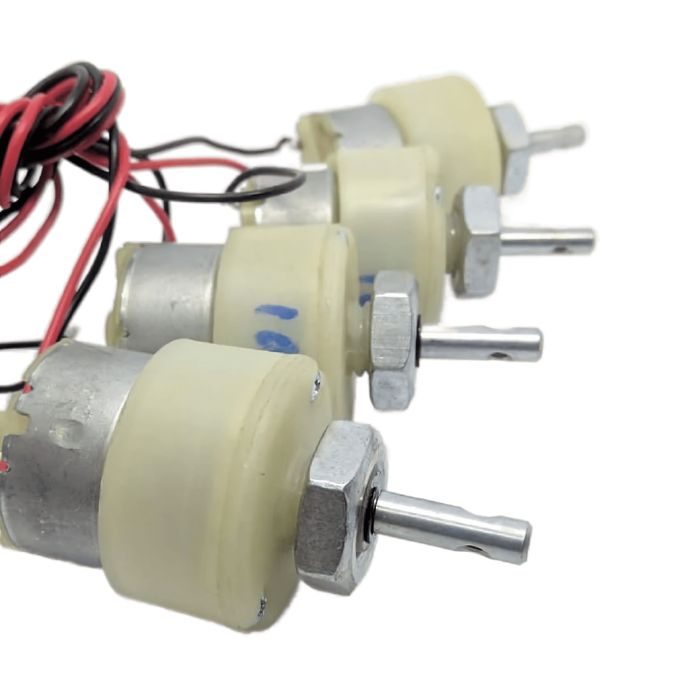

The DC motor in this kit is 200RPM geared motor, these motors are simple DC Motors featuring gears for the shaft for obtaining the optimal performance characteristics. They are known as Center Shaft DC Geared Motors because their shaft extends through the center of their gearbox assembly.

These standard size DC gear Motors are very easy to use. Also, you don’t have to spend a lot of money to control motors with an Arduino or compatible board. TheL298N H-bridge module with onboard voltage regulator motor driver can be used with this motor that has a voltage of between 5 and 35V DC.

This DC Motor of 12V 200 RPM can be used in all-terrain robots and a variety of robotic applications. These motors have a 3 mm threaded drill hole in the middle of the shaft thus making it simple to connect it to the wheels or any other mechanical assembly.

Nut and threads on the shaft to easily connect and internally threaded shaft for easily connecting it to the wheels. These DC Geared motors with robust metal/Plastic gearbox for heavy-duty applications, and ideally suited for robotics and industrial applications.

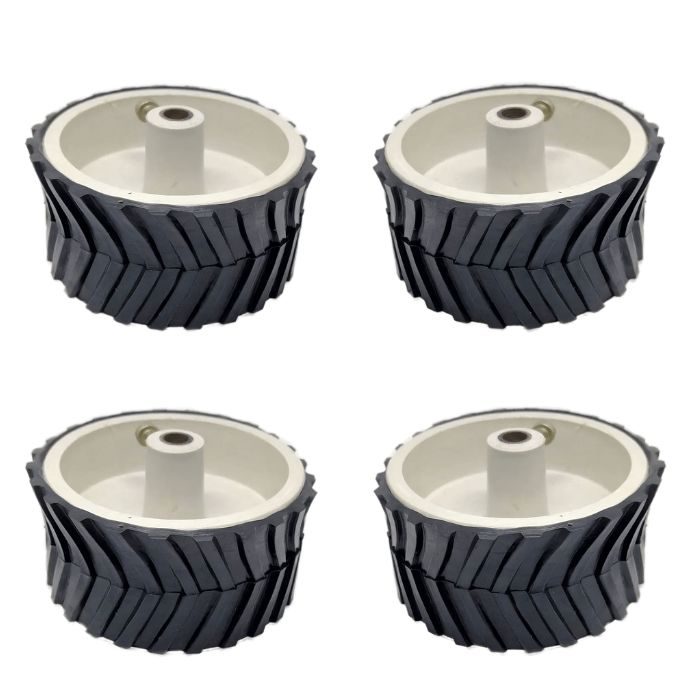

The wheels provided in this kit are 7 x 4 cm wheels, which are easy to mount, durable and cheap. This kit also comes with a high quality metallic chassis.

Note:
Depending upon the Manufacturer given dimensions may vary in the range of ±5%.

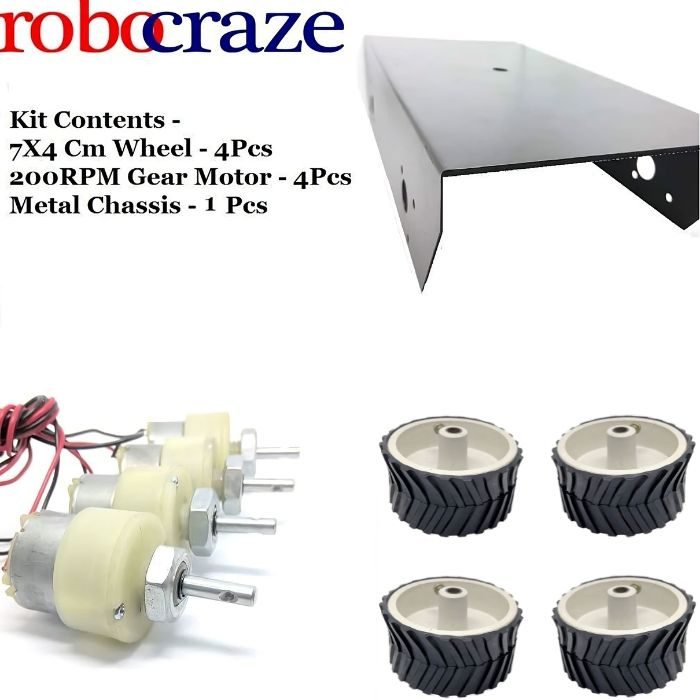

Package Includes:

  • 4 x 200RPM 12V DC Motors
  • 1 x Metallic chassis
  • 4 x wheels ( 7 x 4 cm)

Specifications:

Speed 200 RPM
Voltage 12V
Torque 1.5 kg-cm
Phase Single Phase
Shaft Diameter 6mm
Wheel diameter 7cm
Wheel thickness 4cm

Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 of 4

1. What does geared motor mean?

  • A geared motor is a component that adjusts the speed of the motor, causing it to operate at a specific speed. A geared motor can deliver high torque at low speeds.

2. What is the rpm of 12V DC motor?

  • The 12V DC motors are simple DC motors with shaft gears to achieve the best performance characteristics. Center Shaft DC Geared Motors is so named because its shaft runs through the center of the gearbox assembly. This 12V DC Motor has an RPM of 200.
