- This is a 40x1 Right Angle Female Berg Strip Connector.
- This connector can be cut into the desired section.
- This Header Pins 40×1 right angle is used with custom PCBs or general custom headers.
- It has a pitch of 2.54 mm.

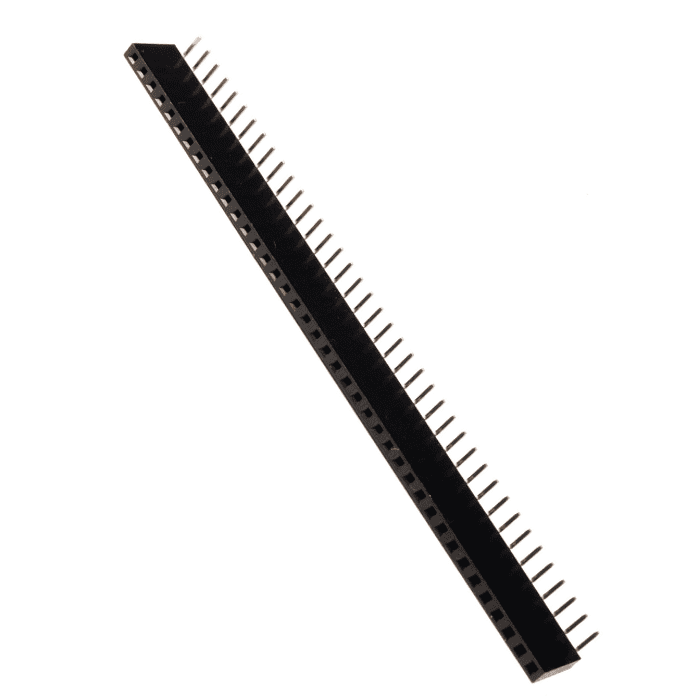

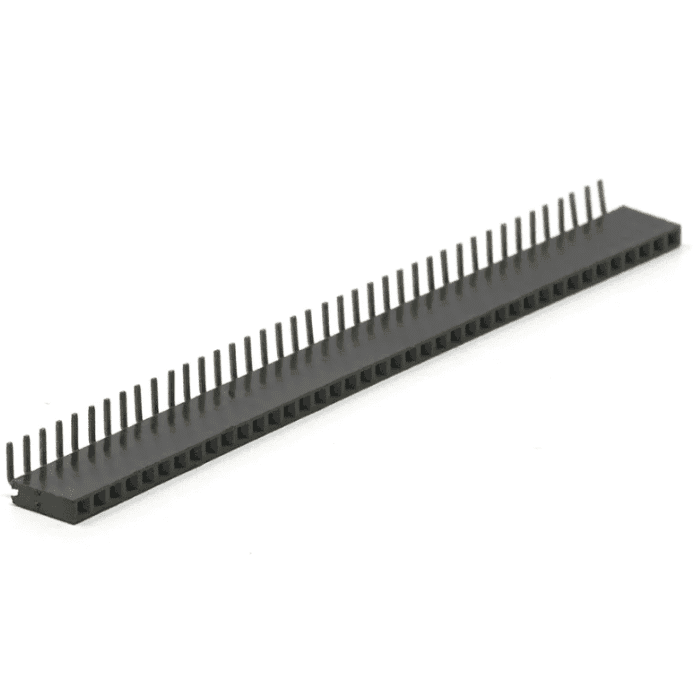

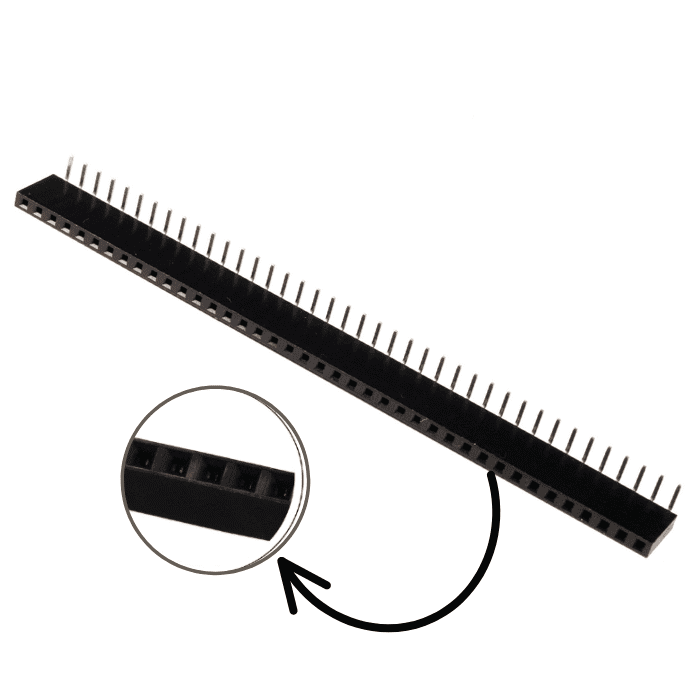

1x40 2.54mm Pitch Female Berg Strip Header (Right Angle)
This is a 40x1 right angle Female Berg Strip connector which has the industry-standard spacing of 2.54mm and is designed for soldering directly into printed circuit boards (PCB). They are supplied Best for the extension of pins of Microcontrollers and ICs.

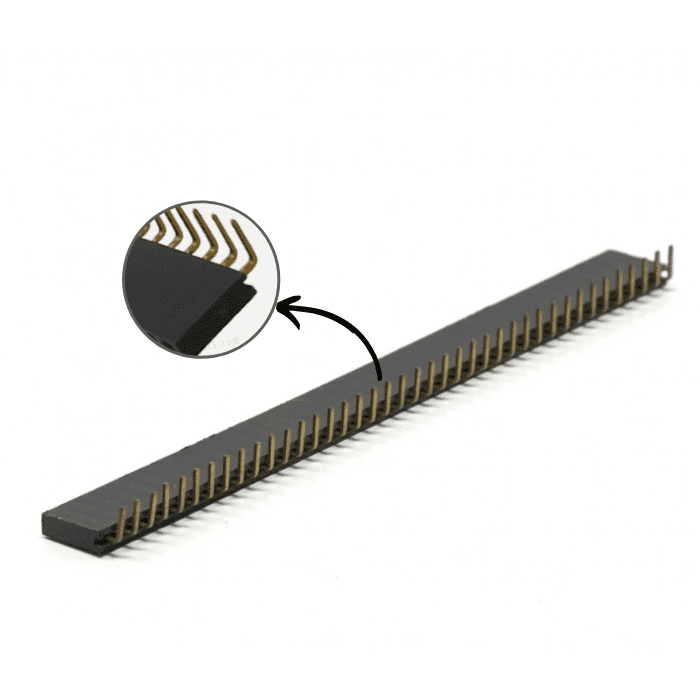

These 40x1 right angle Female Berg Strip connectors are bent at a 90 angle, which is suitable for many applications where the connectors are many times like prototyping. Also, custom PCBs or general custom headers use these types of connectors. This Right angle female Berg strip connector is an ideal connector for the PCB board and integrated circuit and it is used widely in the computer and breadboard.
The size of the header pins should correspond to the same of the header holes, otherwise, the connection is not tight enough and easy to loosen. It can be cut according to different needle number requirements to achieve the actual number of needles used. Choose the header according to the required number of pins and the pin spacing, and insert it directly into the breadboard to connect or form a connector with the header to achieve the purpose of connection
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
40x2 Female Berg Strip
40x1 Male Berg Strip (90 Degree)

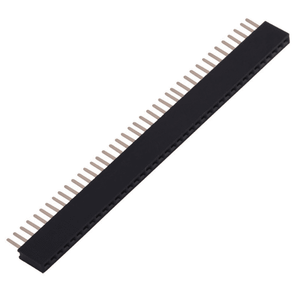

40x1 Female Berg Strip
Found a better price?
Let us know!
We'll try to match the price for you
Package Includes:
- 1x40 2.54mm Pitch Female Berg Strip Header (Right Angle)
Specifications:
| Connector |
Header Strip |
| Type |
Female |
| Mounting Type |
Through Hole |
| No of Pins |
40 |
| Pin Spacing (mm) |
2.54 |
| Contact Resistance |
20m |
| Insulation Resistance (M) |
1000 |
| Length (mm) |
103 x 2.4 x 8 |
| Weight (gm) |
1 gm |
Specifications:
Header Strip
Specifications:
Female
Specifications:
Through Hole
Specifications:
40
Specifications:
2.54
Specifications:
20m
Specifications:
1000
Specifications:
103 x 2.4 x 8
Specifications:
1 gm
1.what is a right angle Female berg strip?
- This 40x1 right angle Female Berg Strip is made to be soldered directly into printed circuit boards and has a standard spacing of 2.54mm in the industry (PCB). They are best suited for extending the pins on microcontrollers and integrated circuits. If the header pin and hole sizes do not match, the connection will not be secure enough and will be simple to loosen. To determine the actual number of needles used, it can be sliced in accordance with various needle number specifications. Select a header with the appropriate amount of pins and pin spacing, then either simply insert it into the breadboard to connect or use the header to create a connector to accomplish the connection goal.
2. What are the Applications of right angle Female berg strip?
- These right-angle 40x1 Female Berg Strip connectors are bent at a 90-degree angle, making them useful for a variety of applications where prototype connectors are frequently used. Additionally, these connectors are used in bespoke headers or PCBs in general.
