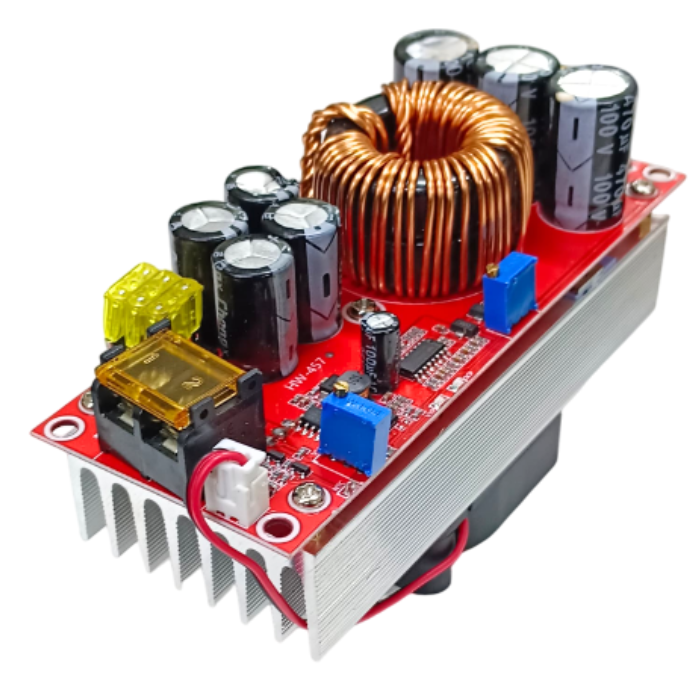

1800W 40A DC to DC Adjustable Power Supply Step Up Module
1800W 40A DC to DC Adjustable Power Supply Step Up Module
Out of stock
0
Couldn't load pickup availability
Free shipping on Orders Above Rs 499/-
Fast Delivery
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Converts 10-60V input to 12-97V output with adjustable voltage.
- Supports up to 40A input and 35A output current.
- High efficiency (up to 97%) for stable performance.
- Smart fan activates at 60°C for temperature control.
- Ideal for solar lamps, LED lighting, vehicle power, and battery charging.
- Low quiescent current of 15mA.

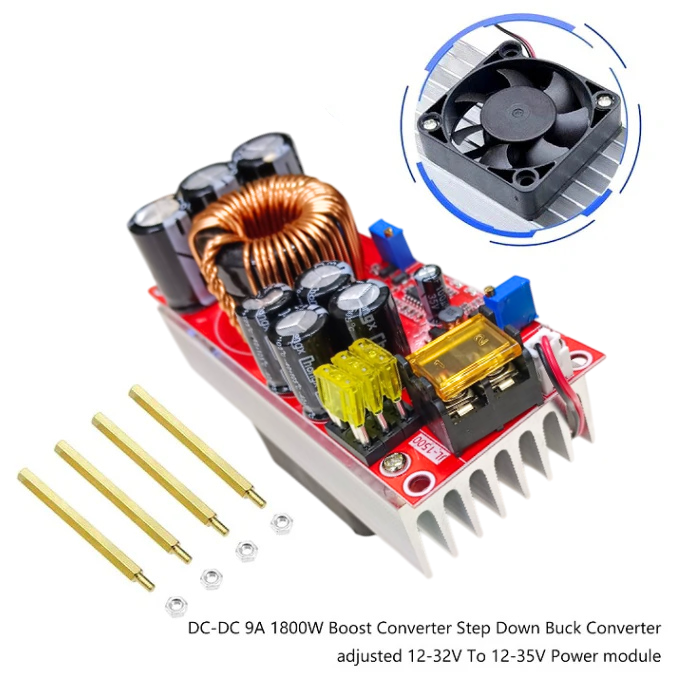

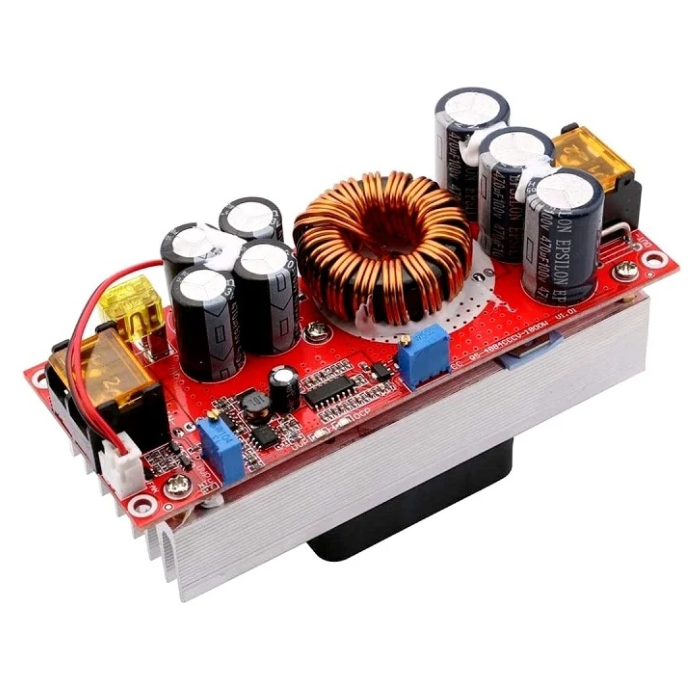

1800W 40A DC to DC Adjustable Power Supply Step Up Module
The 1800W 40A DC to DC Adjustable Power Supply Step-Up Module is a high-performance converter designed for efficient voltage and current regulation. This adjustable power supply converts input voltages from 10-60V DC to adjustable output voltages between 12-97V DC, delivering up to 97% conversion efficiency. This non-isolated module features a smart temperature control fan for reliable operation and is ideal for powering solar street lamps, LED lighting, DIY adjustable power supplies, and battery charging applications. Built with durable, high-quality components, this Step-Up module ensures stable and powerful output for various demanding uses.
Features

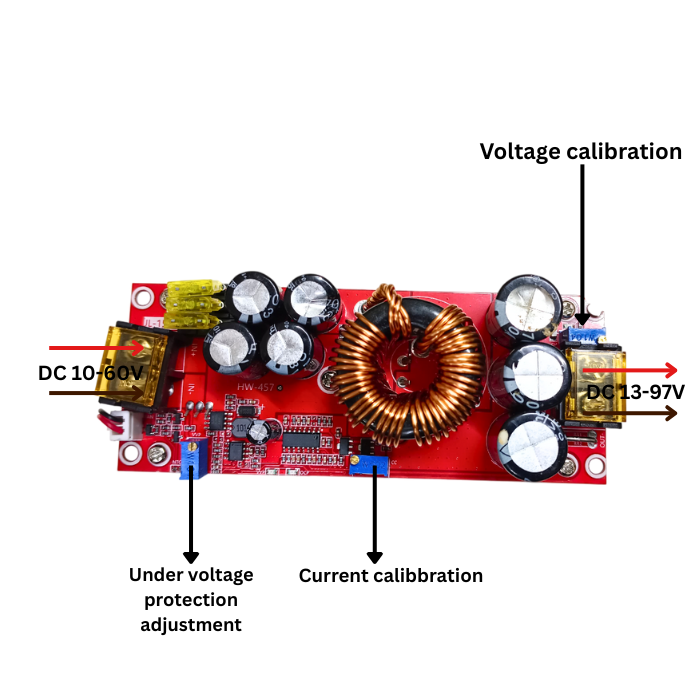

- Converts input voltage from 10-60V DC to 12-97V DC with adjustable output.
- Supports up to 40A current, with a maximum output current of 35A.
- The high conversion efficiency of up to 97% for stable performance.

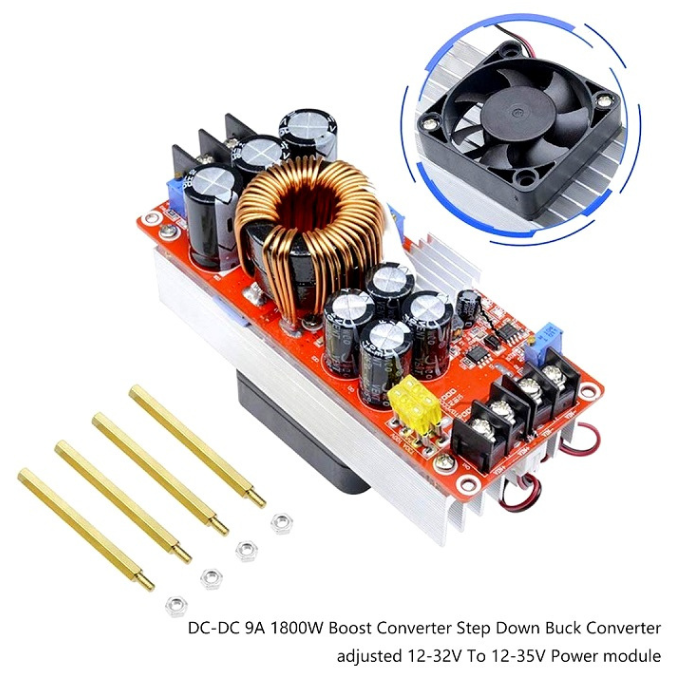

- Features a smart temperature control fan that activates above 60°C for cooling.
- Ideal for applications like solar street lamps, LED lighting, vehicle power supply, and battery charging.
- Low quiescent current of 15mA for minimal energy consumption.
- Non-isolated DC power converter for efficient power conversion.

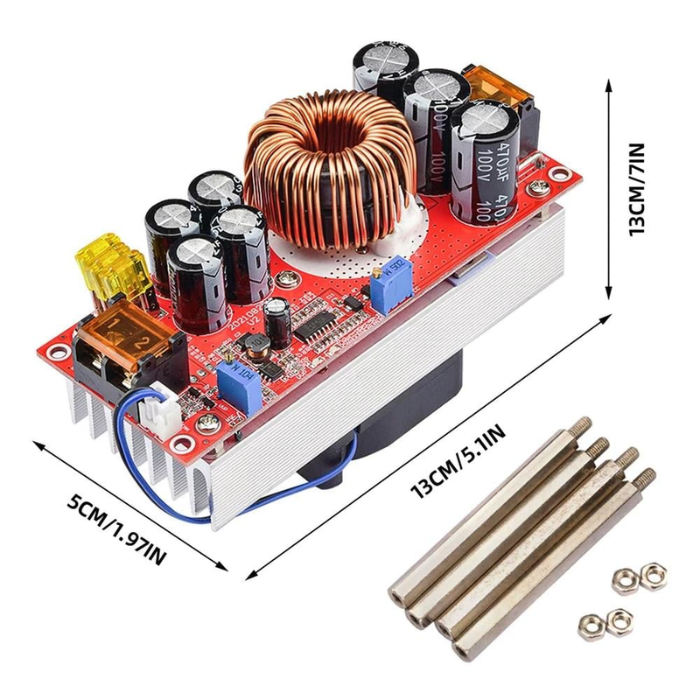

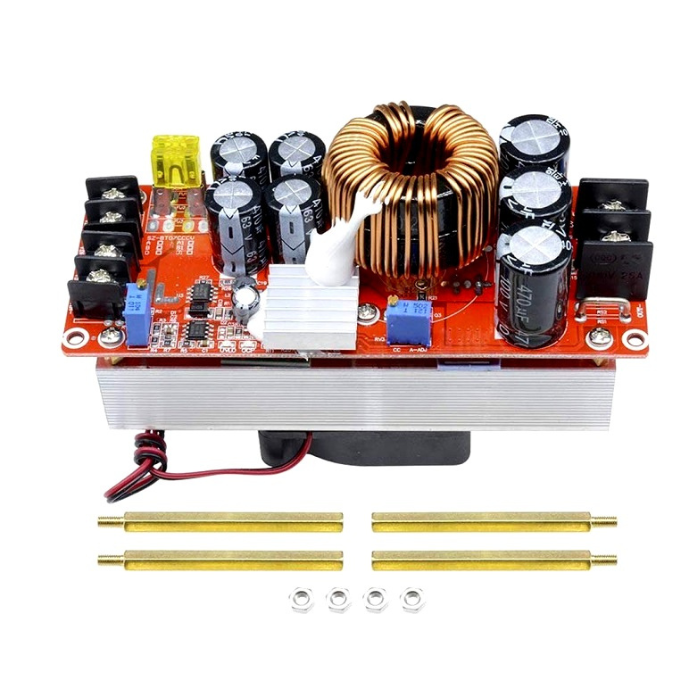

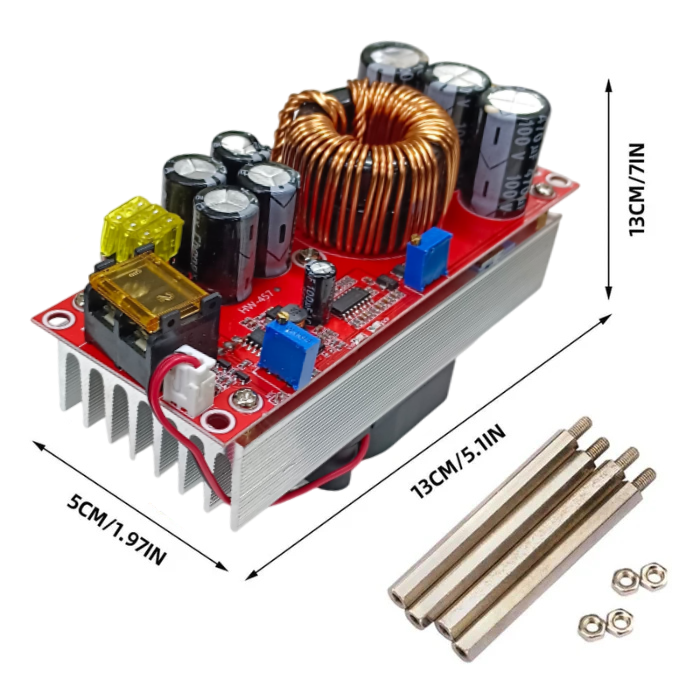

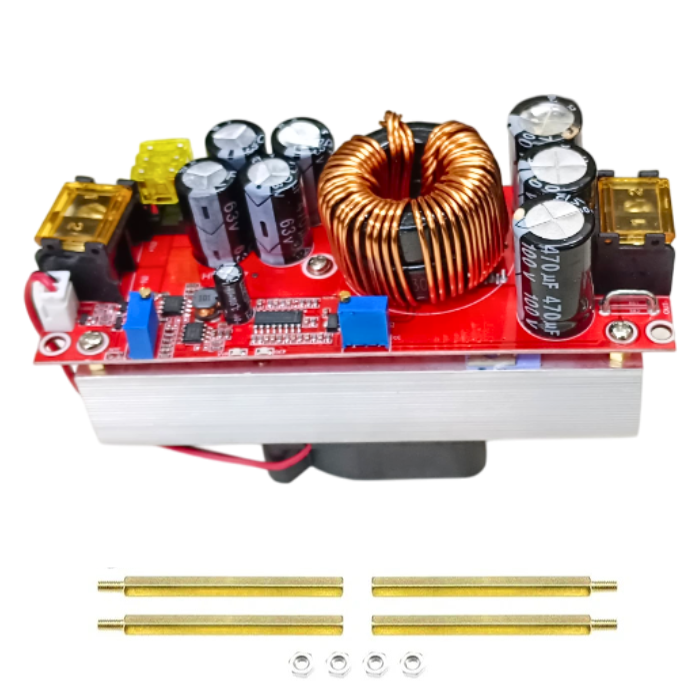

Package Includes
- 1 x 1800W 40A DC to DC Adjustable Constant Voltage and Current Power Supply Module
- 4 x Copper alloy standoff with Nuts (50mm)
Specifications
| Specification | Details |
|---|---|
| Input Voltage | 10-60V DC |
| Output Voltage | 12-97V (Continuously adjustable) |
| Input Current | 10-30V: 35A-40A, 31-60V: 30A-35A |
| Output Current | 35A Max |
| Power | 1800W |
| Conversion Efficiency | Up to 97% |
| Quiescent Current | 15mA (at 12V to 20V) |
| Temperature Control | Smart fan, activates at 60°C |
| Module Type | Non-Isolated DC Converter |
| Applications | Solar lamps, LED lighting, vehicle power, battery charging |

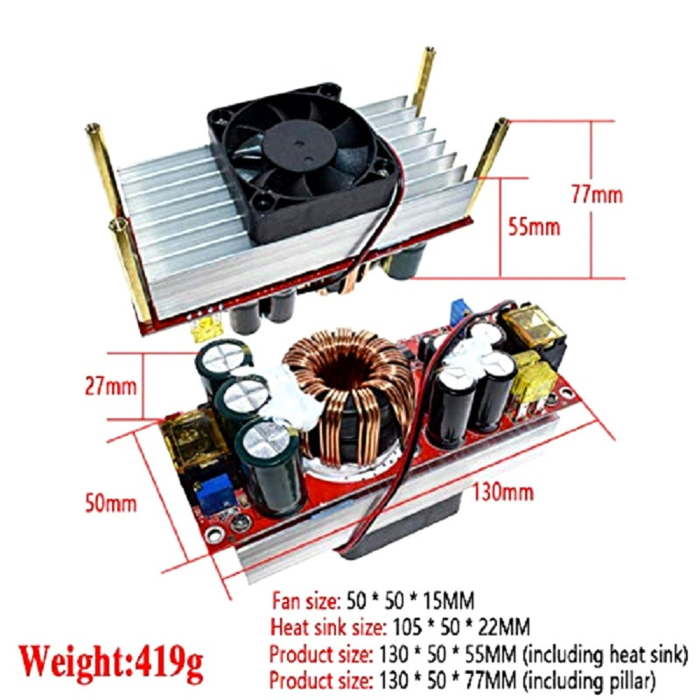

| Dimensions | 13.5 x 6 x 7.5 mm |
| Weight | 414g |
