- This is 17HS8401S NEMA17 Stepper Motor (48mm)
- The Step Angle of this Stepper Motor is 1.8 degrees
- The Rated Current of this Stepper Motor is 1.7A
- The Detent Torque of this Stepper Motor is 59 mN.m
- This Stepper Motor has Smooth operation and Low Noise
- This Stepper Motor has Good acceleration performance.

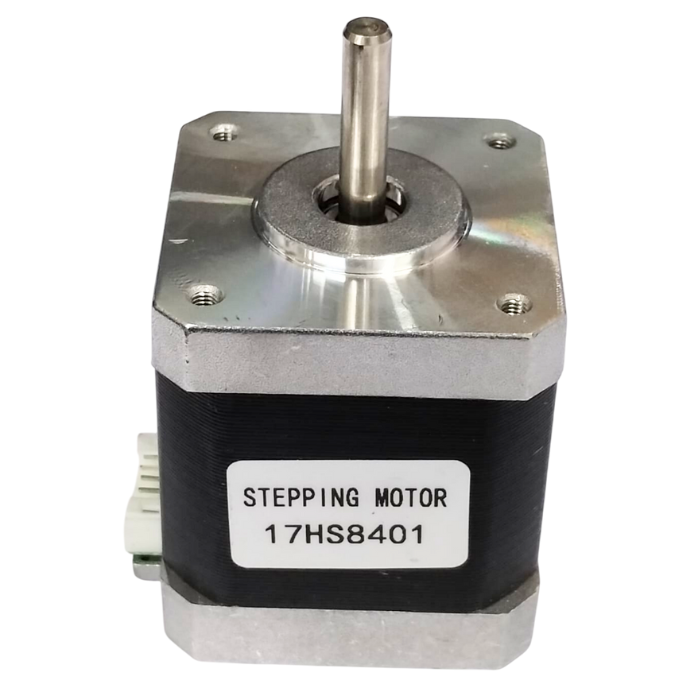

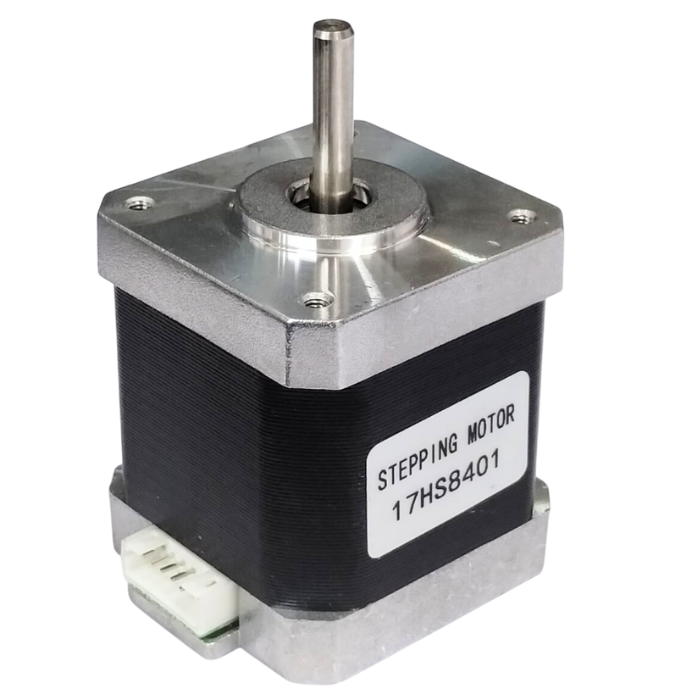

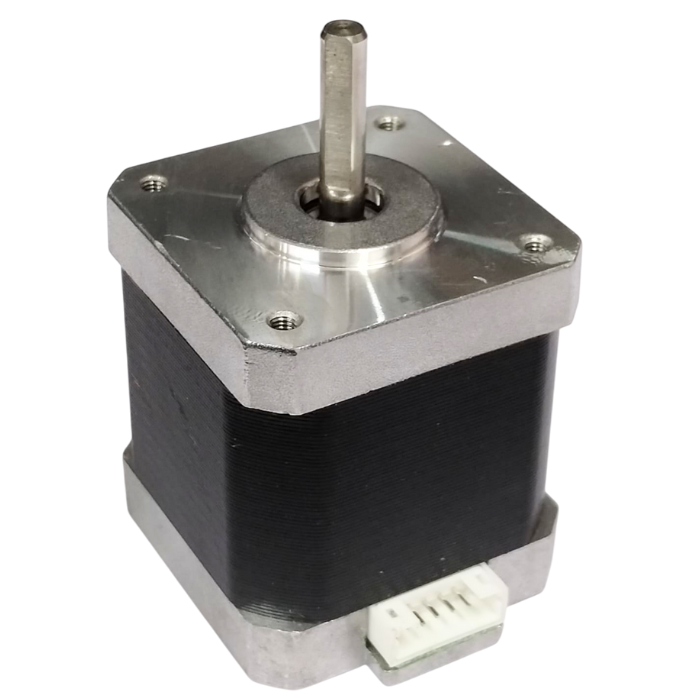

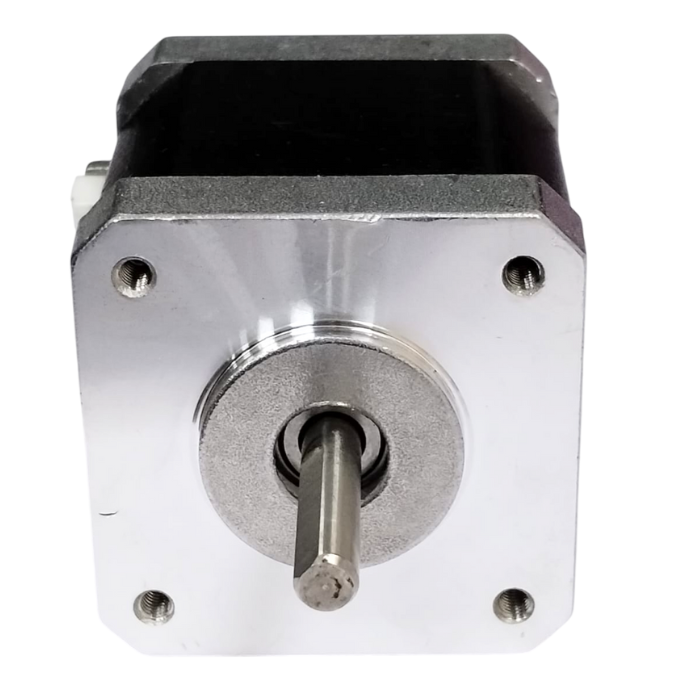

17HS8401S NEMA17 Stepper Motor (48mm)
The 17HS8401S NEMA17 Stepper Motor is designed to deliver smooth and precise performance for a wide range of applications. With a Detent torque of 59 mN.m, this NEMA17 motor provides exceptional accuracy and stability, ensuring that your projects are completed with the utmost precision.
This stepper motor is an excellent option for various automation projects, including 3D printers and CNC machines. Its high torque and small size make it a perfect fit for space-constrained applications. Furthermore, its dependable performance ensures that your project operates flawlessly on every occasion.
When it comes to industrial automation, durability and reliability are key. That's why the NEMA17 Stepper Motor is built to last. With a high-quality construction and robust design, this 3D printer motor is capable of withstanding even the toughest conditions.
From high temperatures to harsh environments, this stepper motor is engineered to perform in even the most demanding situations. And with its low noise and vibration levels, it provides a comfortable and reliable working environment, ensuring that you can focus on what matters most - getting the job done.
Features:
- The input pulse decides the rotation angle of the motor.
- High accuracy of around 3 to 5% a step.
- It provides good starting, stopping, and reversing.
- Control of this motor is less costly because of the exclusion of complex control circuitry.
- The speed is proportional to the frequency of the input pulses.
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
17HS4401 NEMA17 Stepper Motor - 40mm
Ultra-silent 4-layer Substrate MKS-LV8729 Stepper Motor Driver with Heat Sink
23HS5628 Nema 23 Stepper Motor
Found a better price?
Let us know!
We'll try to match the price for you
Package Includes:
- 1 x 17HS8401S NEMA17 Stepper Motor (48mm)
Specifications:
| Motor Type | NEMA17 |
| Step Angle | 1.8 deg |
| Rated Voltage | 3.1 V |
| Rated Current | 1.7A |
| Detent torque | 59 mN.m |
| Rotor Inertia | 80 g.cm2 |
| Weight | 300 gm |
1. How to choose a power supply for stepper motor NEMA 17?
- NEMA 17 stepper motors typically have more torque than smaller variants such as NEMA 14 and have a recommended drive voltage of 12-24V.To choose the best power supply for a stepper motor, the voltages of the motors must be added together Like most motors, stepper motors have voltage and current ratings. These numbers indicate the maximum current you can expect when connecting a motor to a given voltage.
2. Are all NEMA17 stepper motors the same?
- No, not all NEMA 17 stepper motors are the same. Two different NEMA 17 motors can have significantly different electrical or mechanical specifications and are not necessarily compatible.
3. How strong is a NEMA 17 stepper motor?
- 1.8 degree bipolar Nema 17 stepper motor. Step angle (200 steps/revolution). Each phase he consumes 2.1 A and allows a maximum holding torque of 65 Ncm (92 oz.in). This is he one of the most powerful stepper motors. NEMA 17 stepper motors are commonly used in printers, CNC machines and laser cutters.
