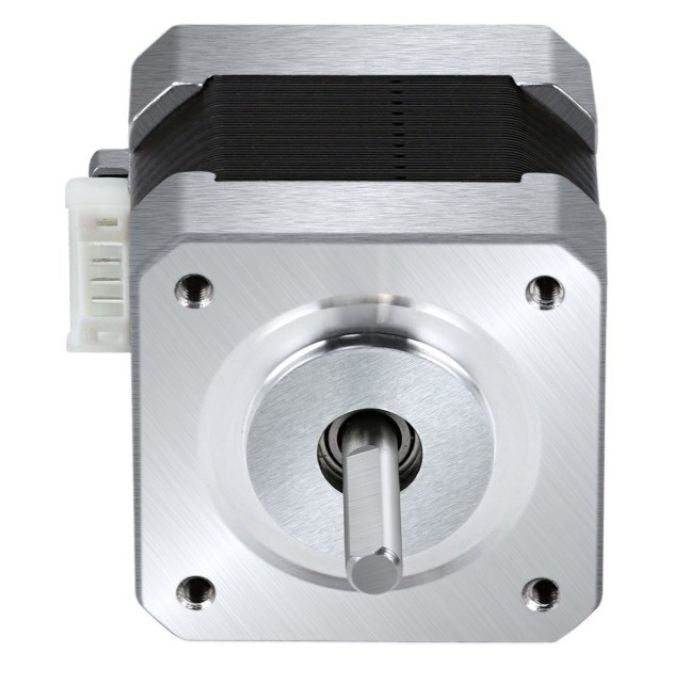

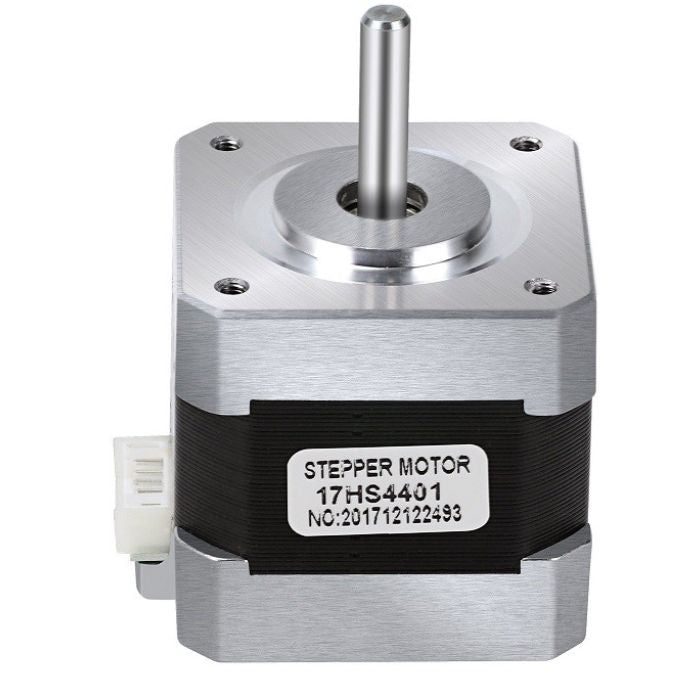

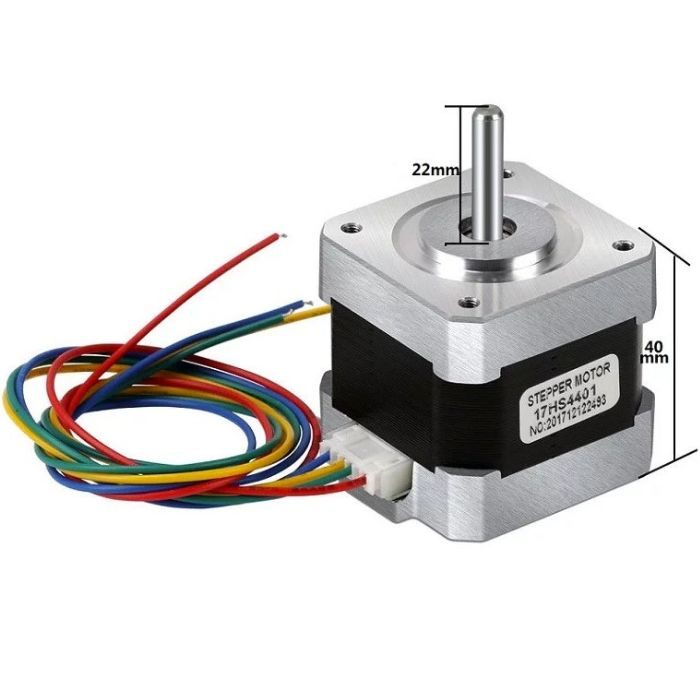

17HS4401 NEMA17 Stepper Motor - 40mm - Buy Online in India

Package Includes:

1 x 17HS4401 NEMA17 Stepper Motor - 40mm

Specifications:

1. How to check a 17HS4401 NEMA17 stepper motor with a multimeter?

To check your 17HS4401 stepper motor, set your multimeter to resistance mode and measure between the wires to find the two independent coil pairs. A consistent, low resistance reading across each pair confirms the internal windings are intact. This is a quick and effective diagnostic test for any NEMA 17 stepper motor.

2. How to test a 17HS4401 NEMA17 stepper motor?

A simple mechanical test for the 17HS4401 is to turn the shaft by hand; you should feel distinct, evenly spaced magnetic detents. For an electrical test, connect it to a powered driver and send step pulses to ensure it rotates smoothly. This confirms it is ready for your 3D printer or CNC application.

3. How to test a stepper motor 17HS4401 with Arduino?

Connect your 17HS4401 to a motor driver like an A4988, and wire the driver's STEP and DIR pins to your Arduino. Upload a simple sketch using the Stepper or AccelStepper library to command rotation. This test verifies that the 3D printer stepper motor is responding correctly to your controller's signals.

4. How to calculate the holding torque of a 17HS4401 stepper motor?

The holding torque for the 17HS4401 is a fixed value specified in its datasheet, typically around 4.4 kg-cm (43 N-cm). This value represents the maximum static torque the motor can hold when energized at its rated current. Knowing this is essential when selecting a NEMA 17 stepper motor for a load-bearing application.

5. How to calculate the RPM of a 17HS4401 stepper motor?

To find the RPM, use the formula: RPM = (Steps per Second / Steps per Revolution) × 60. Since this motor has 200 steps per revolution, you can calculate its rotational speed based on the pulse frequency from your controller. This is crucial for controlling speeds in a 3D printer or CNC machine.

6. How to change the direction of a 17HS4401 stepper motor?

To reverse your stepper motor, you can either swap the two wires of one coil (e.g., reverse the A+ and A- wires). Alternatively, if using an Arduino with a driver, simply toggle the logic level of the direction (DIR) pin before sending step pulses. This method works reliably for most bipolar small stepper motors.

7. How to choose a stepper motor like the 17HS4401?

When choosing a stepper motor, consider key specifications like holding torque, frame size, step angle, and current rating. The 17HS4401 is a popular choice for its balance of power and compact size. As a standard NEMA 17 stepper motor, it is ideal for applications like 3D printers and laser engravers.

8. How to connect a 6-wire 17HS4401 stepper motor to an A4988 driver?

While the 17HS4401 is typically a 4-wire motor, a generic 6-wire stepper motor can be used with a bipolar driver. To do this with an A4988 driver, identify and isolate the two center-tap wires for each coil. Then, connect the remaining four wires to the driver's motor outputs (A+, A-, B+, B-).

9. How to connect a 17HS4401 stepper motor to Arduino Uno?

You must connect the 17HS4401 to a stepper motor driver module, such as an A4988, not directly to the Arduino. Wire the driver's logic pins (STEP, DIR) to your Arduino Uno and provide a separate, appropriate power source to the driver's motor supply input. This configuration is standard for any 3D printer or CNC motion system.

Datasheet

1. Do NEMA 17 stepper motors need cooling?

For light and intermittent use, a NEMA 17 stepper motor typically does not require extra cooling. However, when used in demanding applications like a 3D printer stepper motor that runs for hours, adding a small heatsink is a good practice. This helps keep the motor running efficiently and extends its life.

2. What is the lifespan of a stepper motor?

A stepper motor like the 17HS4401 is a brushless motor, so it can have a very long lifespan, often lasting for thousands of hours of operation. To ensure this longevity, especially in demanding CNC stepper motor applications, it's important to operate it within its specified current and temperature limits.

3. What is the current limit for a NEMA 17 stepper motor?

The 17HS4401 is rated for a current of 1.5A per phase. This is the most important setting on your NEMA 17 stepper motor driver. Setting this limit correctly ensures you get the motor's full torque without causing it to overheat.

4. How fast can a NEMA 17 motor spin?

The maximum speed of the 17HS4401 can exceed 1000 RPM, but this depends on your power supply voltage and the load on the motor. For applications requiring high precision and torque, like a 3D printer stepper motor, you will typically run it at slower speeds to ensure no steps are missed.

5. How much voltage is required for a stepper motor?

While the 17HS4401 has a low rated voltage, you will power it through a modern NEMA 17 stepper motor driver using a much higher voltage, typically 12V or 24V. The driver intelligently limits the current to the motor, using the higher voltage to achieve better high-speed performance.

6. What power supply do I need for a stepper motor?

For best performance, you should use a stable 12V or 24V DC power supply. Make sure it can provide enough amperage to run all of your motors simultaneously. This is especially important for projects like 3D printers that use multiple stepper motors.

7. What is the principle of a stepper motor?

Stepper motors work by converting digital electrical pulses into precise, mechanical steps of rotation, which gives them excellent positioning accuracy. This principle allows high torque stepper motors to hold their position firmly. It is why they are the preferred choice for machines like CNC stepper motors and 3D printer stepper motors.
