12V 2-Channel Relay Module with Optocoupler Isolation - Buy Online in India

12V 2-Channel Relay Module with Optocoupler Isolation

Rs 86/-
- 33%
Rs 86/-
Rs 129/-
Save Rs 43/-
Incl. GST (No Hidden Charges)
Please hurry! Only 0 left in stock

We’ll notify you once the product is back in stock.

Free Delivery Above ₹999

Technical Support & Easy Returns

Same-Day Shipping (Order by 3 PM on Business Days)

Earn RC Coins on Every Prepaid Order

COD Available on Order Value Between ₹500 to ₹3,000
SKU: TIFRL0086
  • 12V DC Operating Voltage for reliable switching in automation and control projects.
  • 2-Channel Relay Module allows independent control of two AC/DC loads.
  • Optocoupler Isolation protects microcontrollers from electrical interference and voltage spikes.
  • High-Quality Electromechanical Relays provide stable and dependable switching performance.
  • LED Status Indicators display power and relay operation in real time.
  • Screw Terminal Connections ensure secure and hassle-free wiring.

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here
+91

File(s) size limit is 20MB. Max 3 files.

Select Categories
CAPTCHA
Reload Captcha
Robocraze Academy Limited Time Offer
12V 2-Channel Relay Module with Optocoupler Isolation -Electronic Modules -Relays- 12V Relay -Robocraze
12V 2-Channel Relay Module with Optocoupler Isolation
Rs 129/- Rs 86/-
12V 2-Channel Relay Module with Optocoupler Isolation -Electronic Modules -Relays- 12V Relay -Robocraze
12V 2-Channel Relay Module with Optocoupler Isolation -Electronic Modules -Relays- 12V Relay -Robocraze
12V 2-Channel Relay Module with Optocoupler Isolation -Electronic Modules -Relays- 12V Relay -Robocraze
12V 2-Channel Relay Module with Optocoupler Isolation -Electronic Modules -Relays- 12V Relay -Robocraze
12V 2-Channel Relay Module with Optocoupler Isolation -Electronic Modules -Relays- 12V Relay -Robocraze

12V 2-Channel Relay Module with Optocoupler Isolation

Rs 129/- Rs 86/-
Description

12V 2-Channel Relay Module with Optocoupler Isolation

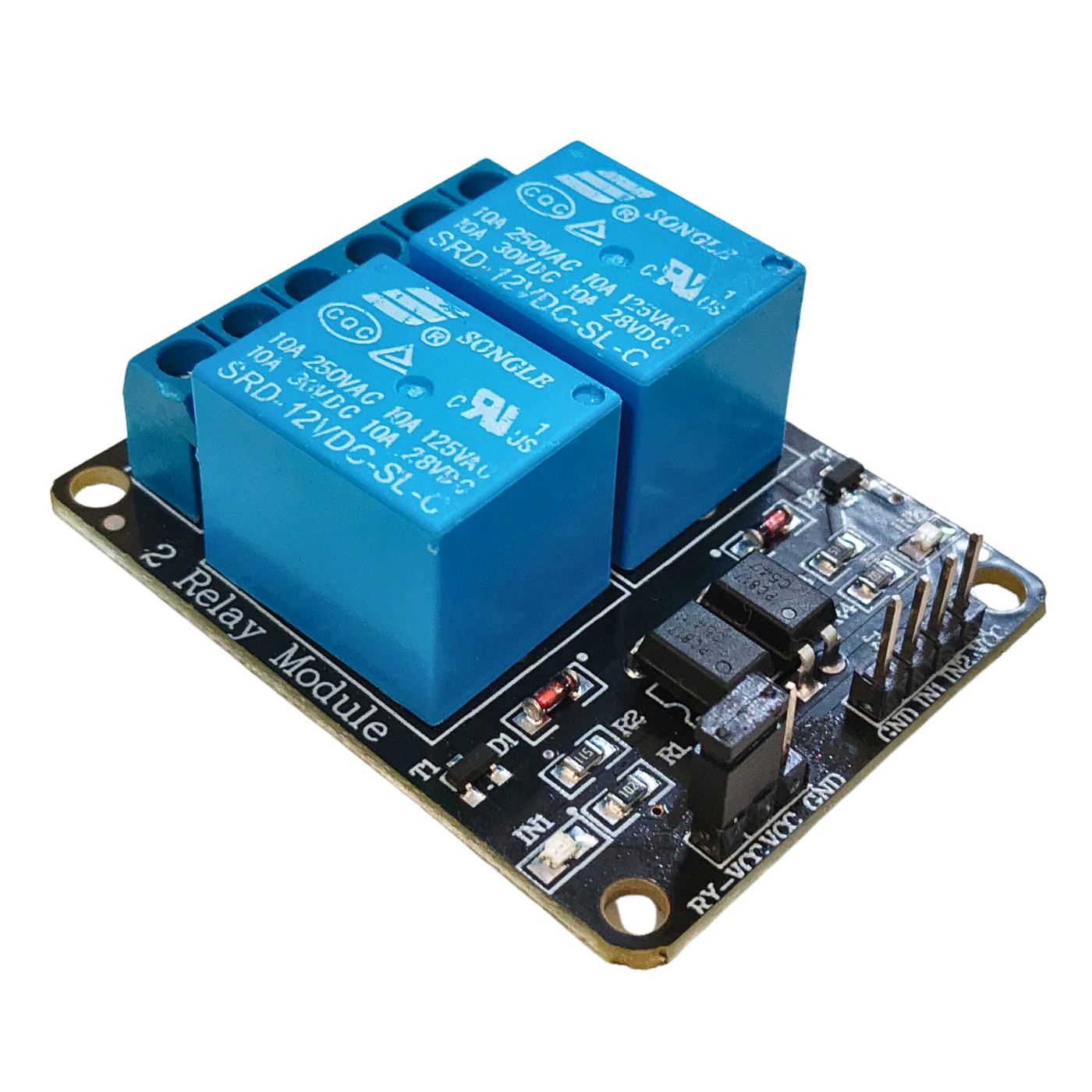

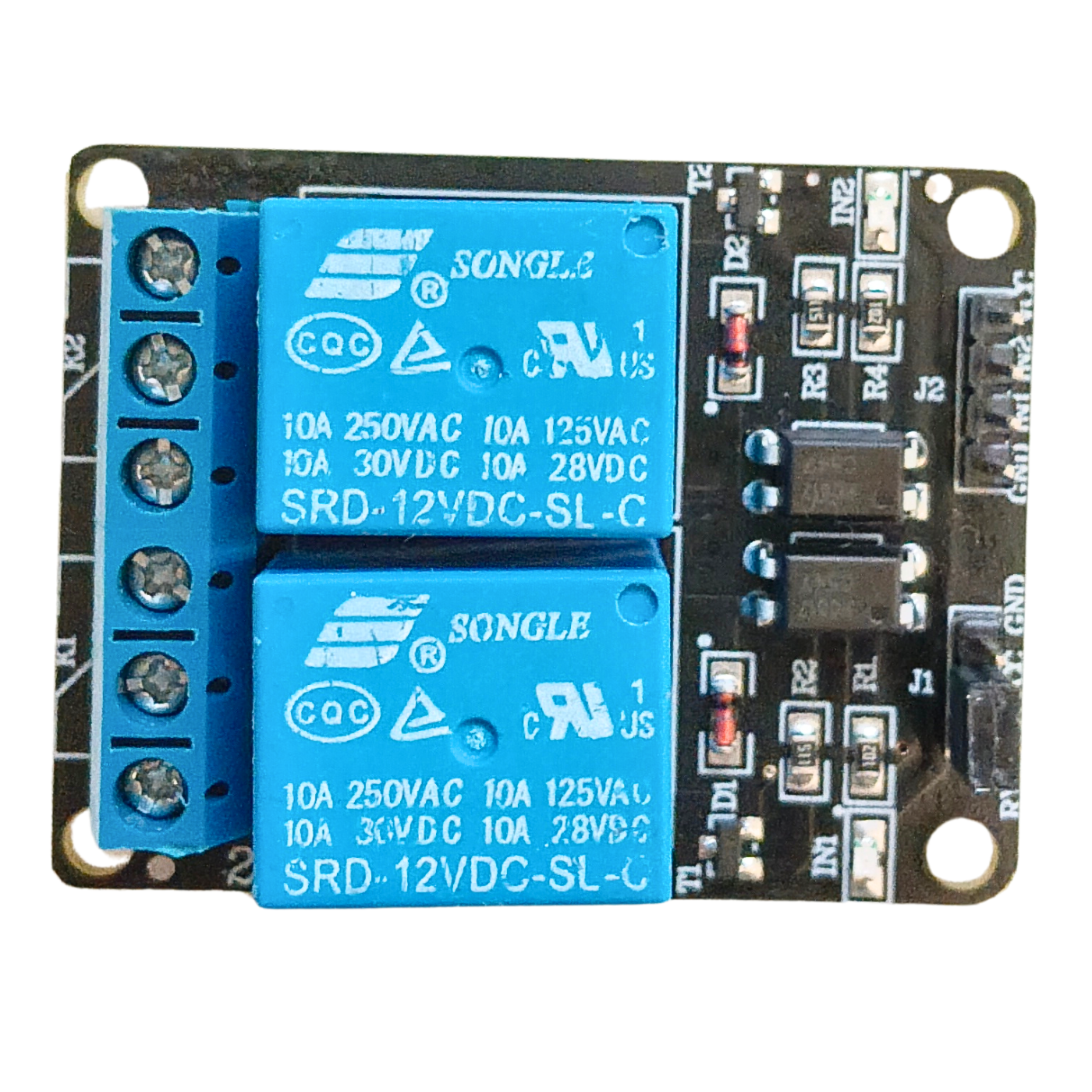

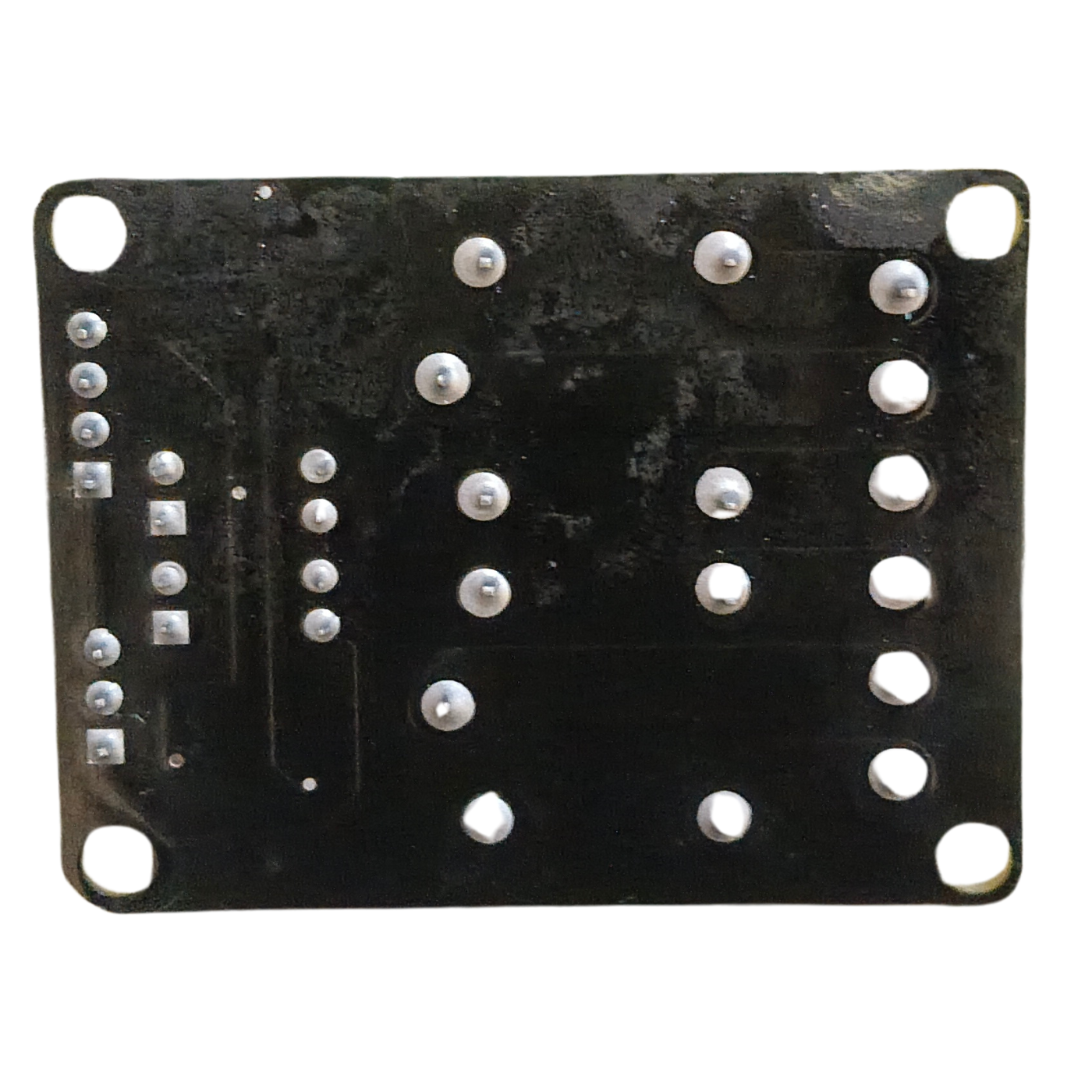

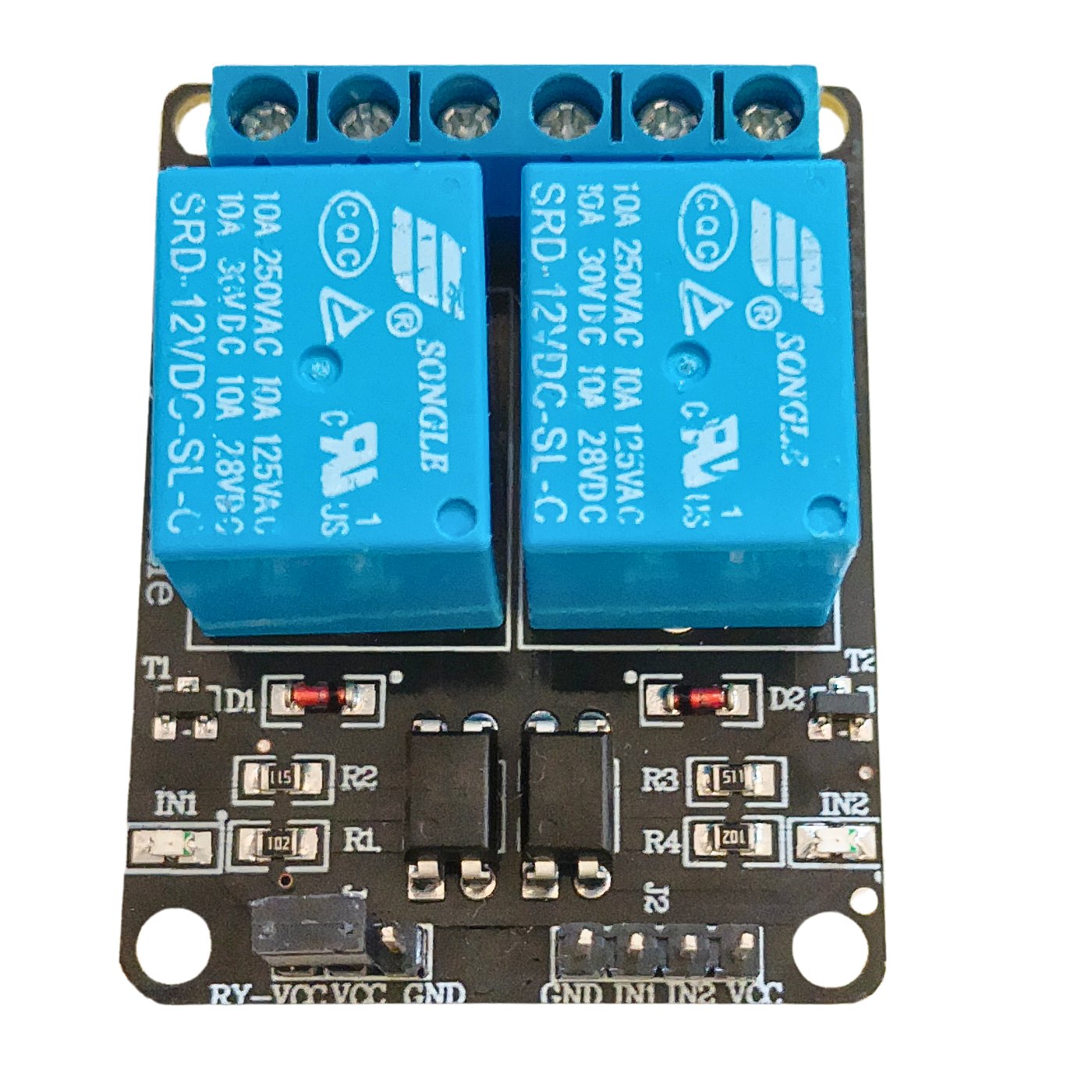

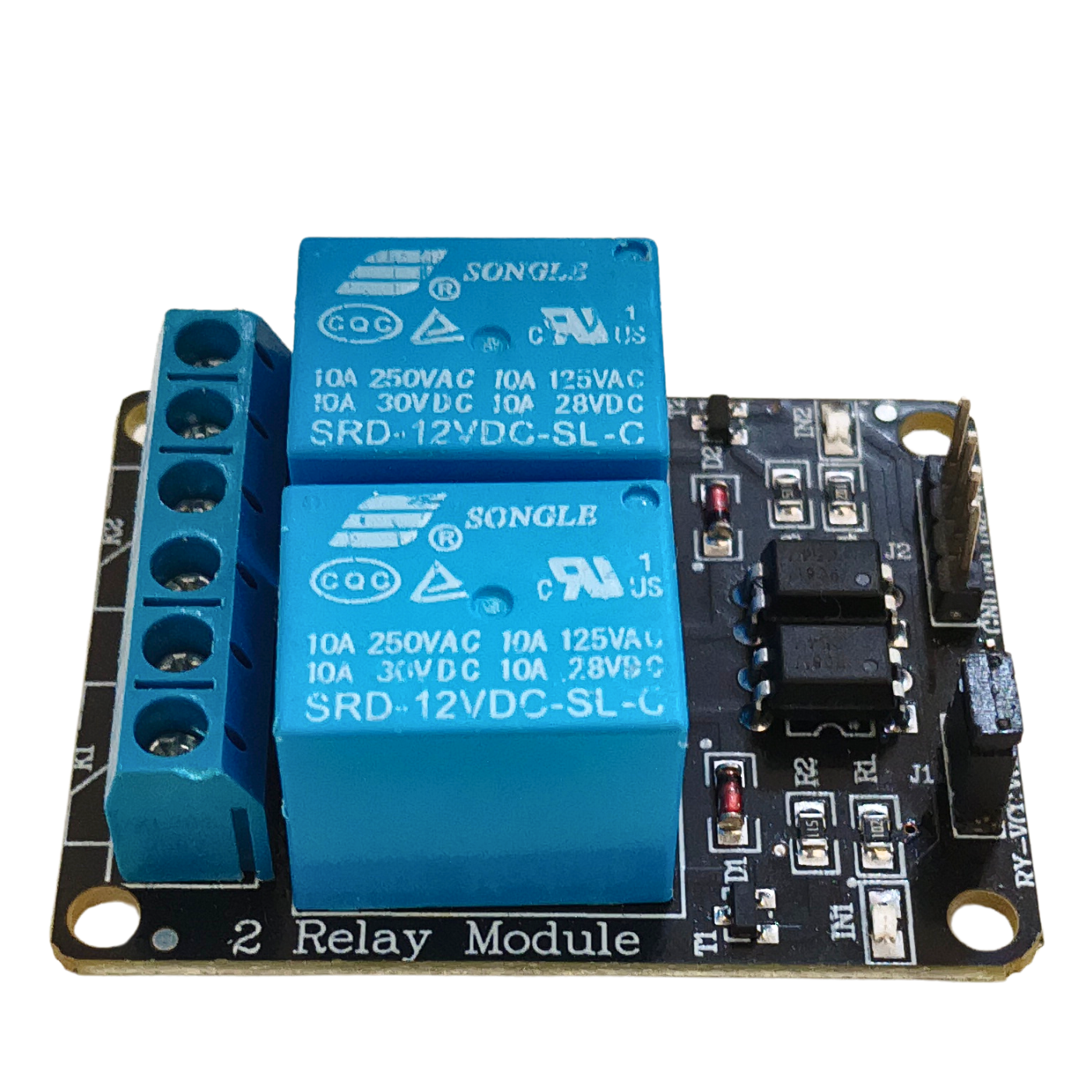

The 12V 2-Channel Relay Module with Optocoupler Isolation is a reliable switching solution designed for safely controlling high-voltage AC or DC loads using low-voltage microcontrollers. Operating on a 12V DC supply, this dual-channel relay module features optocoupler isolation to electrically separate the control circuit from the load circuit, protecting sensitive electronics from voltage spikes and electrical noise.

Built on a high-quality FR-4 PCB using an advanced SMT manufacturing process, the module delivers stable and long-lasting performance. It includes power and relay status LEDs for easy monitoring, while COM (Common), NO (Normally Open), and NC (Normally Closed) screw terminals simplify wiring and installation.

Compatible with Arduino, ESP32, Raspberry Pi, AVR, PIC, ARM, and other development boards, this 12V relay module is an excellent choice for home automation, robotics, industrial automation, IoT applications, and remote switching projects.

Features:

  • High-current relay: 10A at 250VAC and 10A @ 30VDC.
  • Controls both AC and DC equipment (such as motors and lights).
  • Screw terminals of high quality (C, NC, NO) allow for easy connection.
  • A freewheeling diode for microcontroller protection.
  • Input pin is available via Burg stick.
  • LED indications show whether the relay is turned on or off.
  • Mounting holes are included.
  • A relay regulates a variety of loads and equipment.
  • For convenience, use the blue KF301 terminal.
Specifications

Package Includes:

  • 1 x 12V 2-Channel Relay Module with Optocoupler Isolation

Specifications:

Specification Value
Model Type Relay Module
Operating Voltage 12 VDC
Trigger Current 20 mA
Switching Voltage 250 VAC @ 10A / 30 VDC @ 10A
Dimensions 50 × 40 × 20 mm
Weight 30 g
