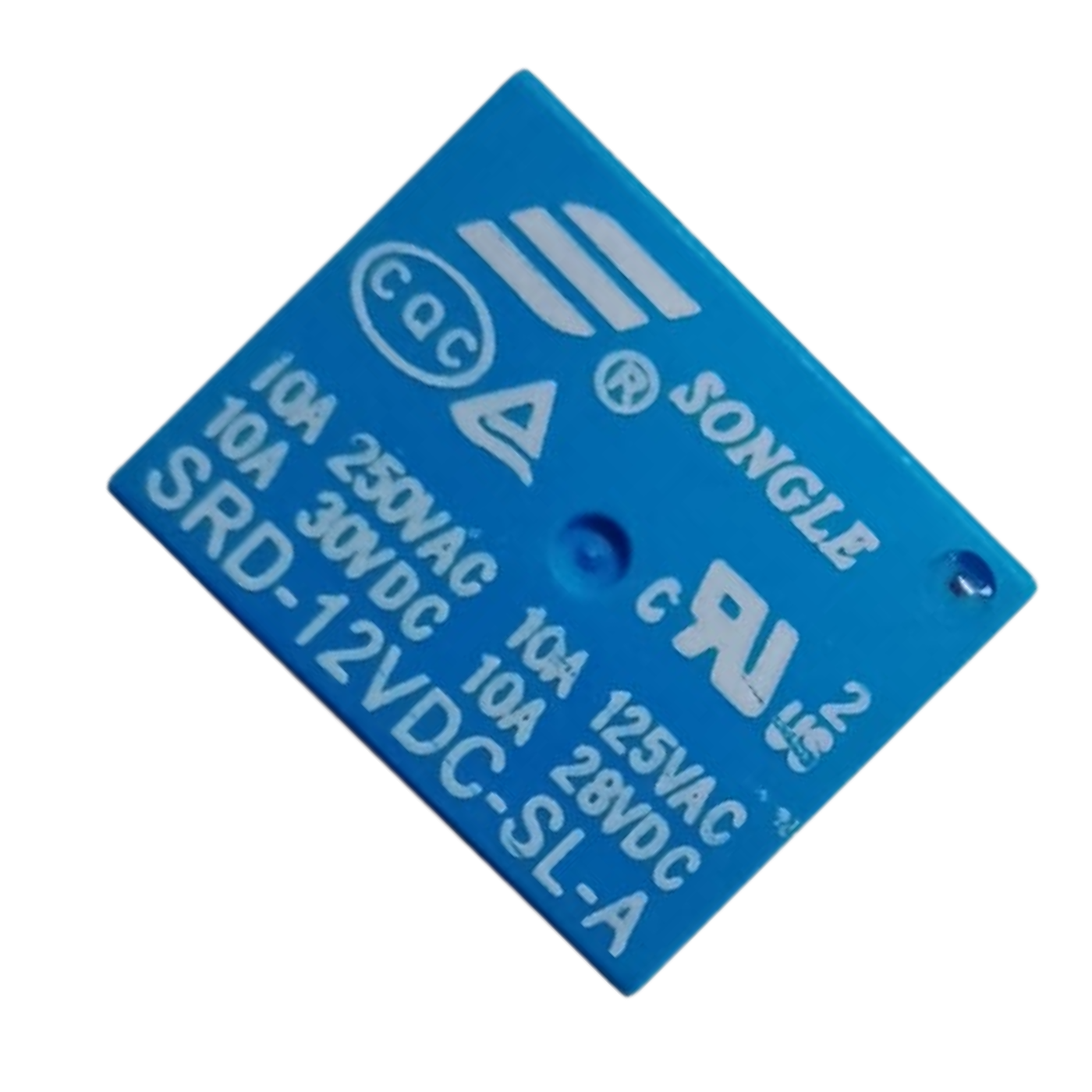

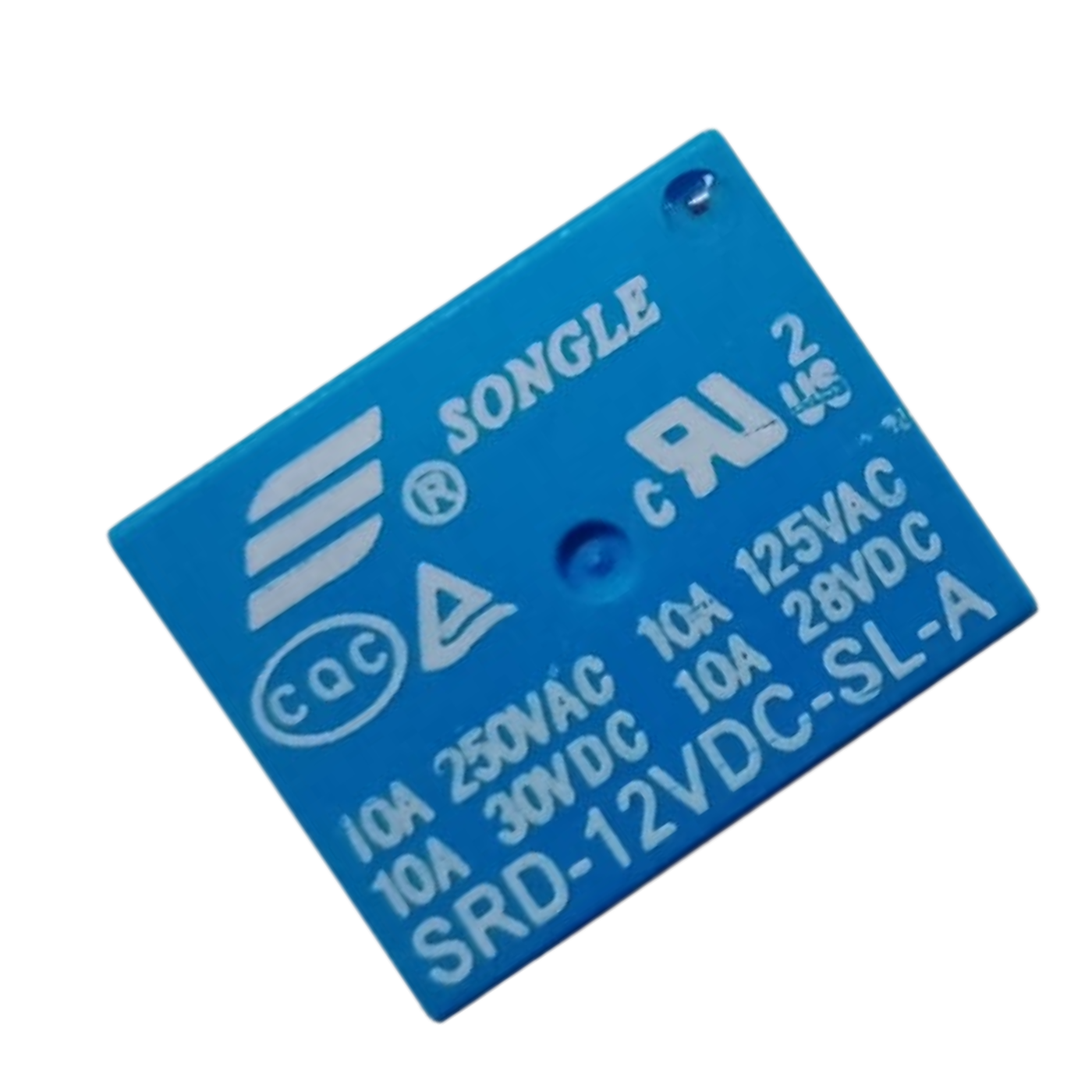

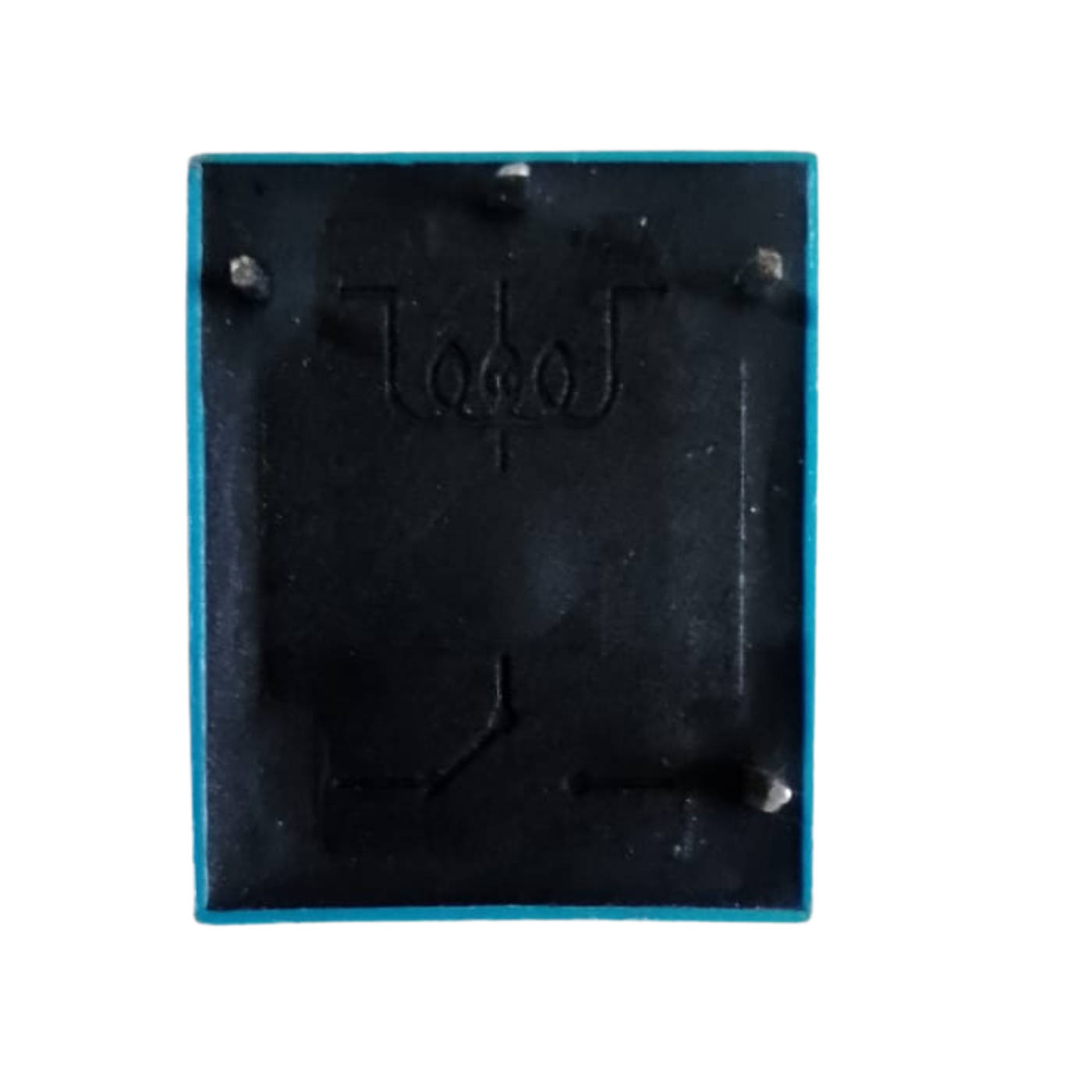

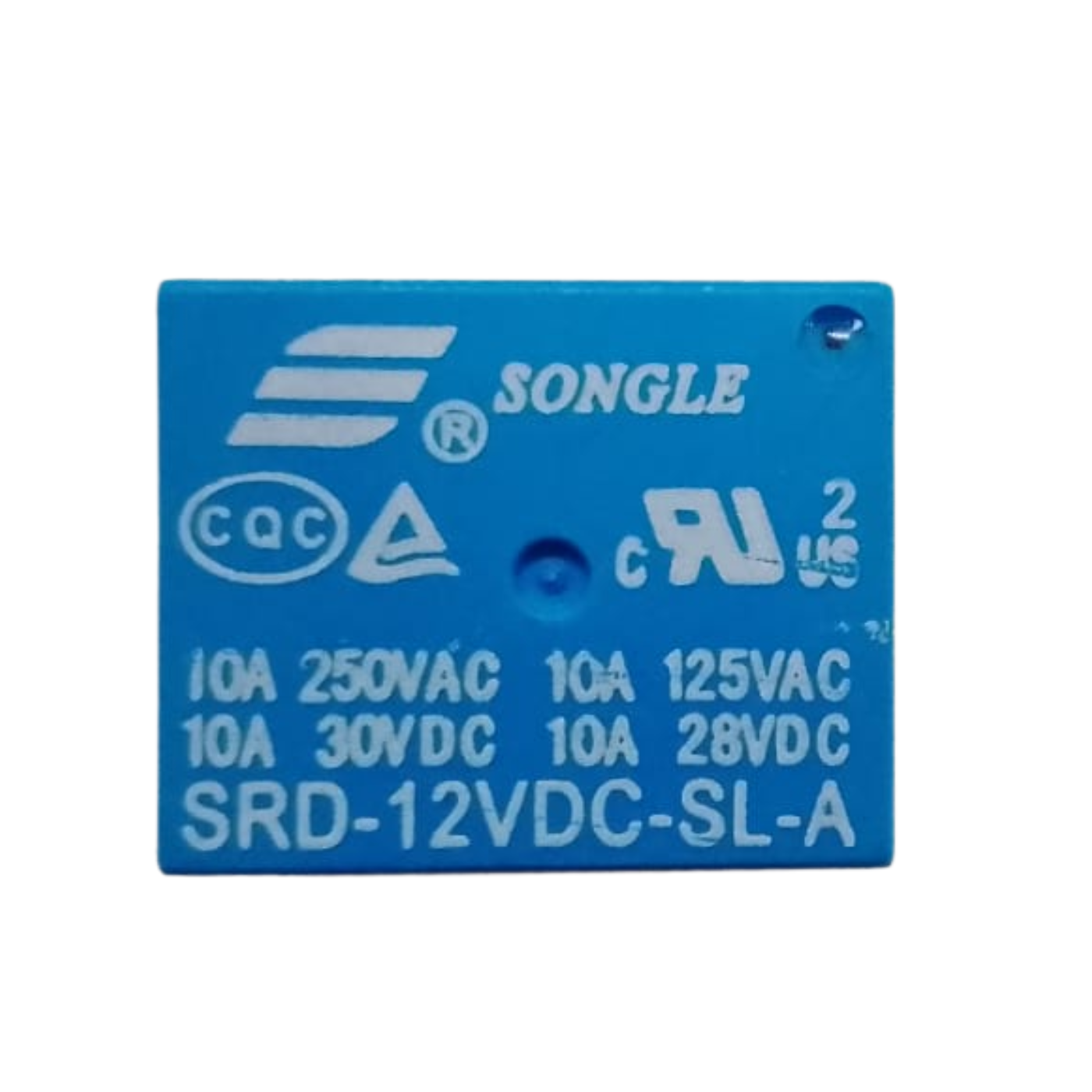

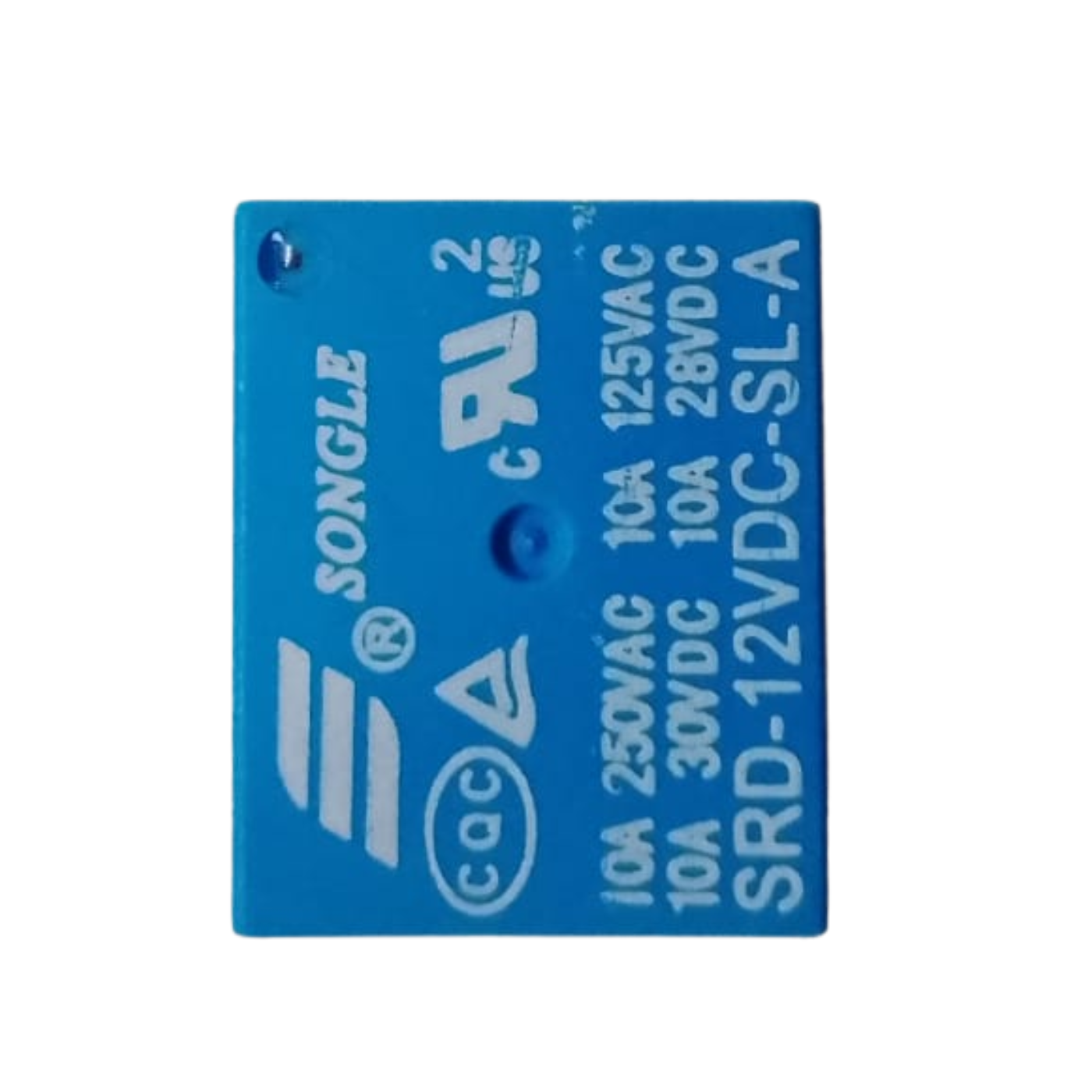

12V 10A PCB Mount Sugar Cube Relay Compact Switching Relay
Let us know!
We'll try to match the price for you
We’ll notify you once the product is back in stock.
Couldn't load pickup availability
The 12V 10A PCB Mount Sugar Cube Relay is a compact electromechanical switching device designed for PCB-based electronic control applications. It operates with a 12V DC coil and is commonly used in low to medium power switching circuits where reliable isolation between control and load is required.
This relay is widely used in embedded systems, automation circuits, home appliances, and DIY electronics projects. Its compact “sugar cube” form factor allows it to be mounted directly on PCBs, making it suitable for space-constrained designs where standard large relays are not practical.
The relay supports switching of electrical loads up to 10A (depending on load type and conditions), making it suitable for controlling devices such as small motors, lamps, solenoids, and other DC or AC loads within rated limits. Its electromechanical design ensures galvanic isolation between the coil circuit and the switching contacts, improving safety and reducing interference in sensitive circuits.
| Specification | Details |
|---|---|
| Product Name | 12V 10A Sugar Cube Relay |
| Relay Type | Electromechanical PCB Mount Relay |
| Coil Voltage | 12V DC |
| Contact Current Rating | 10A |
| Mounting Type | PCB Mount |
| Form Factor | Compact "Sugar Cube" Type |
