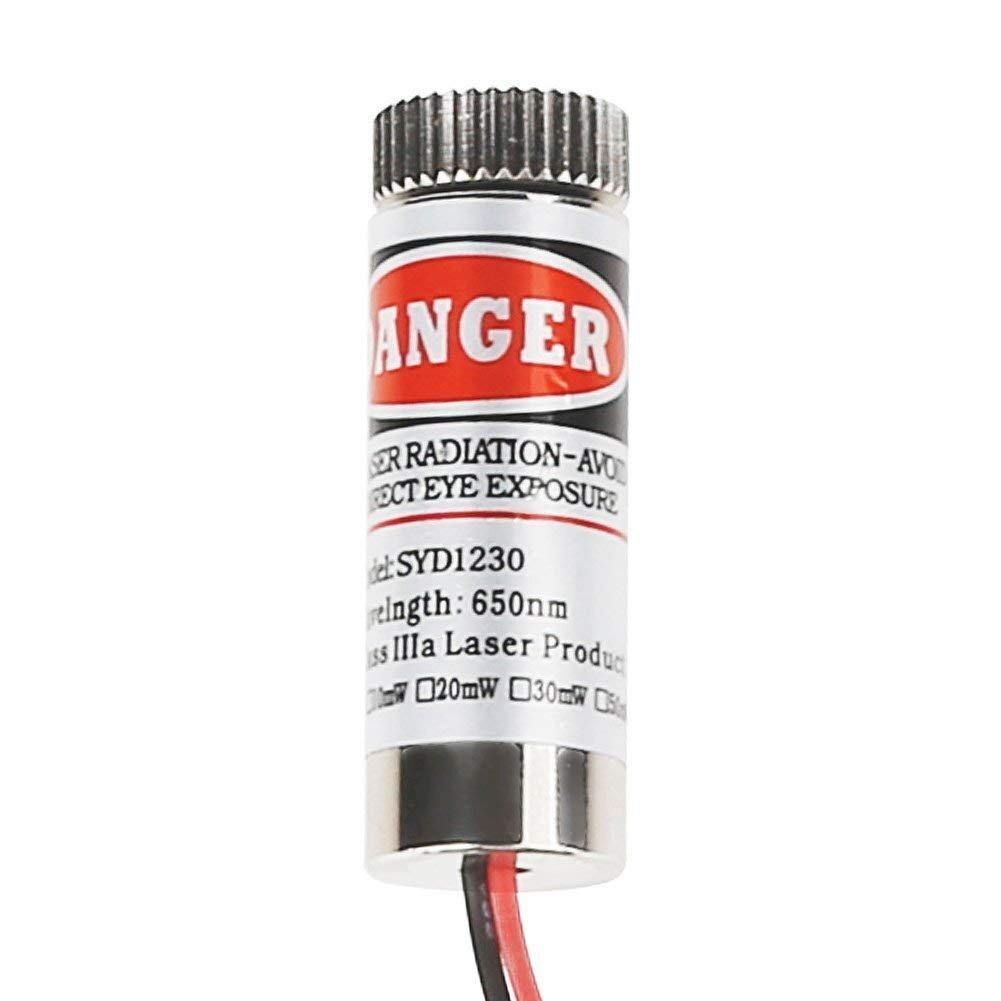

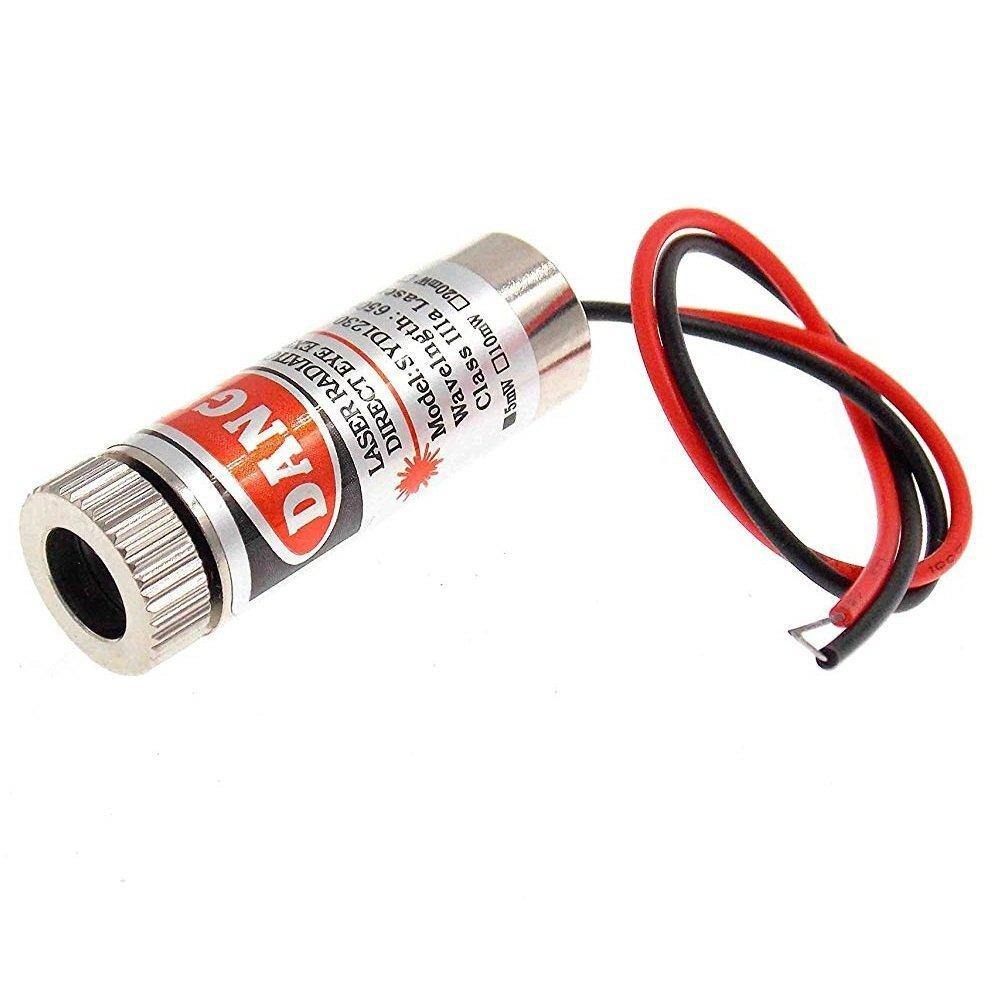

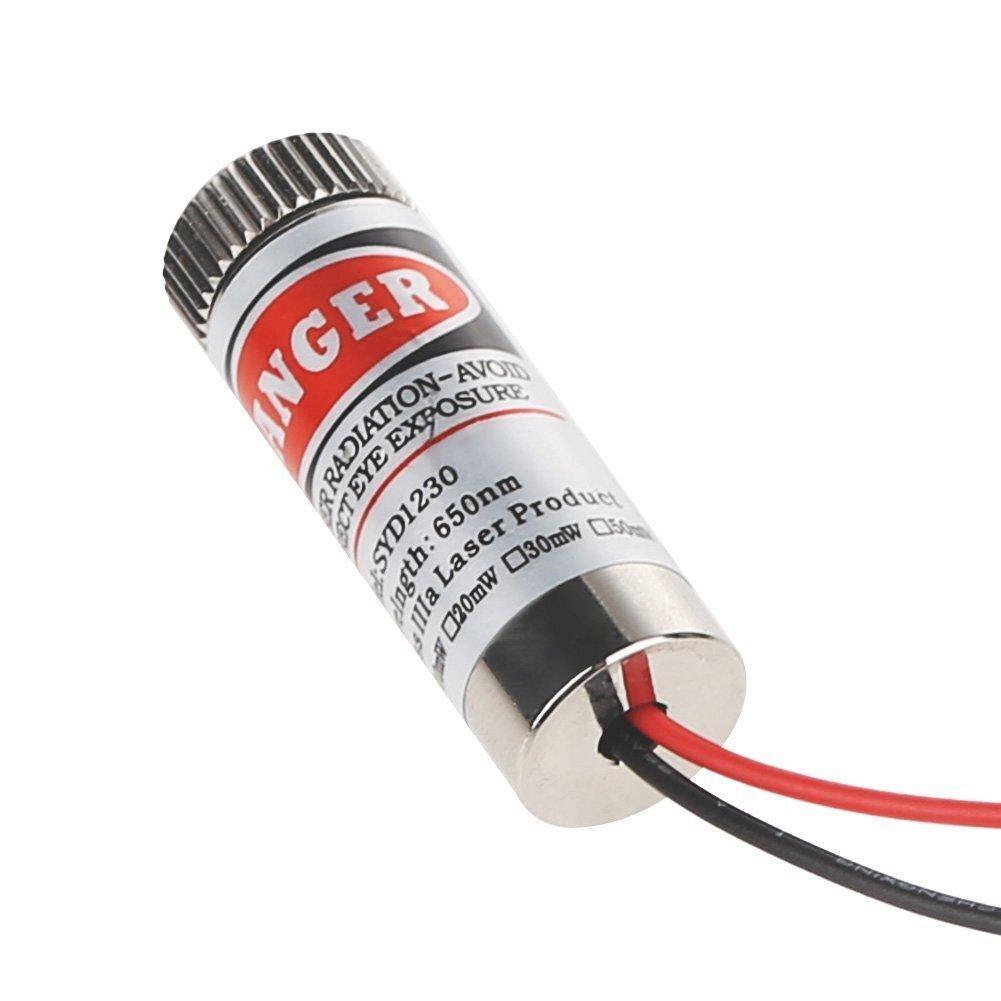

SYD1230 12mm 650nm 5mW Red Point Laser Module

SYD1230 12mm 650nm 5mW Red Point Laser Module

1

Regular price Rs. 130
Regular price Rs. 206 Sale price Rs. 130
Sale Sold out 37% off
Incl. GST (No Hidden Charges)
Submit your Bulk Enquiry Here
Currently, 15 people are actively viewing.
Trust Badge 1

Free shipping on Orders Above Rs 499/-

Fast Delivery

Trust Badge 2

Technical Support & Easy Returns

Trust Badge 3

Earn RC Coins on Every Purchase

Rewards

Trust Badge 4

Cash on Delivery Available

Cash Delivery

COUPON

RC100 FLAT ₹ 100/- OFF

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

  • The red laser diode module is perfect for an electronics project, robot or other application.
  • It can be used to connect diode tubes for multiple uses.
  • The focus point’s Intensity can be adjusted with the help of a lens ring head.
  • Output Power: Min 2.5mW, Typical 3.0mW, Max 5.0mW.
  • Working current: Min 10mA, Typical 20mA, Max 25mA.

SYD1230 12mm 650nm 5mW Red Point Laser Module

This Laser diode module is very efficient and useful for your electronic project. It is suitable for 3V-5V 5mW standard, with 6mm outside diameter. It can be used to connect diode tubes for multiple uses. The SYD1230 12mm 650nm 5mW Red Point Laser Sensor Module is a laser module that produces a 650nm red laser beam. It is a small, compact module that may be readily integrated into a range of applications. The laser module has a diameter of 12mm and a maximum power output of 5mW.

The module typically includes a laser diode, a collimating lens, and a driver circuit that controls the power and modulation of the laser. The collimating lens is used to focus the laser beam into a small, intense point.

Package Includes:

  • 1 x SYD1230 12mm 650nm 5mW Red Point Laser Module

Precautions while using the Red Laser Module

  • Please use the DC power supply 3~6V.
  • Careful! This laser module has high output power, please wear goggles when testing or using as it can be hazardous to your vision.
  • The laser beam must not be directed towards the eyes of a person or an animal in any way.
  • The red cord is an anode, the black cord is a cathode.

Specifications:

Input Voltage (V) 2.8 – 5.2
Input Current (A) 25m
Wavelength (nm) 650
Cable Length (cm) 13
Dimensions  3.6 x 1.5cms
Weight  5 grams
