10K Thermistor Temperature Sensor Module(4 Pin)

10K Thermistor Temperature Sensor Module(4 Pin)

Regular price Rs. 37
Regular price Rs. 59 Sale price Rs. 37
Sale Sold out 37% off Best Price Guaranteed
You save Rs. 22 | Free Shipping on Orders Above ₹ 499/-
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 3 hours and 16 minutes.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here
  • Adopt the NTC thermistor sensor, sensitivity is good
  • The comparator output, signal clean, good waveform, driving ability is strong, for more than 15 ma.
  • With potentiometer to adjust the temperature detection threshold
  • This module has a working voltage is 3.3 to 5 VDC
  • The module's output form is digital switch output (0 and 1)
  • It has a fixed bolt hole, convenient installation
Trust Badge 1 Trust Badge 2 Trust Badge 3

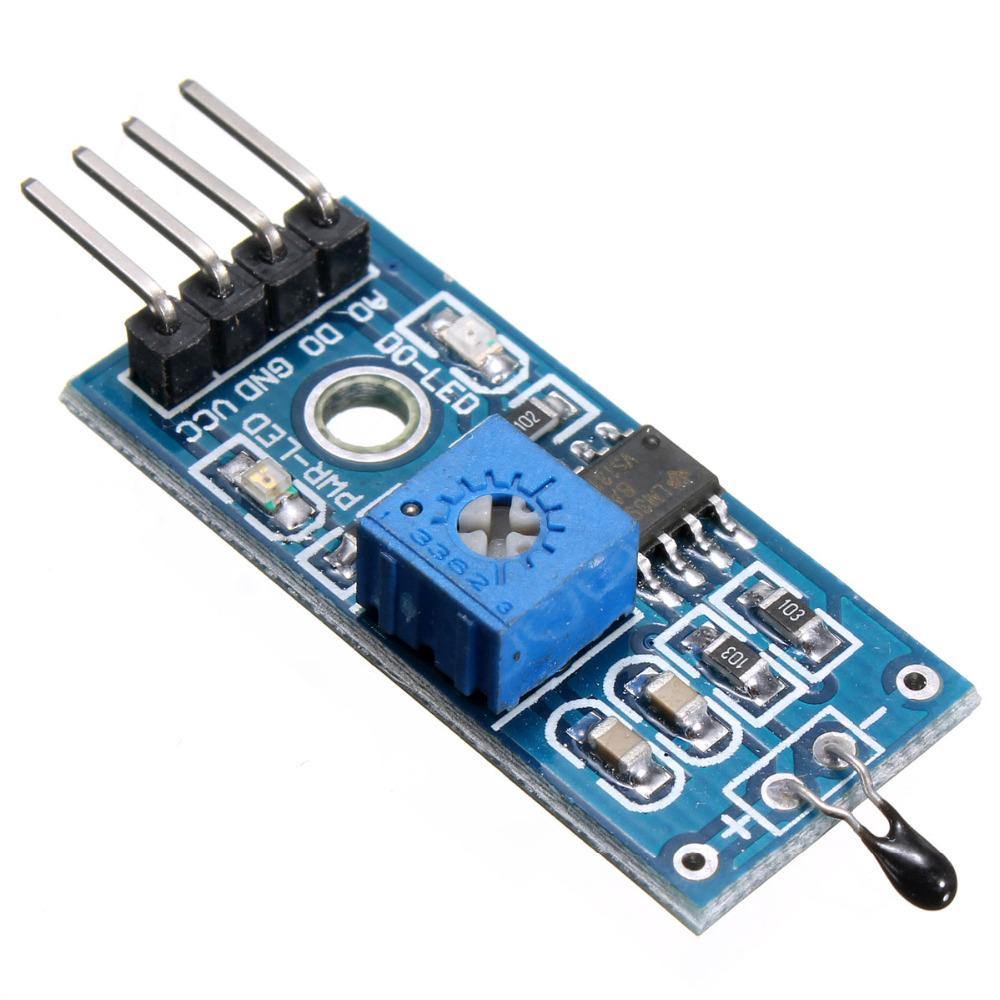

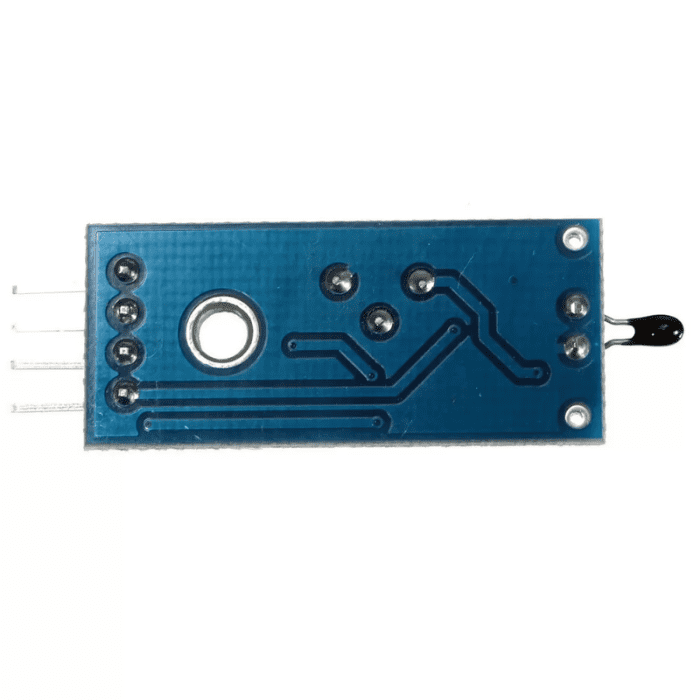

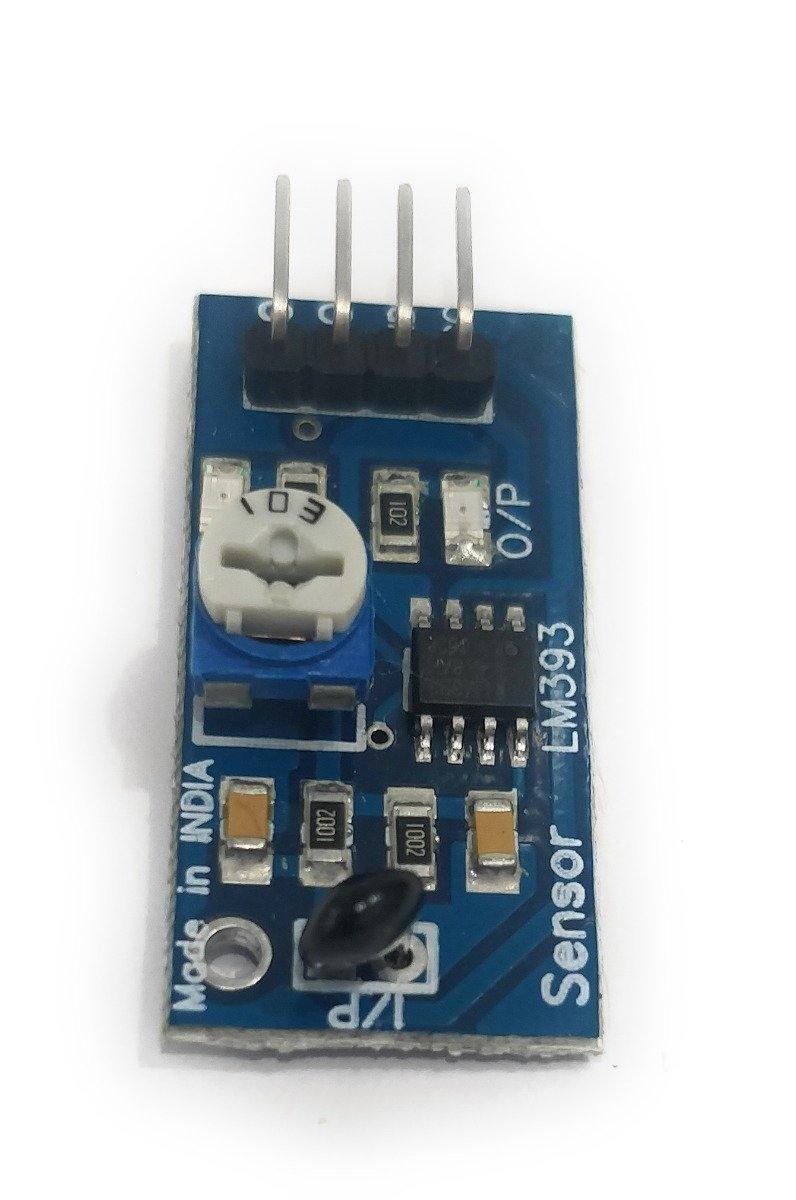

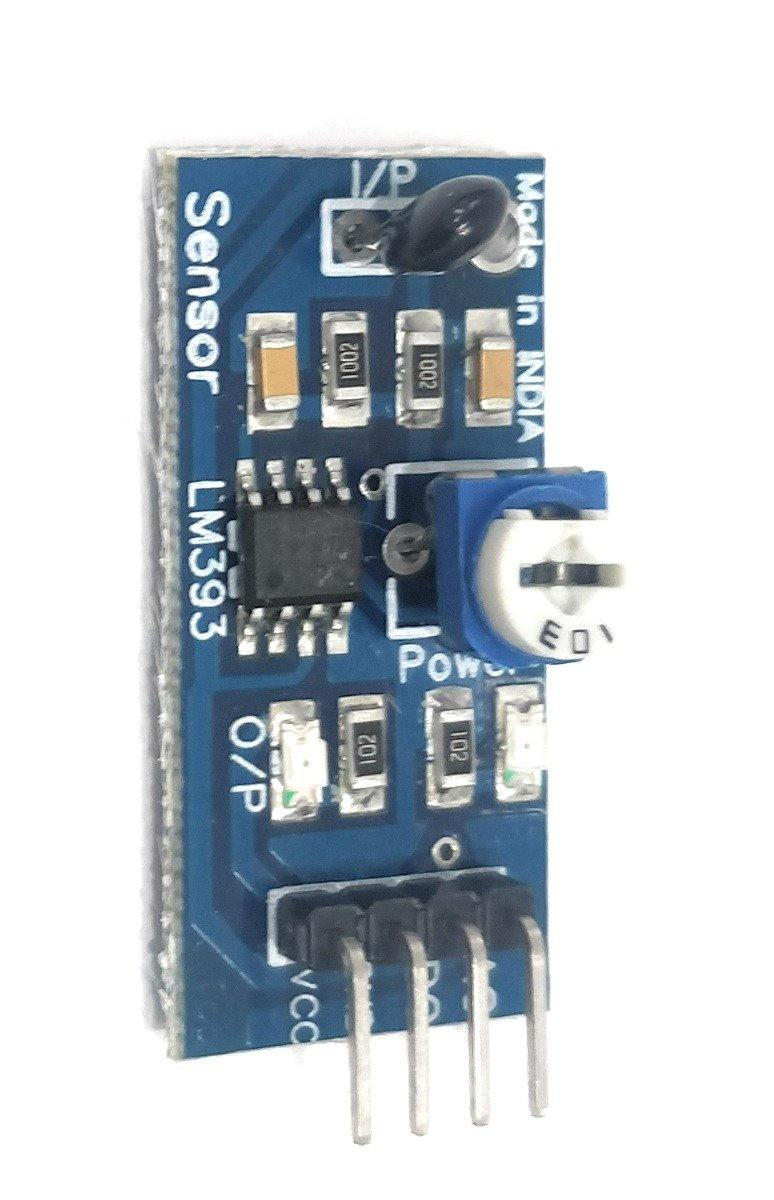

10K Thermistor Temperature Sensor Module(4 Pin)

The 10K NTC Thermistor temperature sensor module is a low-cost, small-size module. It is very sensitive to ambient temperature. It is generally used to detect the temperature of the surrounding environment. Through potentiometer adjustment, it is possible to change the temperature detection threshold.

DO output can be directly connected to the microcontroller to detect high and low, by detecting temperature changes in the environment. The temperature detection range of the module is between 20 and 80 degrees Celsius. This sensor module can be replaced with a line temperature sensor for controlling the water temperature, water tank, etc.

Generally, the 4-wire method of thermistor measurement is the most accurate because there is effectively no current flowing in either of the measurement cable wires and therefore no added resistance due to the cable wires.

Module instructions:

  • A thermistor module is sensitive to the environment temperature and is commonly used to detect the temperature of the surrounding environment.
  • The potentiometer adjustment can change the temperature detection threshold (i.e., temperature control), such as the need to control the environment temperature is 50 degrees, while the module corresponding environmental temperature to the green light, the DO output high level, below the set temperature, the output high level, green light don’t.
  • The DO output can be attached directly to the single-chip microcomputer, through single-chip microcomputer to detect the high and low levels, thus detecting the temperature of the environment change.
  • The DO output can be directly driven by our relay module, which can form a temperature control switch and control related equipment operating temperature, also can connect the fan used for cooling, etc.
  • The module of the temperature detection range of 20-80 degrees Celsius.
  • This module can also be replaced with a line of a temperature sensor, used for water temperature, control of the water tank, etc.

Package Includes:

  • 1 x 10K Thermistor Temperature Sensor Module(4 Pin)

Specifications:

Operating Voltage

3.3 ~ 5 VDC

Temperature sense range

-25 ~ +80 °C

Voltage Comparator

LM393

Length

3.7 cm

Height

0.7 cm

Width

1.4 cm

Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details
Trust Badge 1 Trust Badge 2 Trust Badge 3

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 of 4

1. Are all 10K thermistors the same?

  • There are no industry or government standards for thermistors. There are at least five 10K thermistor temperature versus resistance curves in the HVAC/R world. All thermistors have a resistance of 10,000 ohms at 77°F or 25°C but vary significantly away from 77°F. There are many different types of thermistors, but they work on the same principle of changing resistance with temperature. There are basically two categories of thermistors and all types are applicable. NTCs and PTCs. You can choose one thermistor over another depending on your specific application.

2. What does 10K mean in a thermistor?

  • There are at least five 10K thermistor temperature versus resistance curves in the HVAC/R world. All thermistors have a resistance of 10,000 ohms at 77°F or 25°C but vary significantly away from 77°F. A 10K resistor will always limit the current to 10,000 ohms. However, a 10K thermistor only limits current to 10,000 ohms at 25°C. At temperatures as high as 50°C, the thermistor limits only 3,900 ohms.

3. What is a 10K Thermistor?

  • A thermistor is a heat-sensitive resistor whose primary function is to exhibit large, predictable, and precise changes in electrical resistance when subjected to corresponding changes in body temperature. A 10K ohm NTC thermistor is a special type of resistor that changes value depending on the ambient temperature. It is made by combining multiple metal oxides.  NTC (negative temperature coefficient) type thermistor. A 10k NTC thermistor exhibits a resistance of 10k ohms at 25°C and has a negative relationship between temperature and resistance.
