1.54 inch E-ink Display Module, three colour 200X200
1.54 inch E-ink Display Module, three colour 200X200
  • Load image into Gallery viewer, 1.54 inch E-ink Display Module, three colour 200X200
  • Load image into Gallery viewer, 1.54 inch E-ink Display Module, three colour 200X200

1.54 inch E-ink Display Module, three colour 200X200

Regular price
Rs. 3,670
Sale price
Rs. 3,670
Regular price
Sold out
Unit price
per
Tax included. Shipping calculated at checkout.

  • No backlight keeps displaying last content for a long time even when the power down
  • Ultra low power consumption, basically, power is only required for refreshing
  • SPI interface, for connecting with controller boards like Raspberry Pi/Arduino/Nucleo, etc.
  • Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

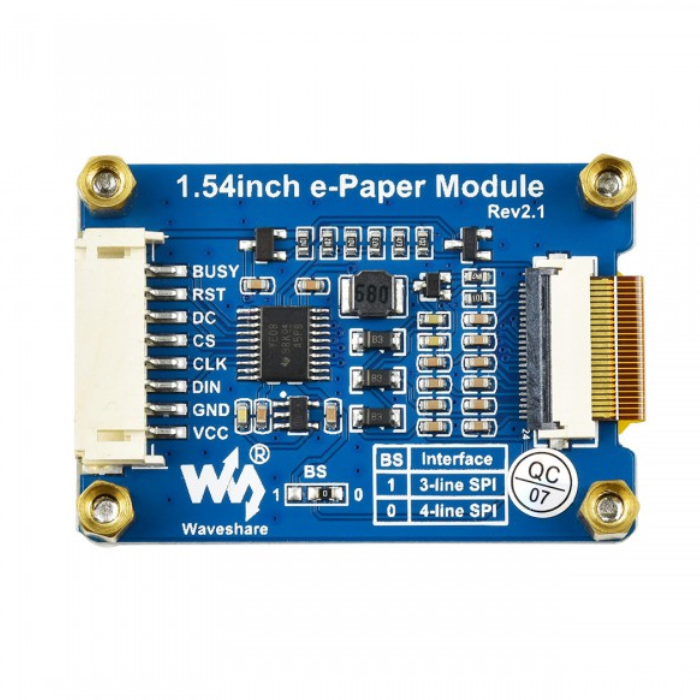

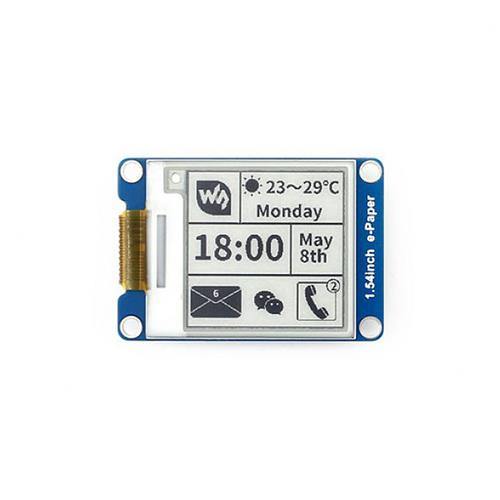

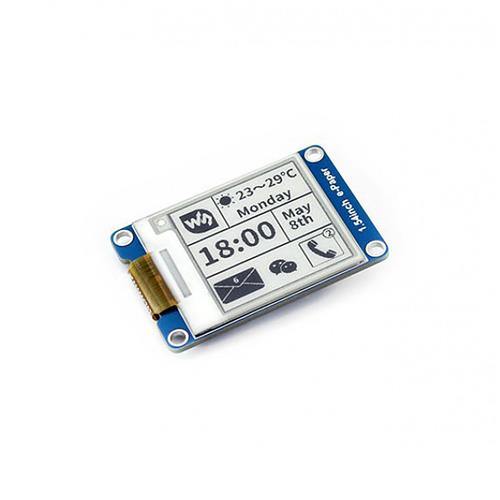

  • 1.54 inch E-ink Display Module

    This is an E-Ink display module, 1.54inch, 200x200 resolution, with an embedded controller, communicating via SPI interface, supports partial refresh. It is communicating via SPI interface and it supports partial refresh. As these displays have no backlight panels and it doesn’t need a continuous power supply to display the (static data with periodic intervals) data on the screen, it has a great advantage of ultra-low power consumption.

    Package Includes:

    • 1 x 1.54 inch E-ink Display Module

    E-Ink Display Specifications

    Operating Voltage (VDC) 3.3V/5V
    Interface 3-wire SPI, 4-wire SPI
    Display Resolution 200 x 200
    Display Size (inch) 1.54
    Dimensions 48 x 34 x 10(mm)
    Weight  20 grams
