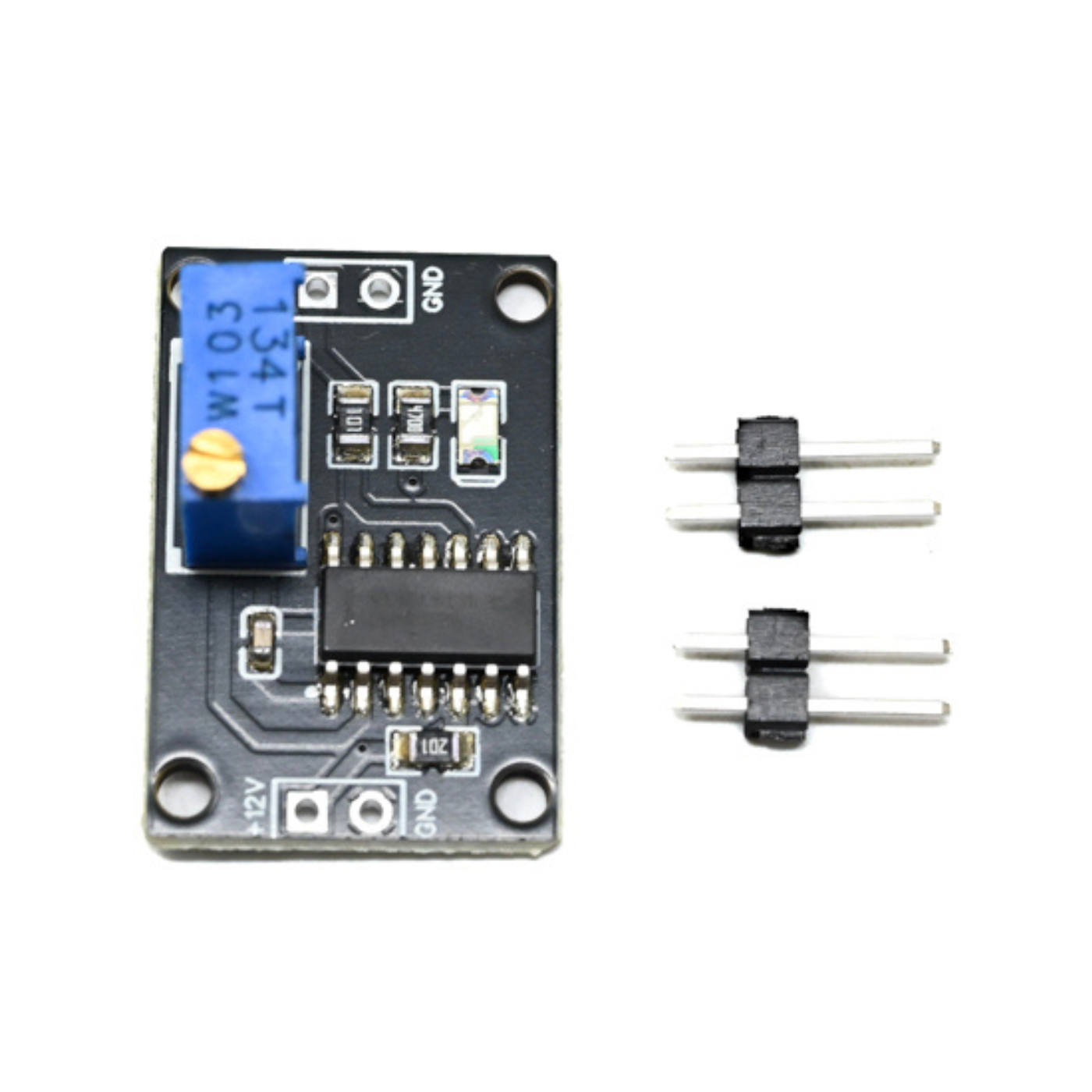

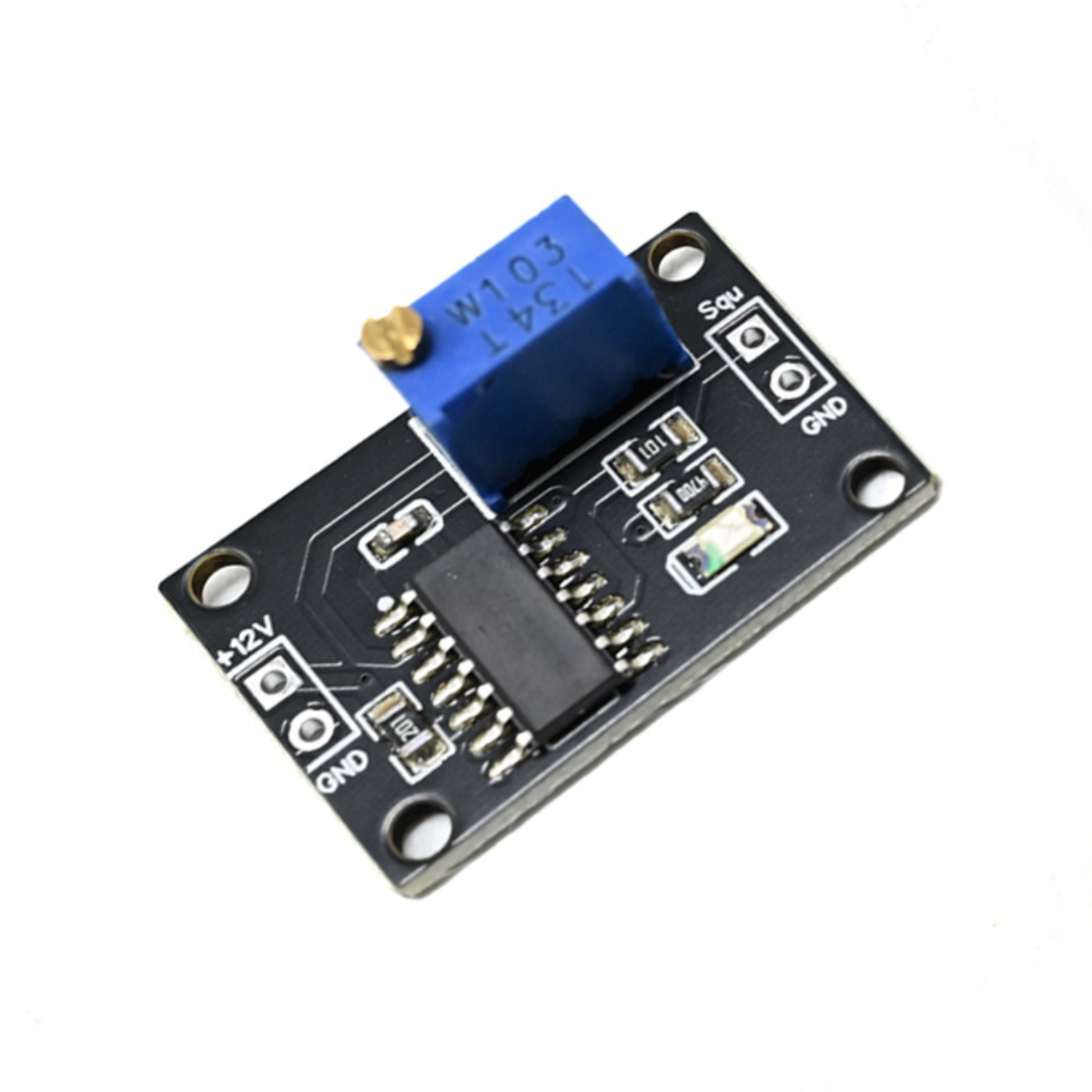

SmartElex CD4047 Square Wave Pulse Generator is designed to produce stable timing pulses and square wave signals for electronic projects and testing. This square wave pulse generator offers a simple way to create consistent clock signals without needing a microcontroller, making it ideal for students, hobbyists, engineers, educators, and startups who are working with digital circuits, timers, or waveform-driven applications. It reduces setup complexity and allows users to experiment with timing concepts, signal behavior, and low-frequency oscillation in a hands-on manner.
As a low power oscillator and pulse generator module, it is well suited for robotics, IoT systems, automation projects, waveform testing, and breadboard prototyping. It can be easily integrated with development platforms like Arduino, Raspberry Pi, ESP32, and other digital controllers, providing a dependable signal source for triggering, switching, or simulation tasks. Whether used in a classroom, electronics lab, or during product development, this module offers a straightforward way to generate controlled square wave signals that support experimentation and circuit design without complicated hardware.
| Item Type | Square Wave Pulse Generator |
| Chip | CD4047 |
| Modes | Astable and Monostable |
