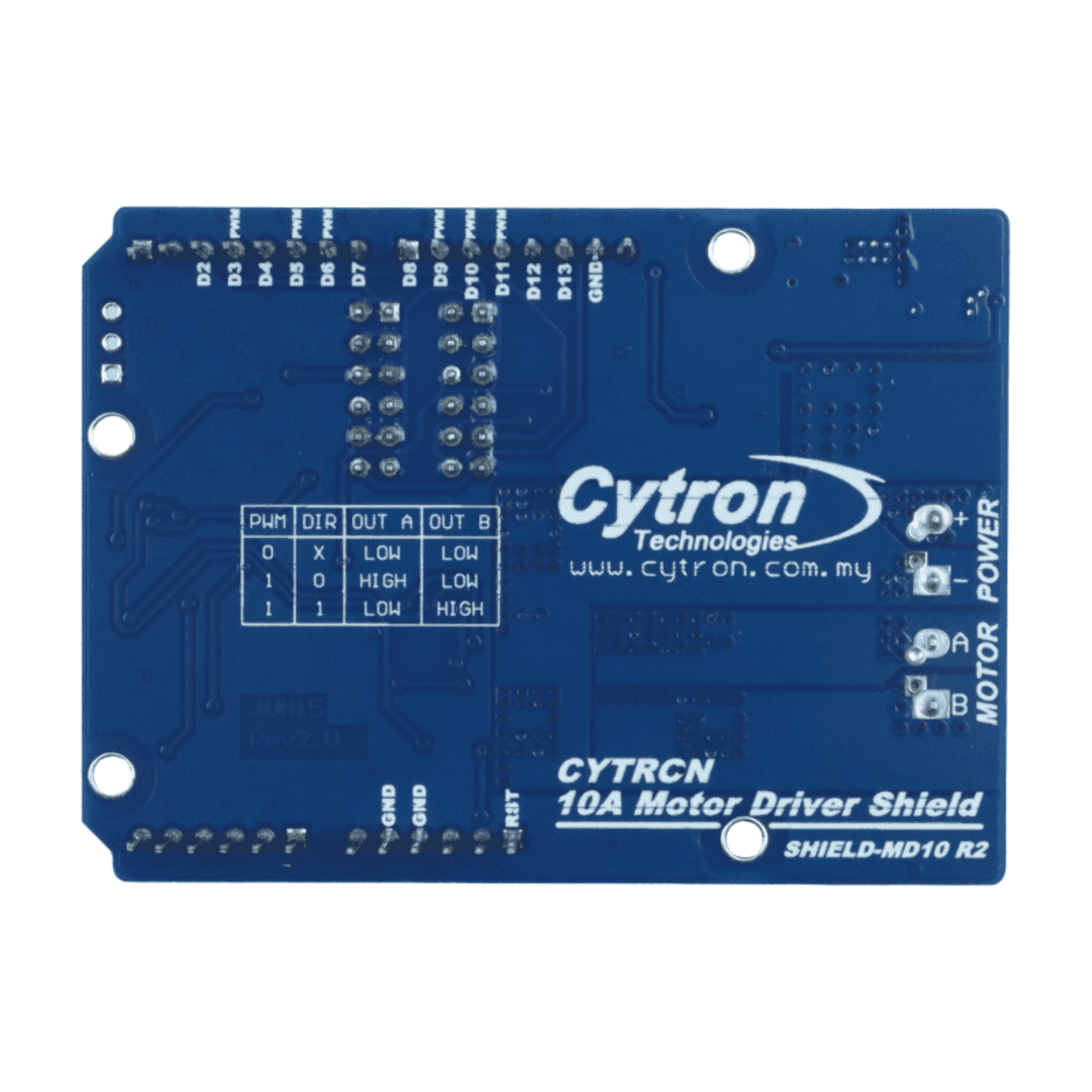

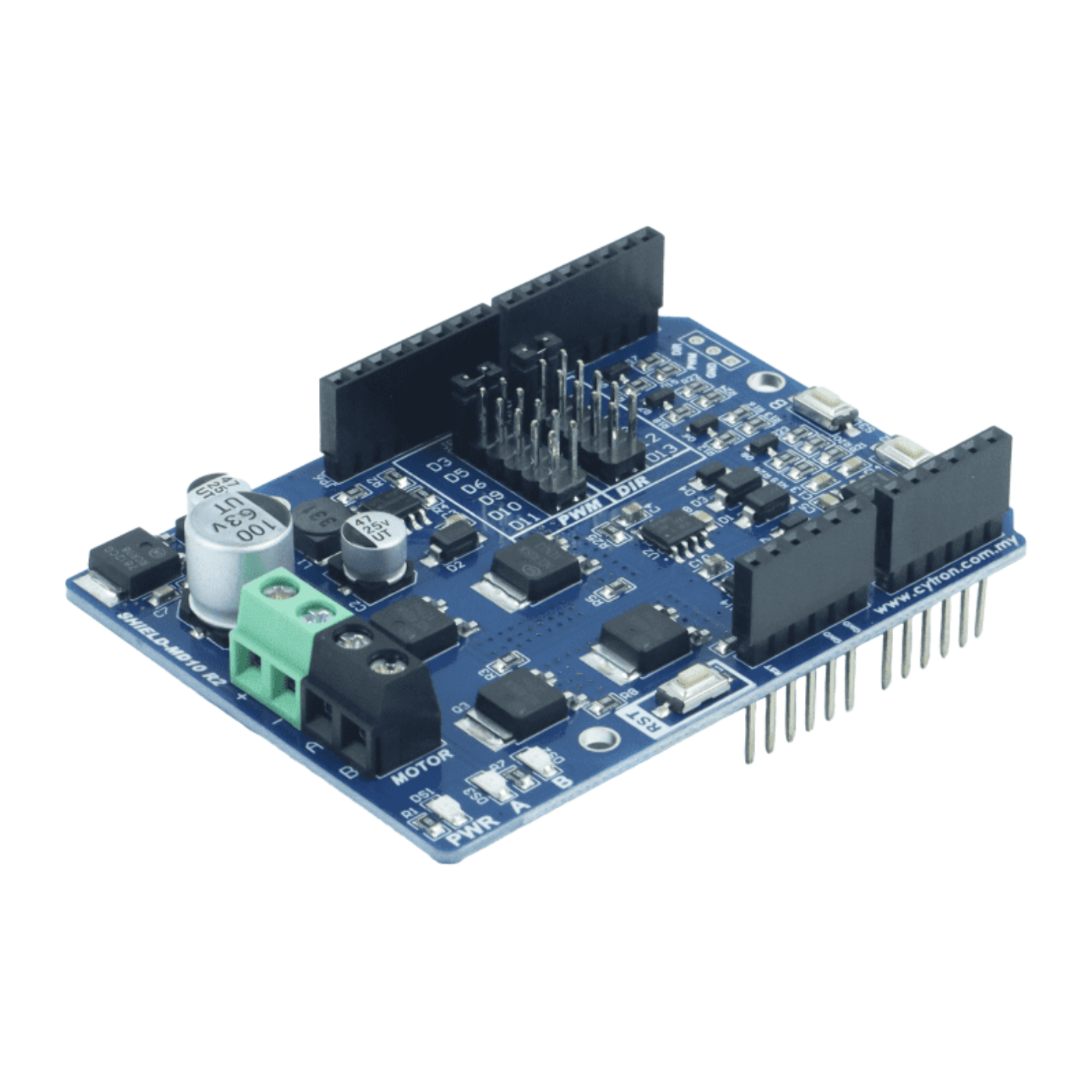

Cytron SHIELD-MD10 – 10A 7V–30V DC Motor Driver Shield for Arduino
Couldn't load pickup availability
The Cytron SHIELD-MD10 is a high-performance 10A DC motor driver shield designed for Arduino and compatible development boards. Built specifically for brushed DC motors, it supports 7V–30V motor voltage and delivers up to 10A continuous current, making it ideal for robotics, automation, RC systems, DIY machines, and educational electronics.
With solid-state MOSFETs and a fully NMOS H-Bridge design, the Cytron SHIELD-MD10 ensures efficient, fast, and reliable motor control without the need for a heatsink, helping creators achieve accurate speed and direction control with minimal wiring.

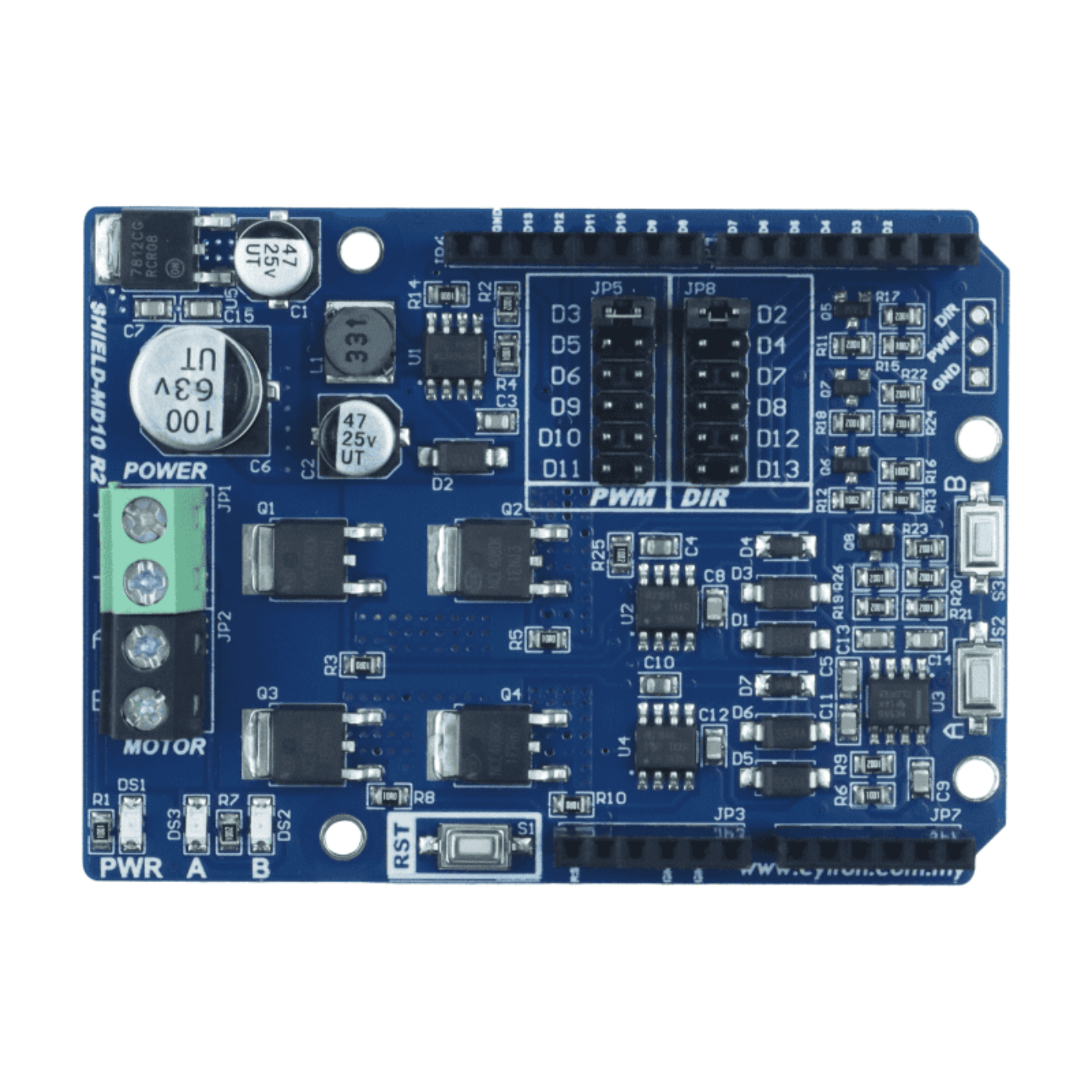

Optimized for maximum compatibility, the shield stacks directly onto popular boards like Arduino UNO R3, Arduino Mega 2560, Maker UNO, Maker UNO Plus, Arduino Leonardo, CT-UNO, and CT-ARM. Featuring selectable digital pins for PWM and DIR, stackable headers, and regenerative braking, the Cytron SHIELD-MD10 offers unmatched flexibility for robotics and mechatronics projects.
Whether you're building a DIY robot, conveyor system, or motorized prototype, this durable and high-current driver shield delivers smooth performance and long-lasting reliability.
| Category | Specifications |
|---|---|
| Model | Cytron SHIELD-MD10 (Rev 1.0)(Rev 2.0) |
| Motor Type | Brushed DC Motor |
| Control Method | Bi-directional, PWM Speed Control |
| Supported Motor Voltage | 7V–30V DC (Rev 2.0) |
| Continuous Current | 10A |
| Peak Current | 15A (10 seconds) |
| Logic Voltage | 3.3V / 5V Compatible |
| PWM Frequency | Up to 10 kHz |
| Driver Type | Fully Solid-State NMOS H-Bridge |
| Protection | Regenerative Braking, Solid-State Reliability |
| Compatibility | Arduino UNO, Mega 2560, Leonardo, Maker UNO, Maker UNO+, CT-UNO, CT-ARM |
| Pin Selection | Selectable PWM & DIR Pins (via Jumpers) |
| Additional Features | Stackable Headers, No Heatsink Required |
This product comes with a 12 months manufacturer warranty from the date of purchase, covering manufacturing defects only.
