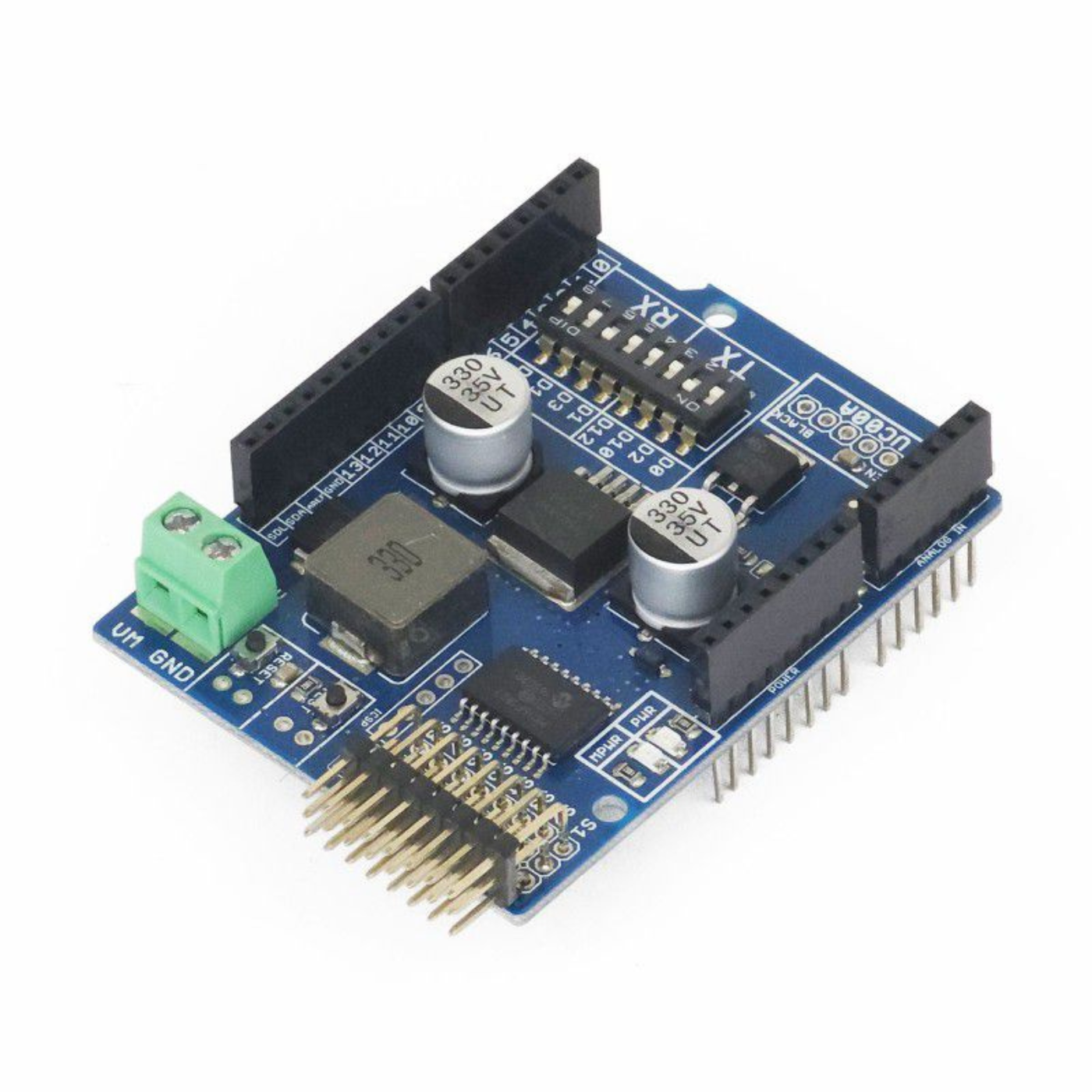

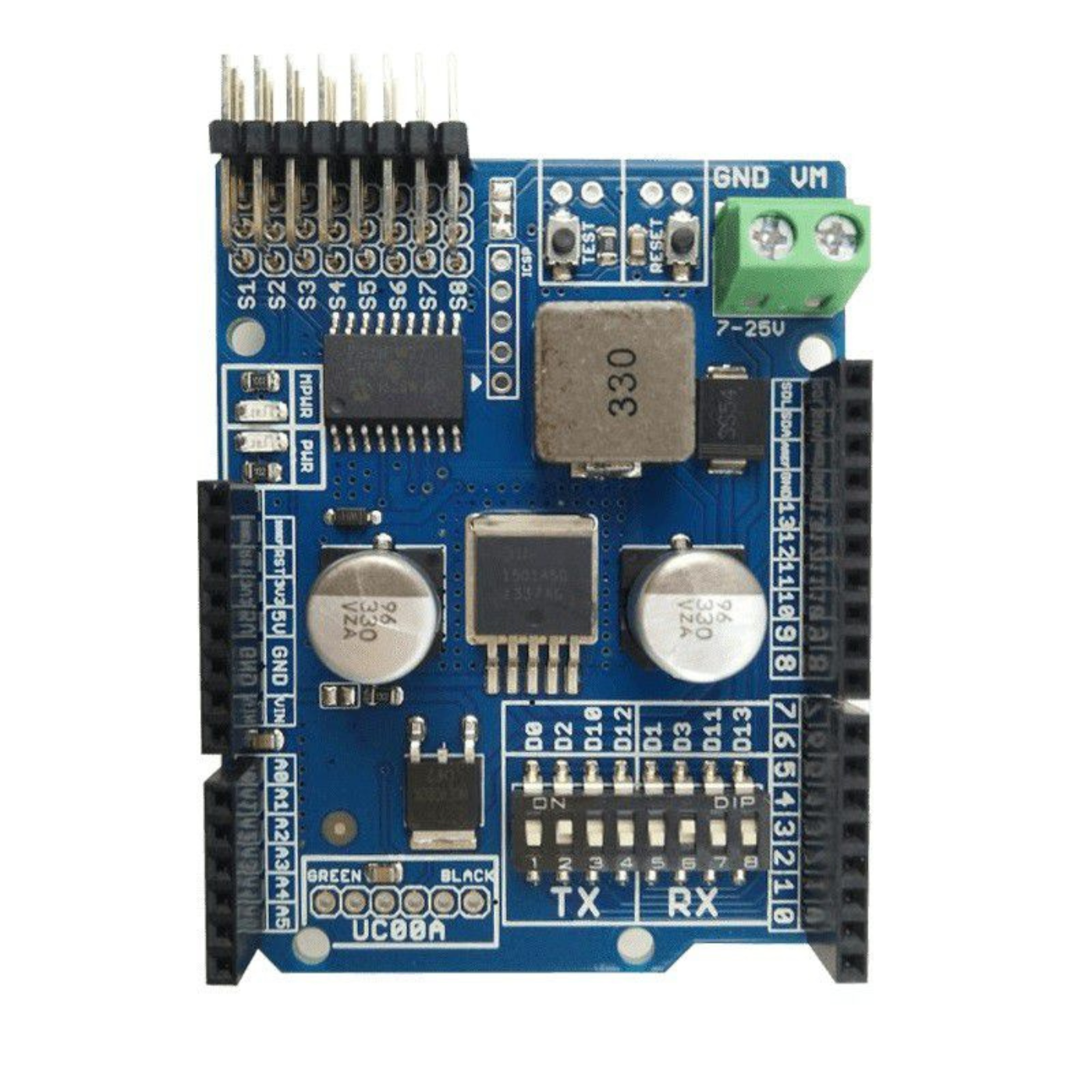

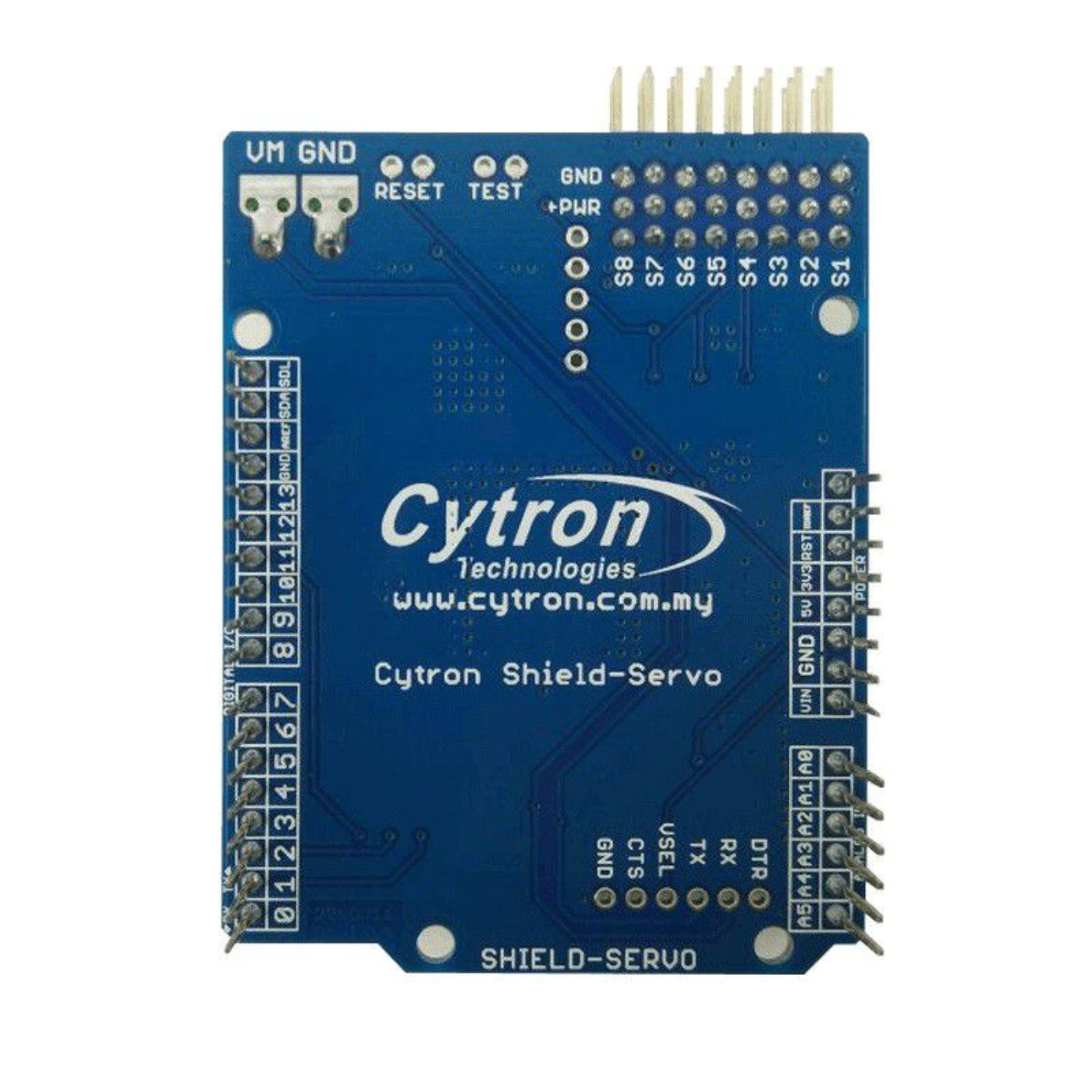

Cytron 8-Channel RC Servo Controller Shield – 5V 5A Regulated Power for Arduino
Couldn't load pickup availability
The Cytron 8-Channel RC Servo Controller Shield is designed for makers, robotics enthusiasts, and educators who need reliable, high-power servo control for Arduino projects. With its built-in 5V 5A switching regulator, this servo shield eliminates the usual power limitations that come with driving multiple RC servos.
It seamlessly works with popular Arduino boards like Arduino UNO, Mega, CT-UNO, and more - making it an ideal solution for robotics, animatronics, humanoid robots, and automation systems. Keywords naturally included: Arduino servo shield, RC servo controller, 8-channel servo driver, robotics servo control.
This shield allows you to control eight independent RC servos simultaneously, offering precise position and speed control using a simple UART interface. Each channel supports a wide 0.5ms–2.5ms pulse range, enabling full 180° servo rotation control for most RC servos.
Whether you're building robotic arms, walking robots, pan-tilt systems, or classroom STEM models, this Cytron servo controller shield ensures smooth servo movements, stable power delivery, and user-friendly integration with Arduino.
| Specification | Details |
|---|---|
| Number of Servo Channels | 8 Independent Channels |
| Input Voltage | 7V – 25V DC |
| Regulated Output | 5V at 5A Peak / 4A Continuous |
| Control Interface | UART (9600 baud default, stored in memory) |
| Pulse Width Range | 0.5ms – 2.5ms |
| Pulse Resolution | 0.25 µs |
| Logic Level | 5V Compatible |
| Optional Feature | Servo Position Reporting |
| Dimension | 7.4 cm × 6.6 cm |
| Compatibility | Arduino UNO, Mega, CT-UNO, CT-ARM, etc. |
