Waveshare SIM7600G-H 4G DONGLE with GNSS Global Band Support

Waveshare SIM7600G-H 4G DONGLE with GNSS Global Band Support

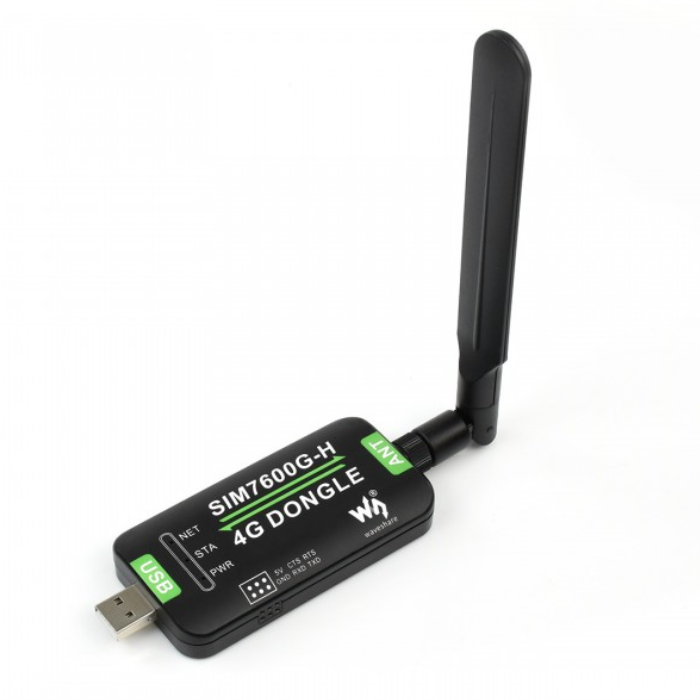

The Waveshare SIM7600G-H 4G Dongle with GNSS Global Band Support is a high-performance, industrial-grade cellular dongle designed for global connectivity needs.

Featuring support for worldwide 2G, 3G, and 4G LTE bands, this versatile dongle ensures reliable communication in various environments. With impressive data speeds of up to 150Mbps downlink and 50Mbps uplink, the SIM7600G-H 4G Dongle provides stable and fast network access for mobile, embedded, and industrial applications.

Whether you are working with a PC, laptop, Raspberry Pi, drone, or industrial computer, this compact device allows seamless 4G connectivity on the go.

Additionally, the SIM7600G-H GNSS Dongle integrates GNSS capabilities, making it suitable for applications that require precise positioning and tracking.

It supports major operating systems including Windows, Linux, and Android, offering maximum flexibility for diverse IoT and M2M deployments. Please note that the actual data rate may vary depending on network conditions, coverage, and congestion.

Features:

• Supports 2G/3G/4G network connections in a worldwide band.
• The driver is offered for various operating systems, including Windows, Linux, and Android.
• Supports network protocols such as TCP/IP/IPV4/IPV6, Multi-PDP, FTP/FTPS, HTTP/HTTPS, and DNS.

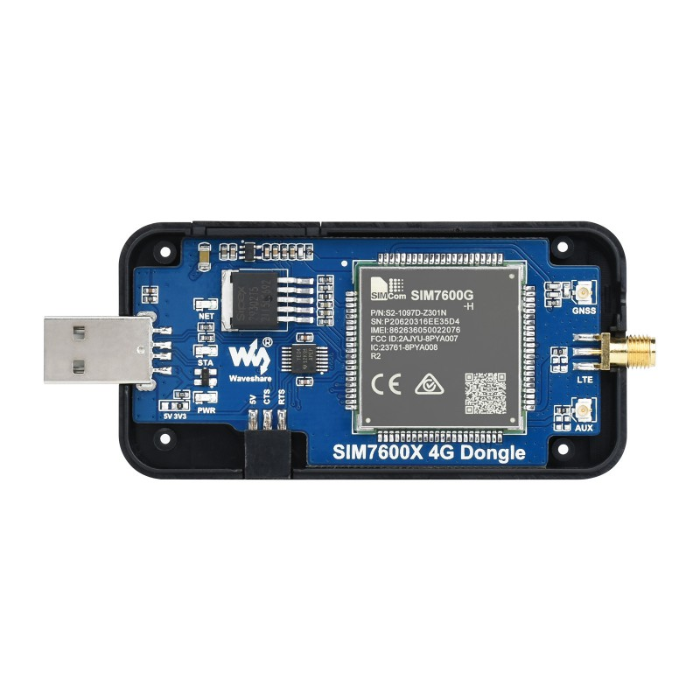

• Onboard USB port allows for direct connection with ARM/X86 hosts or other industrial computers.
• Onboard UART port with hardware flow control for interfacing to host boards such as Arduino and STM32.
• Onboard GNSS connectivity allows GPS, Beidou, Glonass, and LBS base station placement (an extra GNSS antenna is required but not provided).
• Nano SIM card slot accepts 1.8V and 3V nano-SIM cards.

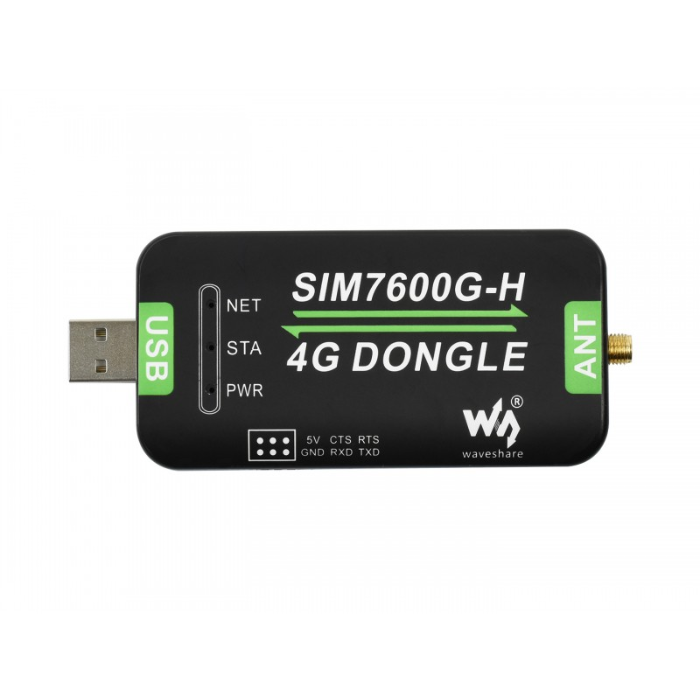

• 3x LED indicators allow you to easily monitor the functioning state.
• Portable, customizable enclosure, tiny size, attractive appearance.
• Baudrate support: 300bps ~ 4Mbps (default: 115200bps).
• Baudrate auto-negotiation ranges from 9600bps to 115200bps.

Package Imcludes:

• 1 x SIM7600G-H 4G DONGLE

• 1 x 360 Degree Foldable LTE Antenna

• 1 x USB extension cable

• 1 x 6PIN jumper wire

• 1 x Screws tool kit

Specifications:
