Waveshare Serial Bus Servo Control Board for ST/SC Series Servos

Waveshare Serial Bus Servo Control Board for ST/SC Series Servos with Integrated Power Supply

Rs 474/-
- 36%
Rs 474/-
Rs 745/-
Save Rs 271/-
🪙
RC REWARDS Earn 4 RC Coins on this order
Incl. GST (No Hidden Charges)
Please hurry! Only 2 left in stock

Free Delivery Above ₹999

Technical Support & Easy Returns

Same-Day Shipping (Order by 3 PM on Business Days)

Earn RC Coins on Every Prepaid Order

COD Available on Order Value Between ₹500 to ₹3,000
SKU: TIFPS0691
  • Compact Waveshare Serial Bus Servo Control Board for ST/SC series servos
  • Integrates servo power supply and control circuitry in one board
  • Supports control of up to 253 ST/SC series serial bus servos
  • Offers both UART and USB Type-C control for flexible connectivity
  • Provides servo feedback such as angle, load, voltage, and operating mode
  • Supports 9–12.6V input, which must match the connected servo requirements
  • Ideal for robotic arms, quadruped/hexapod robots, humanoid robots, and other multi-servo projects
  • Compact 42 × 33 mm design for easy integration into space-constrained projects

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here
+91

File(s) size limit is 20MB. Max 3 files.

Select Categories
CAPTCHA
Reload Captcha
Robocraze Academy Limited Time Offer
Waveshare Serial Bus Servo Control Board for ST/SC Series Servos with Integrated Power Supply -Motors & Mechanical -Motor Drivers -Robocraze
Waveshare Serial Bus Servo Control Board for ST/SC Series Servos with Integrated Power Supply
Rs 745/- Rs 474/-
Waveshare Serial Bus Servo Control Board for ST/SC Series Servos with Integrated Power Supply -Motors & Mechanical -Motor Drivers -Robocraze
Waveshare Serial Bus Servo Control Board for ST/SC Series Servos with Integrated Power Supply -Motors & Mechanical -Motor Drivers -Robocraze
Waveshare Serial Bus Servo Control Board for ST/SC Series Servos with Integrated Power Supply -Motors & Mechanical -Motor Drivers -Robocraze
Waveshare Serial Bus Servo Control Board for ST/SC Series Servos with Integrated Power Supply -Motors & Mechanical -Motor Drivers -Robocraze
Waveshare Serial Bus Servo Control Board for ST/SC Series Servos with Integrated Power Supply -Motors & Mechanical -Motor Drivers -Robocraze

Waveshare Serial Bus Servo Control Board for ST/SC Series Servos with Integrated Power Supply

Rs 745/- Rs 474/-
Description

Waveshare Serial Bus Servo Control Board for ST/SC Series Servos with Integrated Power Supply

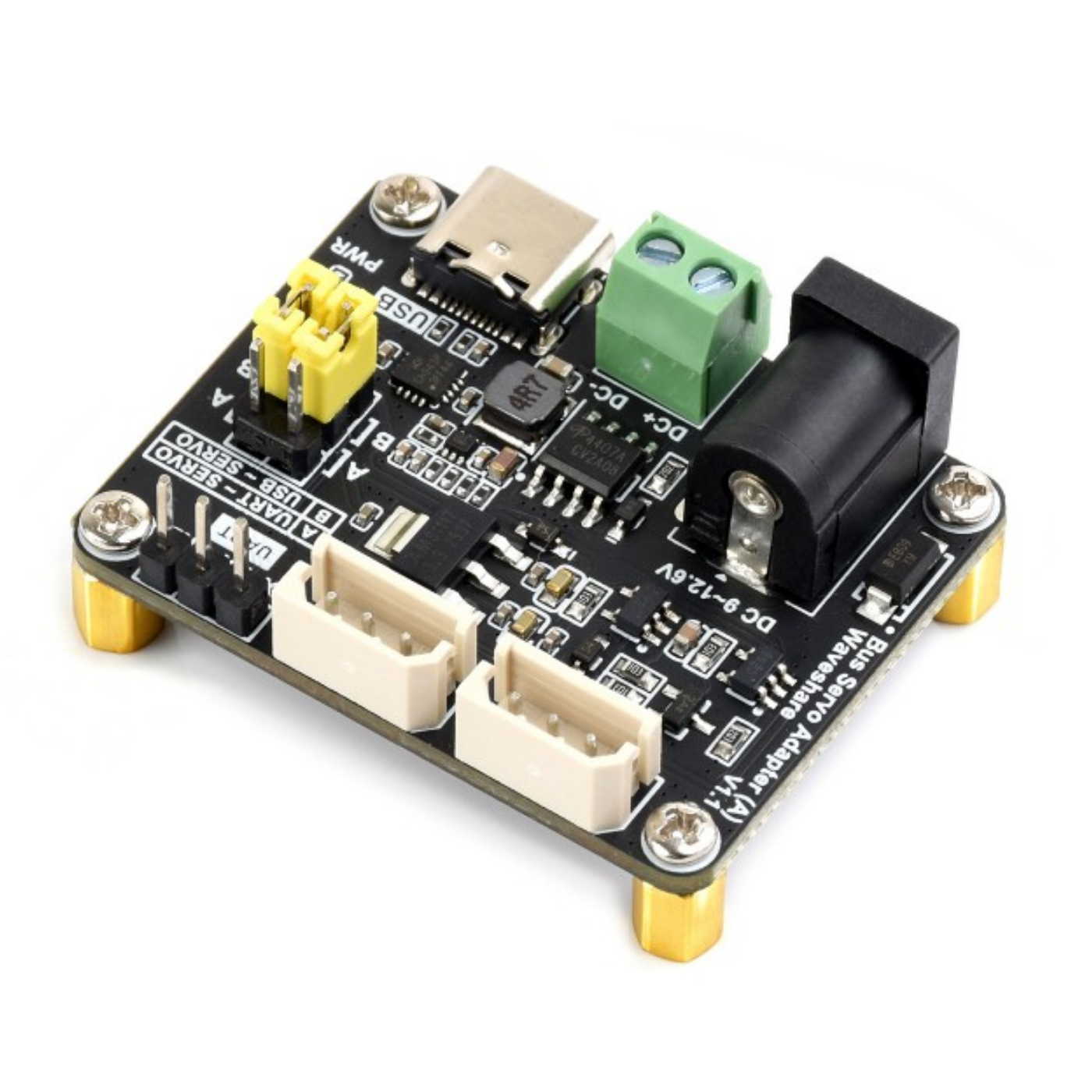

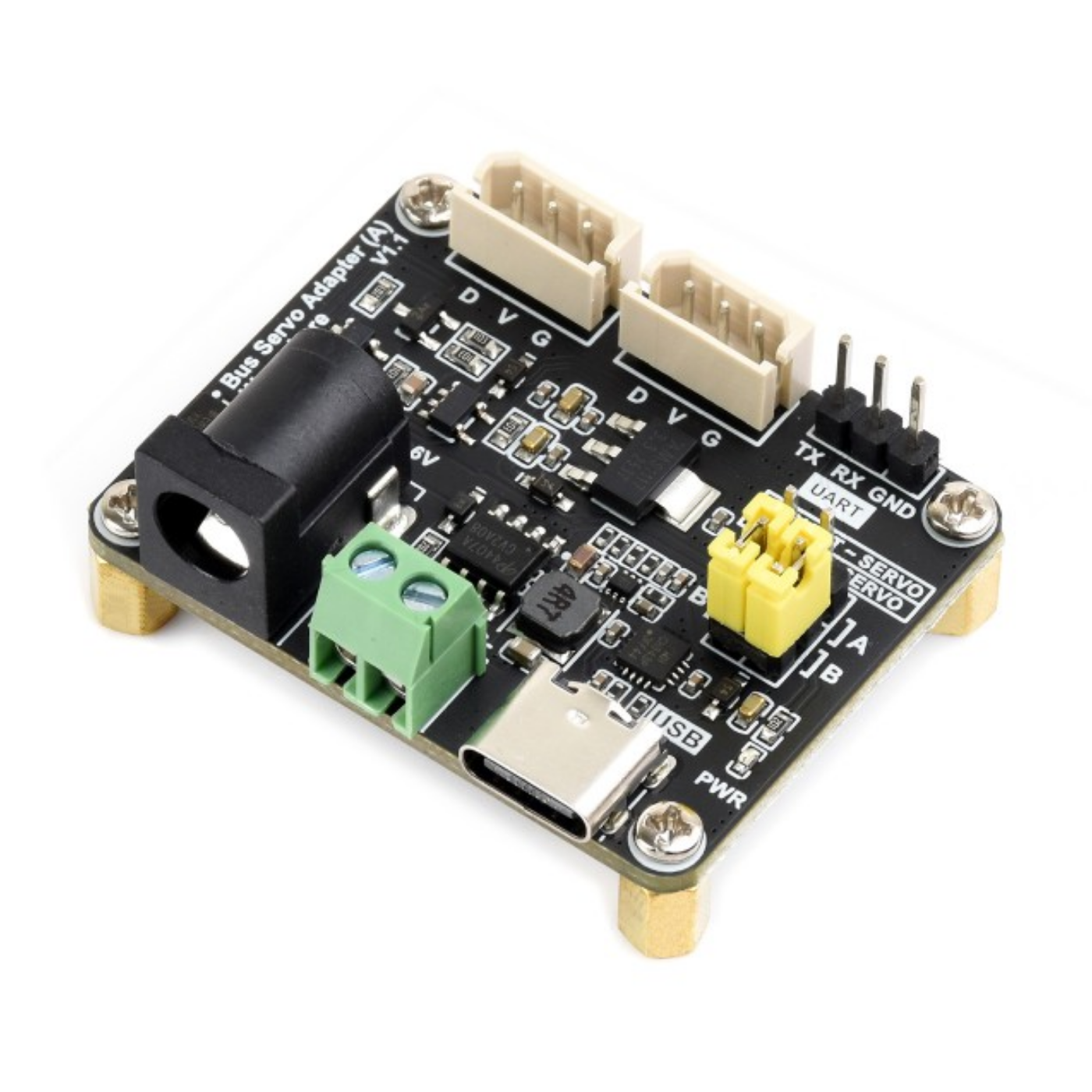

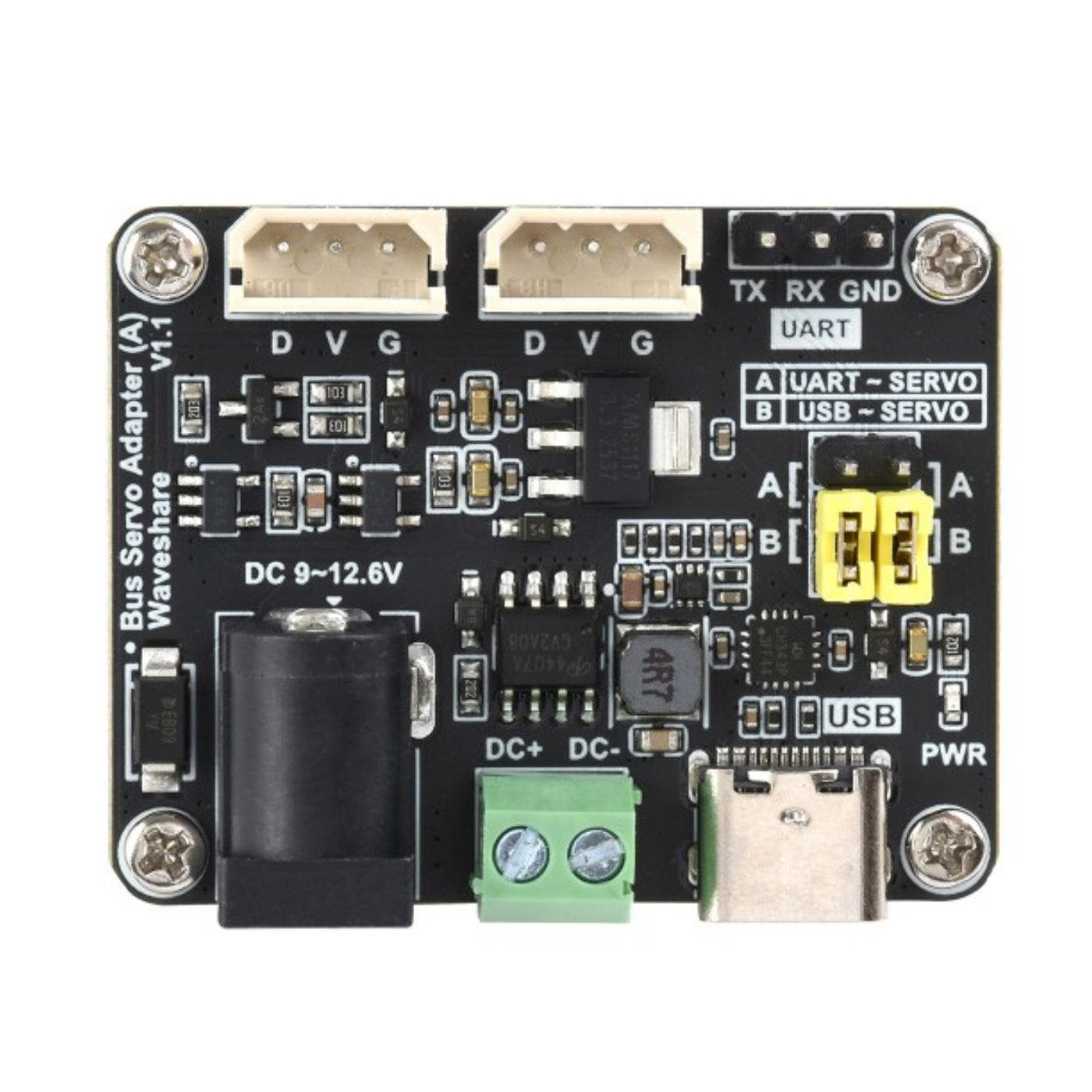

The Waveshare Serial Bus Servo Control Board (Bus Servo Adapter A) is a compact and practical solution for controlling ST/SC series serial bus servos in robotics and automation projects. It combines the servo power supply and control circuitry on a single board, allowing a host computer or MCU to communicate with and control multiple bus servos through UART or USB Type-C.

With sufficient power, the board can theoretically control up to 253 serial bus servos while receiving useful feedback such as servo angle, load, voltage, and operating mode. Its compact 42 × 33 mm design makes it suitable for robotic arms, quadruped and hexapod robots, humanoid robots, wheeled robots, and other projects where multiple servos and feedback-based control are required.

Features:

  • Supports connecting to a host or MCU to control the serial bus servos.
  • Controls up to 253 ST/SC series serial bus servos simultaneously (requires an adequate power supply).
  • Voltage input ranges from 9 to 12.6V (both input and servo voltages must match).
  • offers easy serial bus servo control options.
  • Integrates the control circuit to ensure the reliable operation of the serial bus servo.
  • Compact size and space conserving, excellent for integration into many types of space-limited projects.
Specifications

Package Includes:

  • 1 x Waveshare Serial Bus Servo Control Board for ST/SC Series Servos with Integrated Power Supply

Specifications:

Specification Details
Power Supply DC 9–12.6V (for ST series servos)
Power Supply Connector 5.5 × 2.1mm DC Jack
Communication Interface UART

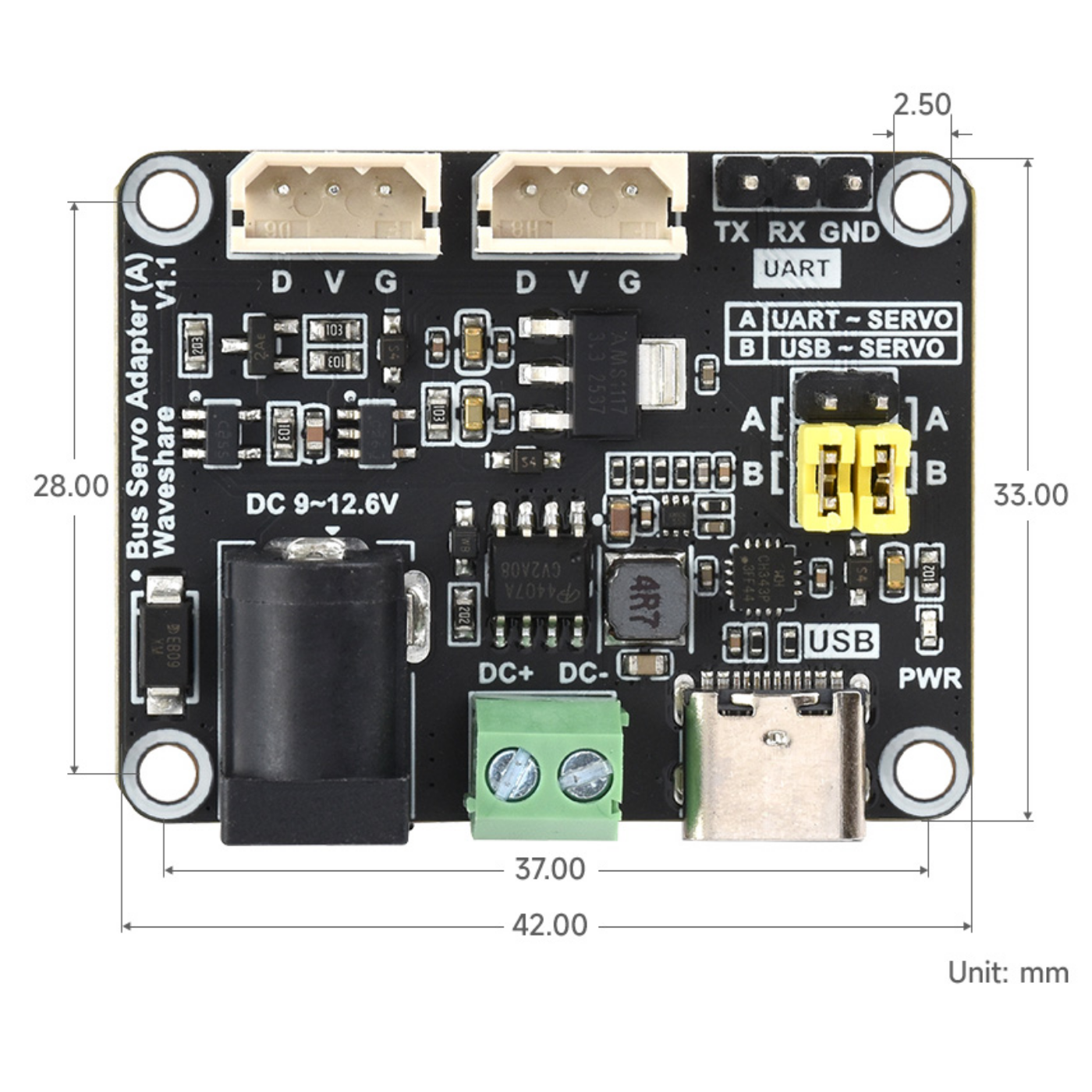

Dimensions 42.00 × 33.00 mm
Mounting Hole Diameter 2.50 mm
Mounting Hole Spacing 37.00 × 28.00 mm
