Waveshare Industrial Serial Server - RS232/RS485/RS422 to RJ45 Ethernet Converter with TCP/IP Support
Let us know!
We'll try to match the price for you
We’ll notify you once the product is back in stock.
For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below
Couldn't load pickup availability
The Waveshare Industrial Serial Server RS232/RS485/RS422 to RJ45 Ethernet Converter is designed to connect traditional serial equipment to modern Ethernet networks for reliable industrial data communication. It supports RS232, RS485, and RS422 interfaces and provides bidirectional transparent data transmission between the serial ports and Ethernet.
The Ethernet interface uses a 10/100M auto-negotiation RJ45 connector with 2KV surge protection, while serial communication supports baud rates from 300 to 115200 bps, 5–9 data bits, and None, Odd, Even, Mark, or Space parity. It supports TCP Server, TCP Client, UDP, and UDP Multicast modes along with TCP/IP direct communication and VCOM.

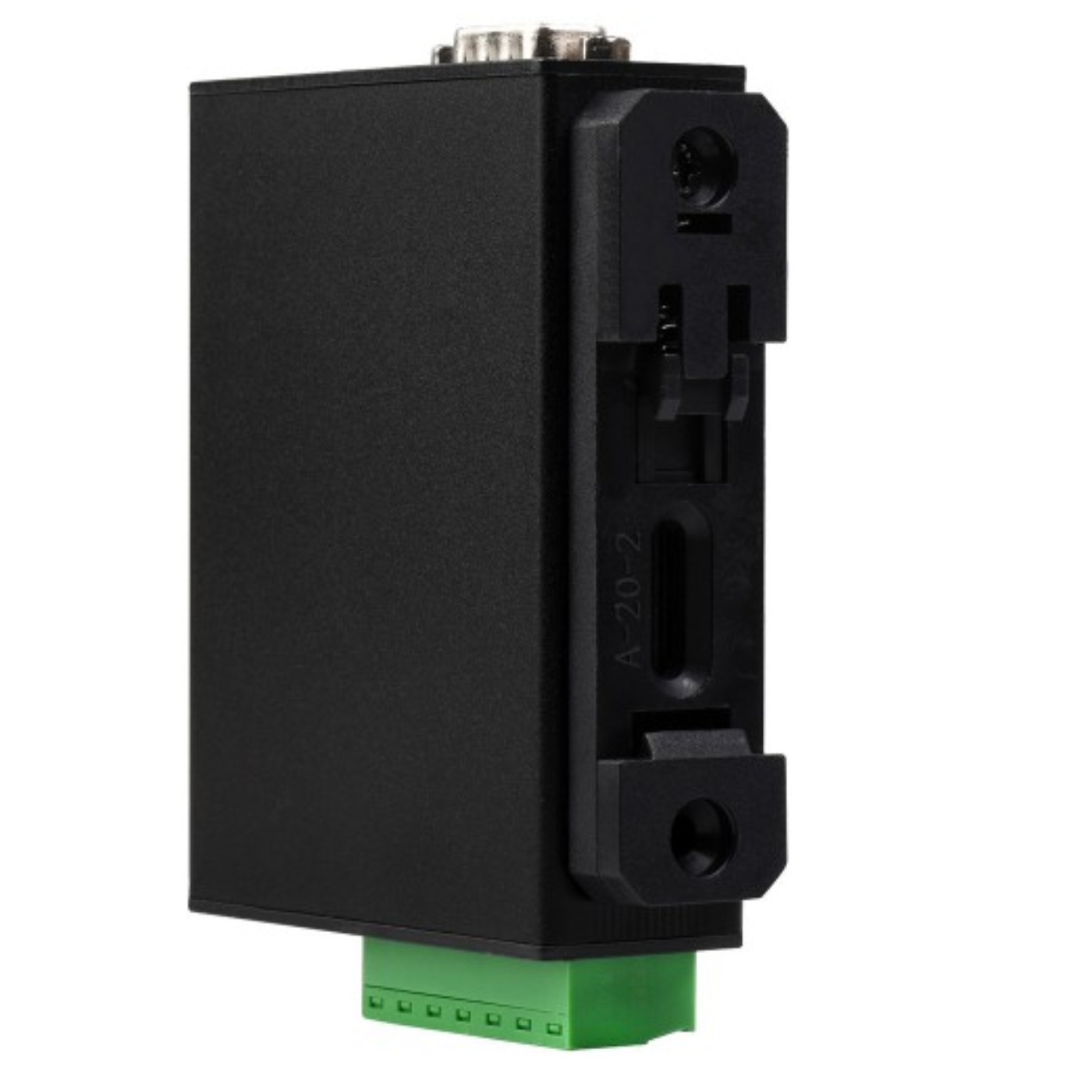

The device can also function as a Modbus gateway, MQTT gateway, and RS485-to-JSON gateway, making it useful for data acquisition, IoT gateways, intelligent instrument monitoring, and industrial automation. The PoE version supports IEEE 802.3af and can operate from 6–36V DC, while the device is rated for an operating temperature of -40°C to 85°C. Its compact 87 × 36 × 59 mm rail-mount enclosure makes it convenient for industrial installations.
| Specification | Details |
|---|---|
| Product Type | Serial Server, Modbus Gateway, MQTT Gateway |
| Basic Function | Bi-directional transparent data transmission between RS232/RS485/RS422 and Ethernet |
| Communication Interfaces | RS232 × 1; RS485 × 1; RS422 × 1; Ethernet × 1 |

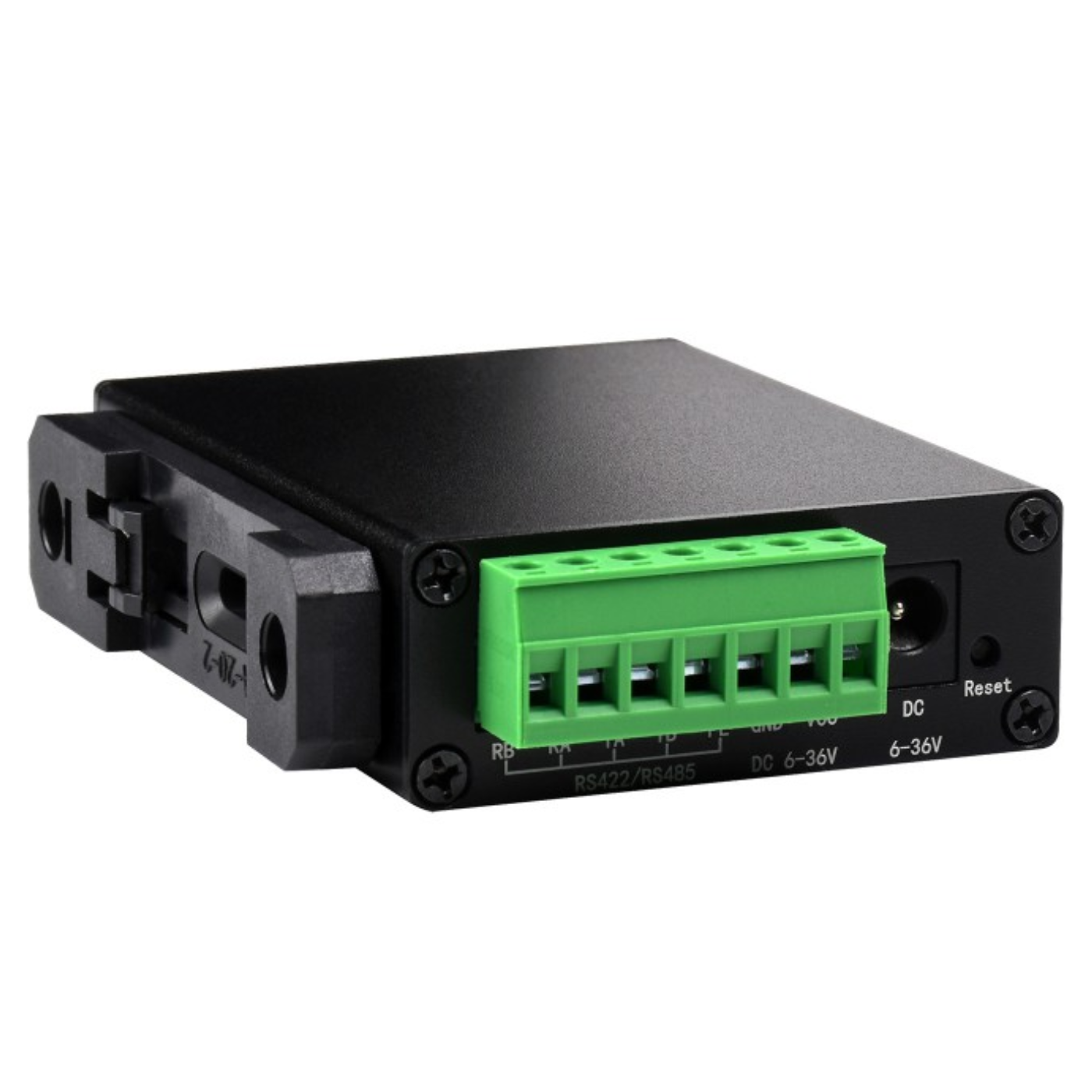

| Power Supply | DC power port, 6–36V DC screw terminal, or PoE port |
| Isolation Protection | Power isolation, Signal isolation |
| Ethernet Interface | PoE network port, supports IEEE 802.3af standard |
| Ethernet Speed | 10/100M auto-negotiation |
| Ethernet Connector | RJ45 |
| Surge Protection | 2KV |
| Serial Interface | Isolated RS232/RS485/RS422 |
| Baud Rate | 300–115200 bps |
| Parity Bit | None, Odd, Even, Mark, Space |
| Data Bits | 5–9 bits |
| Flow Control | N/A |
| Protocols | Ethernet, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS |
| Configuration | Host, Web Browser, Device Management Functions Library |
| Communication Method | TCP/IP Direct Communication, VCOM |
| Operating Modes | TCP Server, TCP Client (coexisting with TCP Server), UDP, UDP Multicast |
| Operating Temperature | -40°C to 85°C |
| Humidity Range | 5%–95% RH |

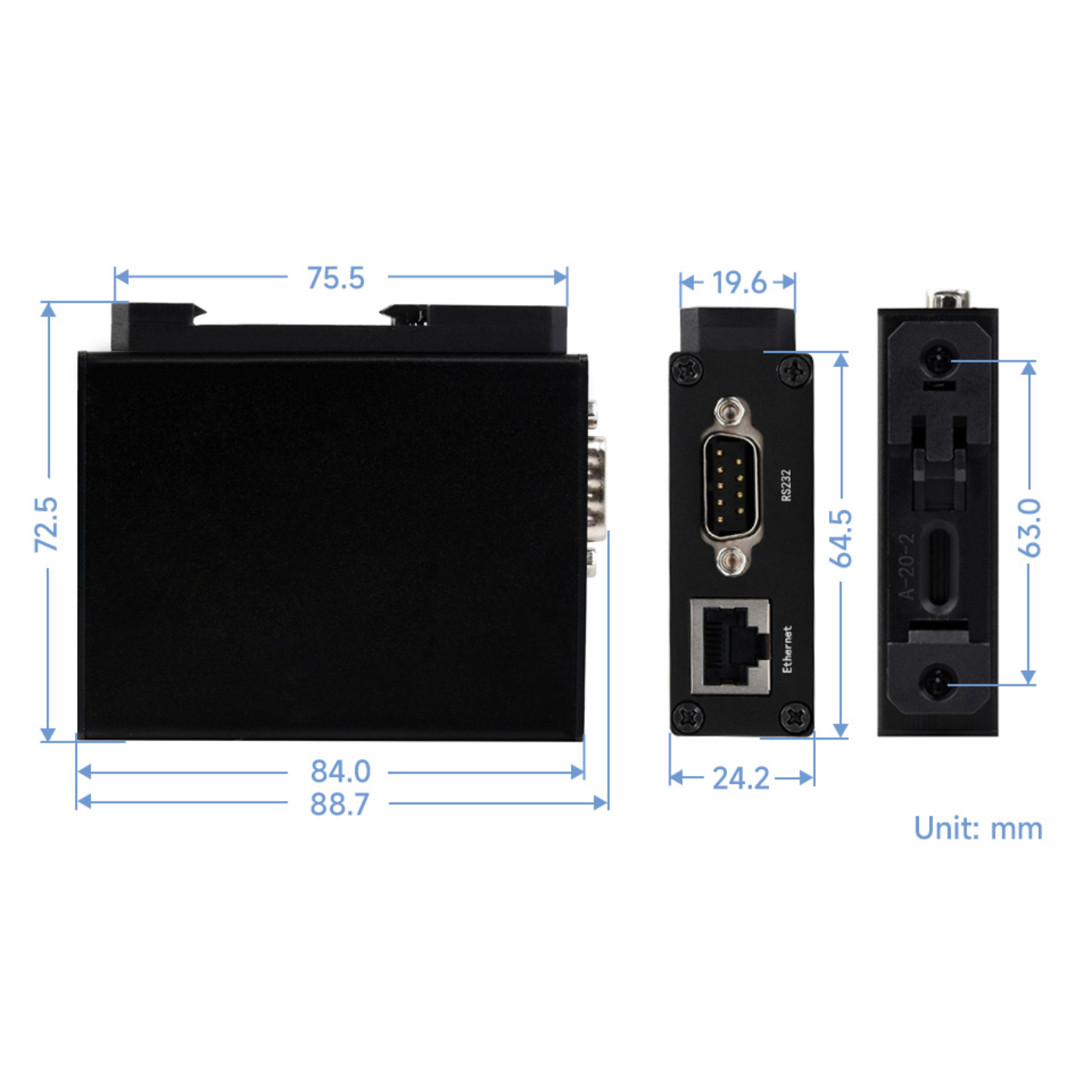

| Dimensions (L × W × H) | 88.7 × 72.5 × 24.2 mm |
