Waveshare RPi Camera (M) Fisheye Lens - Robocraze

Waveshare RPi Camera (M) with Fisheye Lens

Rs 2,625/-
- 9%
Rs 2,625/-
Rs 2,899/-
Save Rs 274/-
🪙
RC REWARDS Earn 26 RC Coins on this order
Incl. GST (No Hidden Charges)
Please hurry! Only 2 left in stock

Why Buy From Robocraze

Free Delivery Above ₹999

Technical Support & Easy Returns

Same-Day Shipping (Order by 3 PM on Business Days)

Earn RC Coins on Every Prepaid Order

COD Available on Order Value Between ₹500 to ₹3,000

SKU: TIFCM0037
  • Waveshare RPi Camera (M) with Fisheye Lens for Raspberry Pi
  • Features a high-quality fisheye lens for wide-angle, immersive shots
  • Compact RPi camera module M ideal for photography, surveillance, and machine vision
  • Compatible with multiple Raspberry Pi boards
  • Perfect Raspberry Pi fisheye camera for creative and panoramic visuals
Robocraze Academy Limited Time Offer
Waveshare RPi Camera (M) with Fisheye Lens -Raspberry -Raspberry Pi Camera Module -Robocraze
Waveshare RPi Camera (M) with Fisheye Lens
Rs 2,899/- Rs 2,625/-

Waveshare RPi Camera (M) with Fisheye Lens

Rs 2,899/- Rs 2,625/-

Waveshare RPi Camera (M) with Fisheye Lens

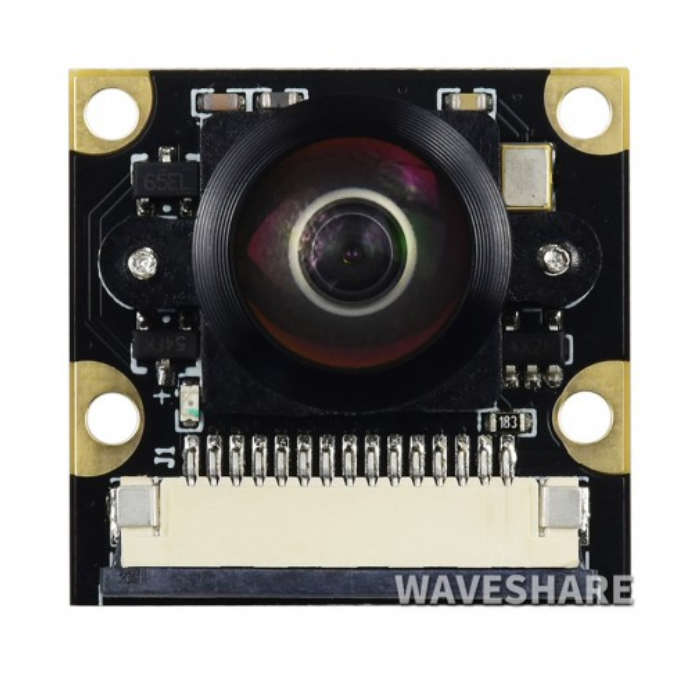

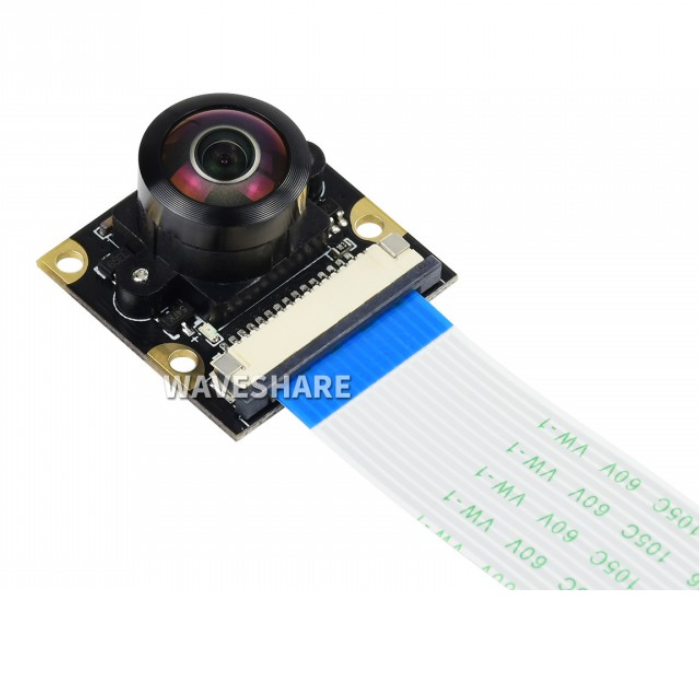

The Waveshare RPi Camera (M) with Fisheye Lens is a powerful and versatile imaging solution designed to elevate your Raspberry Pi projects.

This compact yet feature-rich RPi camera module M is equipped with a premium fisheye lens that delivers an ultra-wide-angle field of view, allowing you to capture immersive and panoramic visuals with stunning clarity.

Perfect for creative photography, surveillance, and machine vision applications, the Raspberry Pi fisheye camera offers exceptional flexibility and a distinctive visual aesthetic.

Compatible with various Raspberry Pi models, this camera module is an ideal choice for developers, hobbyists, and enthusiasts seeking to expand their Raspberry Pi's imaging capabilities with a wide, creative angle.

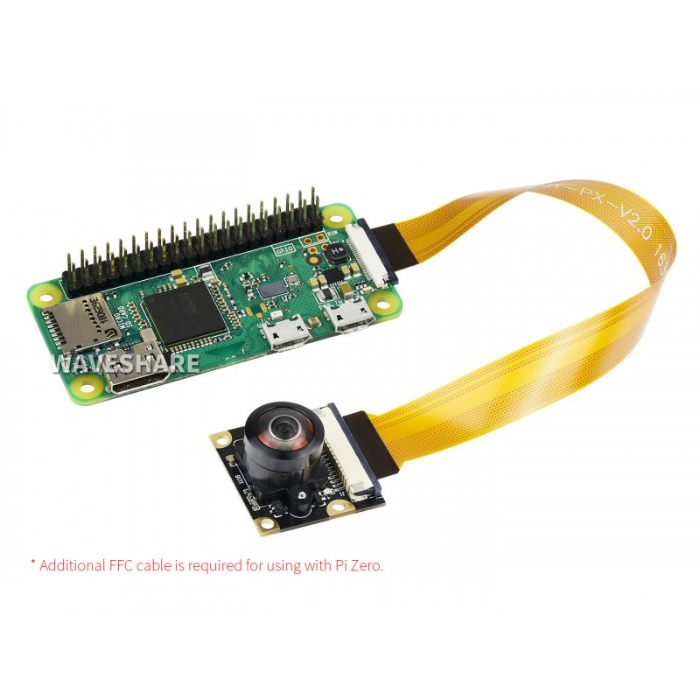

Note to use the camera with Raspberry Pi Zero / Zero W / Zero WH, you need to buy a specific cable: Raspberry Pi Zero v1.3 Camera Cable 15cm

Features:

  • Raspberry Pi Camera supports all Pi revisions.
  • Features a fisheye lens for a broader field of view.
  • 5 MP OV5647 sensor
  • Features include adjustable focus distance and a resolution of 2592 x 1944 for static pictures.
  • Supports 1080p30, 720p60, and 640x480p60/90 video recording.

Package Includes:

  • 1 x Waveshare RPi Camera (M) with Fisheye Lens

Specifications:

Specification Details
CCD Size 1/4 inch
Aperture (F) F2
Focal Length 0.87 mm
Angle of View (Diagonal) 200° (Compared to typical 72°)
Weight 7 gm
Dimensions (L x W x H) 2.4 x 2.4 x 1.7 cm
Sensor Best Resolution 1080p

Which sensor does the Waveshare RPi Camera Fisheye Lens use?

It uses the 5MP OV5647 sensor, compatible with the Raspberry Pi camera stack.

Which Raspberry Pi boards are supported?

All boards with a CSI port. Pi 5 needs the 22-pin to 15-pin cable.

What is a fisheye camera used for?

Robot navigation, surveillance and room monitoring where one camera must see a wide area.

Does the Waveshare RPi Camera Fisheye Lens support night vision?

No. This is a standard visible light camera. Choose a NoIR camera with IR LEDs for night vision.
