Waveshare RDK X5 Development Board 8GB RAM | Sunrise 5, Octa-Core Cortex-A55, 10 TOPS AI
Waveshare RDK X5 Development Board 8GB RAM | Sunrise 5, Octa-Core Cortex-A55, 10 TOPS AI
Waveshare RDK X5 Development Board 8GB RAM | Sunrise 5, Octa-Core Cortex-A55, 10 TOPS AI

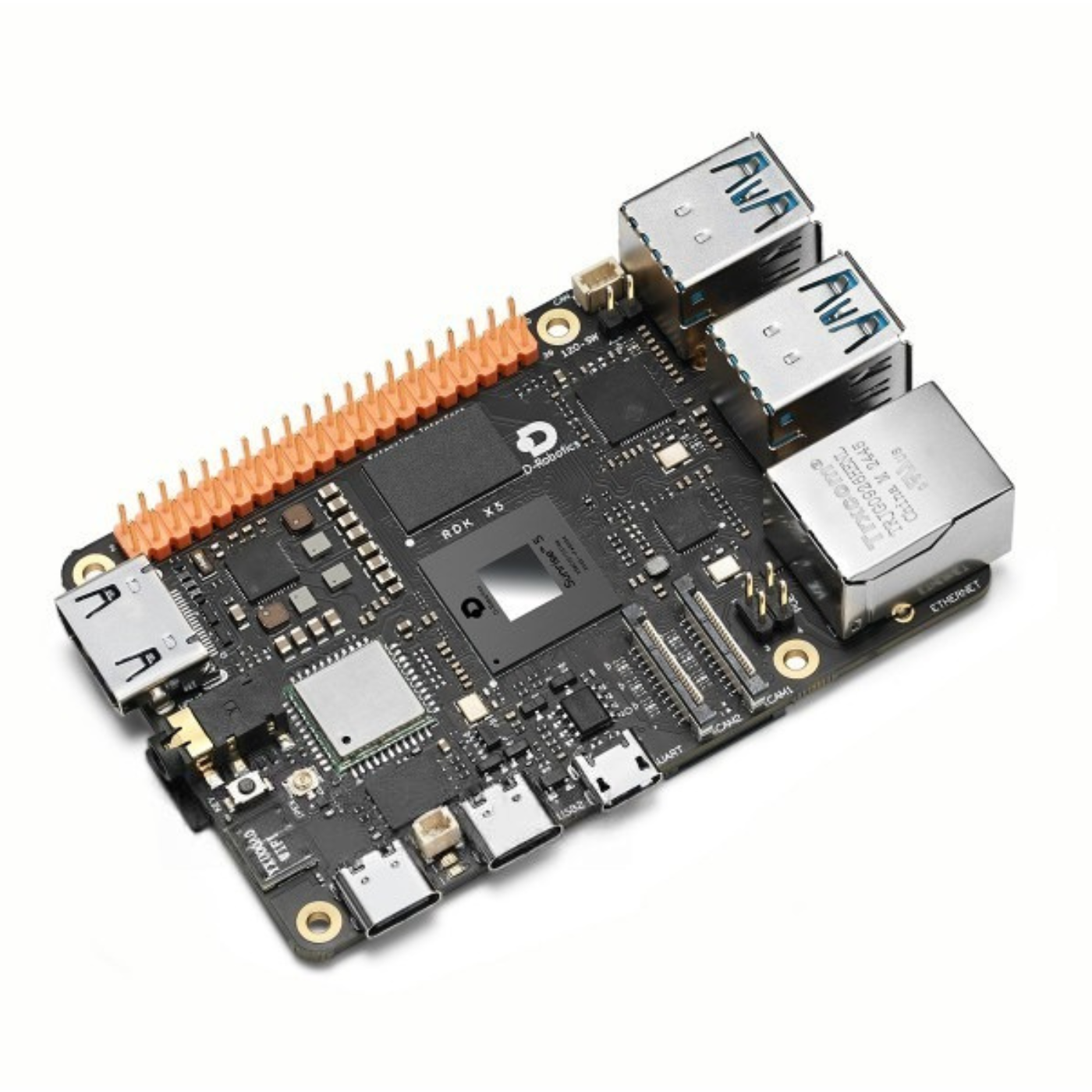

The Waveshare RDK X5 Development Board 8GB is a compact AI and robotics development platform powered by the Sunrise 5 chip, featuring an octa-core Cortex-A55 CPU, 8GB RAM, and up to 10 TOPS BPU AI computing power. It is built for edge AI, intelligent robotics, computer vision, and embedded AI applications, with support for models and algorithms such as Transformer, RWKV, CLIP, Occupancy, Stereo Perception, and YOLO.

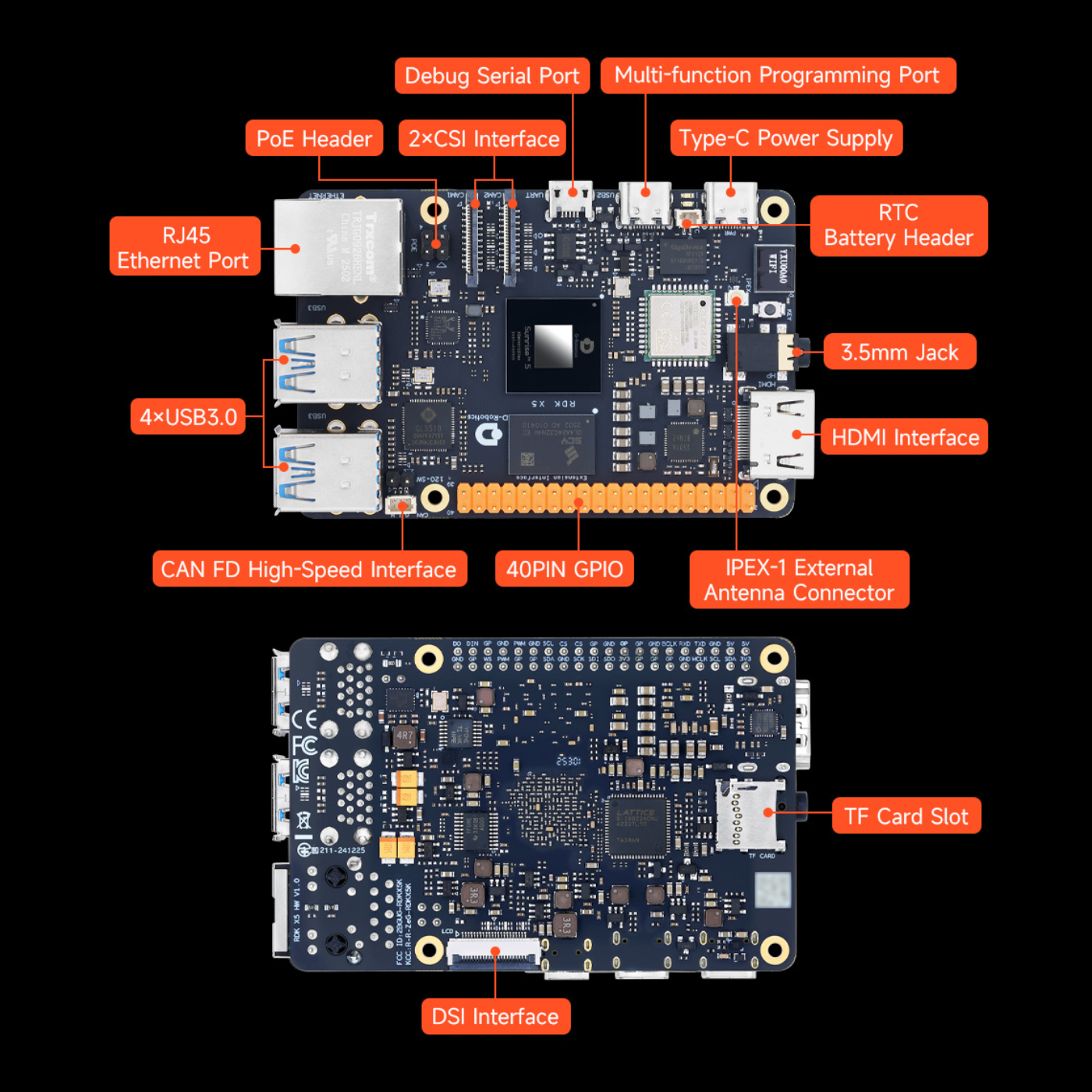

The board provides 4 × USB 3.0 Host Type-A, 1 × USB 2.0 Device Type-C, 1 × USB 2.0 UART Micro-B, 1 × CAN FD, and a 40-pin header with 28 GPIOs supporting SPI, I2C, I2S, PWM, and UART. For vision and display projects, it features 2 × 4-lane MIPI CSI interfaces, 1 × 4-lane MIPI DSI interface, and 1 × HDMI Type-A interface supporting up to 1080P/60fps. Networking includes 1000M Ethernet with PoE, 2.4/5GHz dual-band Wi-Fi 6, and Bluetooth 5.4.
The RDK X5 also includes 1G-bit NAND storage, a UHS-I TF card slot, a 3.5mm audio jack, and a 5V/5A Type-C power input. With dimensions of 85 × 56 × 20 mm and an operating temperature range of -20°C to 60°C, this RDK X5 development board is well suited for AI robotics, smart vision systems, autonomous machines, edge computing, and advanced embedded AI projects.
Features:
- 10 TOPS AI Performance powered by the Sunrise 5 BPU for fast edge AI processing.
- Octa-Core Cortex-A55 CPU delivers efficient performance for AI, robotics, and embedded applications.
- 8GB RAM supports demanding AI models, computer vision, and multitasking.
- Advanced AI Support for YOLO, Transformer, RWKV, CLIP, and other AI algorithms.
- Rich Connectivity with USB 3.0, Gigabit Ethernet, Wi-Fi 6, and Bluetooth 5.4.
- Multiple Camera & Display Interfaces including MIPI CSI, MIPI DSI, and HDMI.
- Extensive GPIO Expansion with a 40-pin header supporting SPI, I2C, I2S, PWM, and UART.
- Compact 85 × 56 × 20 mm Design makes it ideal for robotics, edge computing, and embedded AI
Package Includes:
- 1 x Waveshare RDK X5 Development Board 8GB RAM
Specifications:
| Specification | Details |
|---|---|
| CPU | Octa-core Cortex-A55 |
| BPU | 10 TOPS |
| RAM | 4GB / 8GB options |
| Storage | Onboard 1G-bit NAND; TF card slot, supports UHS-I mode |
| Connectivity | 4 × USB 3.0 Host Type-A; 1 × USB 2.0 Device Type-C; 1 × USB 2.0 UART Micro-B; 1 × CAN FD |
| GPIO | 40-pin header, 28 GPIOs, 3.3V logic level; supports SPI, I2C, I2S, PWM, UART, etc. |
| Display | 1 × 4-lane MIPI DSI, MIPI V1.2; 1 × HDMI Type-A, up to 1080P/60fps |
| Camera | 2 × 4-lane MIPI CSI, supports MIPI V2.1 |
| Audio | Onboard 3.5mm standard audio jack with input and output support |
| Network Communication | 1 × RJ45, supports 1000M Ethernet and PoE; 2.4/5GHz dual-band Wi-Fi 6; Bluetooth 5.4; onboard high-performance antenna and IPEX connector |
| Power | 5V/5A DC power input via Type-C connector; external 5V / 3.3V power supply on 40-pin header |
| Operating Temperature | -20°C to 60°C |

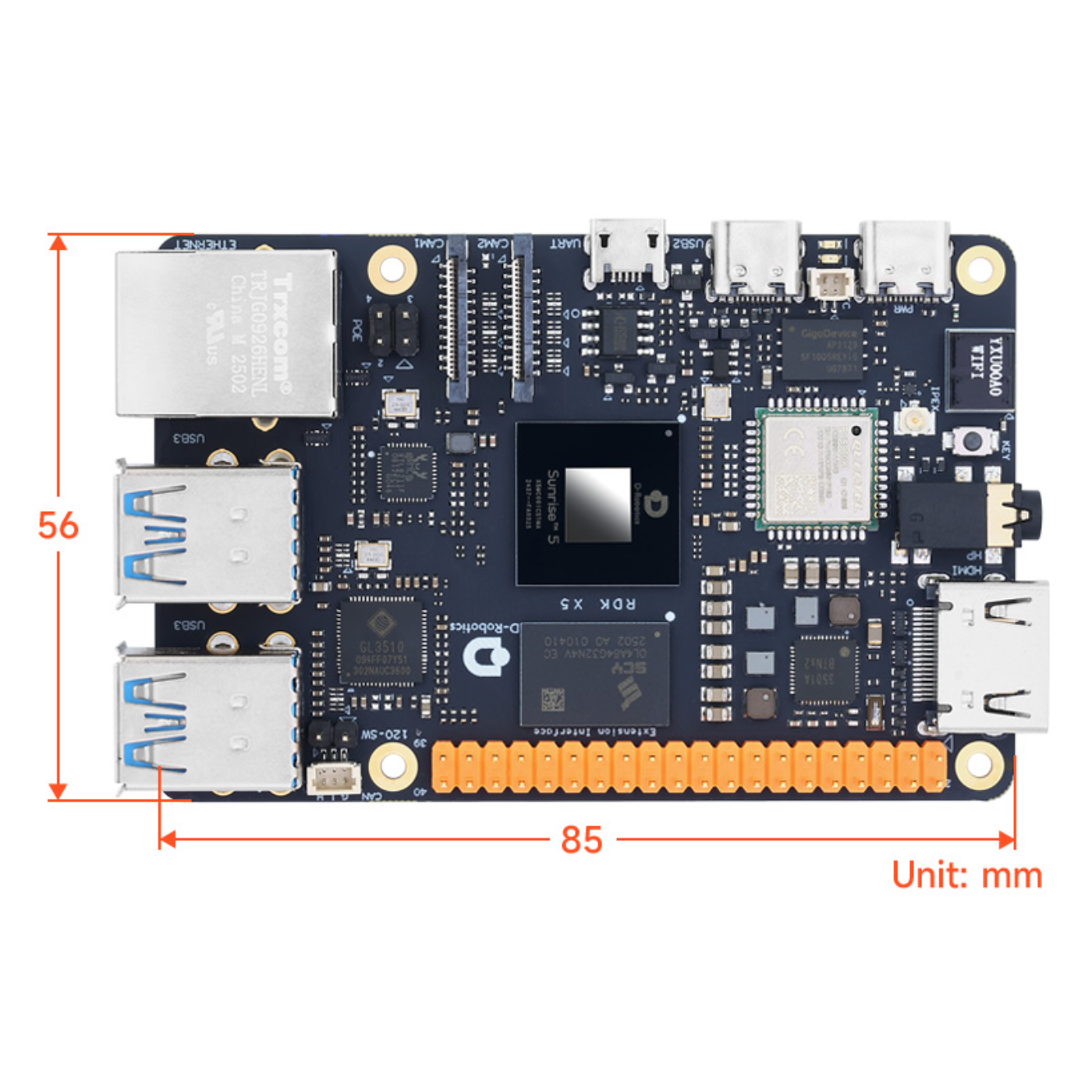

| Dimensions | 85 × 56 × 20 mm |
