Waveshare OV5693 5MP USB Camera (A) – 5MP M12 Camera Module with Auto Focus & Dual Microphones

Waveshare FREE SHIPPING BEST PRICE GUARANTEED

Waveshare OV5693 5MP USB Camera | M12 Auto Focus

Name: Waveshare OV5693 5MP USB Camera (A) – 5MP M12 Camera Module with Auto Focus & Dual Microphones
Brand: Robocraze
SKU: TIFDC0121
Price: 3849 INR
Availability: OutOfStock
Rating: 4.42 (12 reviews)

Waveshare OV5693 5MP USB Camera (A) – 5MP M12 Camera Module with Auto Focus & Dual Microphones

Rs 3,849/-

- 36%

Rs 3,849/-

~~Rs 5,974/-~~

Save Rs 2,125/-

🪙

RC REWARDS Earn 38 RC Coins on this order

Incl. GST (No Hidden Charges)

Please hurry! Only 0 left in stock

We’ll notify you once the product is back in stock.

Quantity:

Free Delivery Above ₹999

Technical Support & Easy Returns

Same-Day Shipping (Order by 3 PM on Business Days)

Earn RC Coins on Every Prepaid Order

COD Available on Order Value Between ₹500 to ₹3,000

SKU: TIFDC0121

5MP OV5693 sensor with a maximum still image resolution of 2592 × 1944.
USB 2.0 interface for easy connection to compatible computers and development boards.
Auto-focus M12 camera module with a 2.5 mm focal length and 135° diagonal FOV.
Supports MJPG and YUY2 image formats for flexible video capture.
Records MJPG video at up to 2592 × 1944 @ 15 FPS and 1920 × 1080 @ 15 FPS.
Features onboard dual microphones for capturing audio along with video.
Compact camera size of 18.00 × 18.00 × 19.69 mm and module size of 18.00 × 40.00 mm.
Operates at 5V ± 5% with a typical operating current of 500mA.
Compatible with Windows, Linux, and macOS, making it suitable for computer vision, Raspberry Pi, and DIY camera projects.

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here

First Name *

Last Name *

Email *

Phone *

+91

Company / Client

GST *

Materials List

File(s) size limit is 20MB. Max 3 files.

Choose Categories * (select one or more)

Select Categories

STEM Kits Development Boards Electronic Components Drone 3D Printers/Pens Sensors Batteries & Power Supply Tools & Instruments

Enter the Captcha *

Reload Captcha

Waveshare OV5693 5MP USB Camera (A) – 5MP M12 Camera Module with Auto Focus & Dual Microphones

~~Rs 5,974/-~~ Rs 3,849/-

Quantity:

Waveshare OV5693 5MP USB Camera (A) – 5MP M12 Camera Module with Auto Focus & Dual Microphones

~~Rs 5,974/-~~ Rs 3,849/-

Description
Specifications
Additional Resources
Warranty
Shipping & Return

Description

Waveshare OV5693 5MP USB Camera (A) – 5MP M12 Camera Module with Auto Focus & Dual Microphones

The Waveshare OV5693 5MP USB Camera (A) is a compact 5MP M12 USB camera module designed for applications that require high-resolution imaging, automatic focusing, and integrated audio capture. It uses the OV5693 sensor with a 1/4-inch sensor size, F/2.1 aperture, and 2.5 mm effective focal length, providing a wide 135° diagonal, 95° horizontal, and 70° vertical field of view.

The camera delivers still images up to 2592 × 1944 and supports MJPG and YUY2 video formats. For MJPG recording, it supports 2592 × 1944, 1920 × 1080, and 1280 × 720 at 15 FPS, while YUY2 supports 2592 × 1944 at 3 FPS, 1920 × 1080 at 5 FPS, 1280 × 720 at 10 FPS, and 640 × 480 at 15 FPS. Its auto-focus function helps maintain image clarity across changing subject distances, while the onboard dual microphones add convenient audio capture for multimedia and vision-based projects.

The module uses a USB 2.0 interface, operates from 5V ± 5%, draws 500mA, and measures 18.00 × 40.00 mm, making it a practical choice for Raspberry Pi camera projects, computer vision, robotics, AI vision applications, video conferencing, and DIY embedded camera systems.

Features:

5MP OV5693 sensor delivers high-resolution images up to 2592 × 1944.
Auto-focus M12 lens with a wide 135° diagonal FOV for clear, wide-area imaging.
Supports MJPG and YUY2 video formats with multiple resolution and FPS options.
Dual onboard microphones enable simultaneous video and audio capture.
USB 2.0 interface provides easy plug-and-play connectivity with compatible systems.
Compatible with Windows, Linux, and macOS for robotics, computer vision, and DIY projects.

Specifications

Package Includes:

1 x Waveshare OV5693 5MP USB Camera (A)

Specifications:

Specification	Details
Pixels	5MP
Sensor	OV5693
Interface	USB 2.0
Sensor Size	1/4 inch
Aperture (F)	F/2.1
Focal Length (EFL)	2.5 mm
Field of View (FOV)	135° (D), 95° (H), 70° (V)
Focusing	Auto Focus
Image Format Support	MJPG, YUY2
Static Image Resolution	2592 × 1944
Video Recording – MJPG	2592 × 1944 @ 15FPS 1920 × 1080 @ 15FPS 1280 × 720 @ 15FPS 640 × 480 @ 15FPS
Video Recording – YUY2	2592 × 1944 @ 3FPS 1920 × 1080 @ 5FPS 1280 × 720 @ 10FPS 640 × 480 @ 15FPS
Audio	Onboard Dual Microphones
Operating Voltage	5V ± 5%
Operating Current	500mA
Camera Size	18.00 × 18.00 × 19.69 mm

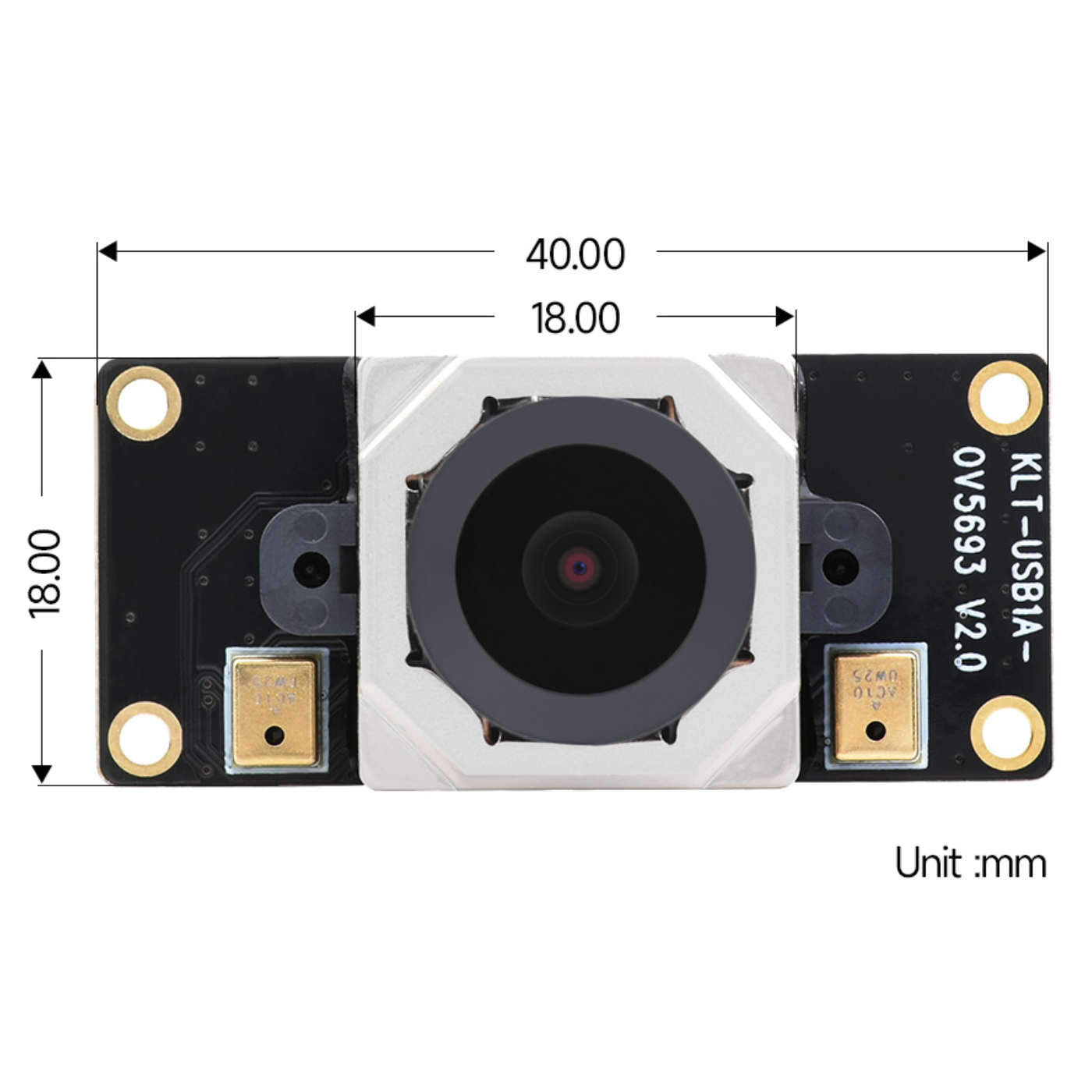

Module Size	18.00 × 40.00 mm
